Manufacturer: D-Link

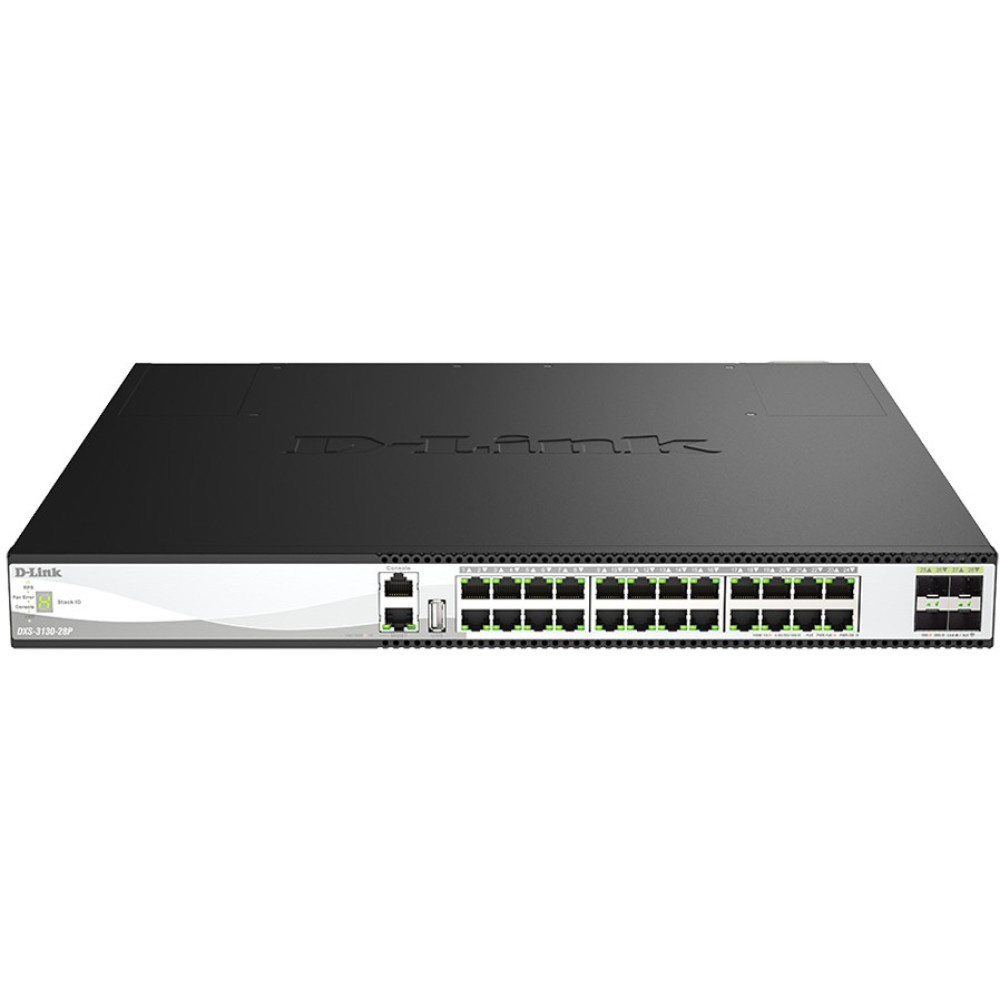

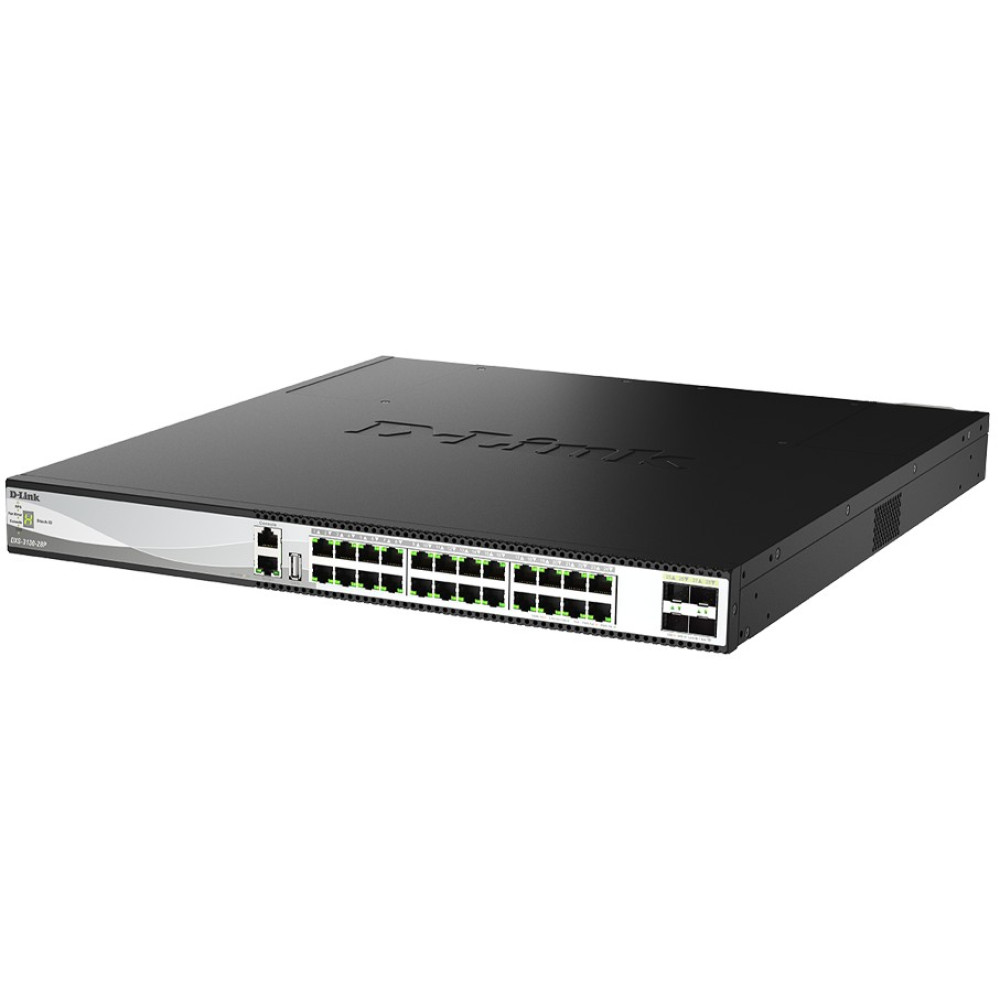

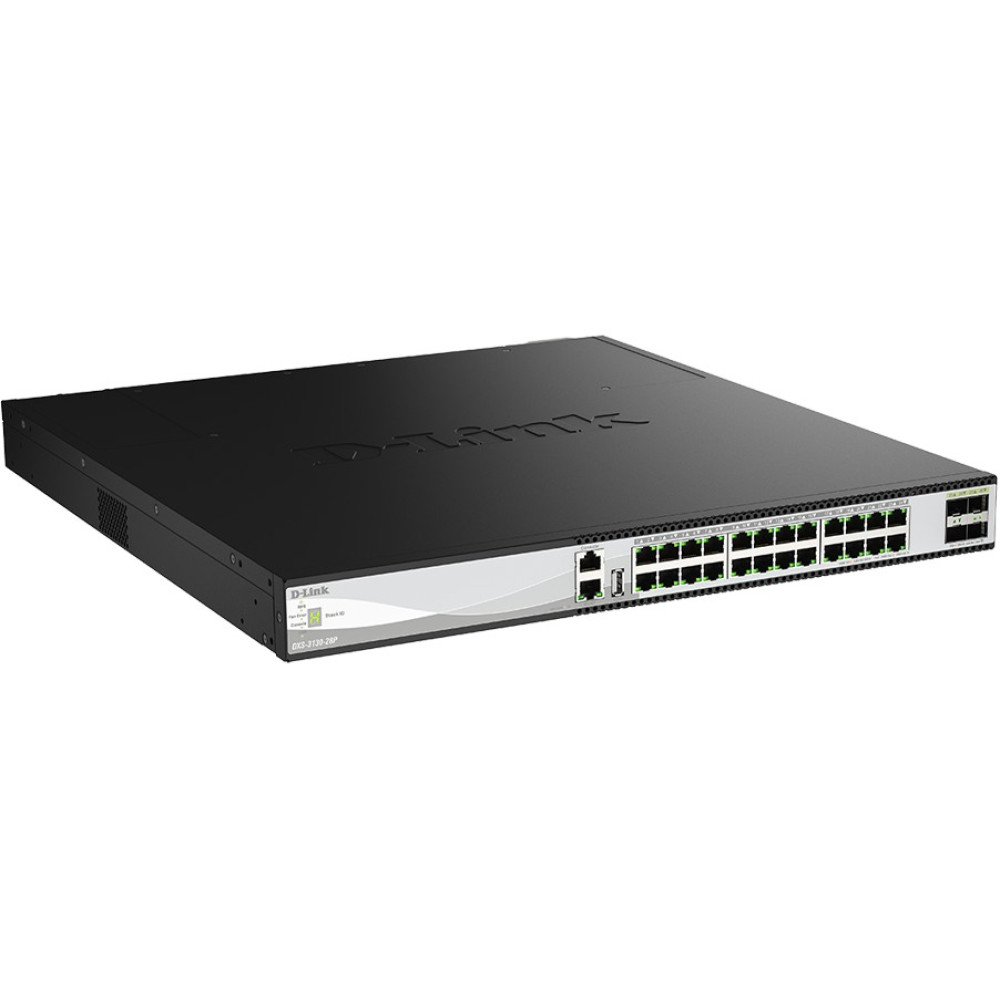

The DXS-3130-28P10G Layer 3 Stackable Aggregation Managed Switch is designed for secure connectivity in an enterprise or metro Ethernet access network and supports both multicasting and enhanced security, making it an ideal 10G/multi-Gigabit access layer solution. It features 24 10G/multi-Gigabit 802.3bt 60W PoE++ ports and 4 10/25G SFP28 ports, offering a versatile and high-speed networking connection. The DXS-3130-28P is equipped with 24 PoE ports, supporting 802.3af, 802.3at, and 802.3bt 60W PoE++ standards. It offers a default power budget of 790 watts, which can be expanded to 1440 watts with dual power supplies. Additionally, the switch features 4 10/25G SFP28 ports for enhanced speed and versatility. It also includes a USB 2.0 port, enabling direct booting of images and uploading of configuration files, as well as convenient storage of syslog files on a USB 2.0 device.

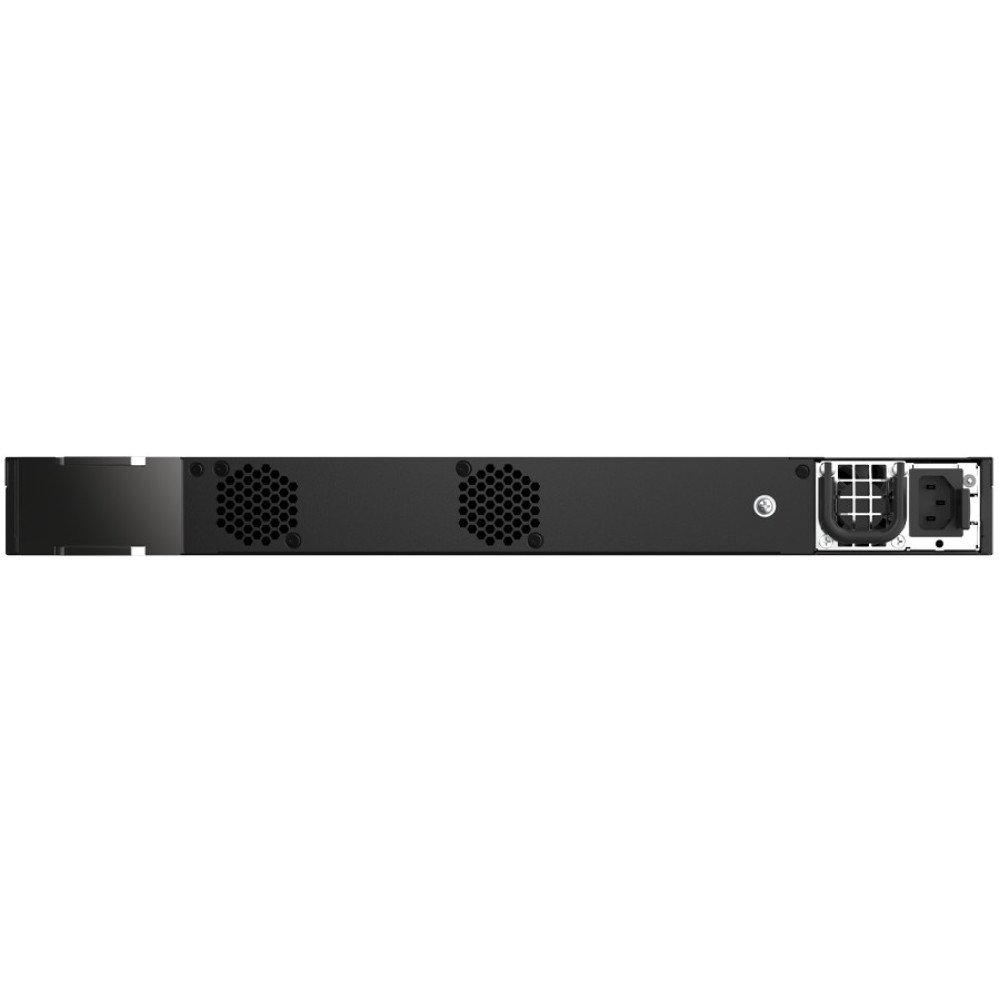

The DXS-3130-28P suppports hot-swappable internal redundant power supplies and incorporate essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. G.8032 Ethernet Ring Protection Switching (ERPS) minimizes recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DXS-3130-28P provides dynamic 802.3ad Link Aggregation Port Trunking.
The DXS-3130-28P provides users with the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.
This PoE switch has built-in internal fans which can automatically start working to prevent the device from overheating. The fan speed will be gradually adjustedbetween 5 levels of cooling according to the operating temperature of the switch. Administrators can also configure the operation state of internal fans through Web UI or command line interface (CLI). It also features built-in 6kV surge protection on all Ethernet access ports, and requires no external surge protection equipment. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. Built-in 6kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.
The DXS-3130-28P features Power over Ethernet, which allows PoE powered devices to be powered by the switch through a standard Ethernet cable. It supports the IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ standards, providing up to 60 W of power per port. PoE effectively reduces deployment time for PoE devices such as IP cameras, VoIP phones, and access points and eliminates the cost for additional electrical cabling.
The DXS-3130-28P allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be combined using DACs/Fibers to make up to 200 Gigabit transmission bandwidth, allowing switching capacity to be increased with demand.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 28 |
| Ethernet Ports | 24 x 100M/1G/2.5G/5G/10GBASE-T 60W PoE++ |
| Fiber Ports | 4 x 10/25G SFP28 |
| MAC Table Size | 32K |
| Power | |
| Power Consumption | PoE On: w/ dual CRPS: 1782.37 W (AC CRPS x 2), w/ single CRPS: 1008.1 W (AC CRPS x 1); PoE Off : 95.9W |
| Input Voltage | 100 to 240 VAC, 50 to 60 Hz |
| Mechanical | |
| Mounting | Rack mountable |
| Cooling | 2 Smart fans |
| Weight | 6.48 kg (14.29 lbs.) |
| Dimensions | 440 x 470 x 44 mm (17.32 x 18.50 x 1.73 in) |
| Ratings | |
| Operating Temperature | 0 to 50 ˚C (32 to 122 °F) |
| Storage Temperature | -40 to 70 ˚C (-40 to 158 °F) |
| Humidity | 10% to 90% non-condensing |
| Certifications | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Safety Standards | CB, cUL, BSMI |
| MTBF | 286,495.20 hours |
| Download Name | File Size |
| D-Link DXS-3130 Series User Manual | 17.24MB |
| D-Link DXS-3130-28P Datasheet | 235.75KB |
