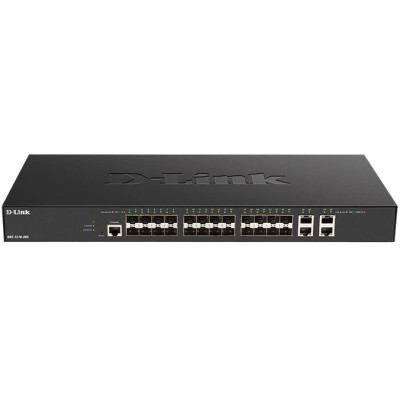

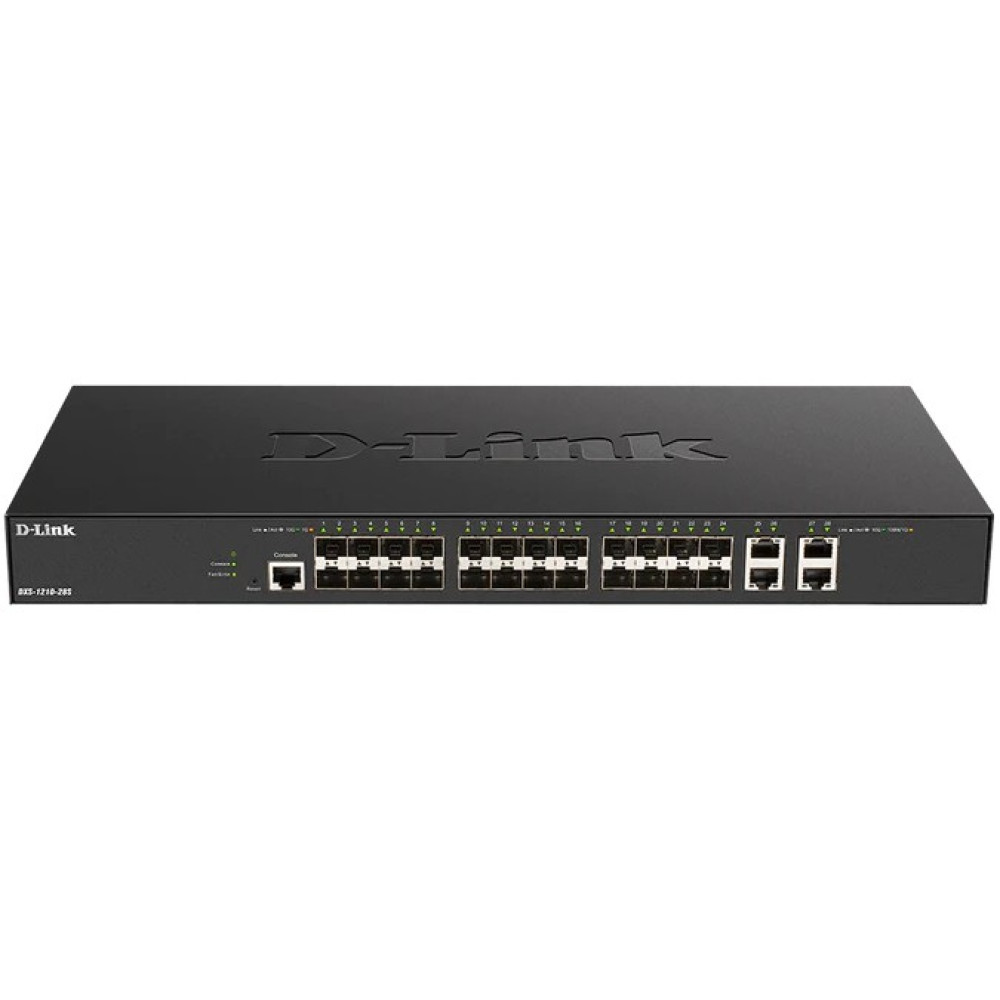

D-Link DXS-1210-28S 28-Port Smart Managed Switch, 24 10G SFP+ and 4 10G Ports

D-Link DXS-1210-28S 10G Layer 2/Layer3 Smart Managed Switch, 24 10G SFP+ & 4 10G Ports, RJ-45 Console Port

The DXS-1210-28S is a high-port 10G switch perfect for an SMB core switch or an Enterprise aggregation switch. The managed switch features twenty-four 1G/10G SFP+ ports and four 10G BASE-T ports. With high performance and low latency, this smart managed switch fulfills the needs of virtualization, cloud services, and server-to-server applications.

The DXS-1210-28S comes with a complete lineup of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance.

The DXS-12128S supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a single DXS-1210-28S switch, sparing businesses the expense of dedicated hardware and facilities. ASV also ensures quality real-time video monitoring and control without compromising the transmission of conventional network data. Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from IP phones to a designated VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. The Differentiated Service Code Point (DSCP) markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that require higher priority or more bandwidth.

The DXS-1210-28S comes with the D-Link Network Assistant (DNA) utility that simplifies the configuration of devices that support the D-Link Discovery Protocol. The D-Link Network Assistant utility easily allows customers to discover multiple D-Link Smart Managed Switches within the same L2 network segment and displays them on screen for instant access. With this utility, users do not need to change the IP address of their PC. This utility further allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The DXS-1210-28S also supports a comprehensive 10 language multi-lingual web UI, a full command line interface (CLI) through Telnet, a console port, as well as D-View 7; a network management system (NMS) that allows central management of critical network characteristics such as availability, reliability, resilience, and security.

D-Link’s innovative Safeguard Engine helps protect the switches against traffic flooding caused by malicious attacks. The DXS-1210-28S supports 802.1X port-based and host-based authentication, allowing the network to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DXS-1210-28S also features Address Resolution Protocol (ARP) spoofing prevention, which helps protect from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To help prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to help prevent them from being assigned an IP address.

It is NDAA Compliant and backed by a Lifetime Warranty.

Key Features

• 24 1G/10G SFP+ ports
• 4 100/1000/2.5G/5G/10G BASE-T ports
• Robust L2 and L3 Lite features
• 2 smart fans
• D-Link Network Assistant utility or Web-based GUI
• Full CLI through console and Telnet
• Auto Surveillance VLAN, Auto voice VLAN
• Green Technology power saving features
• 560 Gbps switching capacity
• 87.7 W max power consumption
