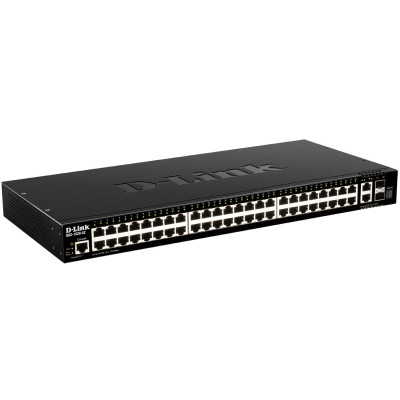

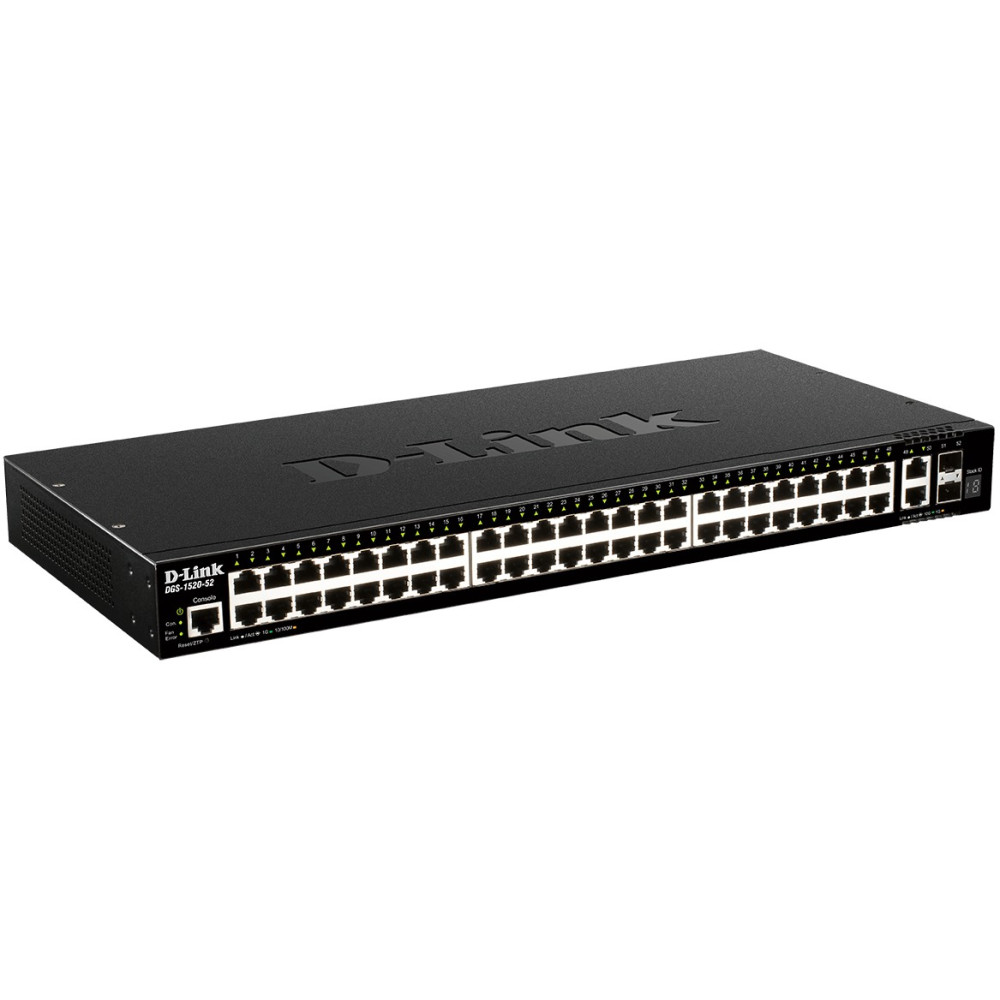

The DGS-1520-52 is a Layer 3 stackable smart managed switch designed for high-performance networks, featuring 48 Gigabit Ethernet ports and four 10 Gigabit ports for uplinks or stacking. It supports advanced Layer 3 features and Zero Touch Provisioning for easier deployment. The switch offers flexible stacking and can be integrated into a larger network infrastructure with features like dynamic routing and power redundancy options.
D-Link’s DGS-1520-52 Smart L3 Managed Gigabit Switch provides a cost-efficient and flexible solution for expanding any business network. Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 52 |
| Ethernet Ports | 48 Gigabit PoE (10/100/1000 Mbps), 2 10GBase-T |
| Fiber Ports | 2 10G SFP+ |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3af/at, IEEE 802.3bz |
| MAC Table Size | 16K |
| Power | |
| Power Consumption | 51.2 W |
| Input Connection | 100 to 240 VAC |
| Mechanical | |
| Mounting | 1U Rack mount |
| LED Indicators | Power/Stacking ID/Fan, Link/Activity/Speed per port |
| Weight | 2.78 kg (6.13 lbs) |
| Dimensions | 441 x 207.4 x 44 mm (17.36 x 8.17 x 1.73 in) |
| Ratings | |
| Operating Temperature | -5 - 50°C (23 - 122 °F) |
| Storage Temperature | -40 - 70°C (-40 - 158 °F) |
| Humidity | 10% to 95% non-condensing |
| Certifications | CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A |
| MTBF | 364,888 hours |
| Download Name | File Size |
| D-Link DGS-1520 Series Datasheet | 819.43KB |
| D-Link DGS-1520 Series Installation Guide | 6.28MB |
