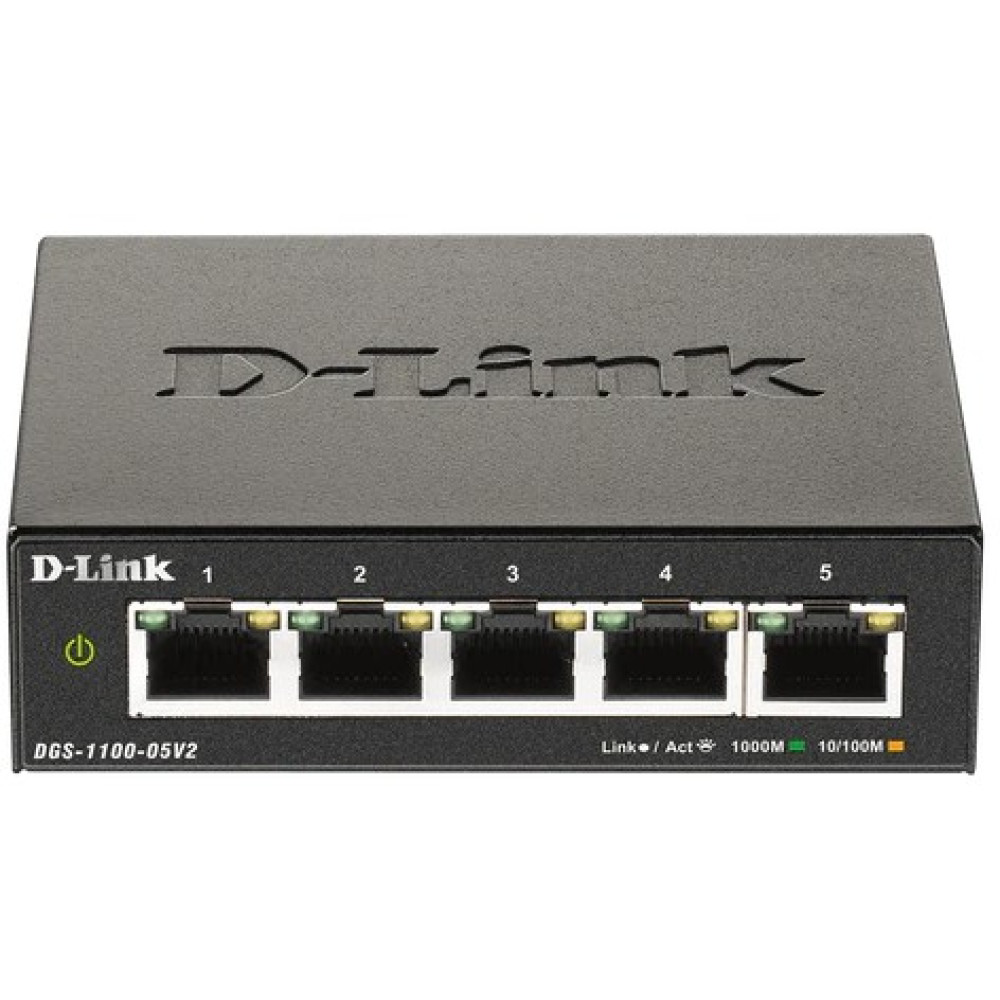

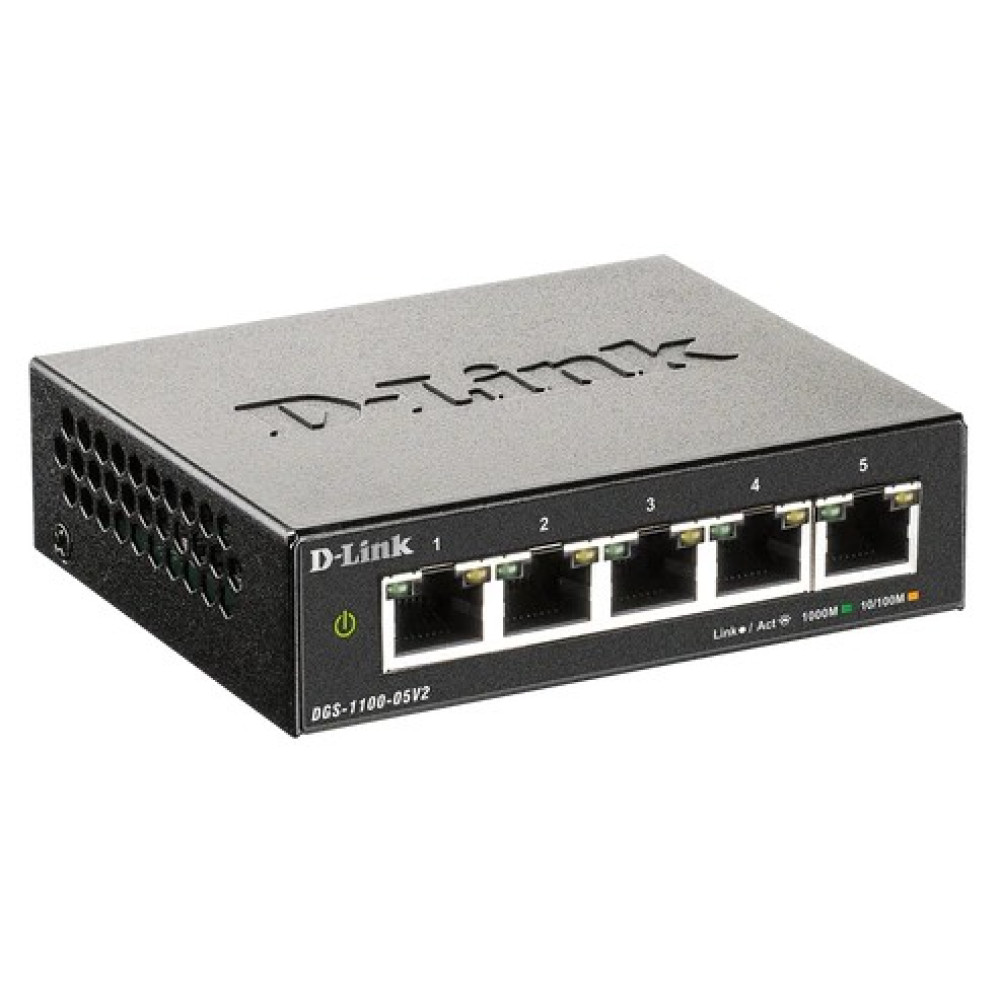

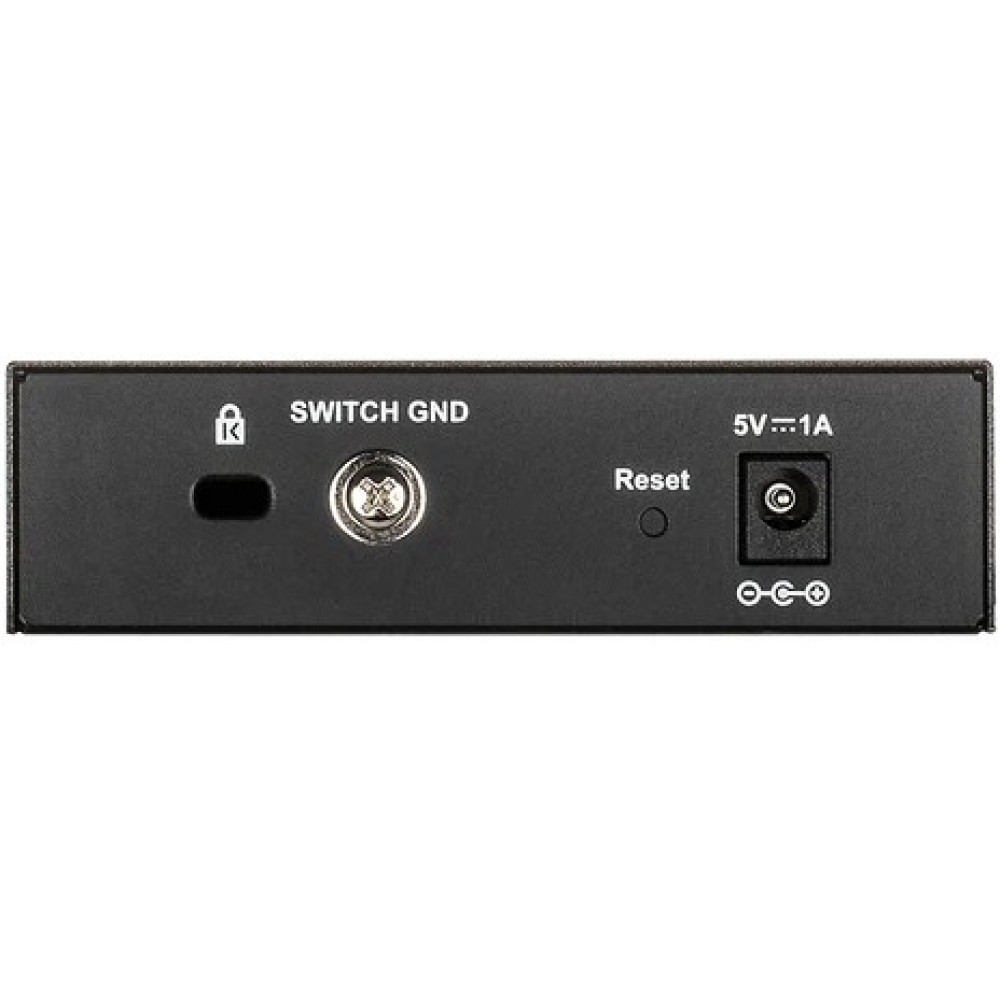

D-Link DGS-1100-05V2 5-Port Gigabit Smart Web Managed Switch

New D-Link DGS-1100-05V2 5-Port Managed Gigabit Ethernet Switch, fanless, desktop
Model: DGS-1100-05V2
Availability: Normally in Stock
Standard Shipping & Handling
Qty: Add to Cart

D-Link DGS-1100-05V2 5-Port Fanless Gigabit Switch, 10Gbps Switching Capacity, Desktop

The DGS-1100-05V2 switch is engineered to meet the demands of SMBs, offering a comprehensive suite of features designed for high performance, reliable connectivity, and efficient network management. With 5 Gigabit Ethernet ports, this switch is built to support a wide range of business applications, from surveillance systems to VoIP solutions, ensuring your network remains powerful and flexible. The DGS-1100-05V2 is compact and operates silently, making it ideal for virtually any room or office.

With bandwidth control, QoS, and VLAN support, this switch prioritizes critical applications like VoIP and video conferencing. It ensures smooth, uninterrupted communication, making it great for businesses relying on clear, lag-free calls and meetings. Featuring an intuitive web-based interface, the DGS-1100-05V2 switch allows for easy setup and management, making network administration a breeze.

The DGS-1100-05V2 is packed with environmentally and budget friendly technologies. IEEE 802.3az support automatically detects port status, lowering power to those that are unused or have no traffic passing through. The fanless design allows energy-efficient operation, with the added benefit of being silent.

Key Features

  • 5 Gigabit ports
  • Web-based management interface
  • Link status detection
  • Provides bandwidth control, QoS, VLAN, and IGMP Snooping
  • 10Gbps switching capacity
  • Compact fanless design
  • Desktop

Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.

Technology
CategoryEthernet Switch
Total Ports5
Ethernet Ports5 Gigabit ports
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Jumbo Frame Support9216 bytes
MAC Table Size2 K
Power
Power Consumption3.42 W
Input Connection110 - 240V AC, 50/60Hz, external power adapter
Mechanical
MountingDesktop
Weight0.23 kg (0.51 lbs.)
Dimensions100.5 x 82 x 28 mm (3.6 x 3.3 x 1.1 in)
Ratings
Operating Temperature0 - 40°C (32 - 104°F)
Humidity90% non-condensing
RoHS CompliantYes
CertificationsFCC Class B, CE Class B, VCCI Class B, BSMI
Safety StandardscUL, CE LVD, CB, BSMI
MTBF1,562,055 hours
Download NameFile Size
D-Link DGS-1100-05V2 Datasheet448.92KB
