Manufacturer: D-Link

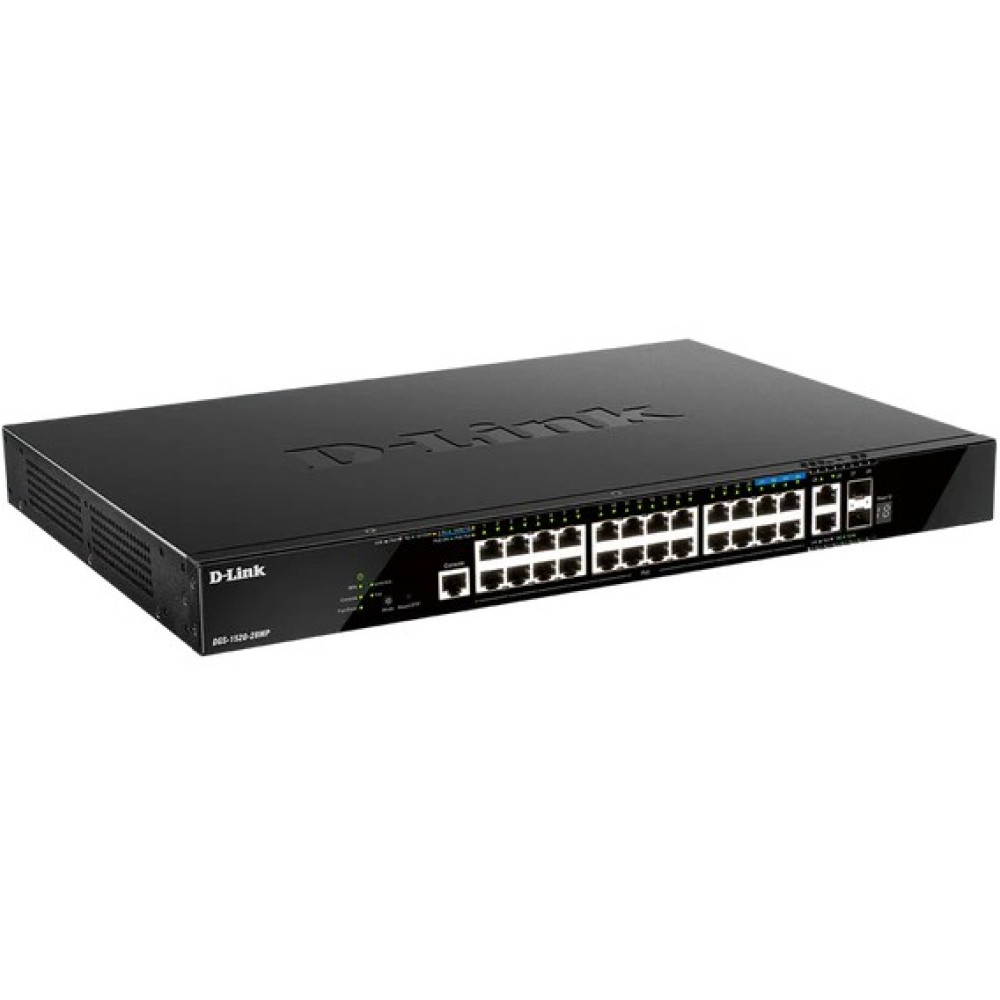

The DGS-1520-28MP Smart Managed Switch brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. This high-performance stackable switch allows businesses to maximize productivity and uptime with a highly expandable and resilient network. Multi-Gigabit 2.5G ports on the DGS-1520-28MP PoE switch eliminates potential bottlenecks when connecting to Wi-Fi 6 access points capable of Gigabit+ wireless speeds.
It delivers a 370W High PoE budget, perfect for connecting and powering a broad range of devices including IP cameras, Wi-Fi access points, smart lighting, access control, and VoIP phones. Advanced software features such as selective Q-in-Q, VRRP, RIP and OSPF allows businesses to adapt to changes in their network. For those with expanding network requirements and bandwidth demands, the DGS-1520-28MP is a highly cost-effective upgrade option to add 10 Gigabit connectivity to the network infrastructure.
D-Link’s DGS-1520-28MP Smart L3 Managed Gigabit Switch provides a cost-efficient and flexible solution for expanding any business network. Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 28 |
| Ethernet Ports | 20 Gigabit PoE (10/100/1000 Mbps), 4 2.5GBase-T PoE, 2 10GBase-T |
| Fiber Ports | 2 10G SFP+ |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ae, IEEE 802.3af/at, IEEE 802.3bz |
| MAC Table Size | 16K |
| Power | |
| Power Consumption | 453.3 W (PoE on), 45.2 W (PoE off) |
| Input Connection | 100 to 240 VAC |
| Mechanical | |
| Mounting | 1U Rack mount |
| LED Indicators | Power/Stacking ID/Fan, Link/Activity/Speed per port |
| Weight | 4.29 kg (9.46 lbs) |
| Dimensions | 441 x 308.5 x 44 mm (17.36 x 12.15 x 1.73 in) |
| Ratings | |
| Operating Temperature | -5 - 50°C (23 - 122 °F) |
| Storage Temperature | -40 - 70°C (-40 - 158 °F) |
| Humidity | 10% to 95% non-condensing |
| Certifications | CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A |
| MTBF | 333,946 hours |
| Download Name | File Size |
| D-Link DGS-1520 Series Datasheet | 819.43KB |
| D-Link DGS-1520 Series Installation Guide | 6.28MB |
