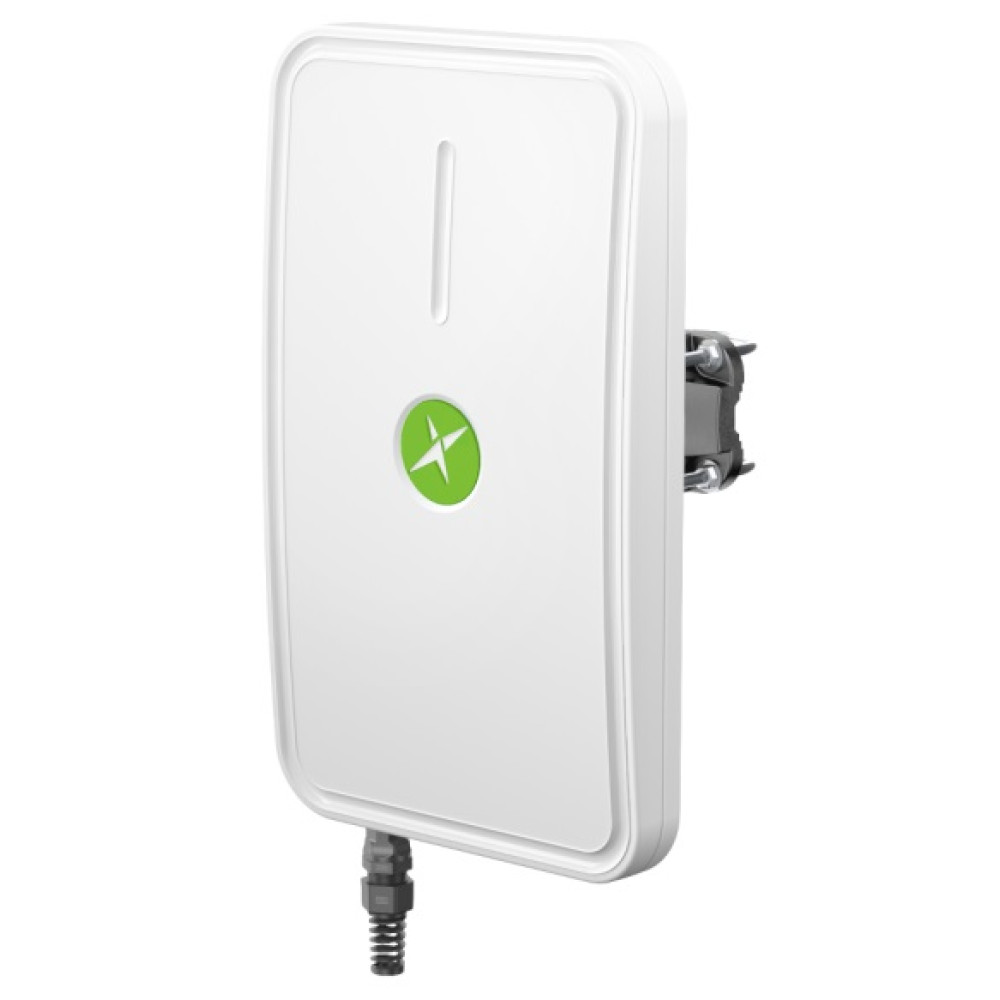

Taoglas THOR19 (Thunder) Integrated 5G Omnidirectional Antenna for the R1900

Taoglas THOR19 8:1 All-in-One Antenna and Router Enclosure for the R1900 by Ericsson Cradlepoint

The Taoglas THOR19 (Thunder Series) Integrated Omnidirectional antenna for the Ericsson Cradlepoint R1900 router is a perfect outdoor device for mobile and fixed installations like industrial, public, CCTV, hotspots, yachts, boats, campers, and RVs. It has embedded omnidirectional 5G, Wi-Fi, Bluetooth, and GNSS antennas. If you use the Ericsson R1900 router with the THOR19 Thunder Integrated omnidirectional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure. The all-in-one design combines antennas and router reducing setup time, cabling, and potential failure points. It is the perfect choice for fixed installations in an industrial environment.

Common Applications for the THOR19 include:

• Critical Communications and Public Safety
• Transportation & Fleet Management
• Industrial and Rugged Environments
• Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR19 is a fantastic solution for 5G, Wi-Fi, Bluetooth, and GNSS applications.

This enclosure is also available as a Directional antenna. See the THDR19.

Key Features

• Integrated 5G/LTE Omnidirectional Antenna

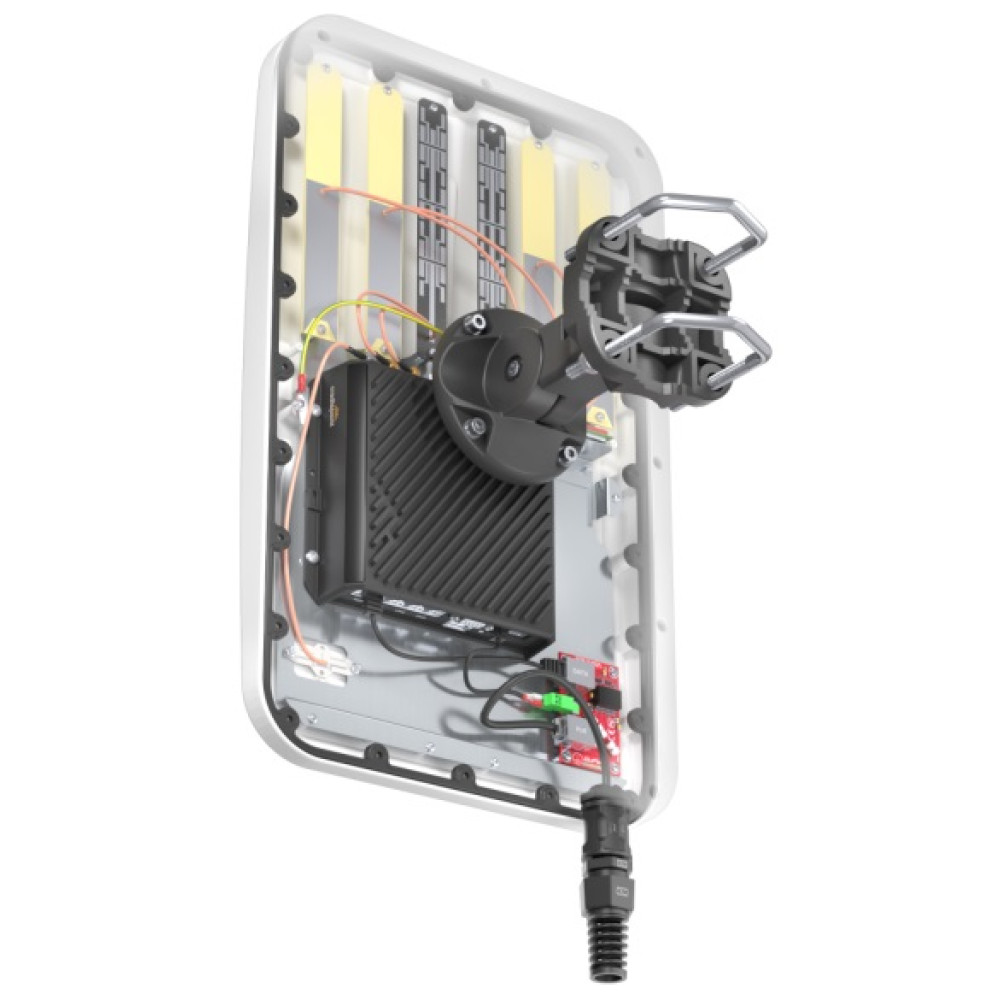

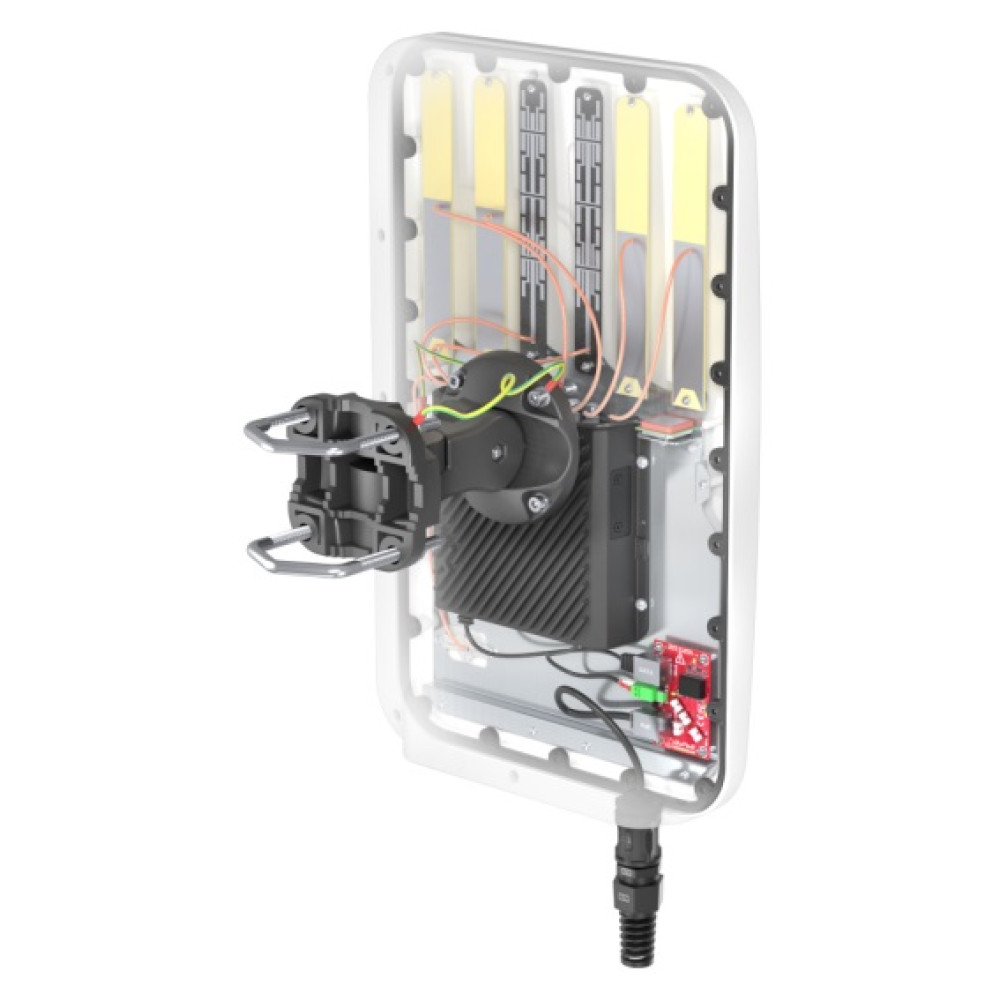

• Cavity to install the Ericsson Cradlepoint R1900 Router
• Multi-band 5G, Wi-Fi, Bluetooth, and GNSS, covering 600-7125 MHz

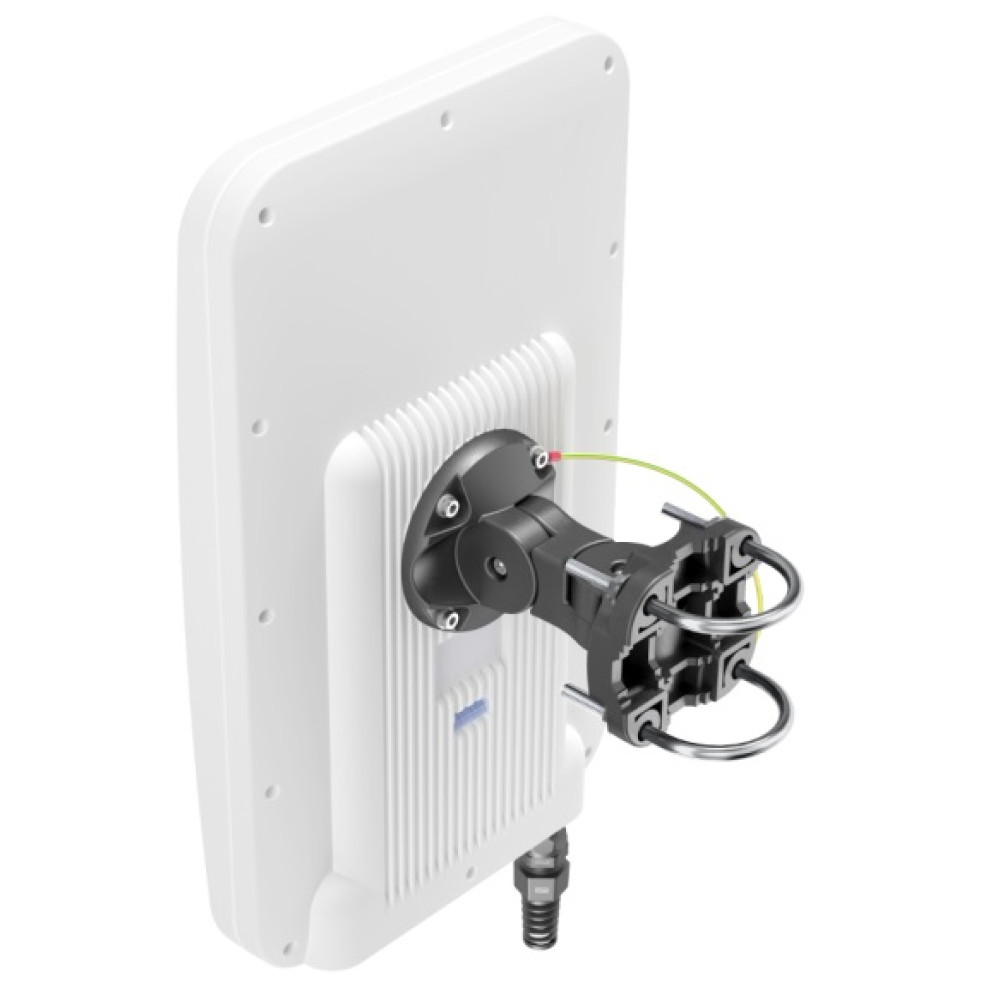

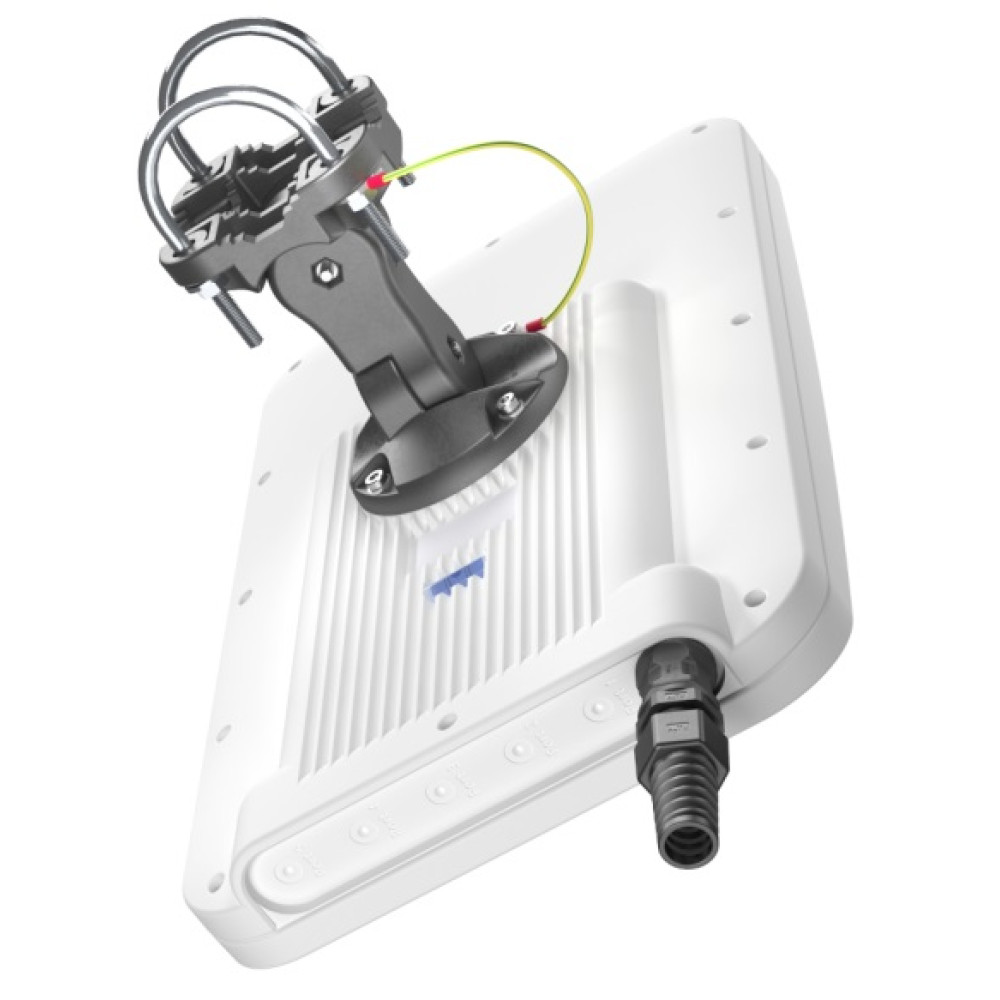

• Wall or Pole mount
• IP67 rated waterproof enclosure
• Connector: RJ45
• Dimensions: 290 x 480 x 76 mm
• RoHS and Reach Compliant

Whether you’re operating in urban centers or off-the-grid locations, the Thunder THOR19 ensures consistent, high-speed connectivity for mission-critical applications. To understand its full potential, our sales team is standing by to help you with your wireless needs! Contact us at Westward Sales today.
