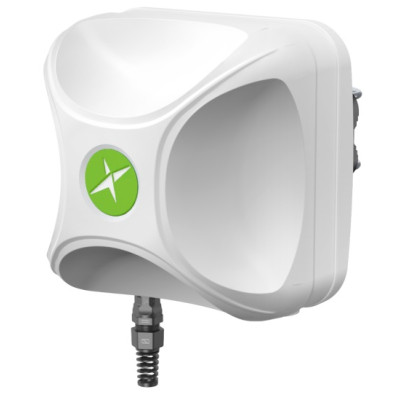

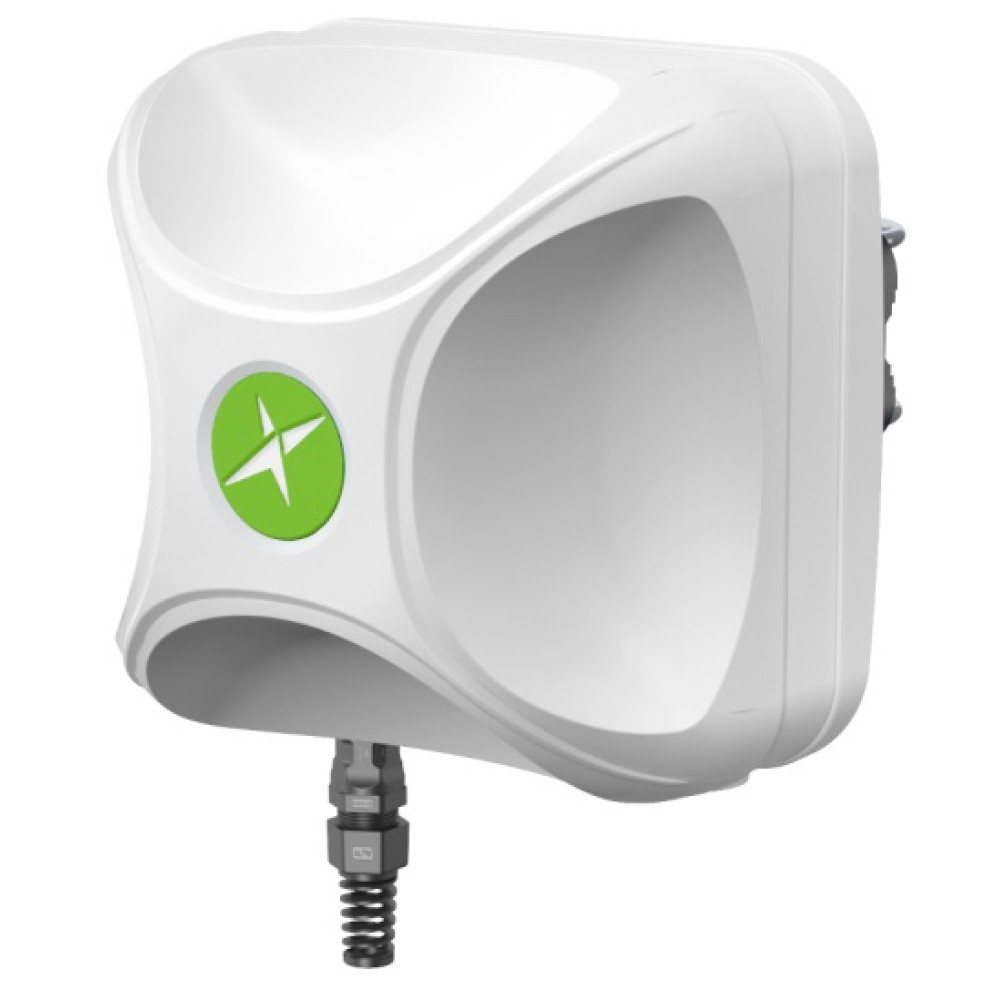

Taoglas THDR92 (Thunder) Integrated 5G Directional Antenna for the R920

Taoglas THDR92 6:1 All-in-One Antenna and Router Enclosure for the R920 by Ericsson Cradlepoint

The Taoglas THDR92 (Thunder Series) Integrated Directional antenna for the Ericsson Cradlepoint R920 router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded omnidirectional 5G, Wi-Fi, Bluetooth, and GNSS antennas. If you use the Ericsson R920 router with the THDR92 Thunder Integrated directional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure. The all-in-one design combines antennas and router reducing setup time, cabling, and potential failure points. It is the perfect choice for fixed installations in an industrial environment.

Common Applications for the THDR92 include:

• Critical Communications and Public Safety
• Transportation & Fleet Management
• Industrial and Rugged Environments
• Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THDR92 is a fantastic solution for 5G, Wi-Fi, Bluetooth, and GNSS applications.

This enclosure is also available as an Omnidirectional antenna. See the THOR92.

Key Features

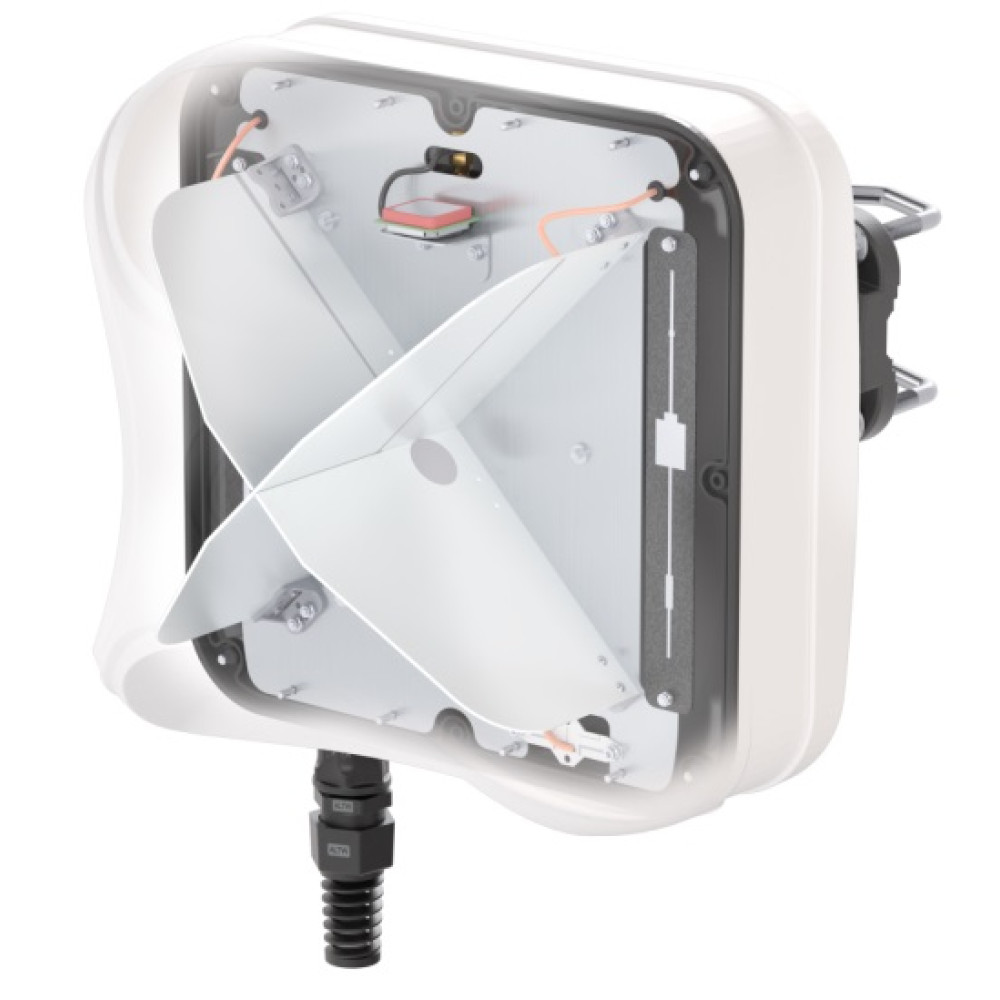

• Integrated 5G/LTE Directional Antenna

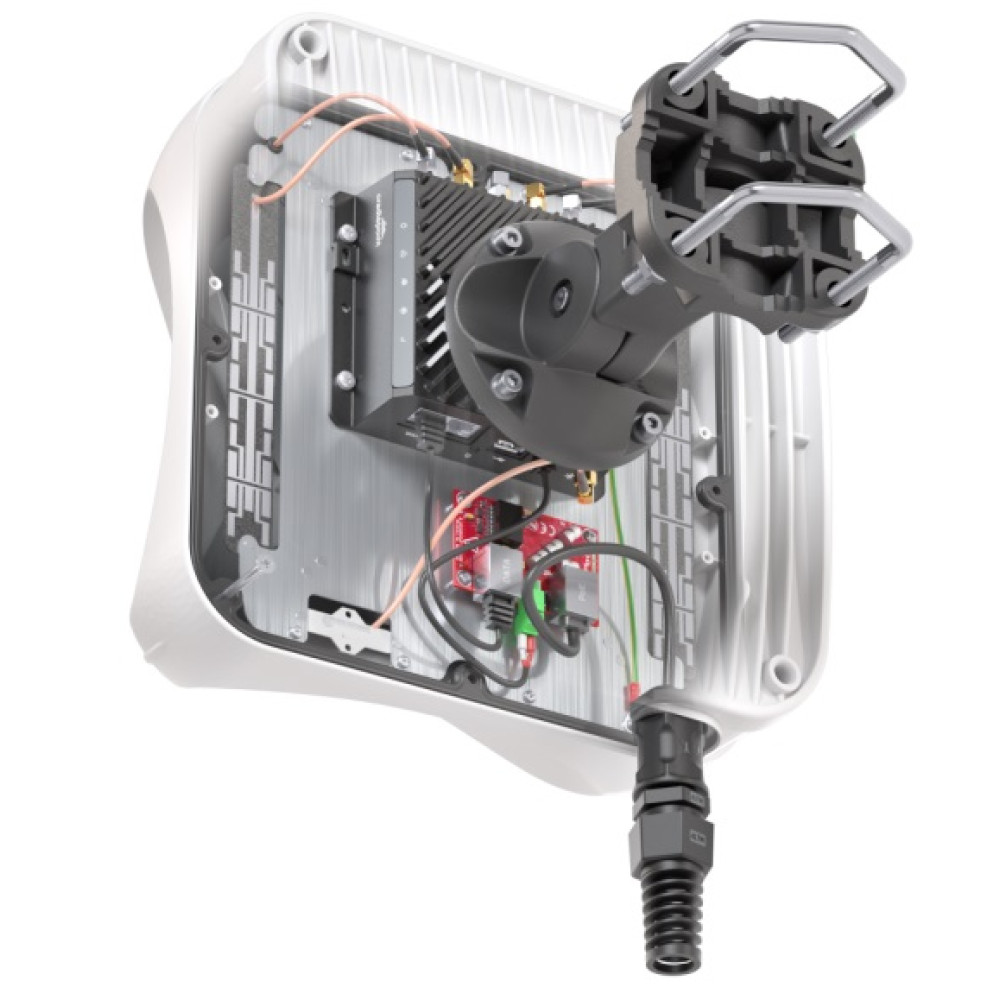

• Cavity to install the Ericsson Cradlepoint R920 Router
• Multi-band 5G, Wi-Fi, and GNSS, covering 600-7125 MHz
• Bluetooth Antenna

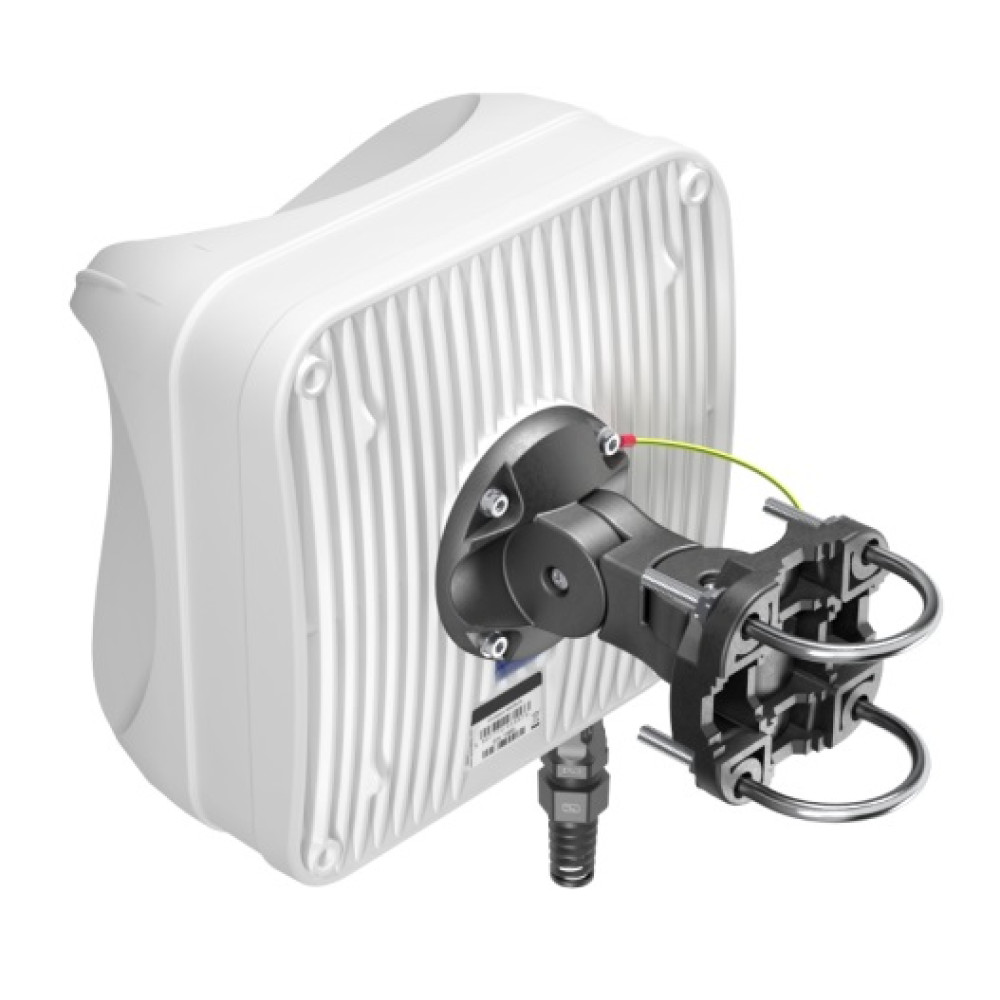

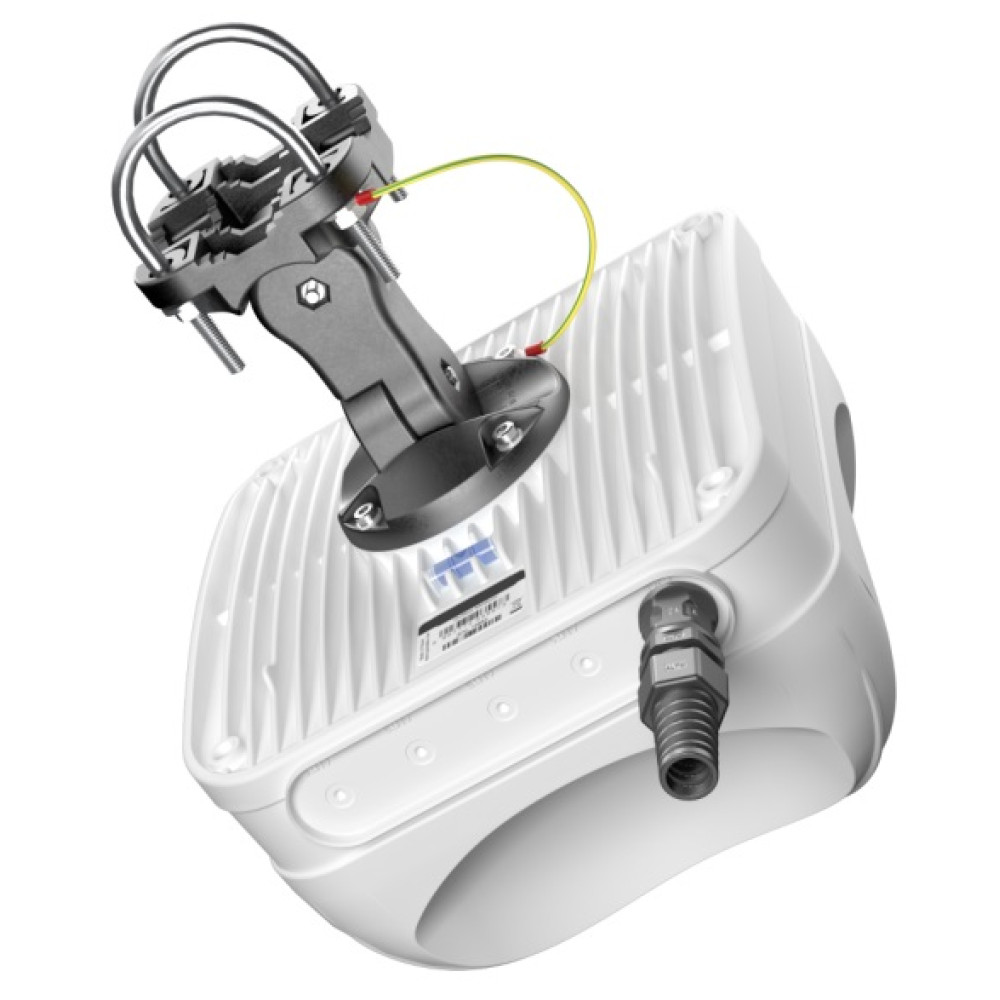

• Wall or Pole mount
• IP67 rated waterproof enclosure
• Connector: RJ45
• Dimensions: 269 x 270 x 177 mm
• RoHS and Reach Compliant

Whether you’re operating in urban centers or off-the-grid locations, the Thunder THDR92 ensures consistent, high-speed connectivity for mission-critical applications. To understand its full potential, our sales team is standing by to help you with your wireless needs! Contact us at Westward Sales today.
