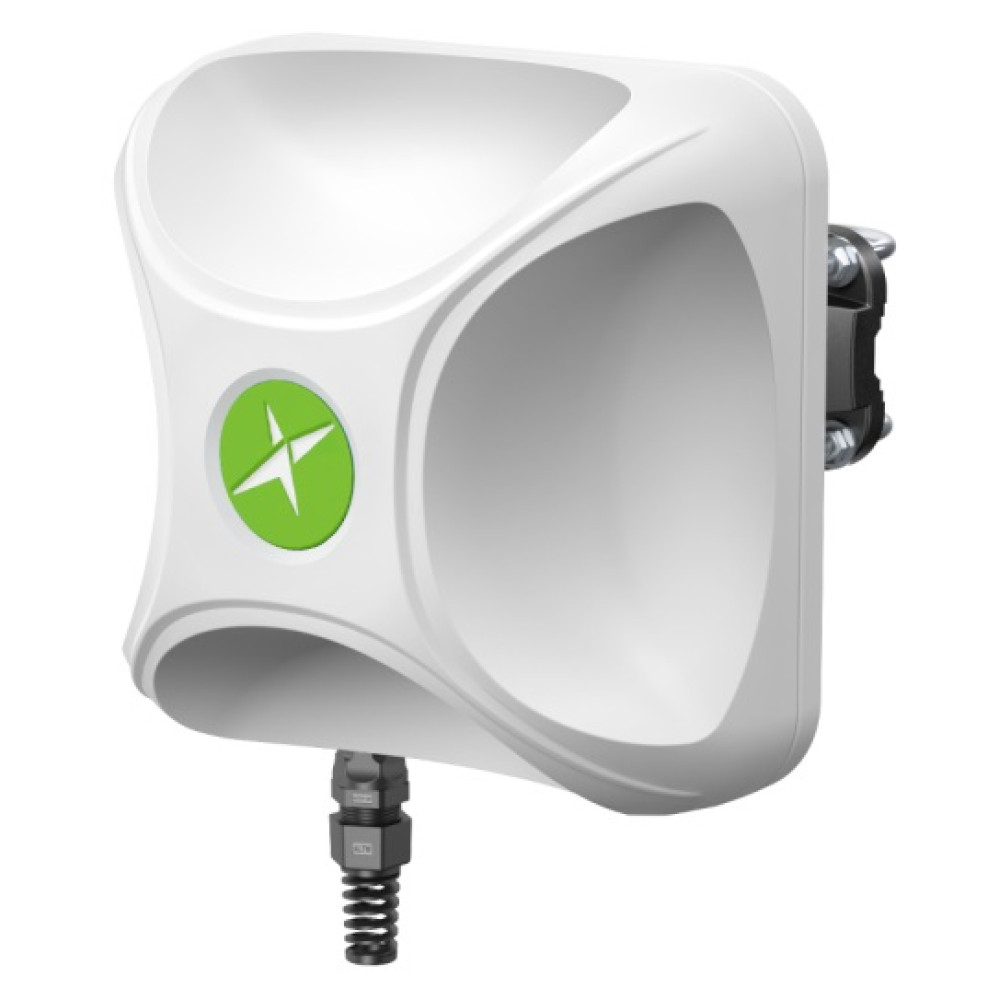

Taoglas THDR40 (Thunder) Integrated 5G/LTE Directional Antenna for Ericsson S400

Taoglas THDR40 3:1 All-in-One Antenna and Router Enclosure for the S400 by Ericsson Cradlepoint

The Taoglas THDR40 (Thunder Series) Integrated Directional antenna for the Ericsson Cradlepoint S400 router is a perfect outdoor device for improving the signal in rural/suburban and locations where the mobile signal is weak. It has embedded directional 5G and Wi-Fi antennas. If you use the Ericsson S400 router with the THDR40 Thunder Integrated Directional antenna, you get a complete integrated solution with embedded router and multi-band antennas in one enclosure. The all-in-one design combines antennas and router reducing setup time, cabling, and potential failure points. It is the perfect choice for fixed installations in an industrial environment.

Common Applications for the THDR40 include:

• Critical Communications and Public Safety
• Transportation & Fleet Management
• Industrial and Rugged Environments
• Enterprise & IoT Deployments

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THDR40 is a fantastic solution for 5G and WiFi applications.

This enclosure is also available as an Omnidirectional antenna. See the THOR40.

Key Features

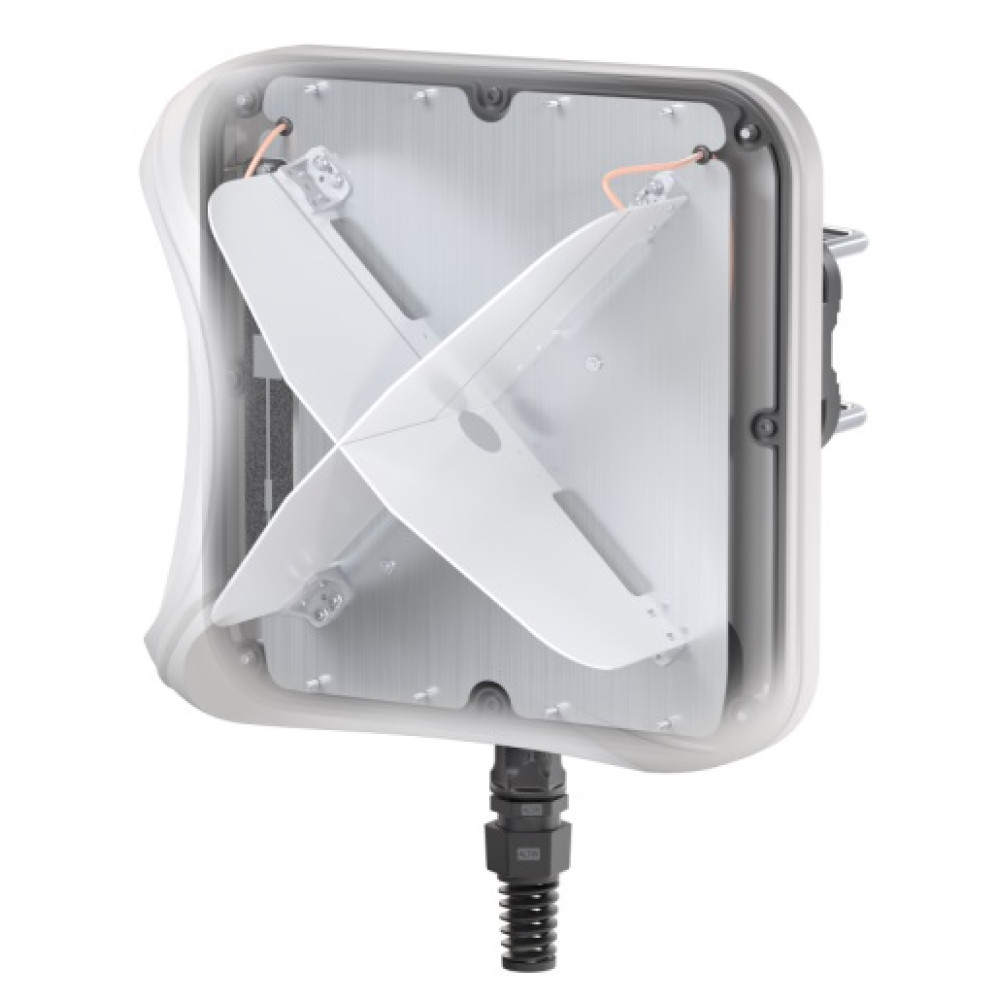

• Integrated 5G/LTE Directional Antenna

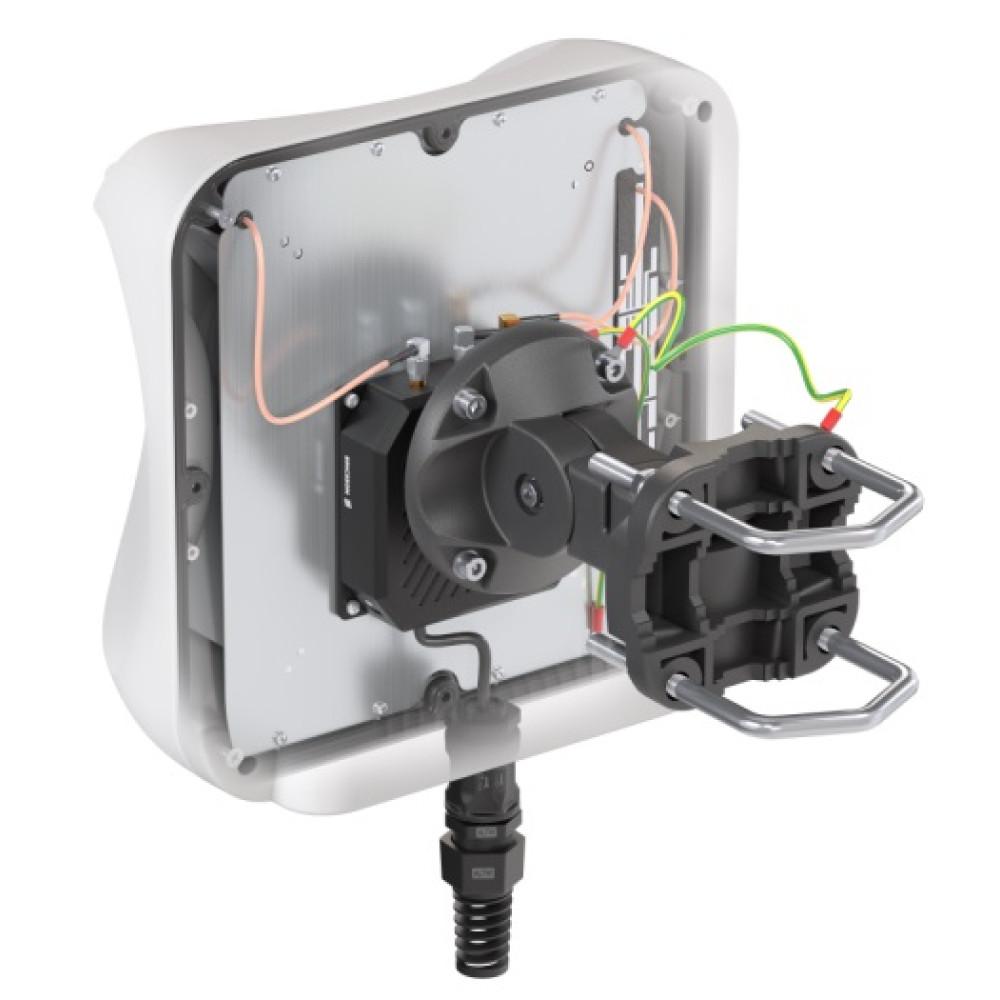

• Cavity to install the Ericsson Cradlepoint S400 Router
• Multi-band 5G and Wi-Fi covering 600-7125 MHz

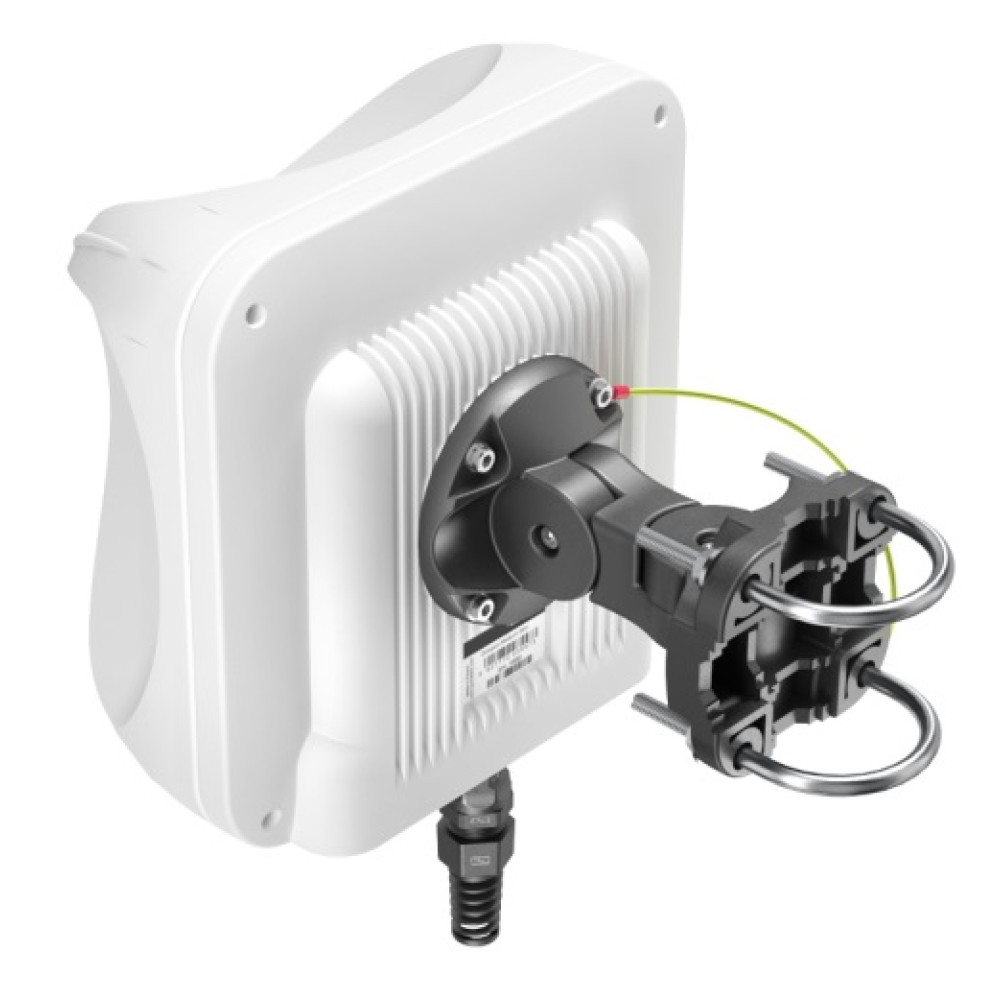

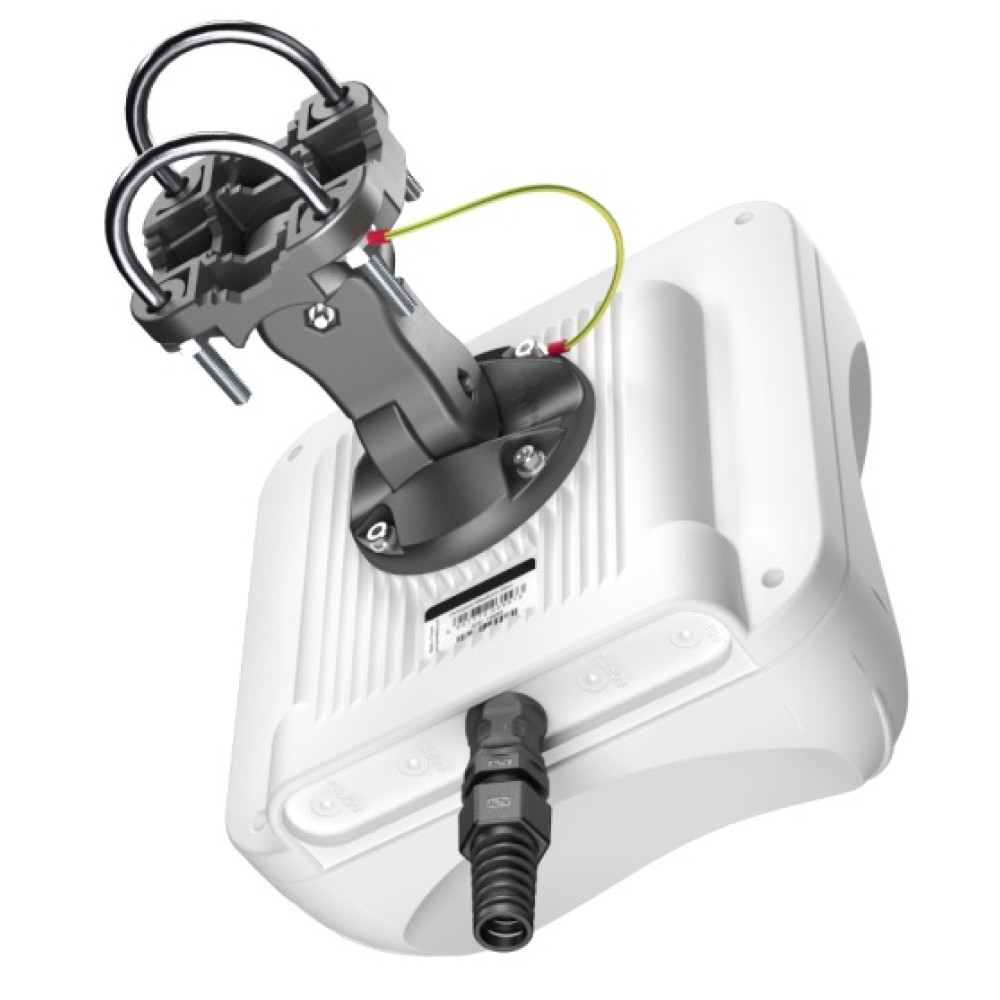

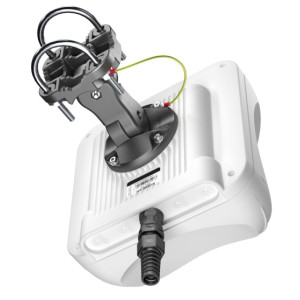

• Wall or Pole mount
• IP67 rated waterproof enclosure
• Connector: RJ45
• Dimensions: 269 x 270 x 177 mm
• RoHS and Reach Compliant

Whether you’re operating in urban centers or off-the-grid locations, the Thunder THDR40 ensures consistent, high-speed connectivity for mission-critical applications. To understand its full potential, our sales team is standing by to help you with your wireless needs! Contact us at Westward Sales today.
