Peplink ANT-MAX-S 7:1 Enclosure for Starlink Mini & Peplink Routers - 5G, WiFi, GPS

New Peplink ANT-MAX-S Router/Starlink Enclosure with 4x4 MIMO Cellular, MIMO WiFi, and GPS, up to 7.4dB gain, IP67 rated
Model: ANT-MAX-S
Availability: 3 Weeks or Less
Standard Shipping & Handling
$699.00
Qty: Add to Cart

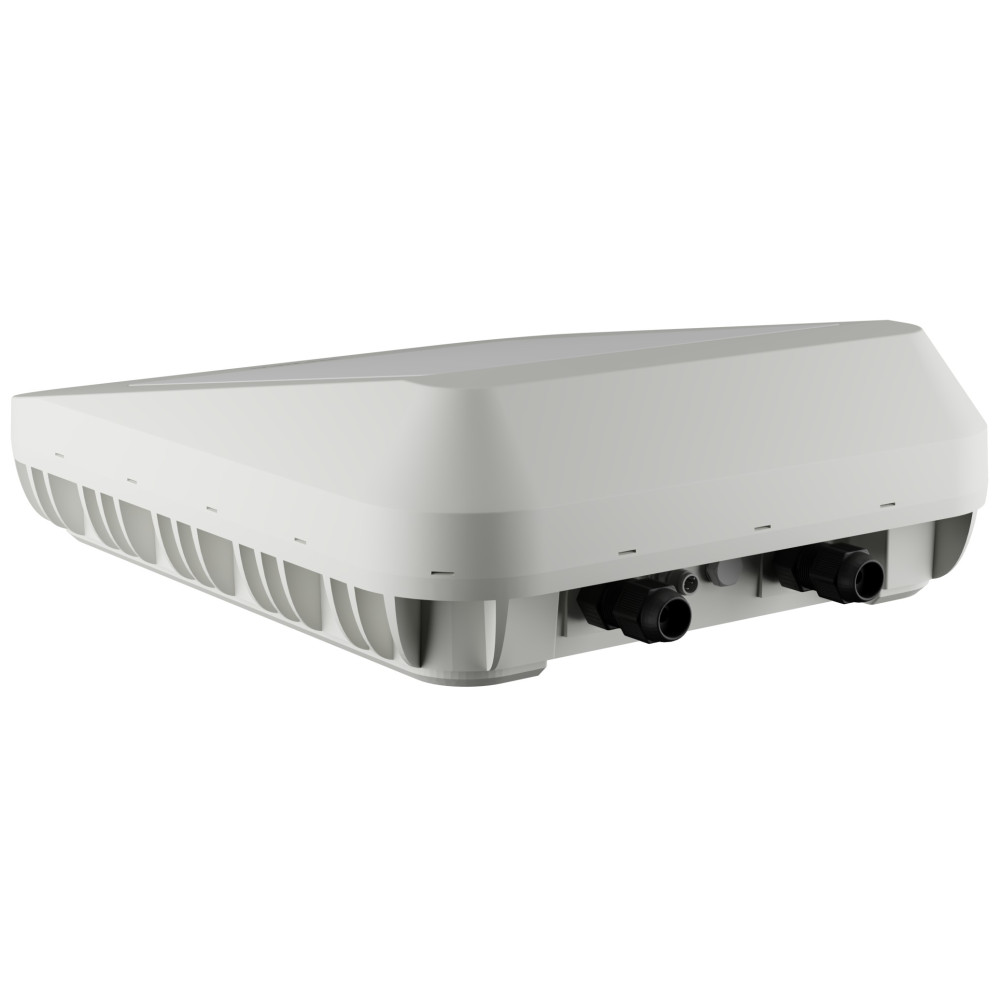

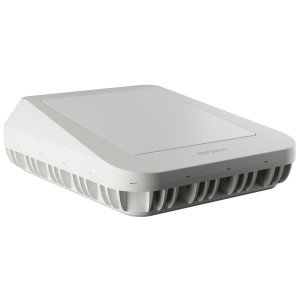

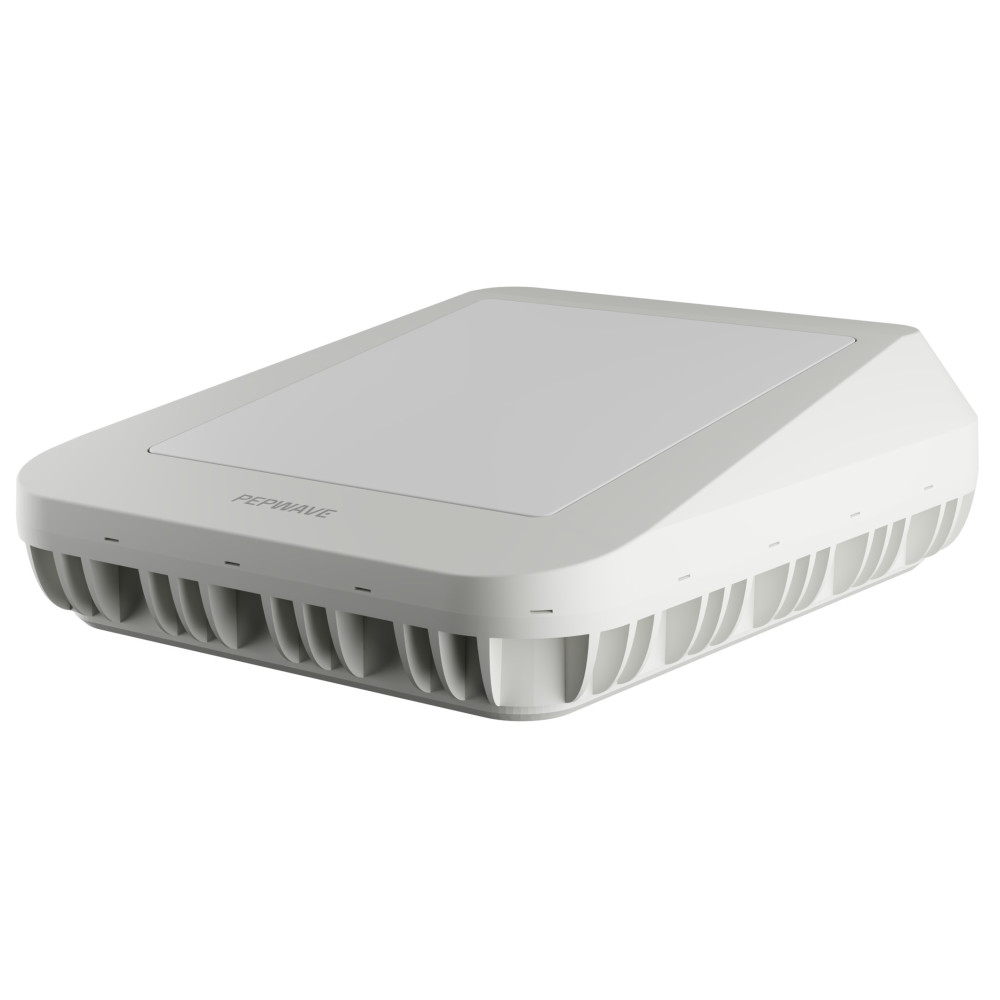

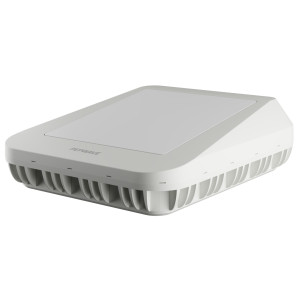

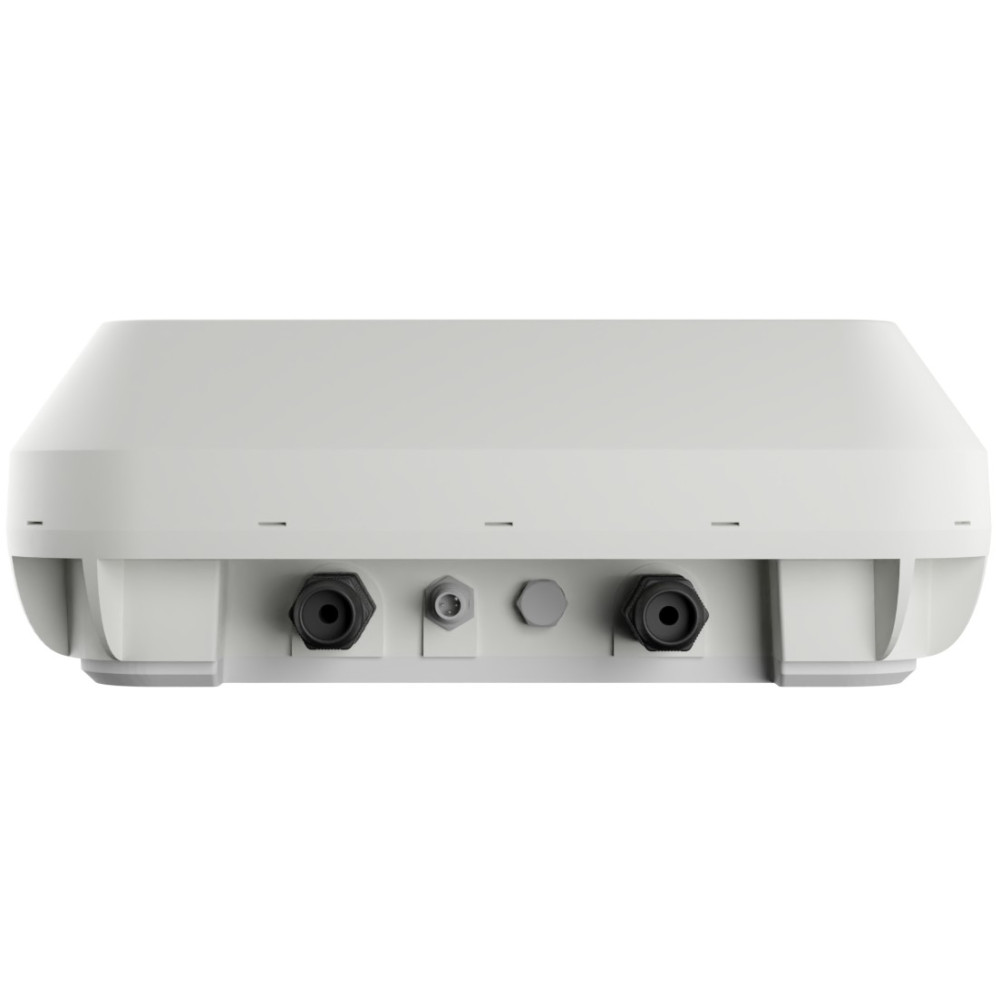

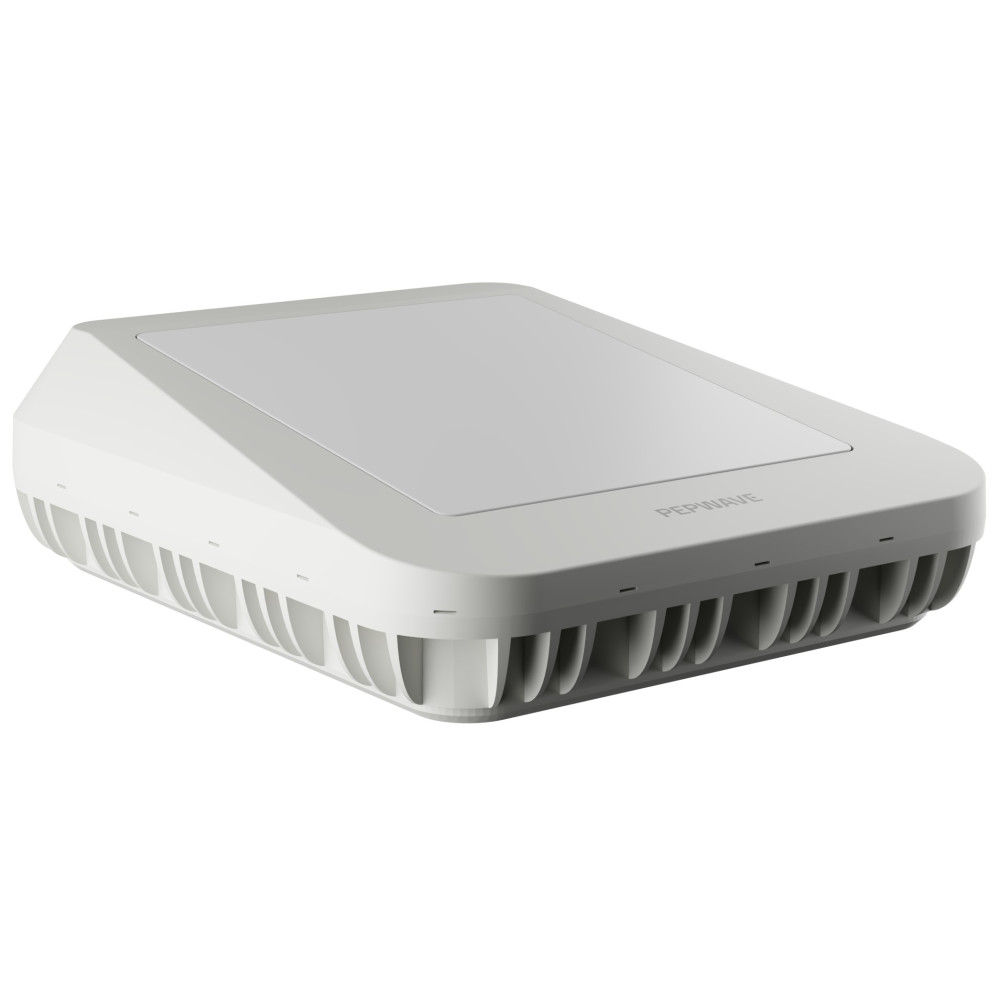

Peplink ANT-MAX-S 7:1 All-in-One Antenna, Starlink Mini, & Router Enclosure, IP67

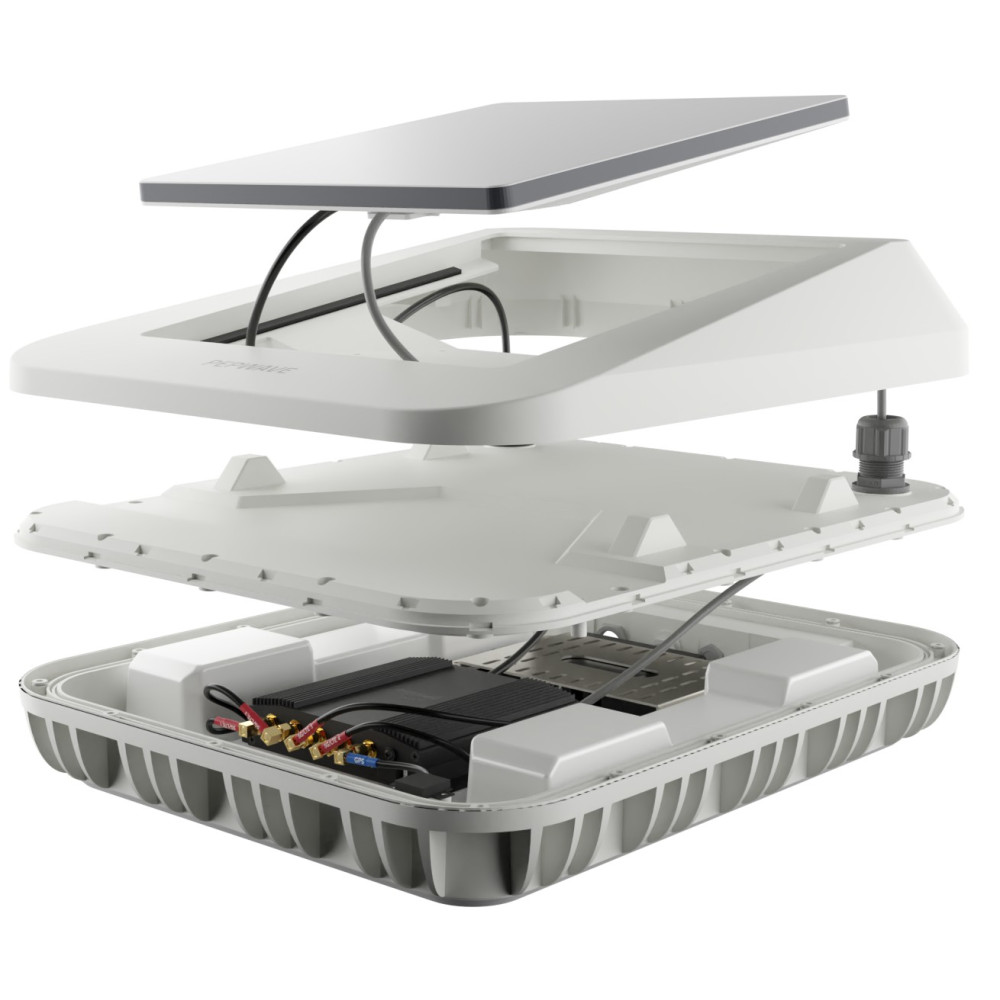

The ANT-MAX-S is a powerful and versatile solution that solves it all by acting as a docking station that brings Starlink Mini and Peplink together in one rugged, all-in-one enclosure. One connection delivers both satellite and cellular. There are no extra cables and no new holes. It's just a streamlined, high-performance install. With built-in 4x 5G/LTE, Wi-Fi, and GPS antennas, whether you’re adding 5G to an existing Starlink Mini deployment or building both in from the start, Antenna MAX S keeps your install clean, fast, and ready for anywhere your network needs to go.

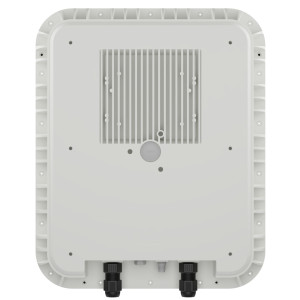

With an IP67 rating the Antenna MAX S is engineered for outdoor longevity, built with UV- and salt-resistant plastics, fitted with a metal base for heat dissipation, and designed to to withstand high wind loads for fixed or mobile applications.

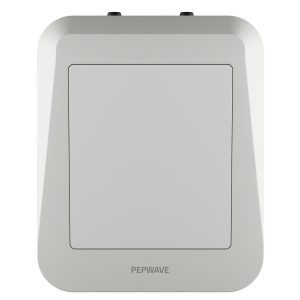

The ANT-MAX-S is "Convenience to the MAX". Supporting both Power over Ethernet (PoE) and DC input, the Antenna MAX S gives you flexibility in how you deploy. Use the top cover’s watertight clasp system to conveniently secure the Peplink router of your choice: BR1 Mini Series, Transit Duo Pro, BR1 Pro 5G, or BR1 Pro CAT20. Mount it your way with a variety of installation options ideal for vehicles, rooftops, poles, or even custom rack systems.

The ANT-MAX-S delivers an all-in-one Starlink and cellular solution at a price that makes sense for businesses, fleets, and integrators alike. Whether you're operating from a remote location, working in an RV, or maintaining mission-critical connections on the move, it saves time, space, and cost - without compromising performance.

Key Features of the ANT-MAX-S

  • Omnidirectional 4x4 MIMO 5G LTE, MIMO WiFi, and GPS antenna
  • 4x4 MIMO 5G LTE with 617 - 6000 MHz frequency range
  • MIMO WiFi with 2.4 - 2.5 and 5.0 - 6.0 GHz frequency range
  • GPS with 1575 - 1602 MHz frequency range
  • UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion
  • Up to 7.4dB gain
  • Compatible with many routers
  • Surface, magnetic, pole, or deck mount
  • 10 W maximum power rating
  • -40º to 80º C Operating Temperature
  • Right angle SMA (M) and RP-SMA (M) connectors

In the Box

  1. Antenna MAX S
  2. L-Mount Set
  3. Power supply/splitter mounting set
  4. Router fixation screws
  5. 3pcs M25 cable glands
  6. 1pcs M25 hole plug
  7. 2pcs RJ45 glands
  8. 2pcs RJ45 caps
  9. 2pcs Hole plug
  10. 1pcs DC Cable Connector
  11. 1pcs Starlink power cable (35.4” / 900 mm)
  12. 1pcs Starlink Ethernet cable (35.4” / 900 mm)
  13. 1pcs Double sided 3M adhesive pad
  14. 1pcs Ethernet cable (7.87 ” / 200 mm)
  15. 1pcs DC cable (3.93” / 100 mm)
Technology
CategoryAntenna
Wireless
7:1 Combination Antennas7:1 (4 LTE, 2 WiFi, GPS)
PatternOmnidirectional
Cellular Frequencies617 - 960 MHz, 1410 - 2700 MHz, 3300 - 4400 MHz, 5000 - 6000 MHz
Wi-Fi Frequencies2.4 to 2.5 GHz and 5.0 to 6.0 GHz
VSWR< 2.5 over 95% of the band
GainUp to 7.4 dBi
PolarizationLinear
Impedance50 Ohm
Power10 W
Interfaces
GPSYes
Mechanical
Connector TypeRight angle SMA (M) for cellular & GPS, Right angle RP-SMA (M) for WiFi
EnclosureUV stable PC
MountingSurface, magnetic, pole, deck
ColorWhite
Dimensions17.6" L x 14.5" W x 5.3" H
Ratings
Operating Temperature-40 to 80°C
Storage Temperature-40 to 80°C
RoHS CompliantYes
CertificationsRoHS, REACH, WHEE, IP67
Download NameFile Size
Peplink ANT-MAX-S Datasheet9.01MB
