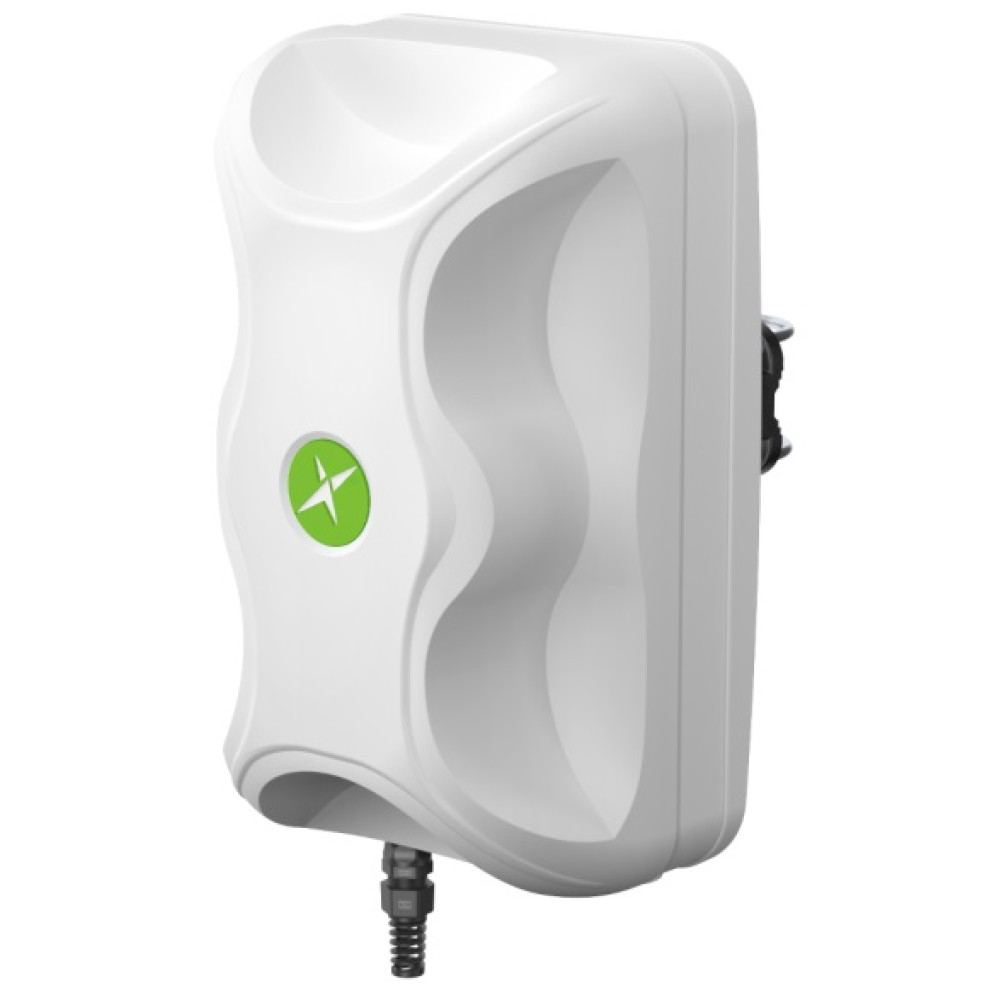

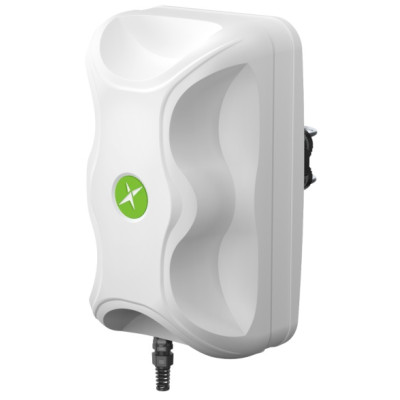

Taoglas THDR60 (Thunder) Integrated 5G Directional Panel Antenna for the XR60

Taoglas THDR60 7:1 All-in-One Antenna and Router Enclosure for the XR60 by Semtech

The Taoglas THDR60 (Thunder Series) Integrated directional antenna for the Semtech XR60 router is designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi, and GNSS antennas, integrated into one enclosure. It offers 7.5 dBi gain and wide beam width, which makes it suitable for use in both urban and rural environments. Combining the THDR60 Thunder directional antenna with the Semtech XR60 router inside gives you a complete outdoor solution with multiple use cases such as public transportation, energy, mining, IoT and much more.

Common Applications for the THDR60 include:

• Remote and Hybrid Work Environments
• Branch and Retail Locations
• Industrial and Rugged Environments
• High-Bandwidth Applications
• Critical Communications and Public Safety

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR60 is a fantastic solution for 5G, Wi-Fi, and GNSS applications.

This enclosure is also available as a Omnidirectional antenna. See the THOR60.

Key Features

• Integrated 5G/LTE Directional Antenna
• Cavity to install the Semtech XR60 Router
• Multi-band 5G, Wi-Fi, and GNSS, covering 600-7125 MHz

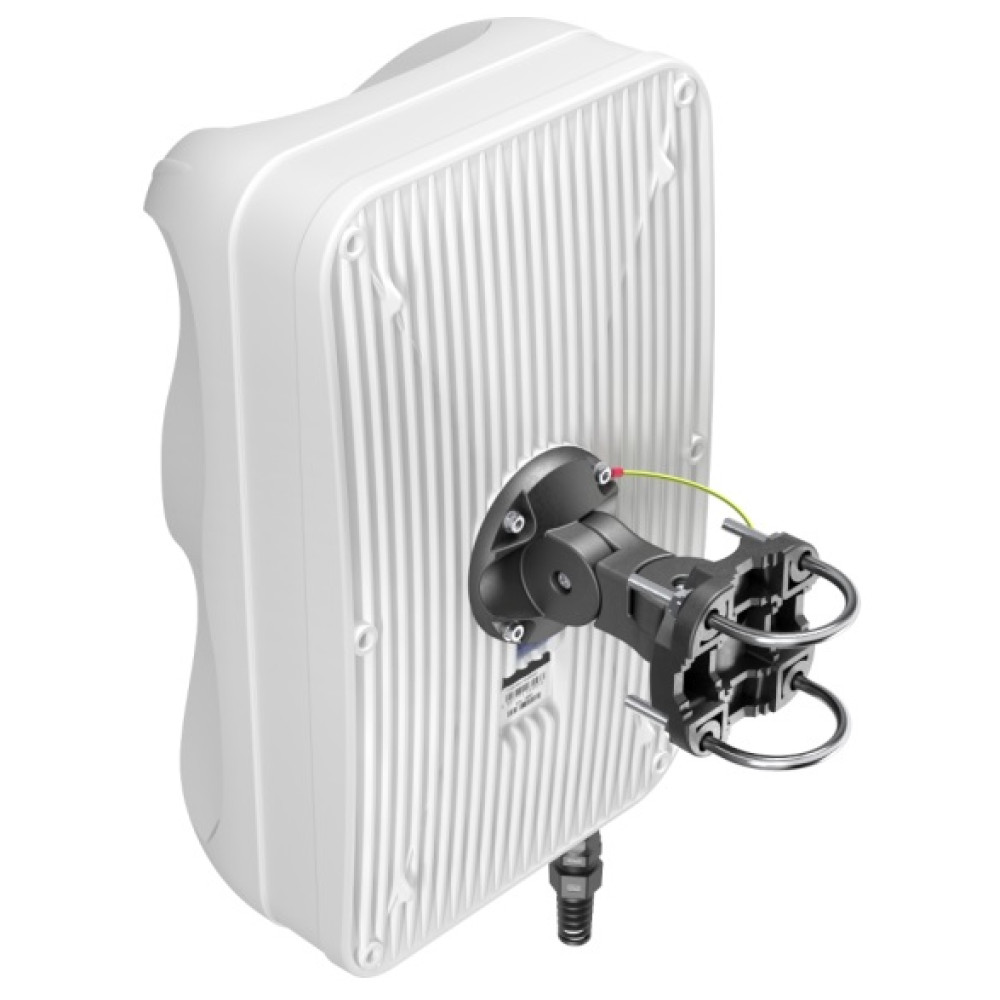

• Wall or Pole mount
• IP67 rated waterproof enclosure
• Connector: RJ45
• Dimensions: 480 x 296 x 175 mm
• RoHS and Reach Compliant

Whether you’re operating in urban centers or off-the-grid locations, the Thunder THDR60 ensures consistent, high-speed connectivity for mission-critical applications. To understand its full potential, our sales team is standing by to help you with your wireless needs! Contact us at Westward Sales today.
