Manufacturer: Peplink

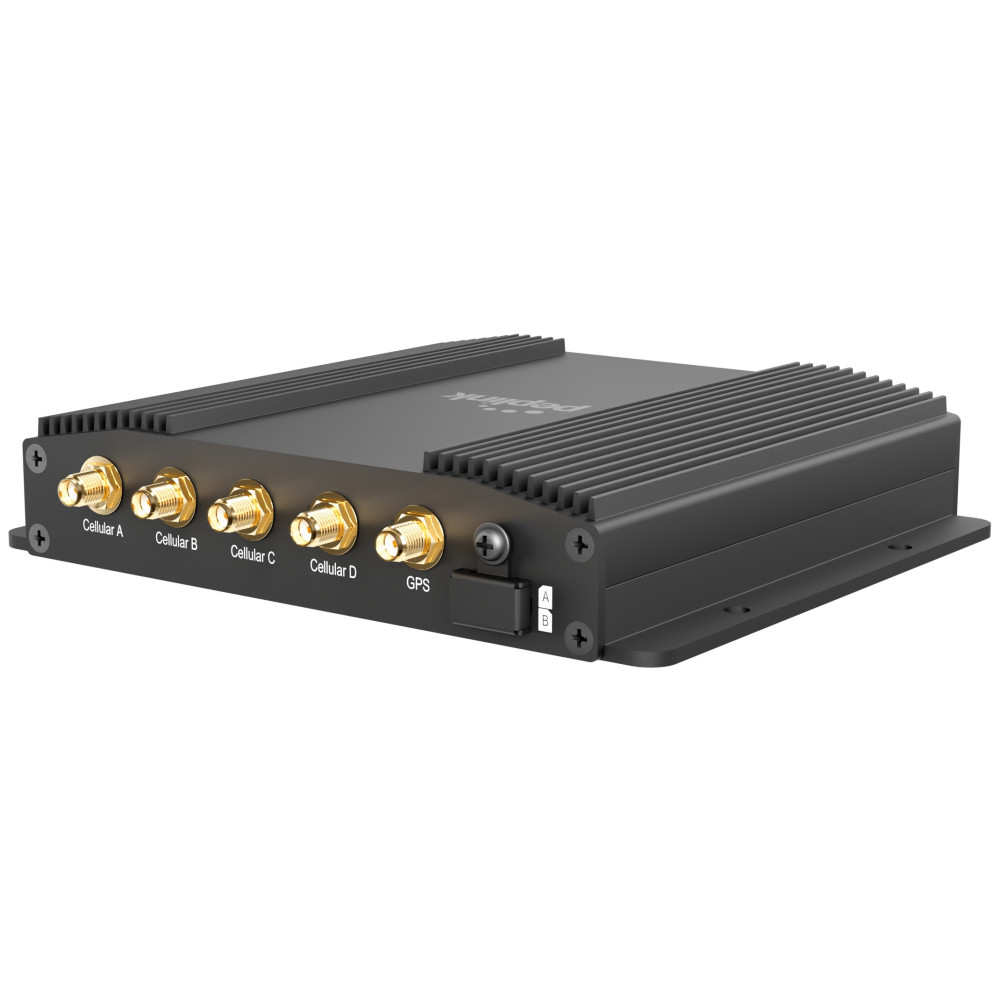

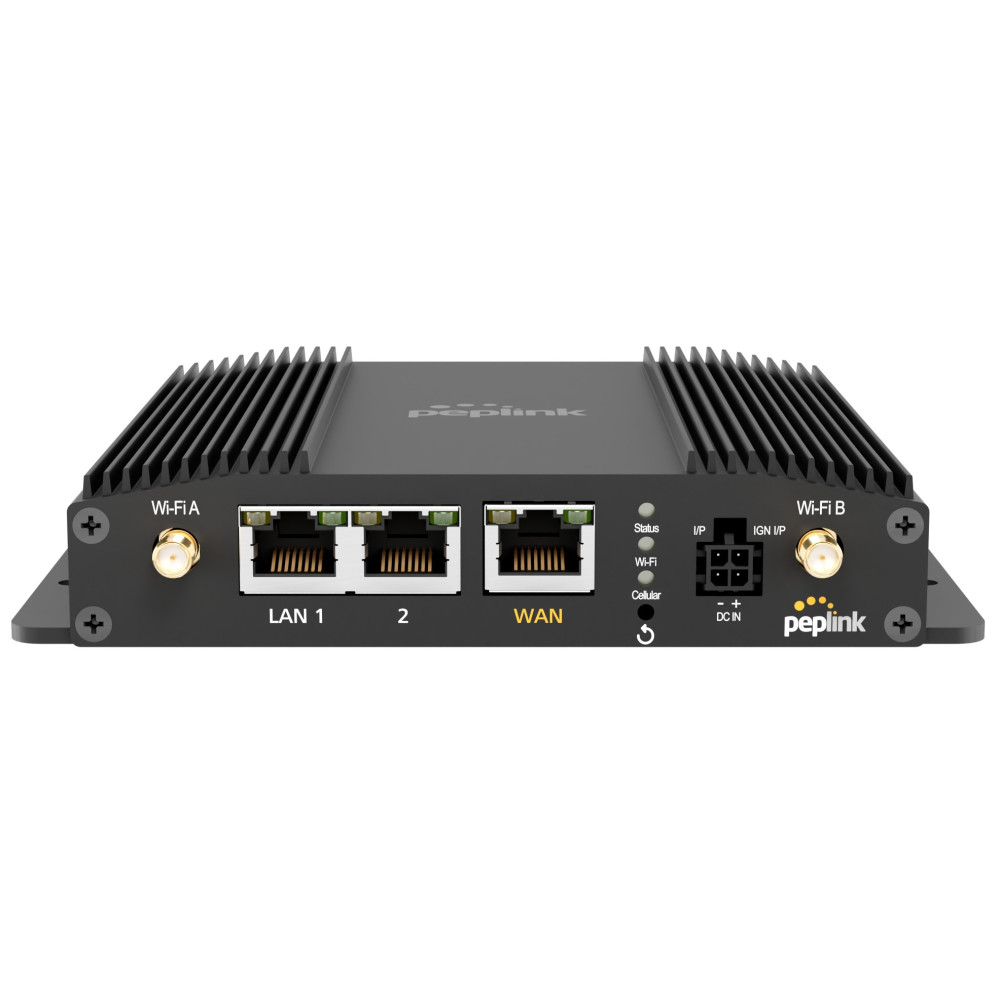

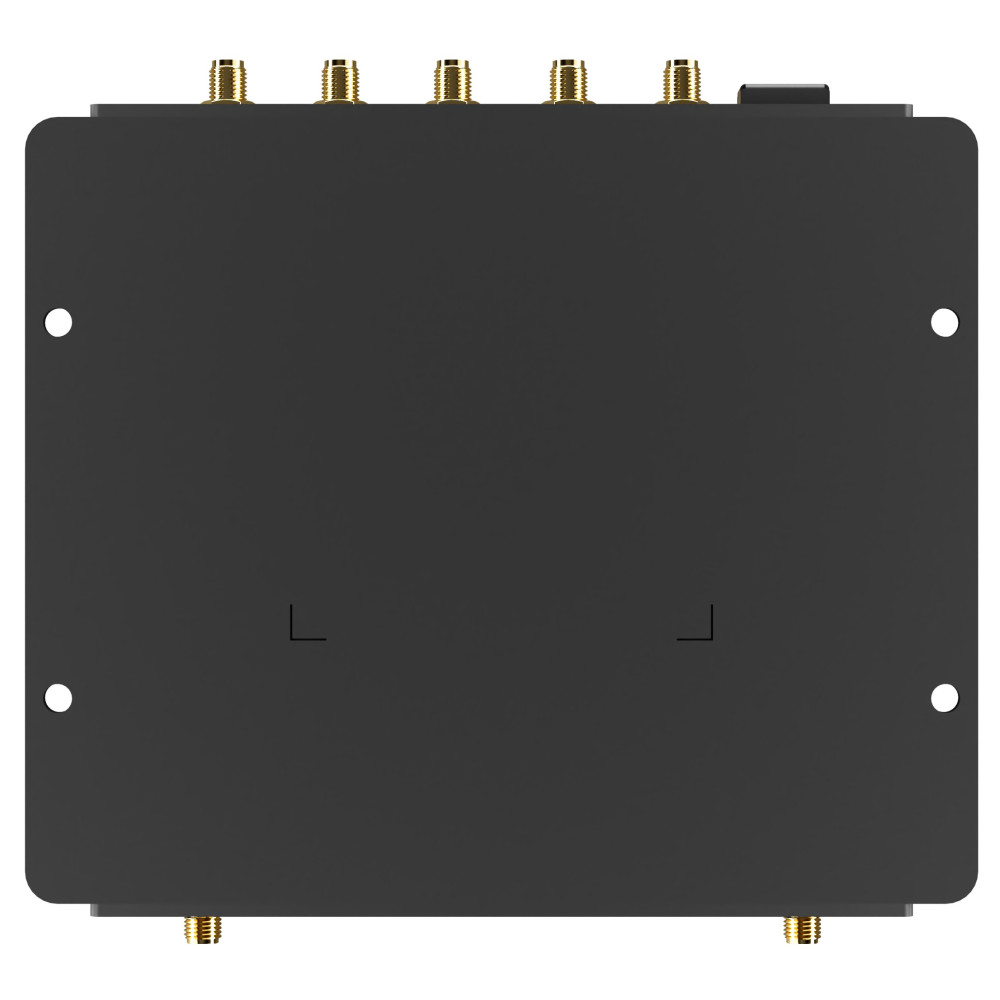

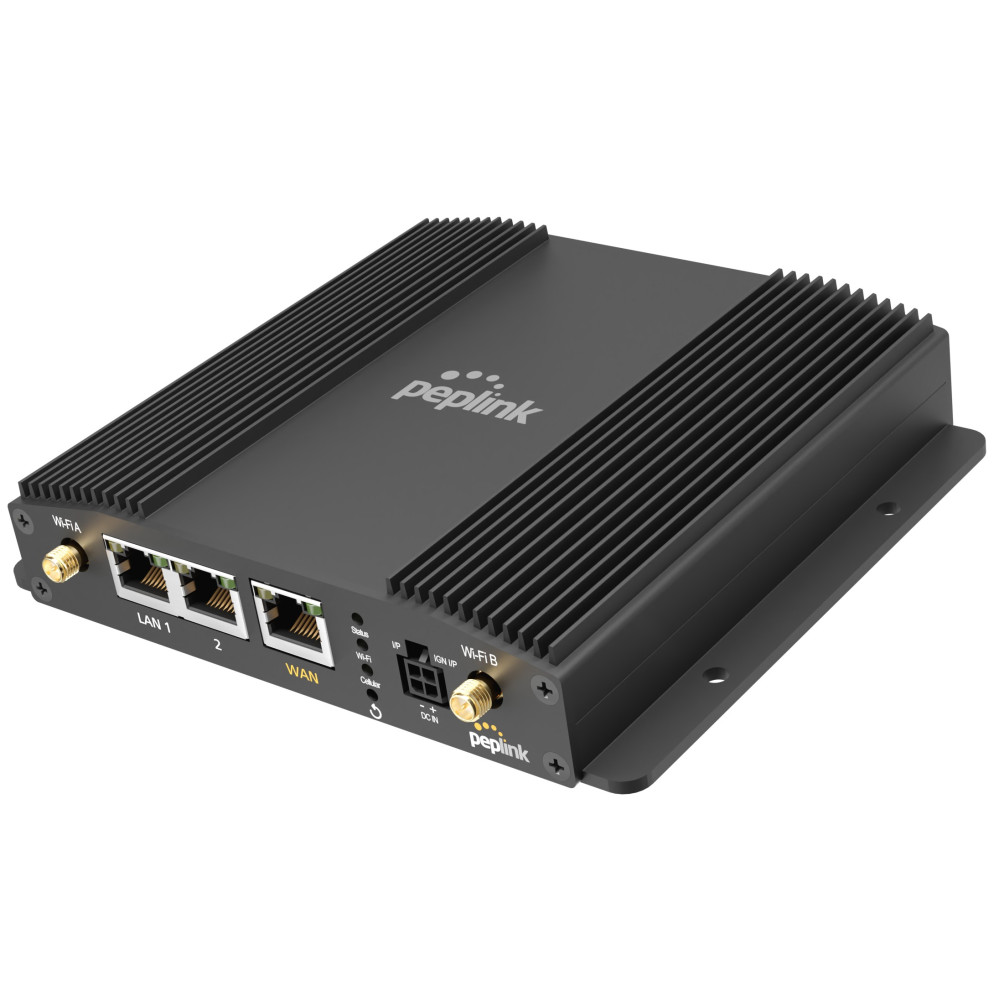

The MAX-BR1-PRO-5G router from Peplink is a highly advanced and reliable networking solution designed to deliver high-performance connectivity in demanding environments. It is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds, achieving 8 times faster than the original BR1 classic. Built with cutting-edge technology, this router combines the power of 5G cellular networks with a range of features that make it ideal for industrial, commercial, and enterprise applications. Supercharged with SpeedFusion, use the Peplink MAX-BR1-PRO-5G as the central router for your branch network. Guaranteed unbreakable connections for important applications, like video calls, POS systems, and more.
With its rugged design, the Peplink MAX-BR1-PRO-5G is built to withstand harsh environments. It features a durable metal enclosure that protects the internal components from extreme temperatures, moisture, and vibrations, making it suitable for deployments in challenging outdoor locations.
The router offers versatile connectivity options, including dual SIM slots for redundancy and flexibility in selecting different carriers or data plans. It also supports WAN interfaces, such as Ethernet, and Wi-Fi, ensuring reliable connectivity and failover options. The Peplink MAX-BR1-PRO-5G router comes equipped with advanced networking capabilities. The router provides robust security features to protect against unauthorized access and cyber threats. It supports VPN encryption and provides a built-in firewall for secure data transmission over the network.
The MAX-BR1-PRO-5G router also offers centralized management through Peplink's InControl 2 (first year included with PrimeCare), a cloud-based management platform. This allows administrators to monitor and manage their entire network of Peplink devices remotely, simplifying deployment and maintenance processes.
This Peplink product comes with a one-year limited warranty. The first year of PrimeCare is included in the purchase of this PrimeCare device, with the ability to continue afterward via a paid subscription. You can upgrade to PrimeCare+ for additional benefits. Compare the Peplink Care Plans and select one that fits you and your deployment needs.
Enable your Peplink MAX-BR1-PRO-5G with a cost-effective data plan to ensure your router is ready to deploy. To enable cellular connectivity, at least one activated SIM card with an active cellular data plan is needed. Call Westward Sales for information.
The Peplink MAX-BR1-PRO-5G includes four LTE/5G antennas, two WiFi antennas, and one GPS antenna. For mobile and industrial applications, consider other High-Performance Antennas or speak with a Peplink specialist at Westward Sales.
Note: the MAX-BR1-PRO-5GH-T-PRM has been replaced with the MAX-BR1-PRO-5GN-T-PRM.
| Technology | |
| Category | Cellular Router |
| Ethernet Ports | 2 GbE LAN + 1 GbE WAN |
| Cellular Interface | |
| Carrier | AT&T, T-Mobile, US Cellular, Verizon (C-Band), FirstNet |
| SIM Holder | 2 SIM slots (4FF form factor) |
| Antenna | 4 LTE/5G, 2 WiFi, 1 GPS |
| Network Management | |
| Cloud Protocols | InControl Cloud Management |
| Wireless | |
| Wi-Fi Frequencies | Dual (2.4GHz + 5GHz) 2x2 Wi-Fi 6 |
| Power | WiFi: 24 dBm (2.4 GHz) and 26 dBm (5.0 GHz) |
| Interfaces | |
| GPS | Yes |
| Ignition | Ignition sensing |
| Power | |
| Power Consumption | MAX: 19W Nominal: 8W |
| Input Voltage | DC10 - 30W |
| Mechanical | |
| Dimensions | 5.78 x 5.08 x 1.15 in (146.8 x 129 x 29.3 mm) |
| Weight | 1.28 lbs. |
| Shock / Vibration | EN 61373 |
| Ratings | |
| Operating Temperature | -40° to 65° C (-40° F to 149° F) |
| Humidity | 15 to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, RoHS |
| Safety Standards | EN61373, EN50155, EN61000, E-Mark |
| Warranty | 1-Year Limited Warranty |
| Download Name | File Size |
| Peplink MAX BR1 PRO 5G Datasheet | 1.45MB |
