Mobile Mark DM2-2400/5500 Surface Mount 2.4 and 5 GHz WiFi Antenna, 2.5 dBi Gain

Mobile Mark DM2-2400/5500 IP67-Rated Surface Mount 2.4 GHz and 5 GHz Antenna with 2.5 dBi Gain
Model: DM2-2400/5500
Availability: 10 Days
FREE SHIPPING !
$52.99

Choose Options


Connector:



Color:



Cable Length:





Qty: Add to Cart

Mobile Mark DM2-2400/5500 Dualband Wi-Fi Antenna, 2.4 and 5 GHz Frequency Ranges, 2.5 dBi Gain, IP67-Rated

The DM2-2400/5500 from Mobile Mark is an industrial through-hole mount antenna designed for vehicle, outdoor, and commercial applications. It installs easily to a vehicle, control panel, or bulkhead.  It operates from 2400 to 2485 MHz and 4900 to 6000 MHz to support 2.4 GHz and 5 GHz Wi-Fi applications.  The antenna offers 2.5 dBi peak gain on either band; no ground plane is required.

The DM2-2400/5500 comes with a choice of cable length with an SMA connector. The base uses a 5/8” (16 mm) feed-thru threaded stud that secures tightly with a lock washer and nut.  The bottom mounting plate features a gasket for a watertight seal. Its performance is excellent on all surfaces, including fiberglass and plastic.

KEY FEATURES

  • Rugged, omnidirectional Wi-Fi antenna
  • 2.4 to 2.485 GHz and 4.9 to 6.0 GHz frequency ranges
  • Supports 2.4 GHz and 5 GHz Wi-Fi networks (IEEE 802.11 a/b/g/n/ac compatible)
  • 2.5 dBi (peak gain) without a ground plane
  • Select SMA or RP-SMA connector

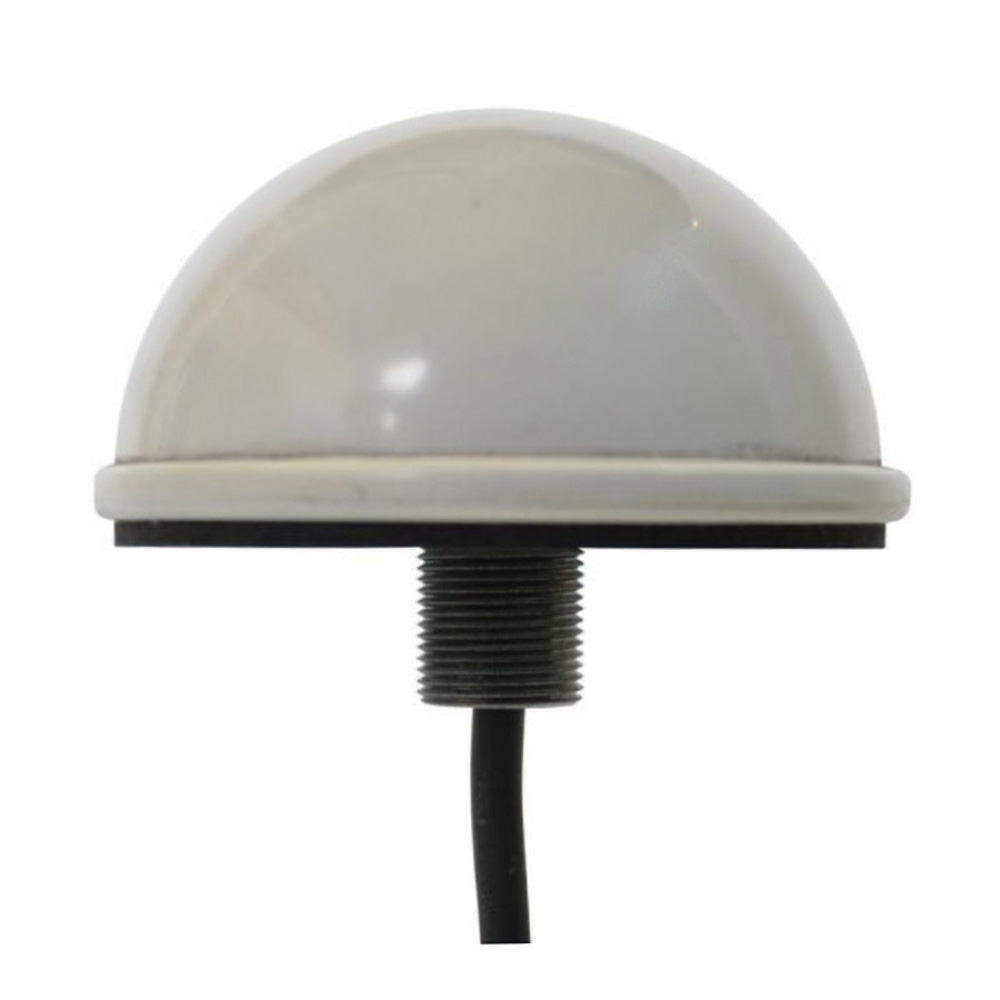

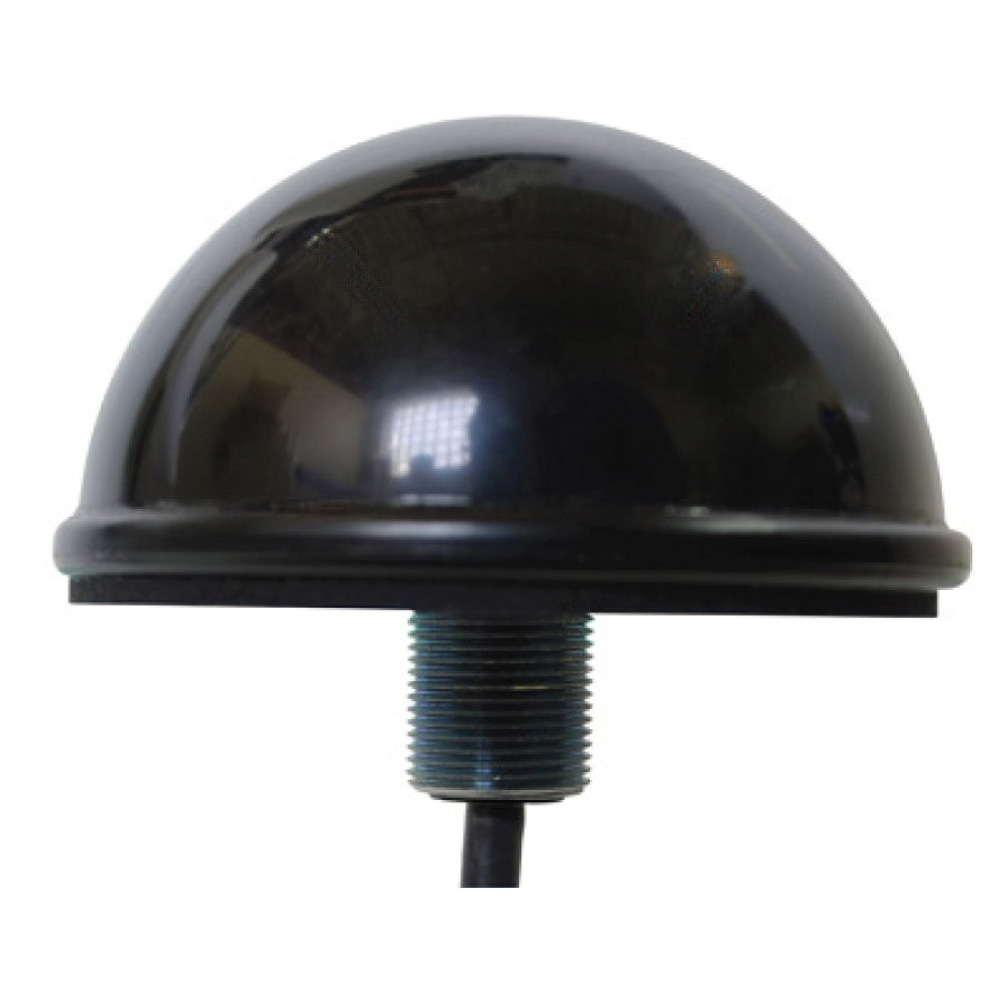

  • IP-67 ASA UV resistant plastic radome in white or black color
  • Threaded through-hole mounting with a watertight seal
  • Choice of 1’, 3’, 10’ or 15’ RG-195 cable with SMA or TNC connector
  • Operating temperature from -40 to 85°C
  • Gasket, lock washer, and nut are included
  • Optional wall/pole mounting bracket

CONFIGURATIONS

DM2-2400/5500-3C, Surface mount wideband antenna with SMA connector and cable (please specify length and color)
DM2-2400/5500-3J, Same as above with RP-SMA end connector
MGDM-2400/5500,  For magnetic mounting, see the MGDM-2400/5500 antenna page

NOTES

  1. Most models are manufactured in two weeks or less.
  2. For all configurations, select 1’, 3’, 10’, or 15’ cable length and black or white dome.
  3. Contact Westward Sales for custom end connectors and cables.
Technology
TypeAntenna
Wireless
Antenna TechnologyWIFI
Single or Combo AntennaSingle
PolarizationLinear
Frequency2.4 to 2.485 GHz and 4.9 to 6 GHz
Impedance50 ohms
VSWR2:1 max over range
Gain2.5 dBi (peak)
Antenna TypeOmnidirectional
Mechanical
Cabling1', 3', 10' or 15' lengths, RG-58
Connector TypeChoice of SMA or RP-SMA
EnclosureASA plastic, UV Resistant
Dimensions3" diameter x 1.5" high
MountingSurface mount with 3/4” long stud (19 mm). Optional poll-mount bracket.
Shock / VibrationEN 61373, IEEE 1478, MIL-810G, and TIA-329.2-C
Ratings
Operating Temperature-40 to 85°C
CertificationsIP-67
