Mobile Mark PNMG944 9:1 Covert Multiband Antenna with 5G LTE, WiFi, and GNSS

New Mobile Mark PNMG944 Dual Carrier LTE MIMO Multi-Band Antenna with WiFi and GNSS
Model: PNMG944
Availability: 3 Weeks or Less
FREE SHIPPING !
NCNR: YES

Choose Options


* Color:



Qty:

Mobile Mark PNMG944 9-in-1 Wall Mount Antenna with 4x4 MIMO 5G LTE, 4x4 MIMO WiFi, GNSS

The PNMG944 is a 9-element Covert Wall Mount Antenna. It consists of 4x 5G Sub-6, 4x WiFi 6E/7, and 1x GNSS. This antenna covers all the Cellular and GNSS frequencies, supporting GPS, Galileo, Glonass, QZSS, and Beidou, and cellular elements deliver 4×4 MIMO for Dual-Carrier networks. This Multiband MIMO antenna is compact in size, but has the power suited for applications such as fleet management, fixed site networks, Medical IoT projects, and more.

This antenna is built to last. Capitalizing on a heavy-duty, UV rated ASA radome, the PNMG944 is water resistant, vibration and shock resistant making it ideal for outdoor and industrial applications.

Key Features

  • Multi-band, Dual-Carrier MIMO Antenna 4x LTE, 4x WiFi, and GNSS
  • 617-7200 MHz LTE Frequency Range
  • 2.4-2.5 and 4.9-7.2 GHz WiFi Frequency Range
  • 5 dBi peak gain
  • 10W Power Rating
  • -40º to 80º C Operating Temperature
  • SMA/RP-SMA connectors
  • 12-inch cables
  • ASA UV-Inhibitive Plastic Radome

Configurations

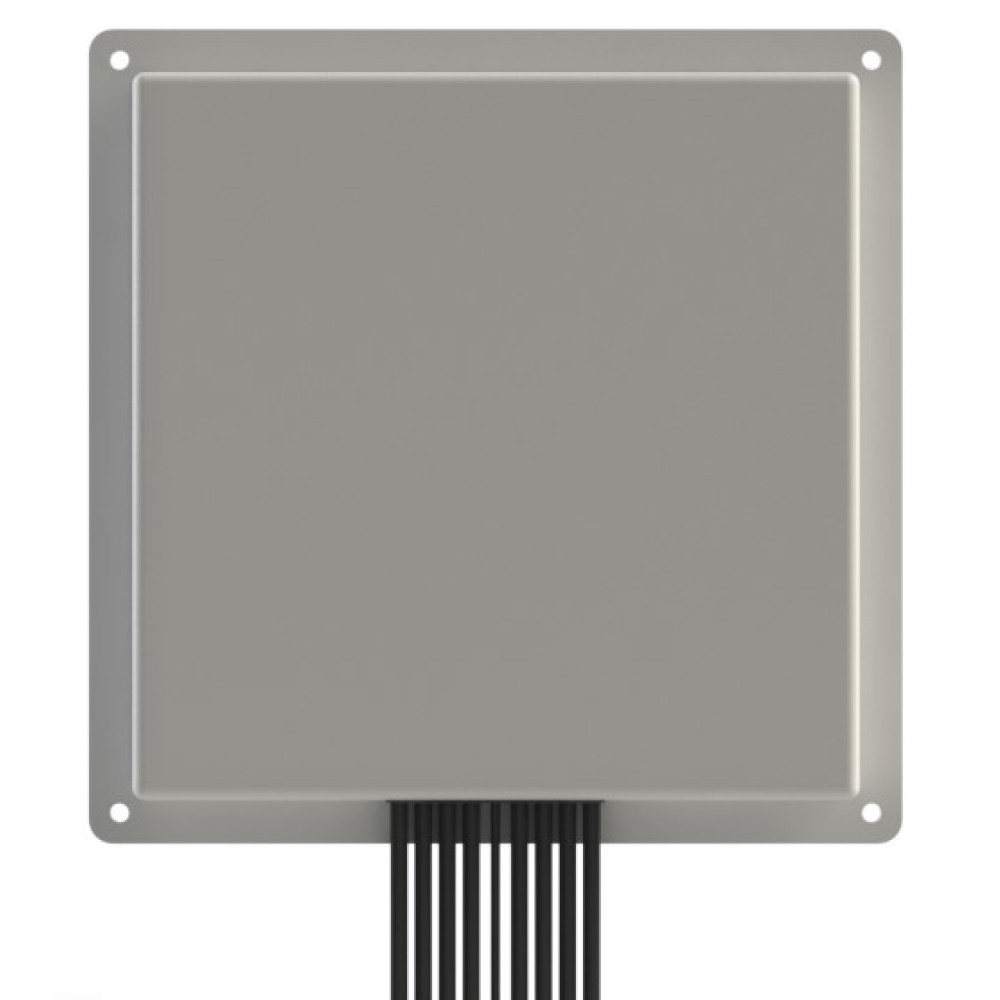

PNMG944-WHT-12, Antenna in White

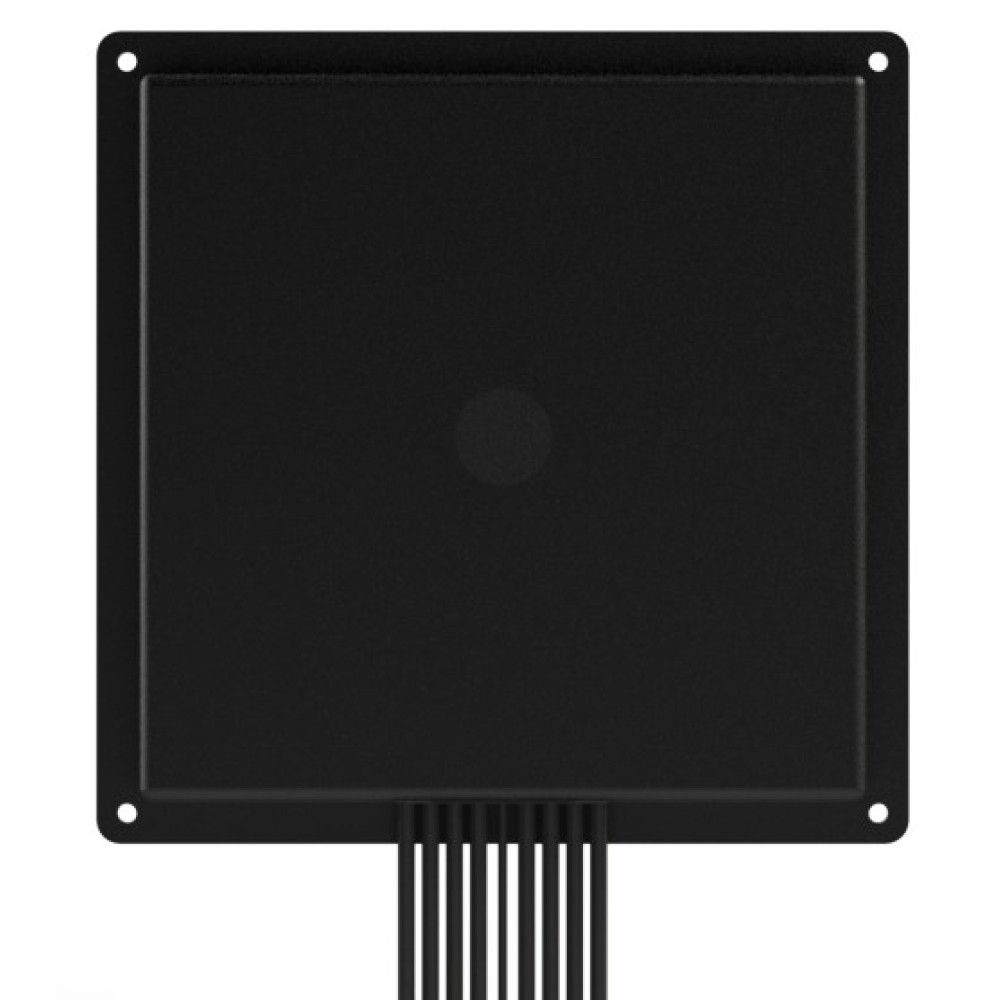

PNMG944-BLK-12, Antenna in Black

Technology
CategoryAntenna
Wireless
9:1 Combination Antennas9:1 (4 LTE, 4 WiFi, GPS)
PatternOmnidirectional
Cellular Frequencies617 - 960 MHz (2 dBi gain), 1710 - 7200 MHz (5 dBi gain)
Wi-Fi Frequencies2.4 - 2.5 GHz, 4.9 - 7.2 GHz (5 dBi gain)
VSWRLTE : < 2.5:1 VSWR, WiFi: < 2:1
Gainup to 5 dBi
Impedance50 ohm
Interfaces
GPSYes
Mechanical
Cabling12 inches
Connector TypeSMA Plugs (M)
EnclosureASA UV-Stable Plastic
MountingTape/Mounting Holes
ColorBlack or white
Dimensions8.5 x 8.5 x 0.75 in (216 x 216 x 19 mm)
Ratings
Operating Temperature-40 to 80°C
Warranty3 years
Download NameFile Size
Mobile Mark PNMG944 Datasheet576.49KB
