The LTM404 Wi-Fi antenna provides optimum 4x4 MIMO (multiple-input-multiple-output) performance for the latest IEEE 802.11ac compatible routers (like the IBR1700) and wireless access points. It supports dual-band coverage over the 2.4 to 2.5 GHz and 4.9 to 6.0 GHz frequency ranges. It features up to 5 dBi of gain on both bands, 10 watts of power maximum, excellent electrical efficiency, and superior isolation. The antenna may be configured for 4x4 MIMO or dual 2x2 MIMO.
The compact LTM404 is tough. It stands up to extreme temperatures and passed IP67 for water and dust ingress. A MIL-STD-810G certification means it can handle high shock and vibration environments. Performance, quality, and effective ruggedization make the LTM404 perfect for mobile operations, public transportation, industrial networks, and crucial communication infrastructure.

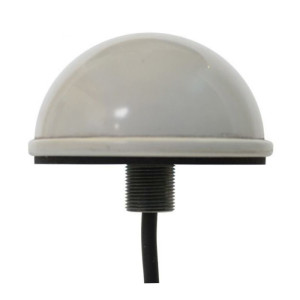

LTM404-3C3C3C3C-WHT-180, Antenna in white

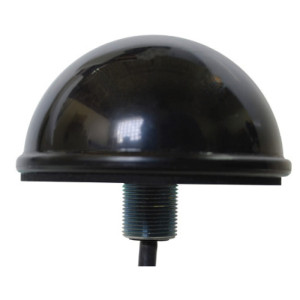

LTM404-3C3C3C3C-BLK-180, Antenna in black
| Technology | |
| Category | Antenna |
| Wireless | |
| 4:1 Combination Antennas | 4:1 (4 WiFi) |
| Pattern | Omnidirectional |
| Wi-Fi Frequencies | 2.4 - 2.5 GHz, 4.9 - 6.0 GHz |
| VSWR | 2:1 VSWR over range |
| Gain | 5 dBi |
| Polarization | Linear |
| Impedance | 50 ohm |
| Power | 10 watts maximum |
| Mechanical | |
| Cabling | Four LL-195 cables at 15-foot (4.5 m) lengths |
| Connector Type | SMA male connectors |
| Enclosure | ASA UV-stable plastic radome in black or white color |
| Mounting | 7/8” (22 mm) diameter mounting hole for 3/4” (19 mm) long threaded bolt, supports surfaces up to 1/2” (12mm) thick |
| Shock / Vibration | EN 61373, IEEE 1478, MIL-810G, and TIA-329.2-C |
| Color | Black or white |
| Dimensions | 5.5” D x 2.38” H |
| Ratings | |
| Operating Temperature | -40 to 80°C |
| Certifications | IP67 |
| Warranty | 3 years |
| Download Name | File Size |
| Mobile Mark LTM404 Datasheet | 306.04KB |
| Mobile Mark LTM Series Installation Manual | 1.27MB |
