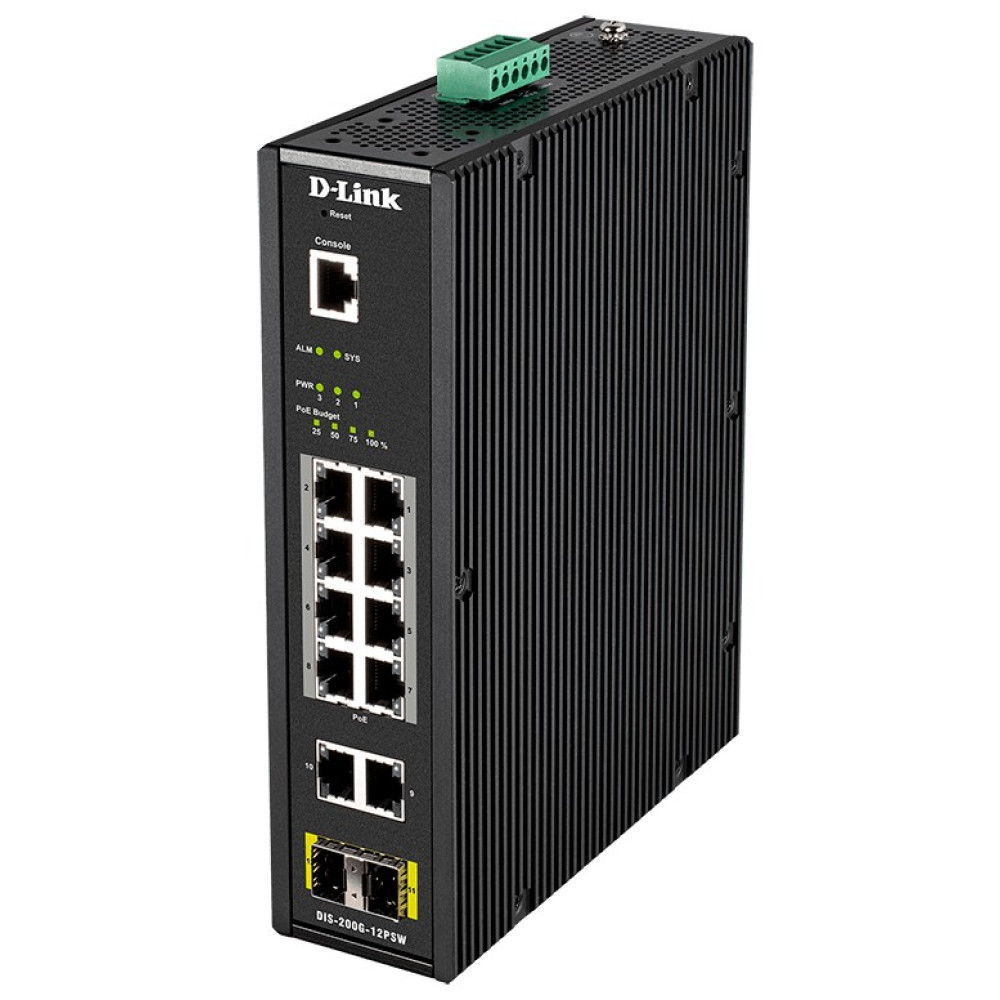

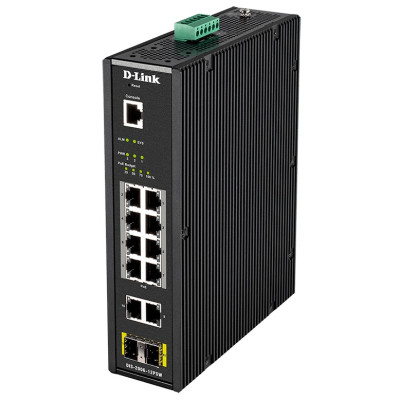

The DIS-200G-12PSW Layer 2 Gigabit Industrial Smart Managed Switch is equipped with eight 10/100/1000BASE-T PoE ports, two 10/100/1000BASE-T ports, and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. It integrates advanced management and security functions to provide a complete industrial networking solution. The DIS-200G-12PSW is a PoE-ready switch with a total PoE budget of 240 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
The DIS-200G-12PSW switch is housed in a highly resistant IP30-rated metal casing to protect it from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the switch from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the switch while also being able to operate in a wider temperature range of up to 75 °C. For increased flexibility, the DIS-200G-12PSW can be mounted on a DIN rail, wall-mounted, or installed in an equipment rack using the optional rackmounting brackets.
The DIS-200G-12PSW features high-capacity 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The built-in surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting through the amount of power required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.
The DIS-200G-12PSW supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure. It also supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, minimizing the chances of video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.
The DIS-200G-12PSW features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch (PoE) |
Total Ports | 12 |
Ethernet Ports | 8 Gigabit (100/1000Base-T PoE ports), 2 Gigabit (100/1000Base-T ports) |
Fiber Ports | 2 SFP slots |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.3az |
Jumbo Frame Support | up to 9600 bytes |
MAC Table Size | 8K |
Power | |
Power Consumption | Maximum: 260 W (PoE on), Maximum: 10.8 W (PoE off), Standby: 7.02 W |

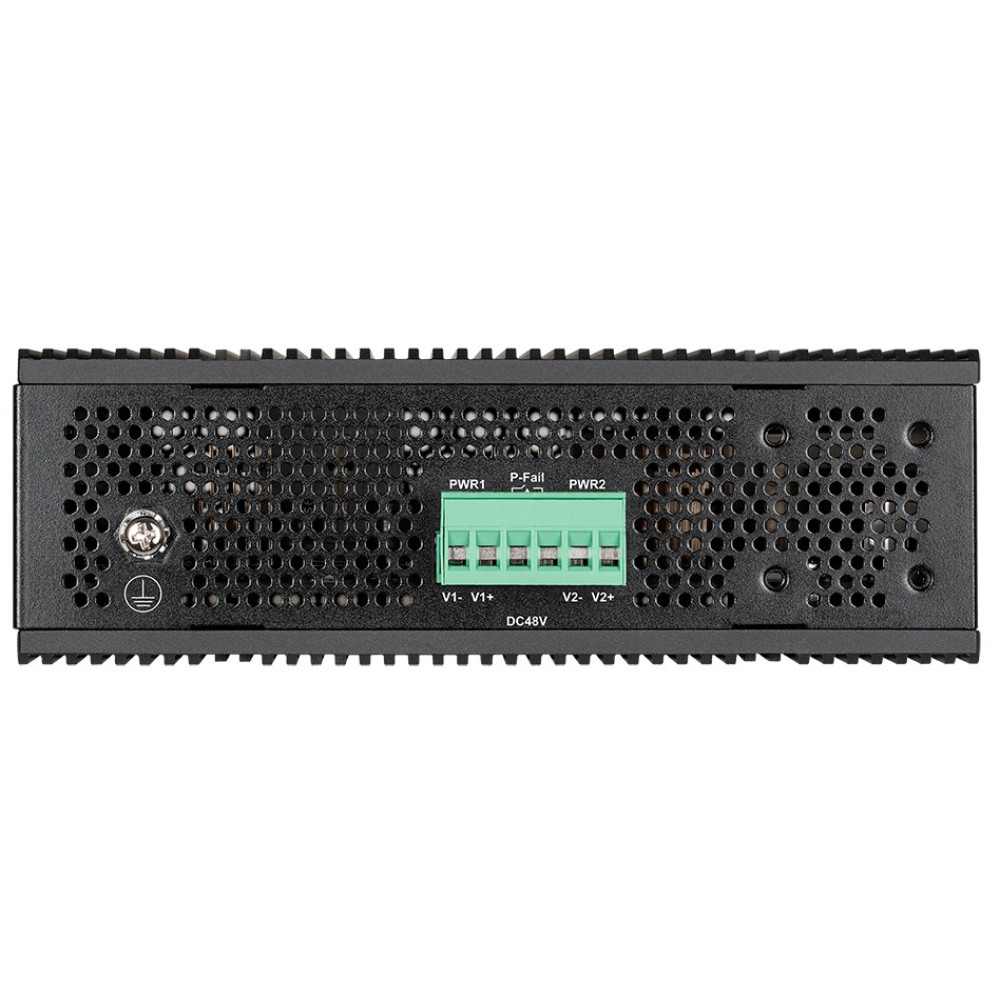

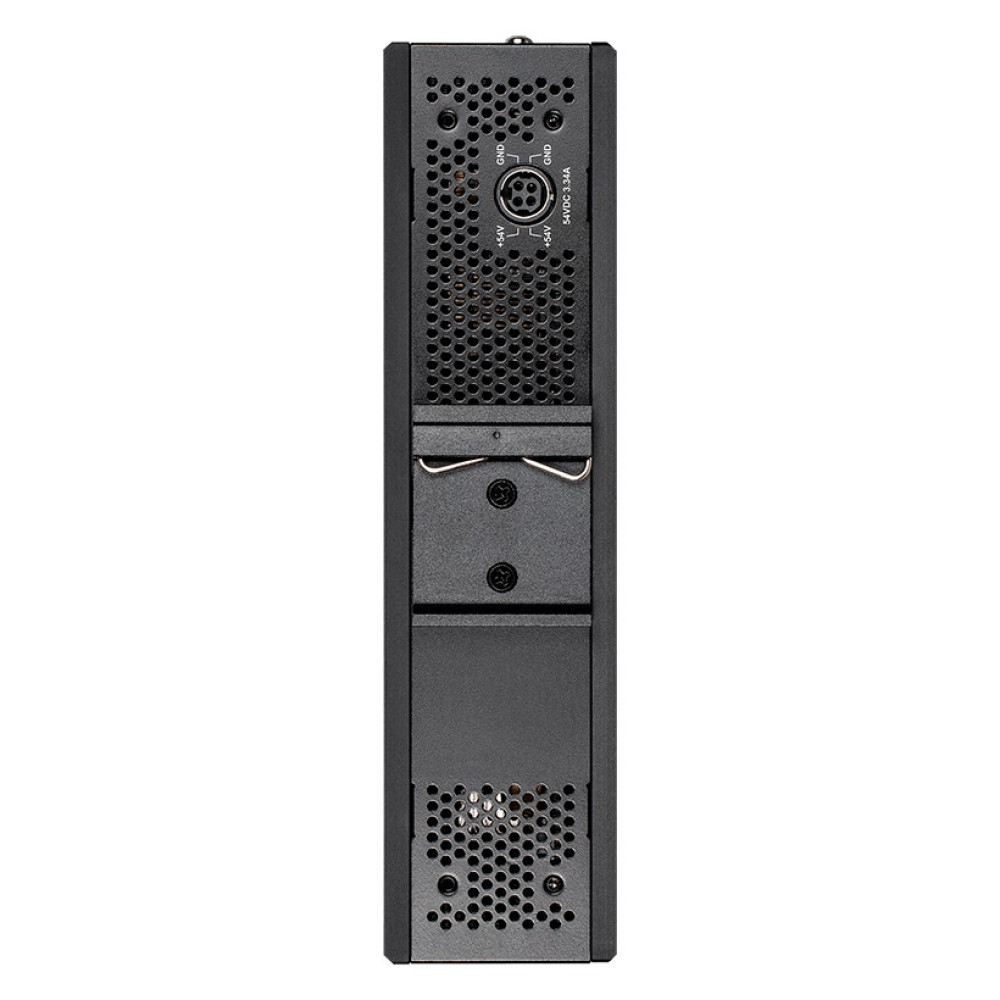

Input Connection | 48 to 54 V DC terminal block dual input, 54 V DC 4-pin DIN single power input |
Mechanical | |
Mounting | DIN rail, wall, or rack mount |
Shock / Vibration | IEC 60068-2-27 Shock, IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration |

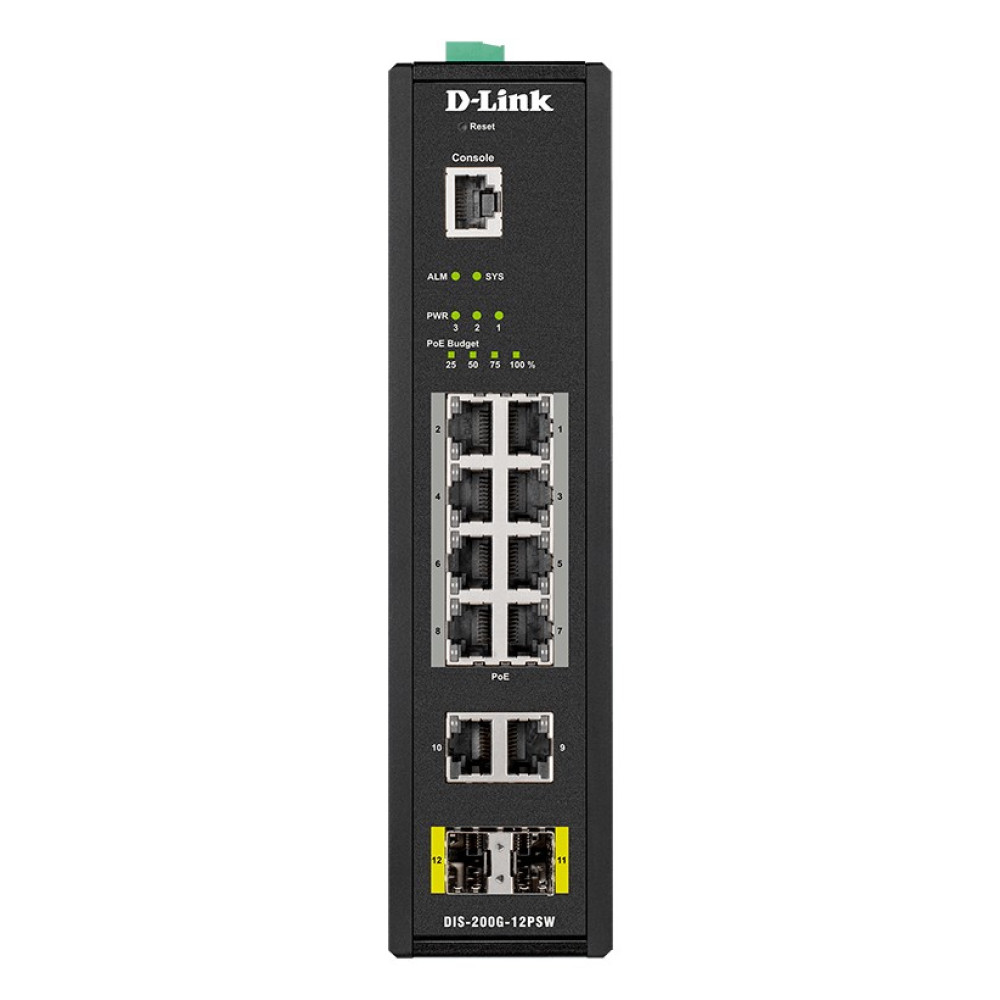

LED Indicators | SYS, ALM, PWR1/2/3, Link/Activity/Speed, PoE status, PoE budget |
Material | IP30-rated metal casing |
Weight | 1.76 kg (3.88 lbs) |
Dimensions | 210 x 171.2 x 53 mm (8.27 x 6.74 x 2.09 in) |
Ratings | |
Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
Humidity | 0% to 95% non-condensing |
Certifications | CE, FCC, BSMI |
Safety Standards | UL60950-1 |
MTBF | 156,452 hours |
