The DMS-105 7-Port Multi-Gigabit unmanaged switch is ideally suited for Small Office Home Office (SOHO) environments. With a durable design, silent operation, and plug-and-play functionality, the DMS-107 switch can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE), 802.1p Quality of Service (QoS), and multi-Gigabit Ethernet connection speeds provide advanced features in a compact package.
Two 2.5 Gigabit Ethernet ports provide multi-speed transmission ideal for high-performance Wi-Fi 6 networks, allowing for fast data transfers and maximizing network bandwidth. It provides up to 20Gbps switching capacity and is perfect for 2.5G WiFi 6 APs, 2.5G NAS, 2.5G PCIe Adapters, 2.5G Servers, gaming computer, 8K video, IPTV and more. An additional five Gigabit ports are ready to connect devices at fast Gigabit speeds.
Auto-negotiation intelligently senses the link speeds of your devices and adjusts between 3-speeds (100Mb/1G/2.5G) for compatibility and optimal performance. The 802.1p QoS feature allows traffic to be classified in 8 priority levels, depending on their importance. Flow Control helps minimize dropped packets for a more reliable connection for all of your connected devices.
The DMS-107 features a fanless design for silent operation, reduced energy consumption, and increased reliability by eliminating a common point of failure. Its sturdy compact metal housing ensures the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.

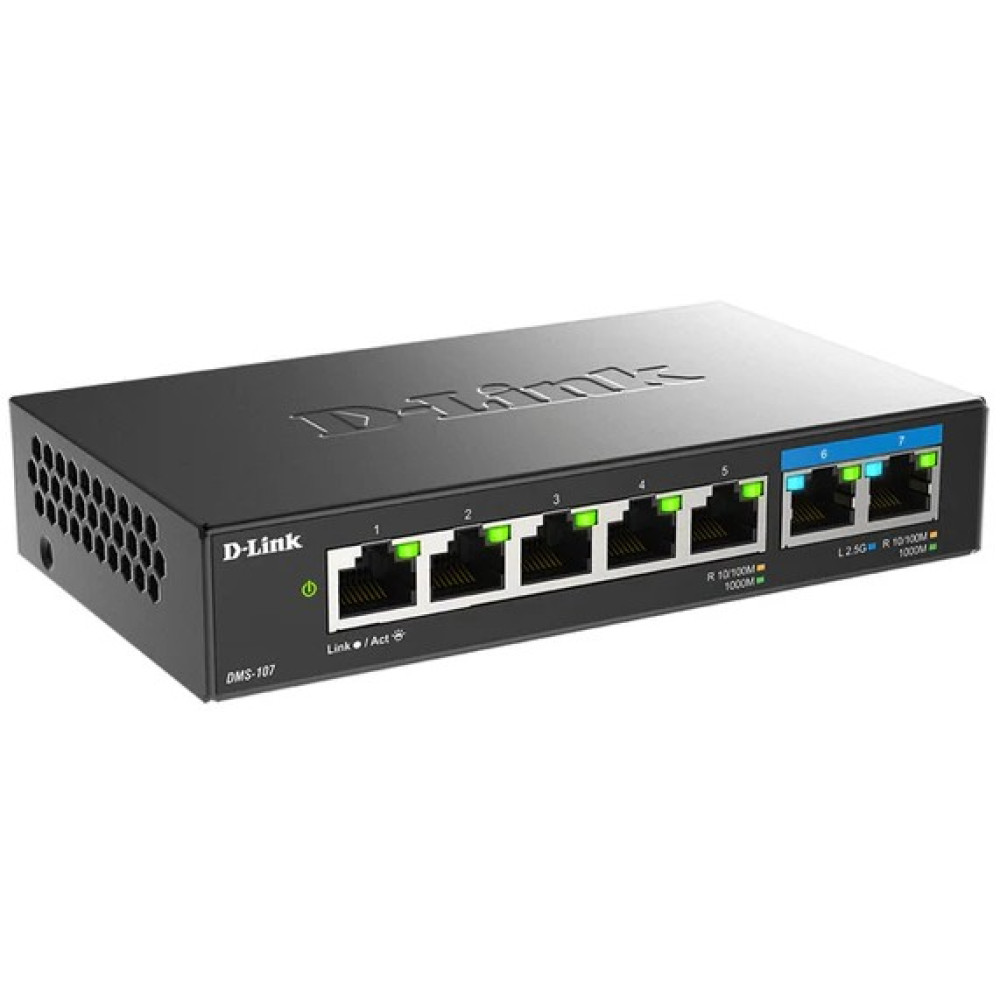

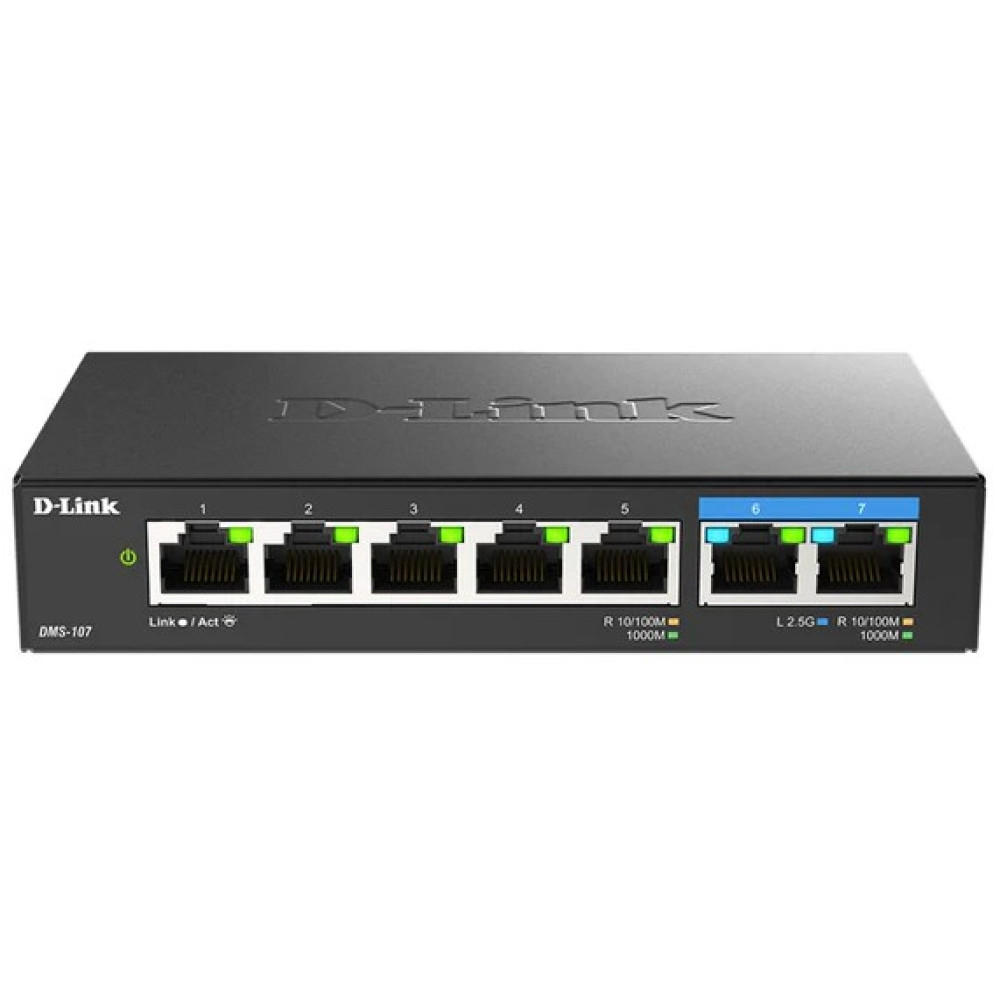

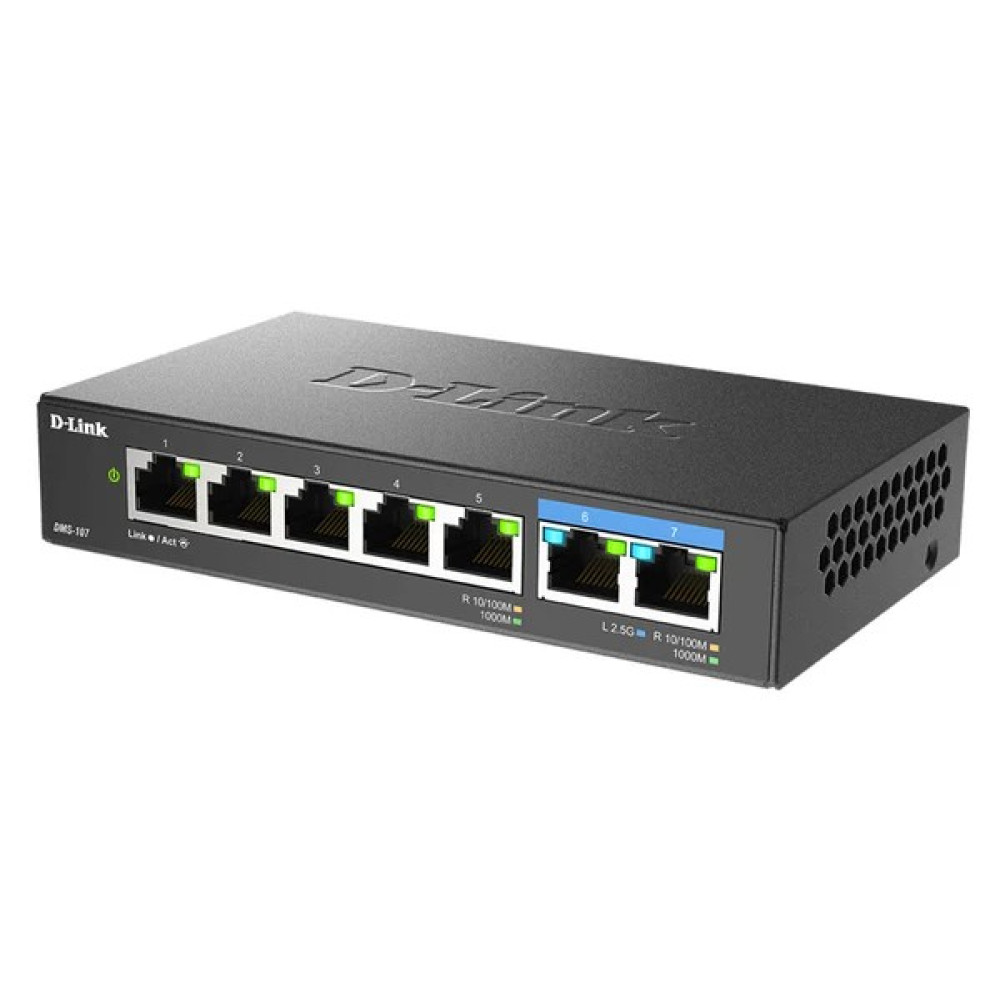

The DMS-107 is easy to setup with no software installation or configuration needed. All of the ports on the DMS-107 switch supports automatic MDI/MDIX crossover, eliminating the need for crossover cables. Each port can be plugged in directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. In addition, the DMS-107 switch features multiple front, easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 5 |
| Ethernet Ports | 5x 10/100Mbps/1G/2.5G |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az |
| MAC Table Size | 4K |
| Power | |
| Power Consumption | 4.918 W |
| Input Connection | External 12 V / 1 A |
| Mechanical | |
| Mounting | Desktop |
| LED Indicators | Power, Link/Activity per port |
| Weight | 238.6 g |
| Dimensions | 100.5 x 82 x 28 mm |
| Ratings | |
| Operating Temperature | 0° - 40° C (32° - 104° F) |
| Storage Temperature | -10 to 70 ˚C (14 to 158 ˚F) |
| Humidity | 10% to 90% non-condensing |
| Certifications | CE Class B, RCM Class B, FCC Class B, VCCI Class B, IC Class B, BSMI Class B |
| Safety Standards | BSMI, LVD |
| MTBF | 765,190.81 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| D-Link DMS-107 Datasheet | 526.72KB |
| D-Link DMS-107 Quick Installation Guide | 4.28MB |
