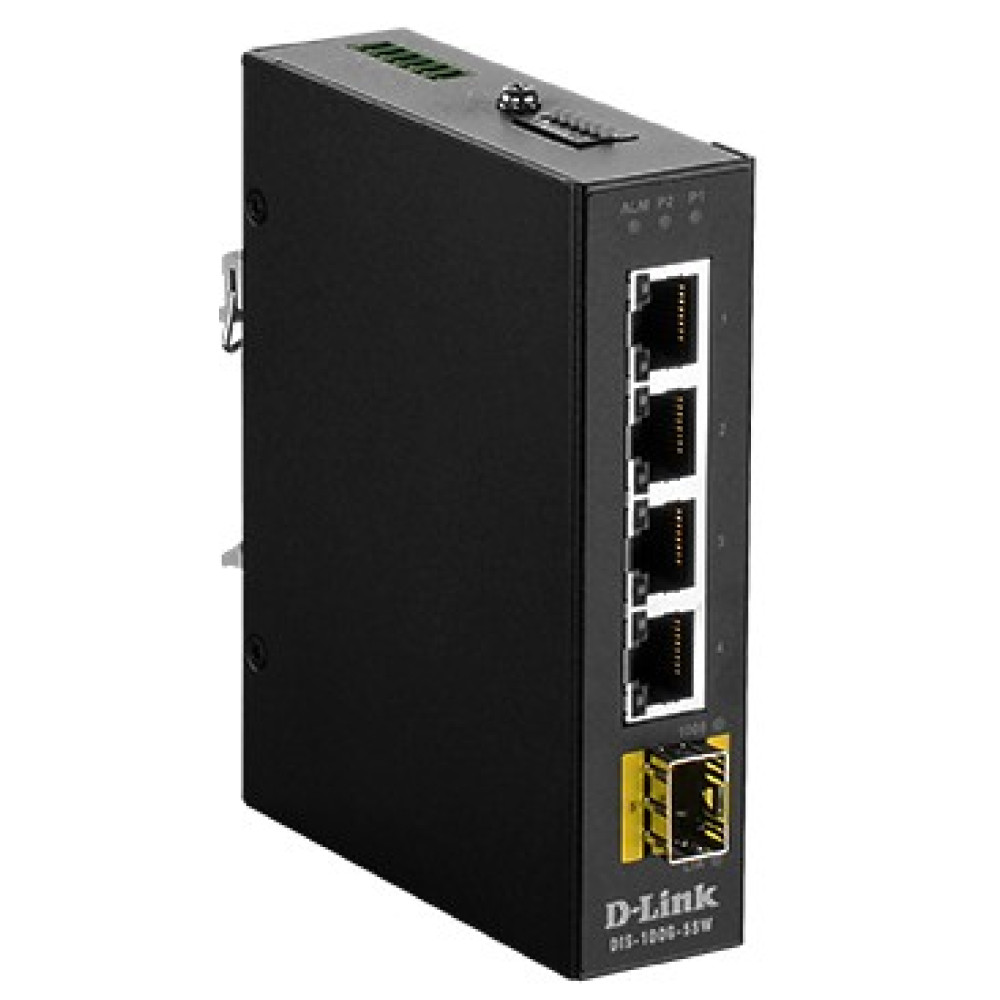

The DIS-100G-5SW Industrial Gigabit Unmanaged Switch is designed specifically to withstand wide temperature range, vibrations and shock. This rugged, easy to deploy switch has superior environmental specifications compared to those of commercial network switches. With its hardened design combined with high availability network features, this switch forms a vital part of any network infrastructure facilitating the increasing demand for smart cities, city-wide surveillance and wireless connectivity. The DIS-100G-5SW switch is designed with four 100/1000Base-T ports and one 100/1000BaseSFP slot to suit a range of devices and network layouts.
The DIS-100G-5SW has a fanless design. With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimized for the transfer of heat. The tough housing has been created to keep your network protected and reliably rugged. Deployment environments include smart city surveillance, factory automation, and outdoor wireless networks.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch |
Total Ports | 5 |
Ethernet Ports | 4 Gigabit (100/1000BaseT ports) |
Fiber Ports | 1 100/1000BaseSFP slot |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p |
Jumbo Frame Support | 9 KB |
MAC Table Size | 2 K |
Power | |
Power Consumption | 3.82 W |
Input Connection | 12 to 58 VDC terminal block dual input |
Mechanical | |
Mounting | DIN rail, wall mount |
Shock / Vibration | IEC 60068-2-27 Shock, IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration |
LED Indicators | ALM, P1/P2, Link/Activity/Speed |
Material | IP30-rated metal casing |
Weight | 0.32 kg |
Dimensions | 112.2 x 29.1 x 89.4 mm |
Ratings | |
Operating Temperature | -40 to +75°C |
Storage Temperature | -40 to 85 °C |
Humidity | 5% to 95% non-condensing |
Certifications | CE, FCC, UL, NEMA-TS2, EN50121-4 |
MTBF | >25 years |
Warranty | 5 year |
