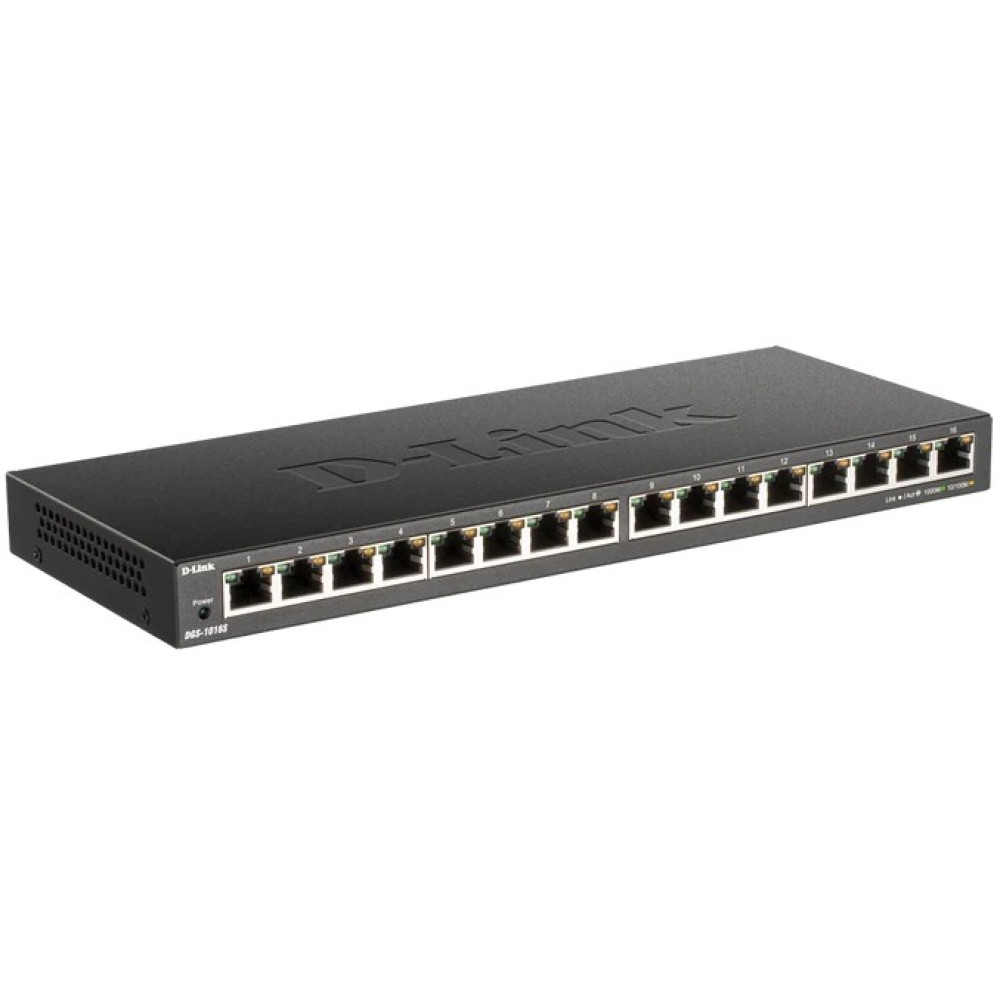

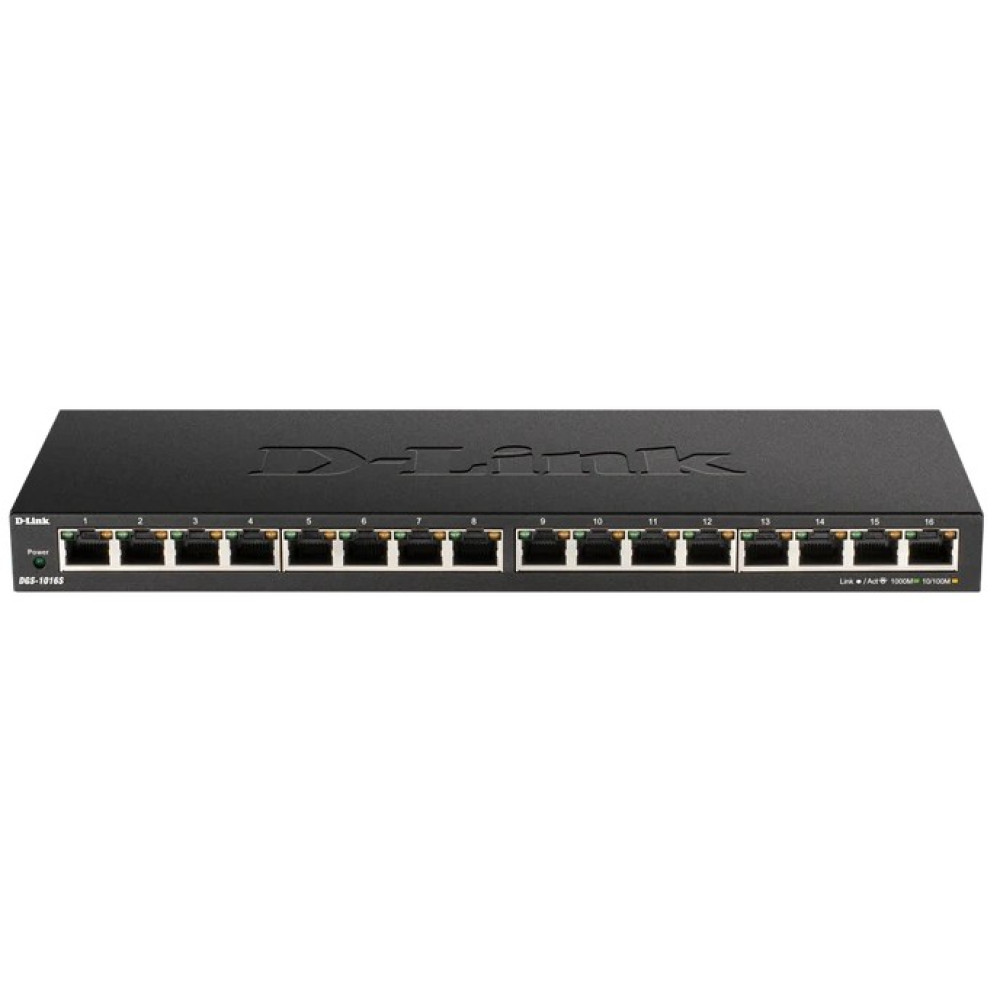

The D-Link DGS-1016S 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium sized businesses looking for a quick and easy way to upgrade or expand their network. The low profile switch features a compact and sturdy metal design that allows the switch to be placed on a desktop or wall-mounted. With its integrated power-saving technologies, the switch automatically reduces power consumption, reducing heat while prolonging product life, all without sacrificing performance or functionality.
With Gigabit transfer speeds on each port, you can rapidly transfer files between connected computers and devices. The switch features 802.1p Quality of Service (QoS), which organizes and prioritizes time-sensitive and critical data for efficient delivery, allowing for buffer-free video streaming as well as smooth video and voice conferencing.
The DGS-1016S supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
The DGS-1016S features a fanless design for silent operation, reduced energy consumption, and enhanced reliability by eliminating a common point of failure.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch |
Total Ports | 16 |
Ethernet Ports | 16 Gigabit (10/100/1000) |
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az |
MAC Table Size | 8K |
Serial Interface | |
Buffer Memory | 512 KB |
Power | |
Power Consumption | 9.645 W maximum |
Input Connection | 12 V / 1 A |
Mechanical | |
Mounting | Desktop, Wall mount |
LED Indicators | Link/Activity/Speed/Power |
Dimensions | 280 x 110 x 25 mm |
Ratings | |
Operating Temperature | 0° - 40° C (32° - 104° F) |
Humidity | 10% to 90% non-condensing |
Certifications | CE, FCC, RCM, IC, BSMI |
Safety Standards | CB / UL / LVD / BSMI |
MTBF | 647,567.92 hours |
Warranty | 5-year |
Download Name | File Size |
D-Link DGS-1016S Datasheet | 140.34KB |
D-Link DGS-1016S Quick Install Guide | 312.83KB |
