CyberPower OL5KRTHD 5000VA/5000W Smart App Online UPS with RM Card, 2U Size

CyberPower OL5KRTHD Rack/Tower UPS, Color LCD, 2 NEMA L6-20R and 2 NEMA L6-30R

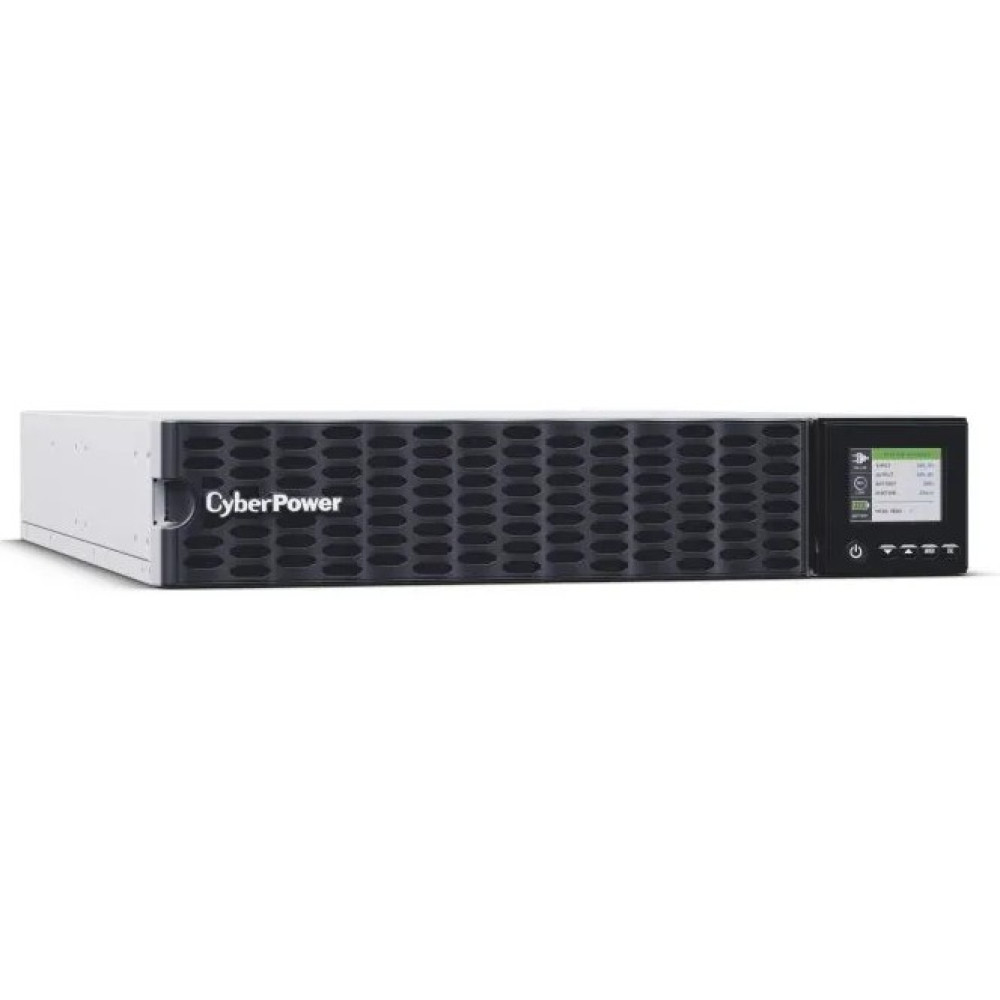

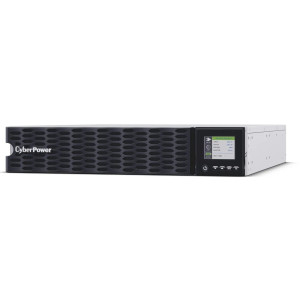

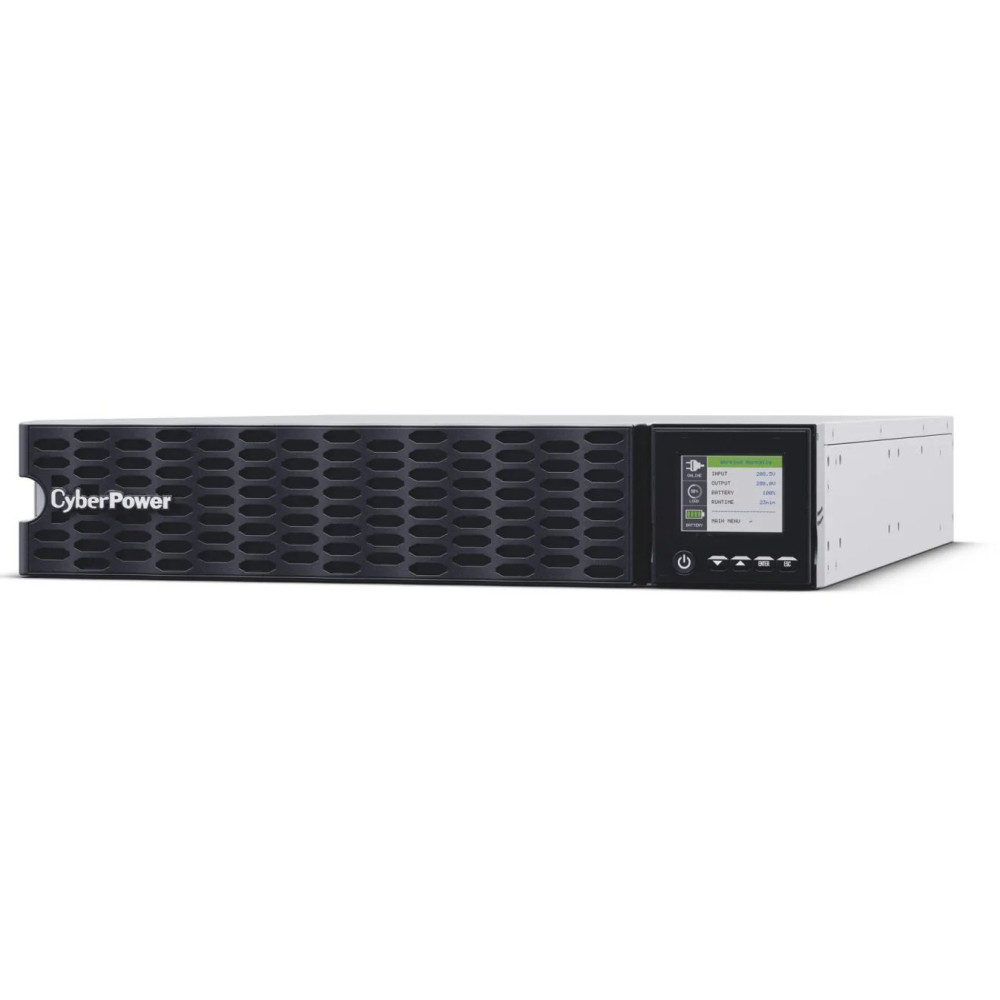

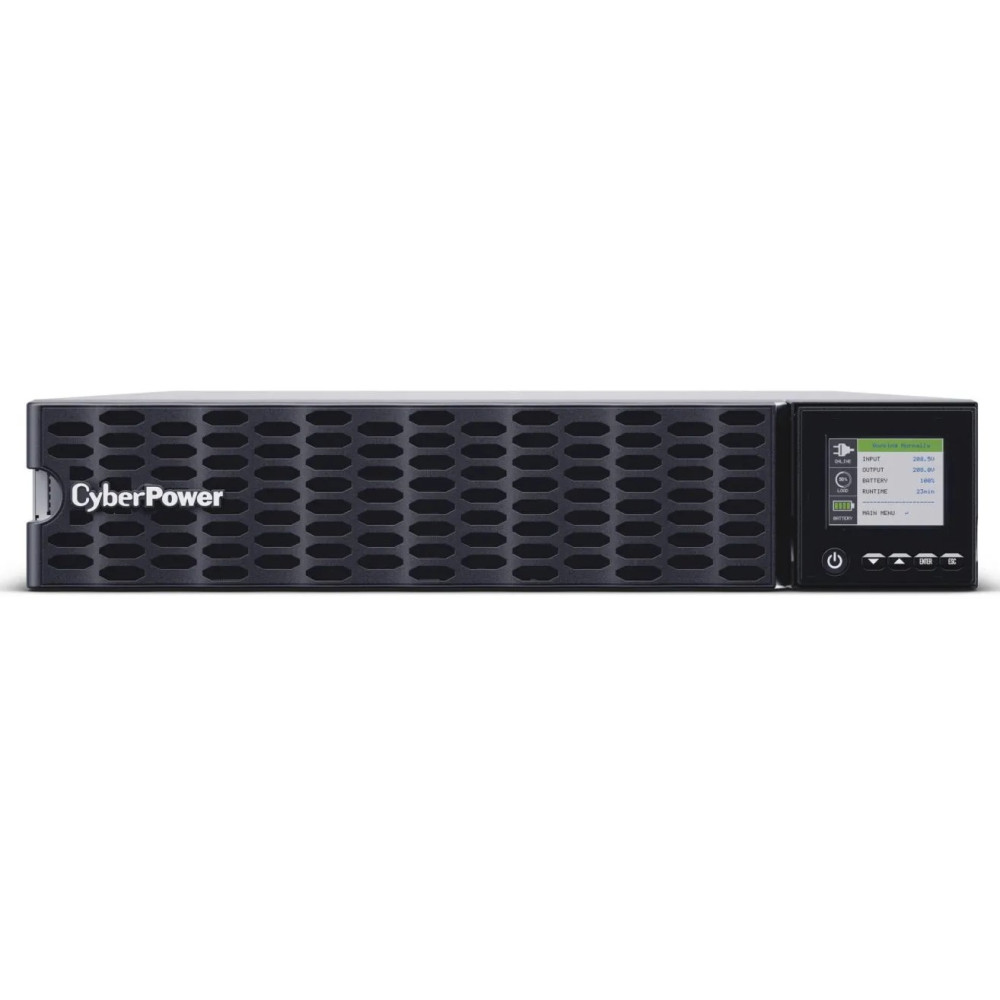

The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

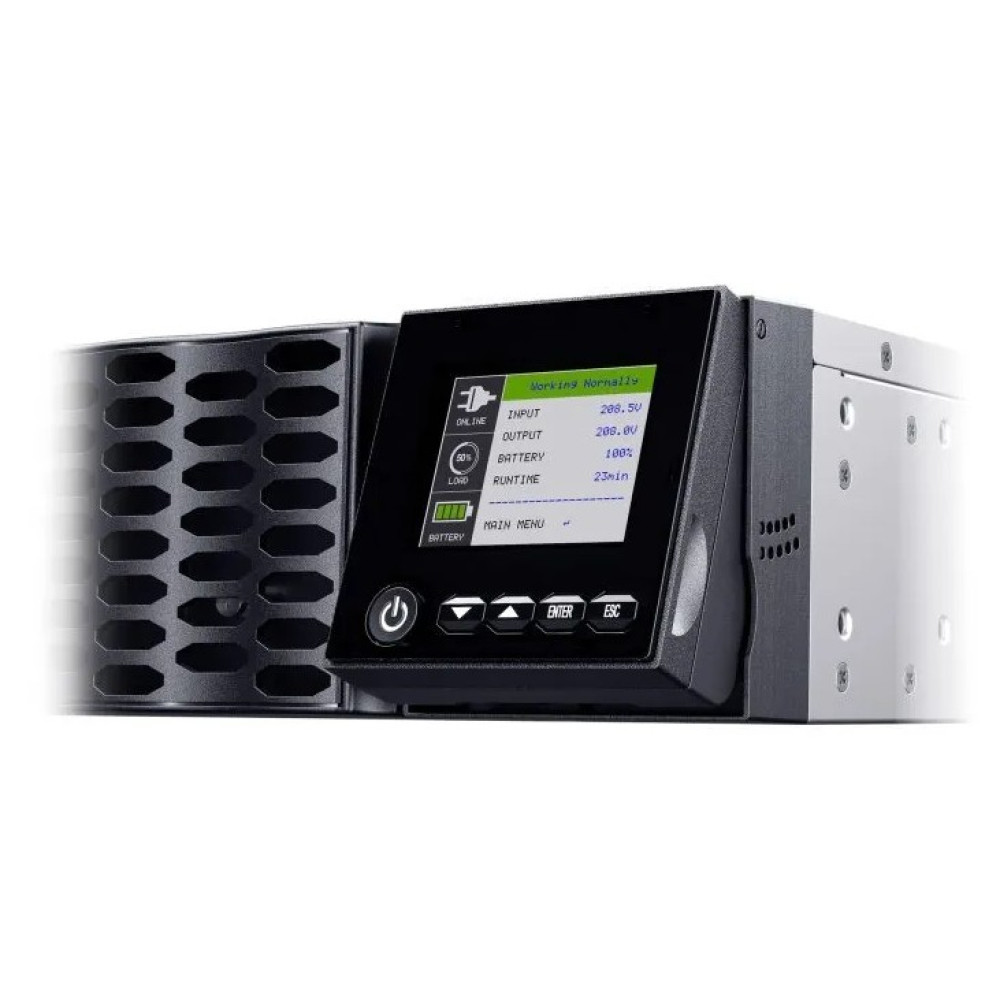

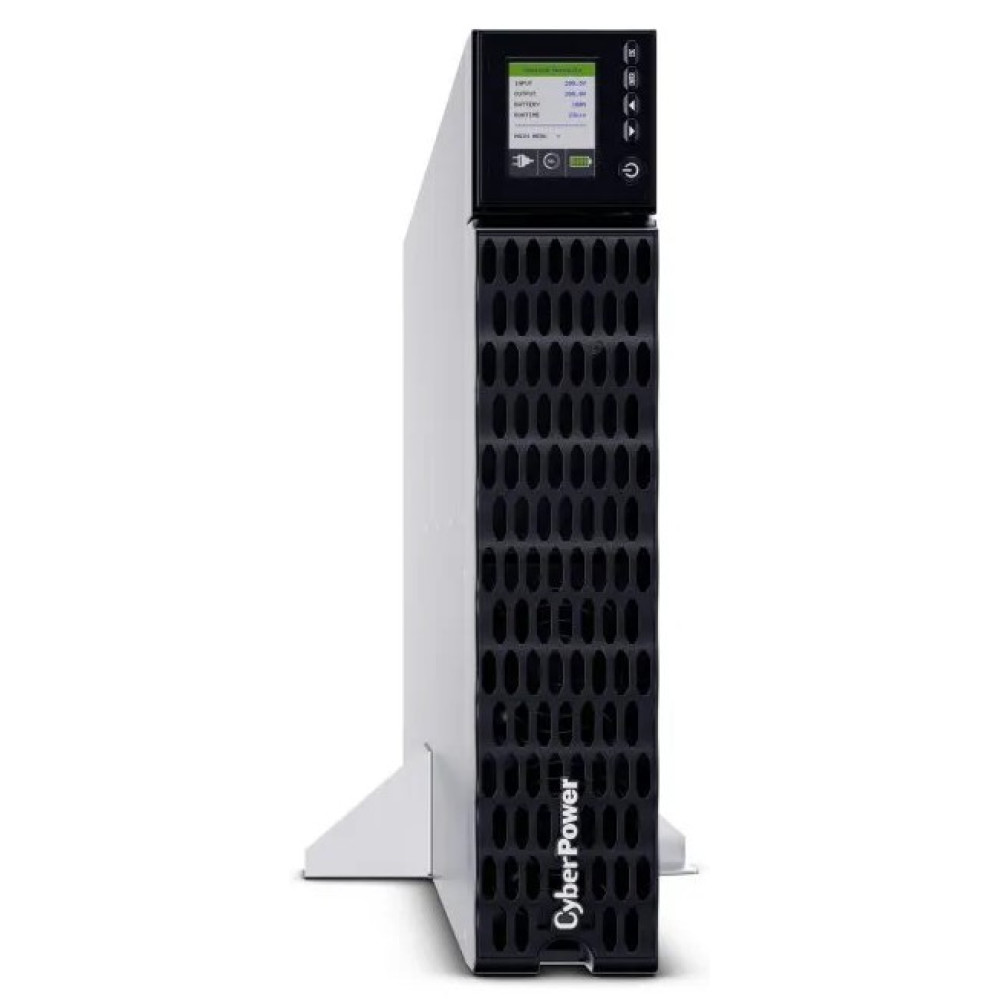

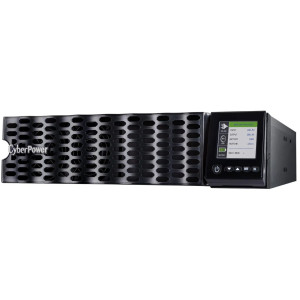

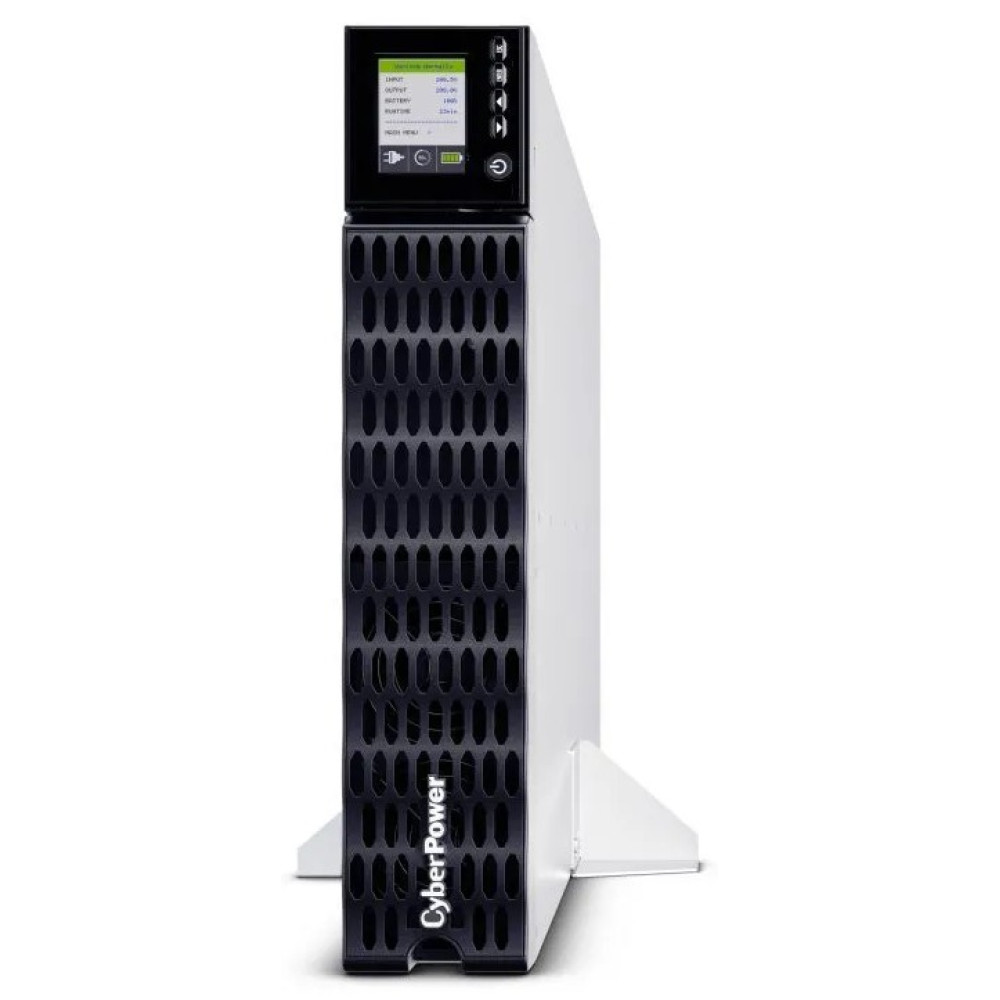

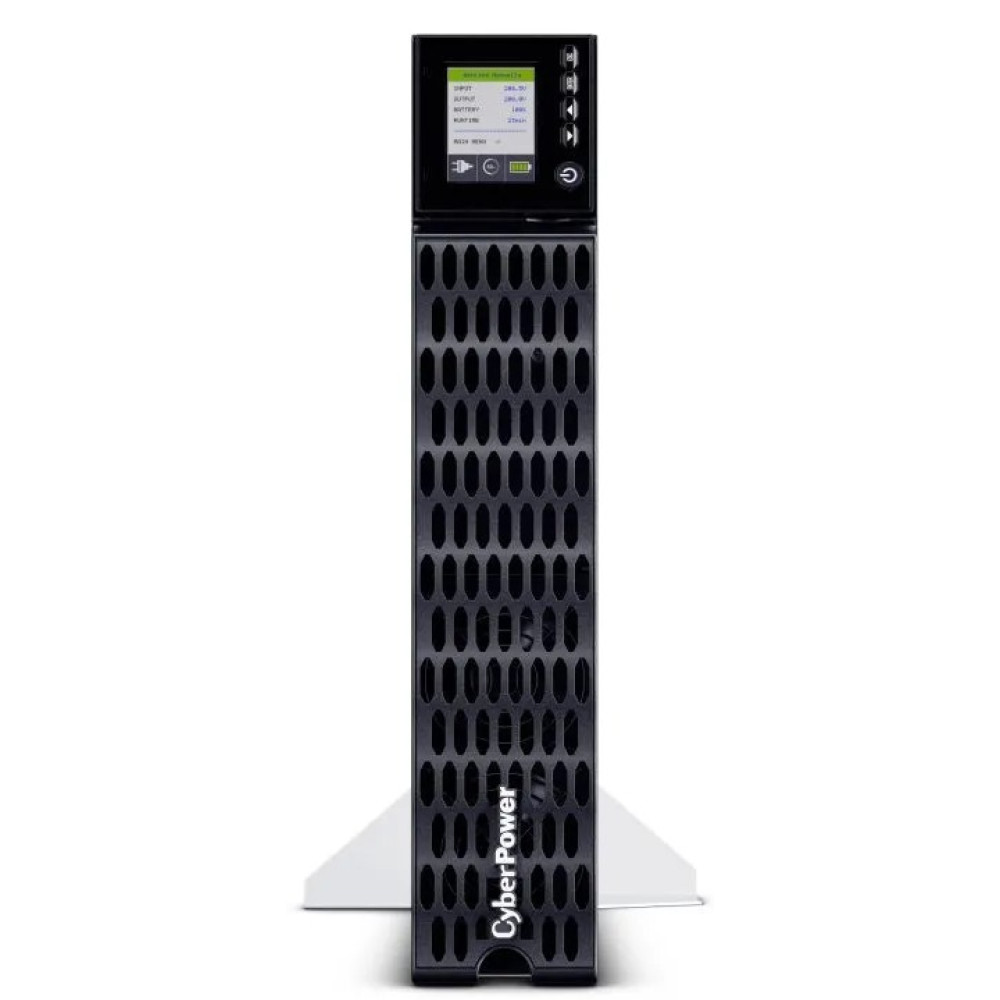

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. It's all backed by a 3-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.

Typical Applications

• Core Network Equipment
• Hyperconverged Infrastructure (HCI)
• Server Rooms
• Server Virtualization Infrastructures
• Storage Systems
• VoIP Infrastructure
• Enterprise Servers
• Corporate Servers

Key Features

• 5000 VA / 5000 W
• 2U size
• Power Factor (PF): 1
• Double-Conversion Topology
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 VAC +/-2% (configurable)
• Runtime (half/full): 7.9 minutes / 3.1 minutes
• NEMA L6-30P power cord with hardwire option

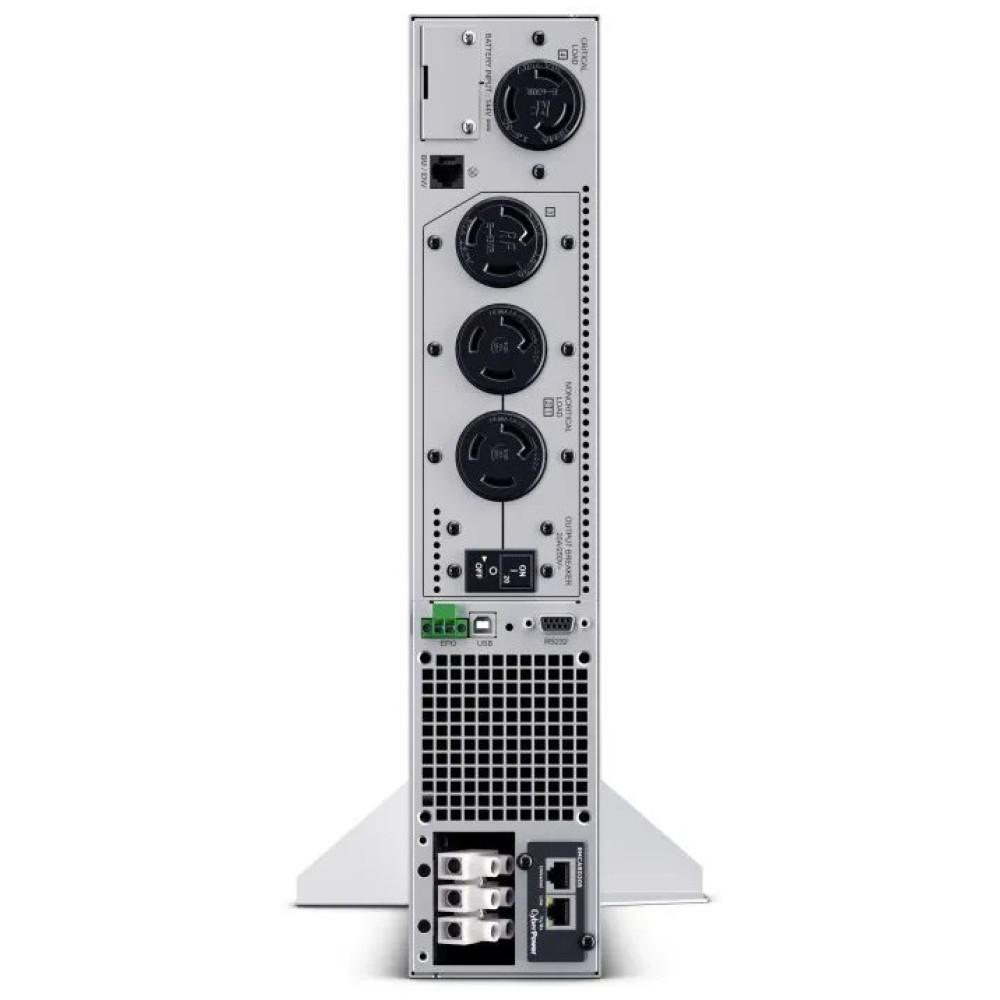

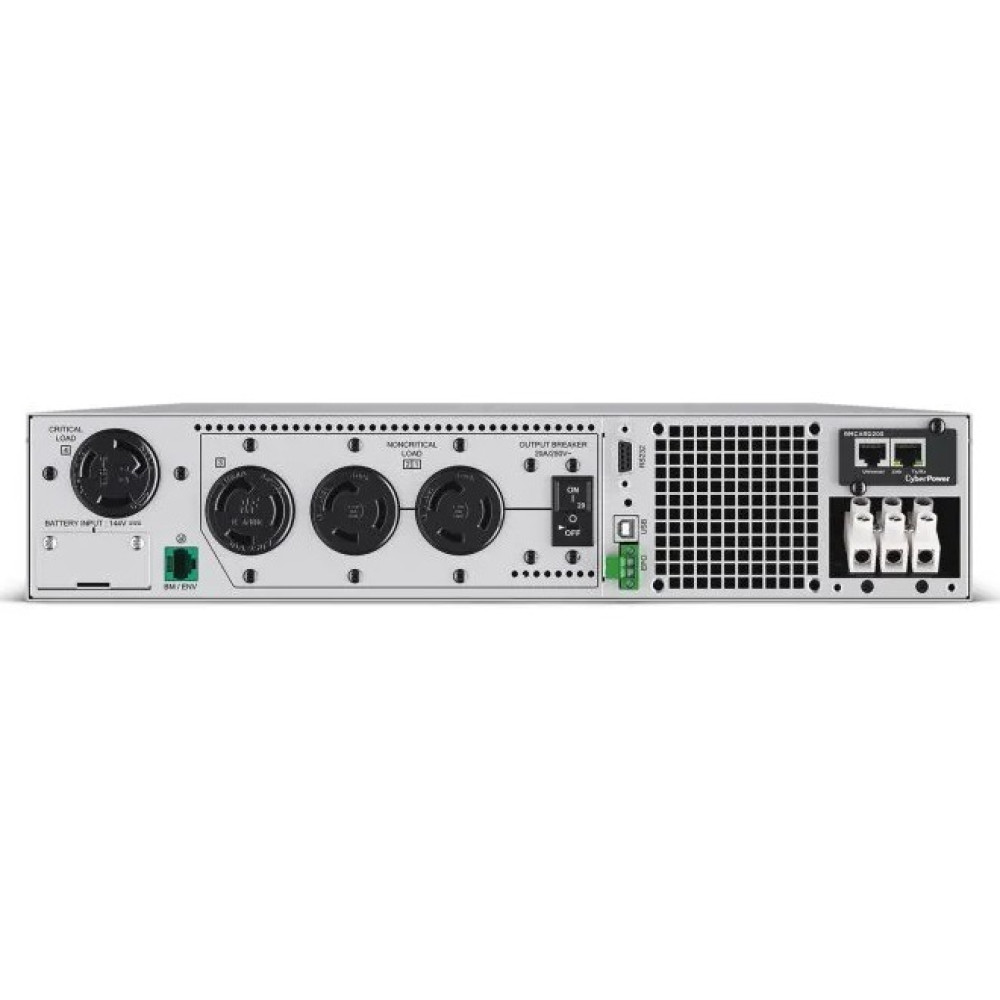

• 2 NEMA L6-20R, 2 NEMA L6-30R Outlets
• USB, Serial, SNMP, EPO
• PowerPanel Business Edition Management software
• ECO Mode Efficiency >95%
• Factory installed RMCARD205 for remote management*
• Multi-Function Color LCD Control Panel
• Battery Equalization Technology
• Smart Battery Management
• Fast Charge Technology
• Environmental sensor: Optional ENVIROSENSOR
• 3-Year warranty
• $300,000 Connected Equipment Guarantee

In the Box

1. UPS system
2. Installation and Operation Manual
3. Quick Start Guide
4. Registration Warranty Card
5. PowerPanel Management Software Download Card
6. Input terminal block cover & NEMA L6-30P Power Cord
7. Rackmount Left Rail, Rackmount Right Rail, Left Hanging Bracket, Right hanging bracket
8. Serial Interface Cable (RS-232), USB Communication Cable
9. (2) Rackmount Ears
10. (8) M5 x 7L Flat head screws
11. (12) M5 x 12L Pan head screws
12. (6) M5 x 6L Pan head screws
13. (8) Plastic Washers
14. (18) Screw Hole Dust Covers
15. (12) Rubber Pads
16. (2) Stands
17. Input Bottom Cover
18. Screwdriver

CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OL5KRTHD is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
