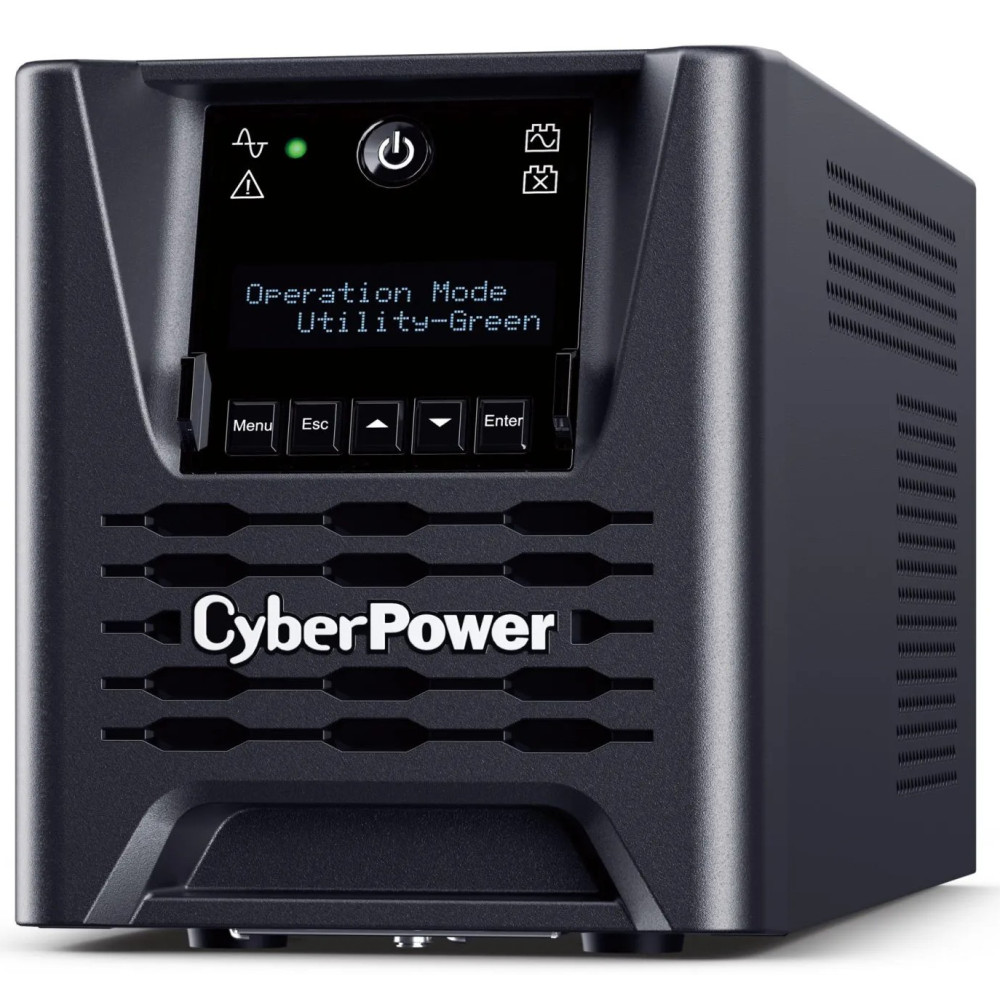

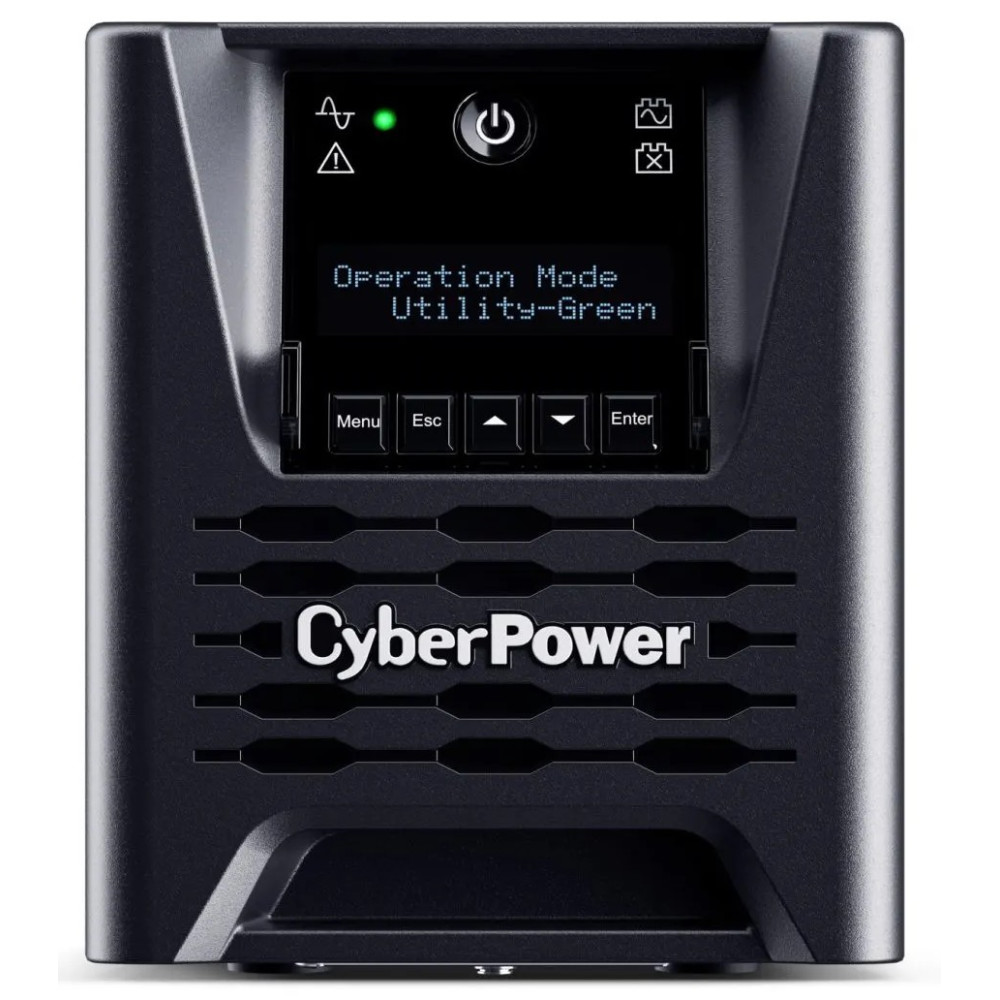

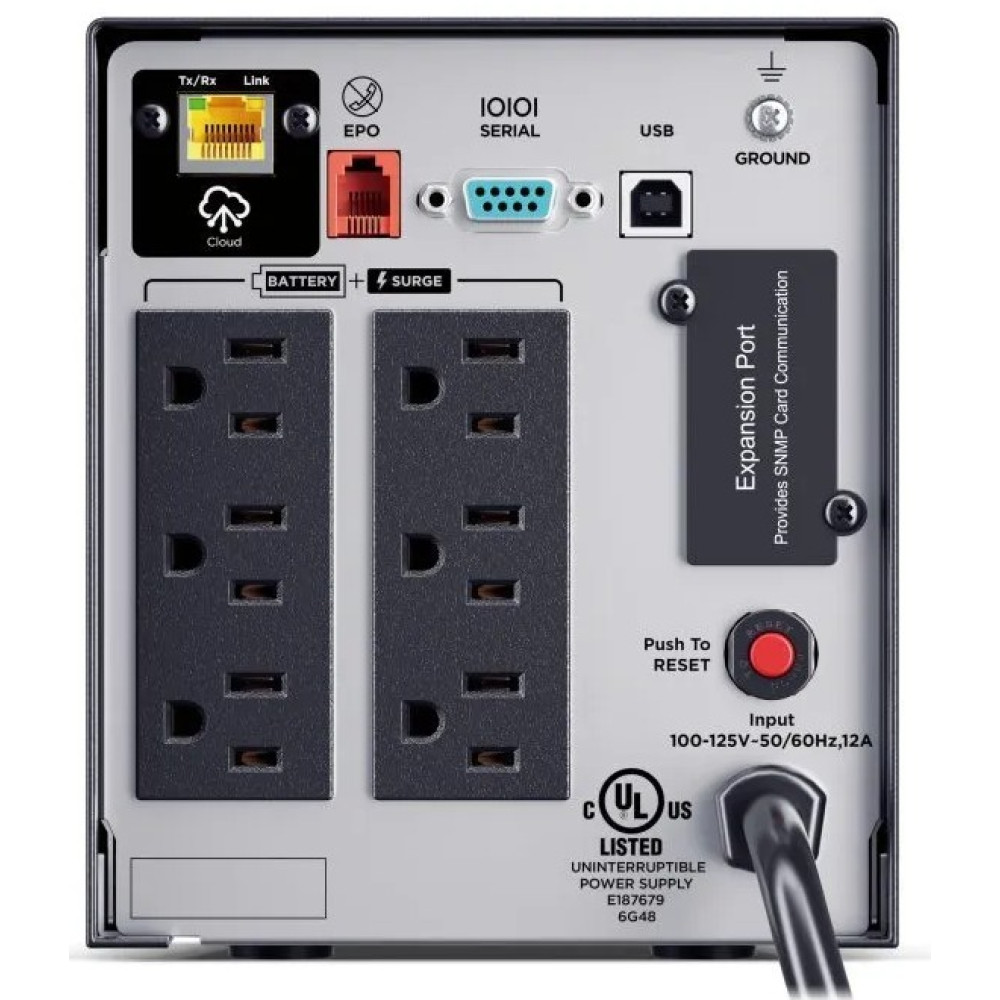

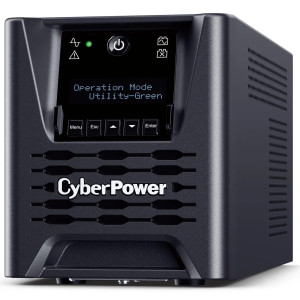

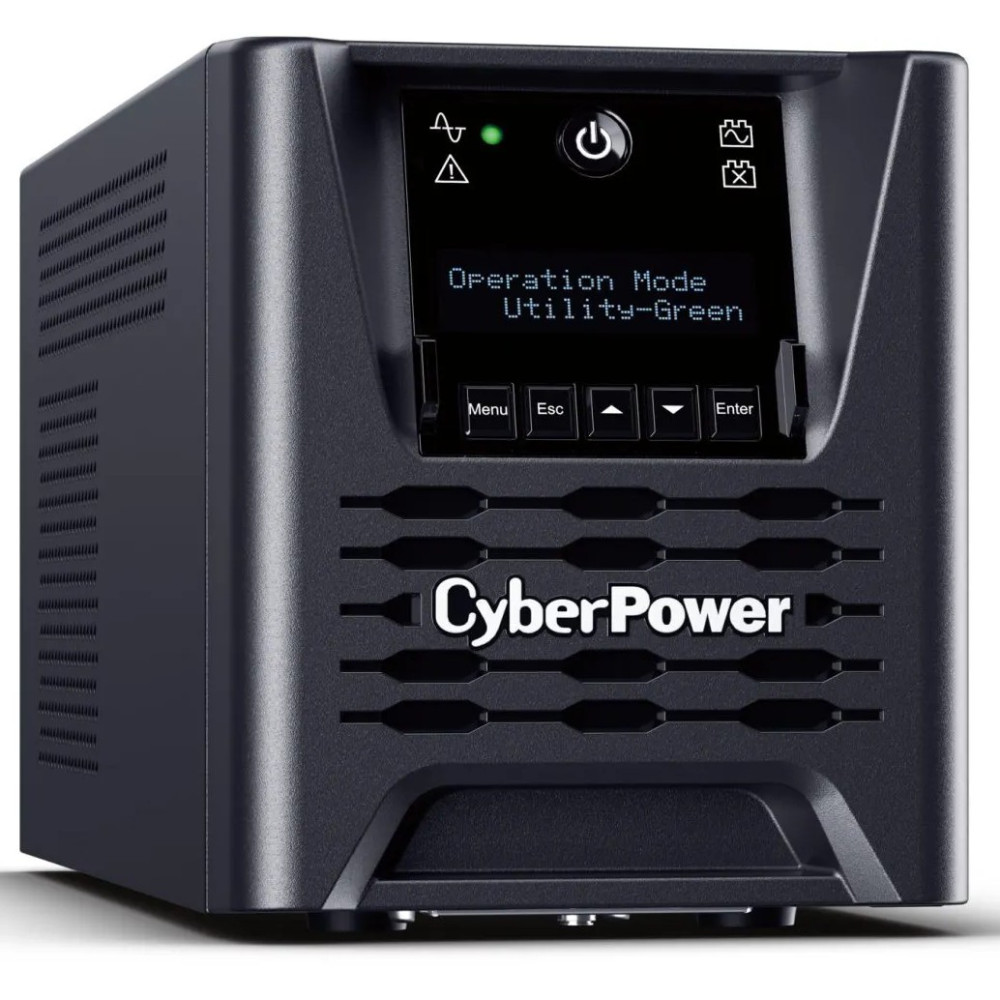

The PR750LCD3C is a Smart App Sinewave mini tower UPS with line-interactive topology that provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system and includes built-in cloud monitoring.
The PR750LCD3C comes with a three-year warranty and a $375,000 Connected Equipment Guarantee.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The PR750LCD3C supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS |
| Interfaces | |
| Management | Remote management with optional RMCARD205 |
| USB Interface | |
| USB Ports | HID Compliant USB Port |
| Battery | |
| Runtime | 3.3 / 10.7 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 8 Hours |
| Transfer Time | 4 ms |
| Power | |
| Rated Power | 750 Watts |
| Nominal VA | 750 VA |
| Output Voltage | 120 VAC ± 5% |
| Input Voltage | 78 - 149 VAC |
| Frequency | 50 - 60 Hz +/- 1% |
| Power Factor Correction | 1 |
| Overload | Internal Circuitry Limiting, Circuit Breaker |
| Input Connection | 5-15P 5ft. Cord |
| Output Connection | (6) 5-15R outlets |
| Surge Protection | 1350 joules |
| Mechanical | |
| Enclosure | Mini tower |
| LED Indicators | Power On, On-Line, Battery Mode, Fault |
| Color | Black |
| Material | Metal |
| Weight | 26.01 lbs. |
| Dimensions | 5.43 x 6.37 x 14.17 in. |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Humidity | 0% to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778 |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower PR750LCD3C Datasheet | 1.02MB |
| CyberPower PR750LCD3C User Manual | 1.72MB |
| CyberPower PR750LCD3C LCD Function Setup Guide | 49.73KB |
