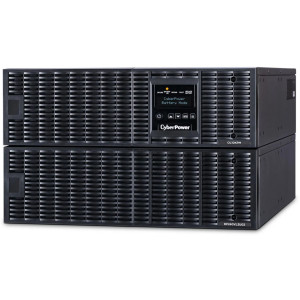

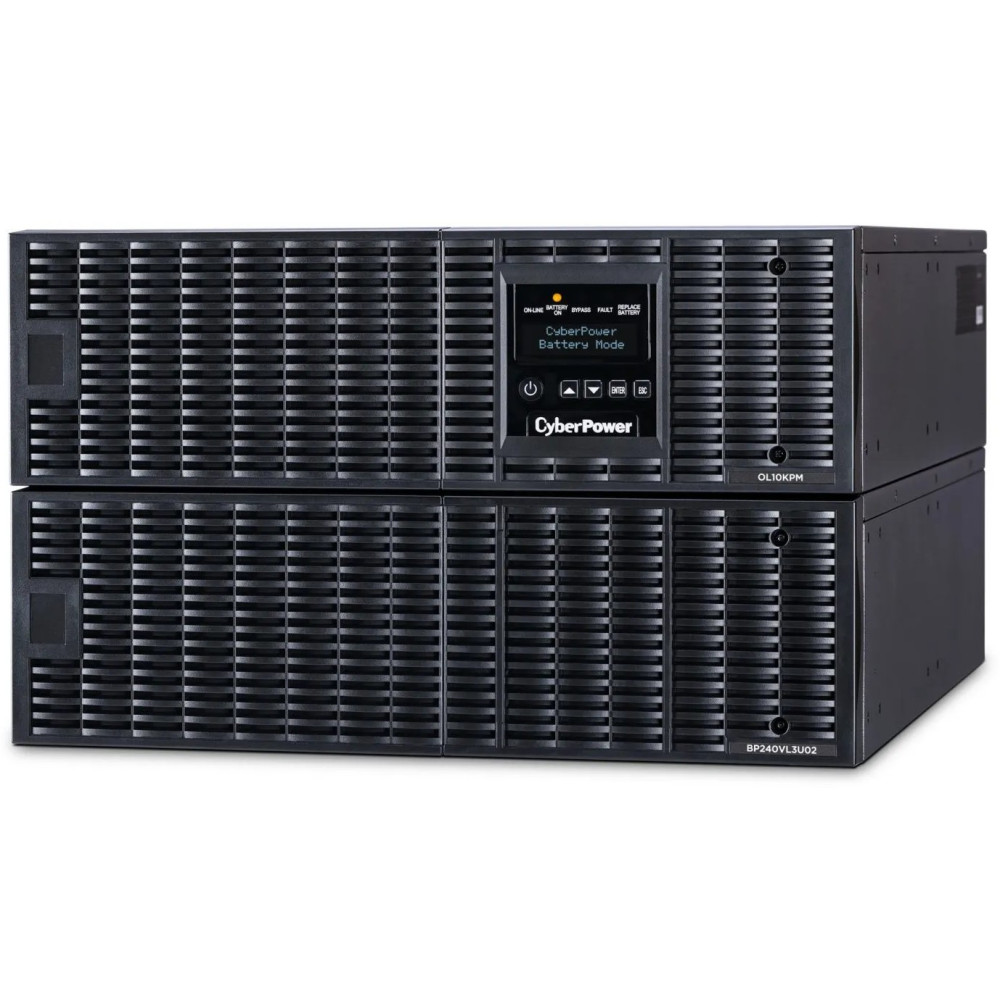

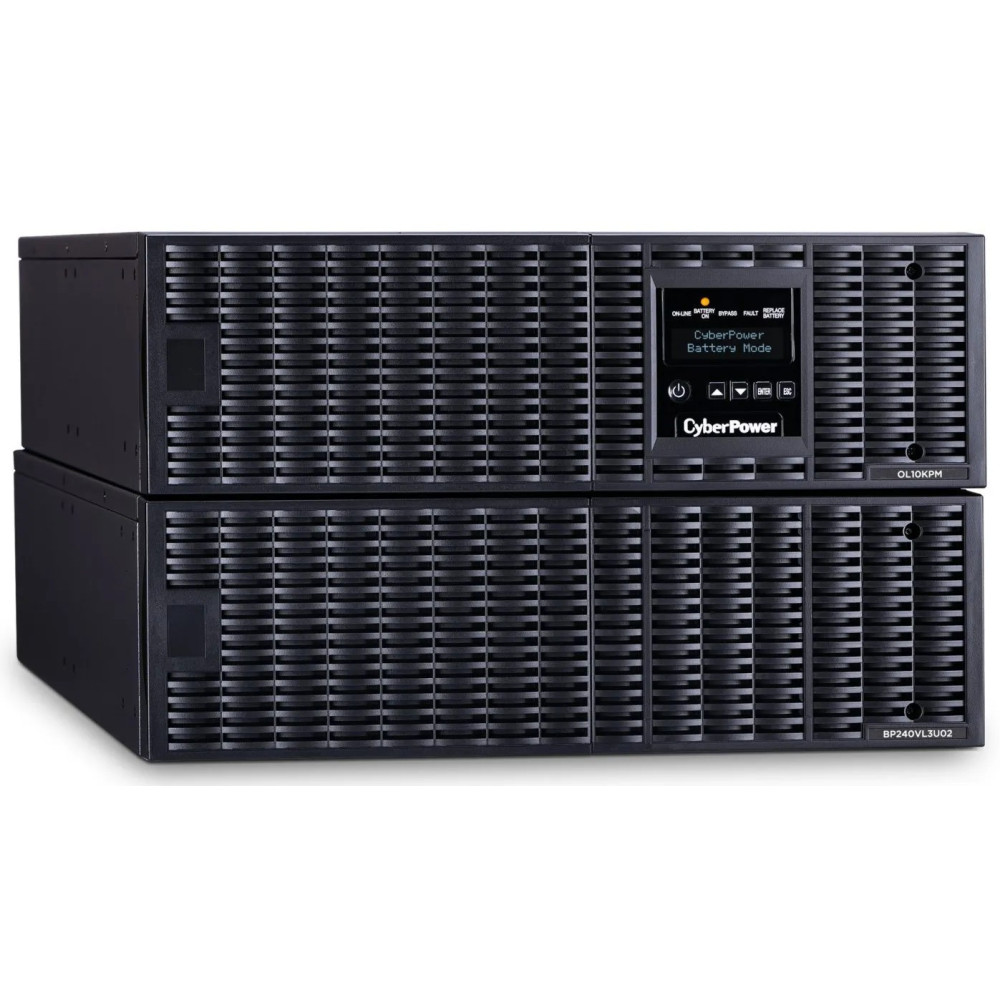

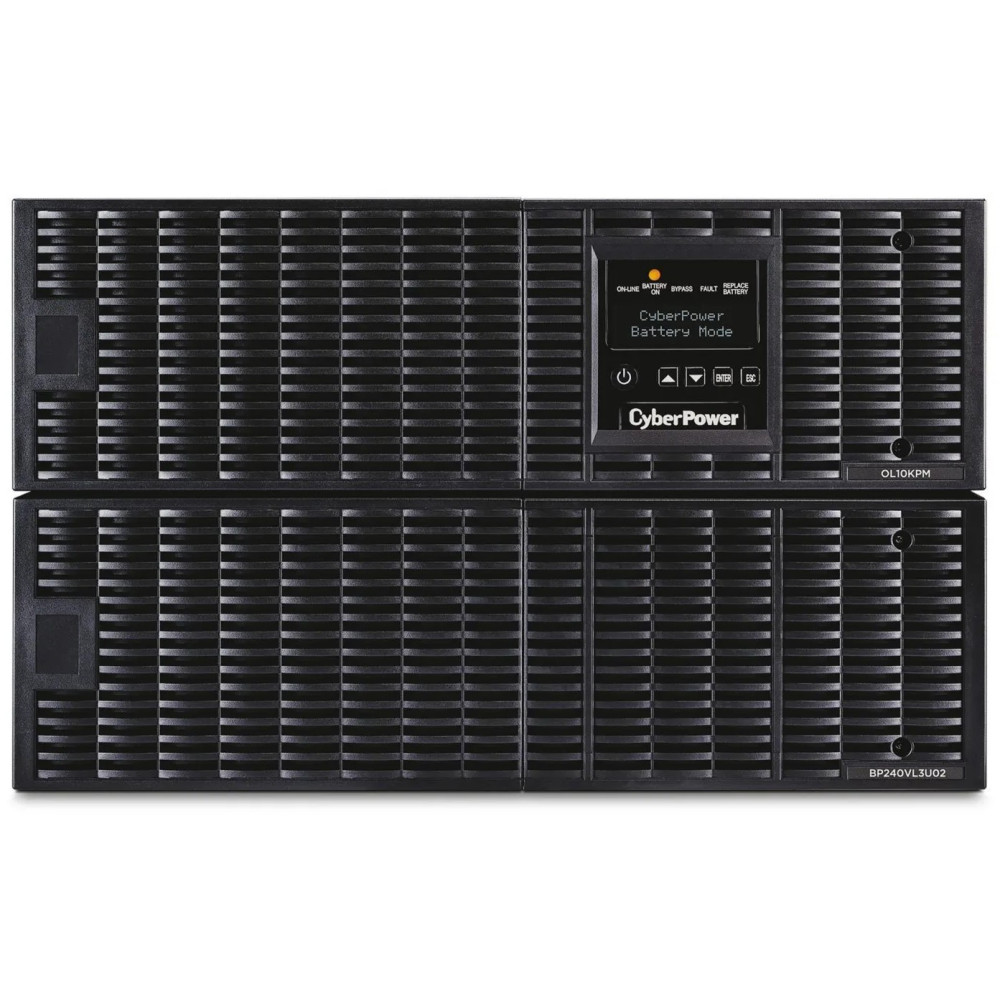

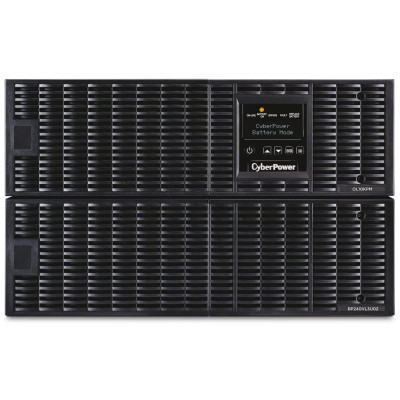

CyberPower OL10KRT 10,000VA/10,000W Smart App Online UPS w/RM Card, 6U Size

CyberPower OL10KRT 6U Rack/Tower UPS, LCD, 3 NEMA L6-30R & 1 Hardwire Terminal Block

The CyberPower Smart App Online OL10KRT is a 6U rack/tower double-conversion UPS. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL10KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.

The OL10KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in five hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS ECO Mode allows the UPS to reach up to 97% efficiency to reduce power consumption and thermal dissipation.

This UPS can use the BP240VL3U01 extended battery module for more runtime. The OL10KRT comes with a three-year warranty (including batteries) and a $300,000 connected equipment guarantee.

Typical Applications

• Core Network Equipment
• Hyperconverged Infrastructure (HCI)
• Server Rooms
• Server Virtualization Infrastructures (VMware, Hyper-V, Citrix)
• Storage Systems
• VoIP Infrastructure
• Enterprise Servers
• Corporate Servers

Key Features

• 10,000 VA / 10,000 W
• 6U size
• Power Factor (PF): 1
• Double-Conversion Topology
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 VAC +/-2% (configurable)
• Runtime (half/full): 10 minutes / 3.6 minutes
• Plug Type: Hardwire

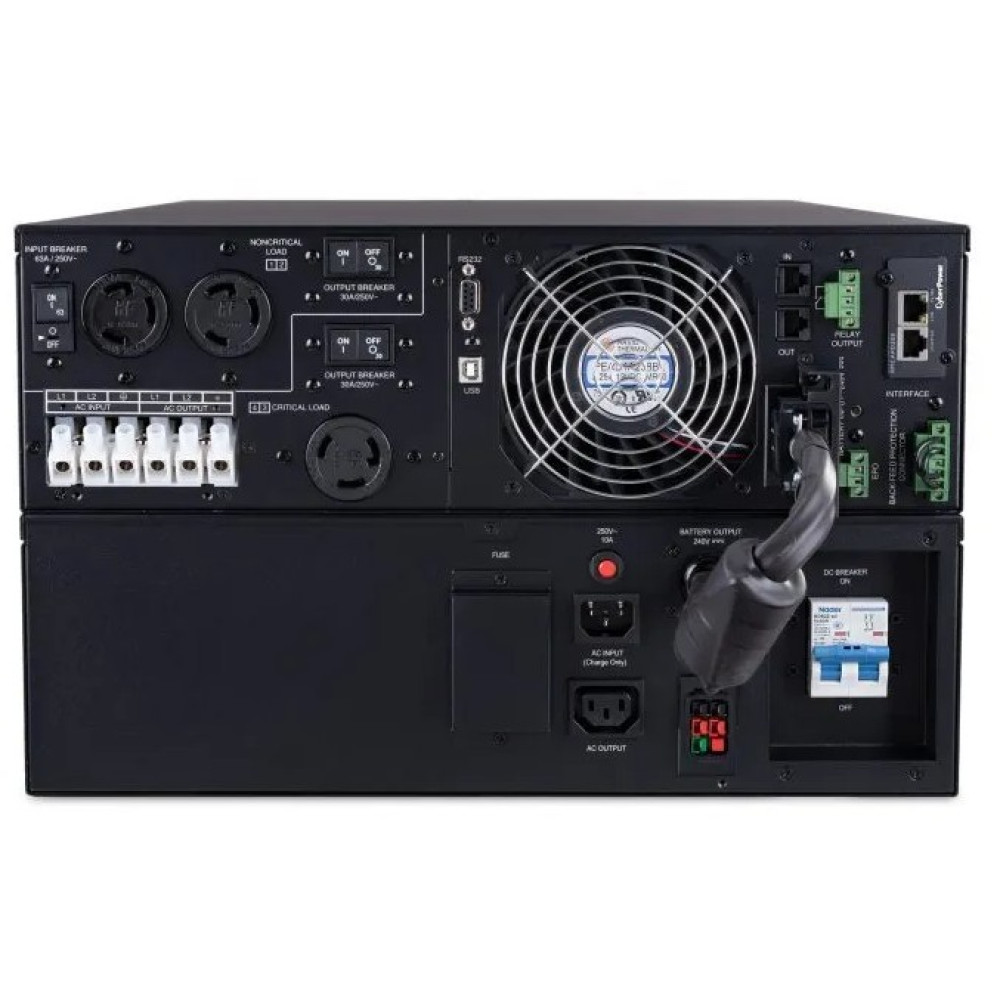

• 3 NEMA L6-30R, 1 Hardwire Terminal Block
• USB, Serial, Ethernet, Relay, EPO
• PowerPanel Business Edition Management software
• ECO Mode Efficiency up to 97%
• Factory installed RMCARD205 for remote management
• Smart Battery Management
• Fast Charge Technology
• 3-Year warranty
• $300,000 Connected Equipment Guarantee

In the Box

1. Power Module
2. Extended Battery Module (EBM)
3. Left & Right Rackmount Rails
4. Left & Right Hanging Brackets
5. Phone Cable
6. USB Communication Cable
7. Serial Interface Cable (RS-232)
8. NEMA L6-30P to IEC-320-C13 Power Cord
9. Quick Start Guide
10. Safety Instructions
11. Registration Warranty card
12. PowerPanel Management Software Download Card
13. (4) Rackmount Ears
14. Tie Plate
15. (16) M5 x 7L Black Flat Head Screws
16. (24) M5 x 12L Black Pan Head Screws
17. (12) M5 x 6L Silver Pan Head Screws
18. (16) Plastic Washers
19. (28) Screw Hole Dust Covers
20. (24) Rubber Pads

CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OL10KRT is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
