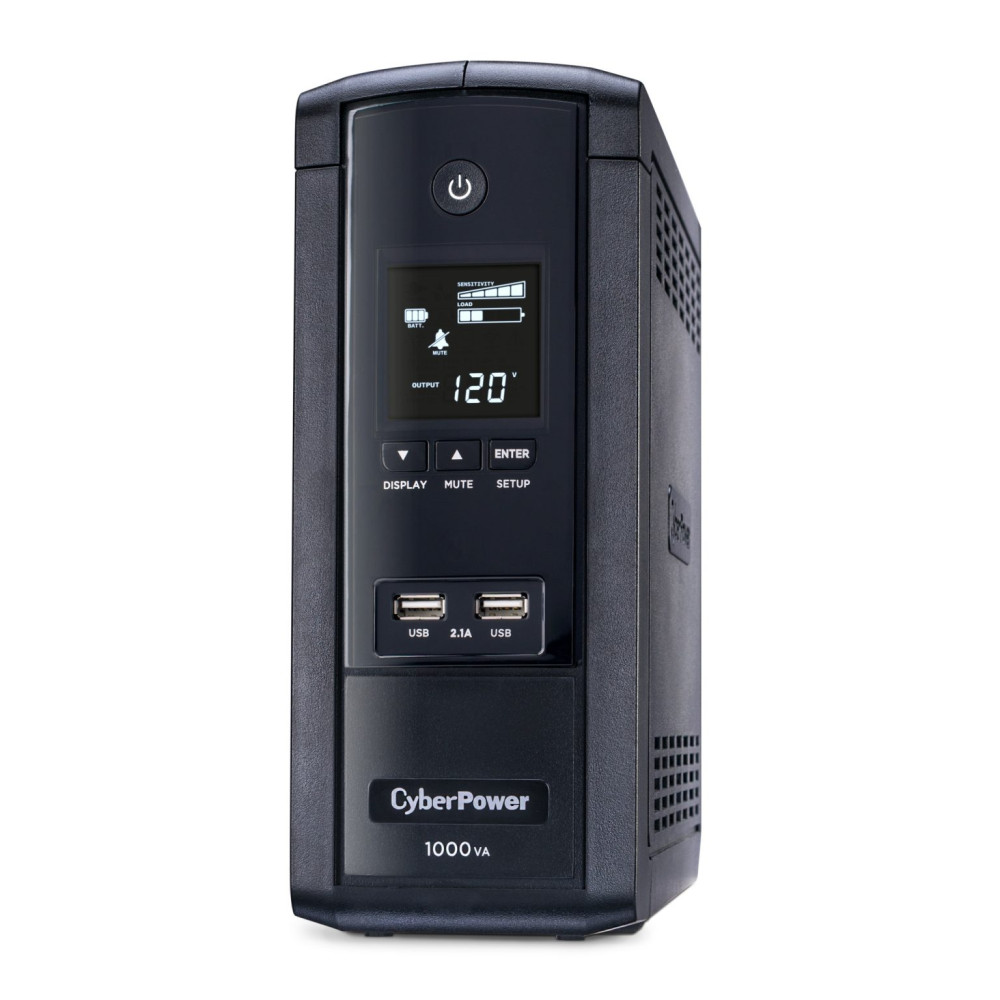

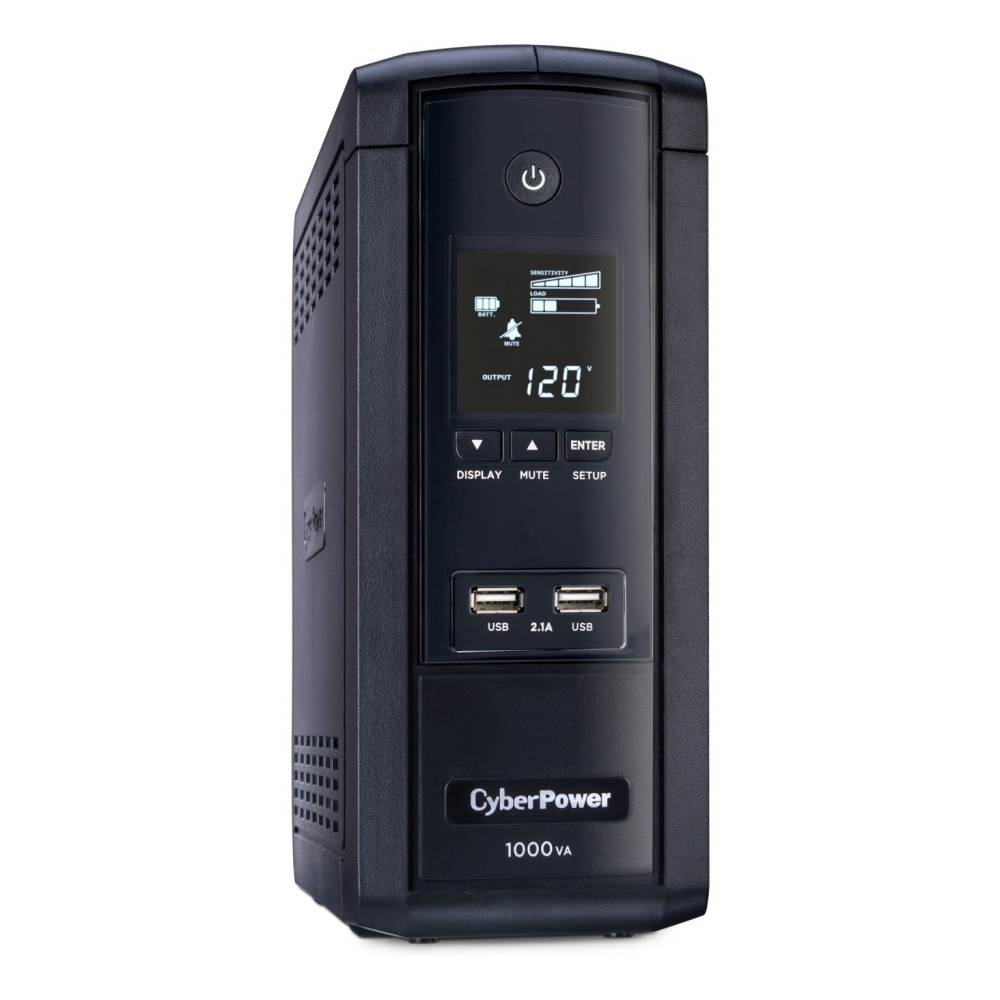

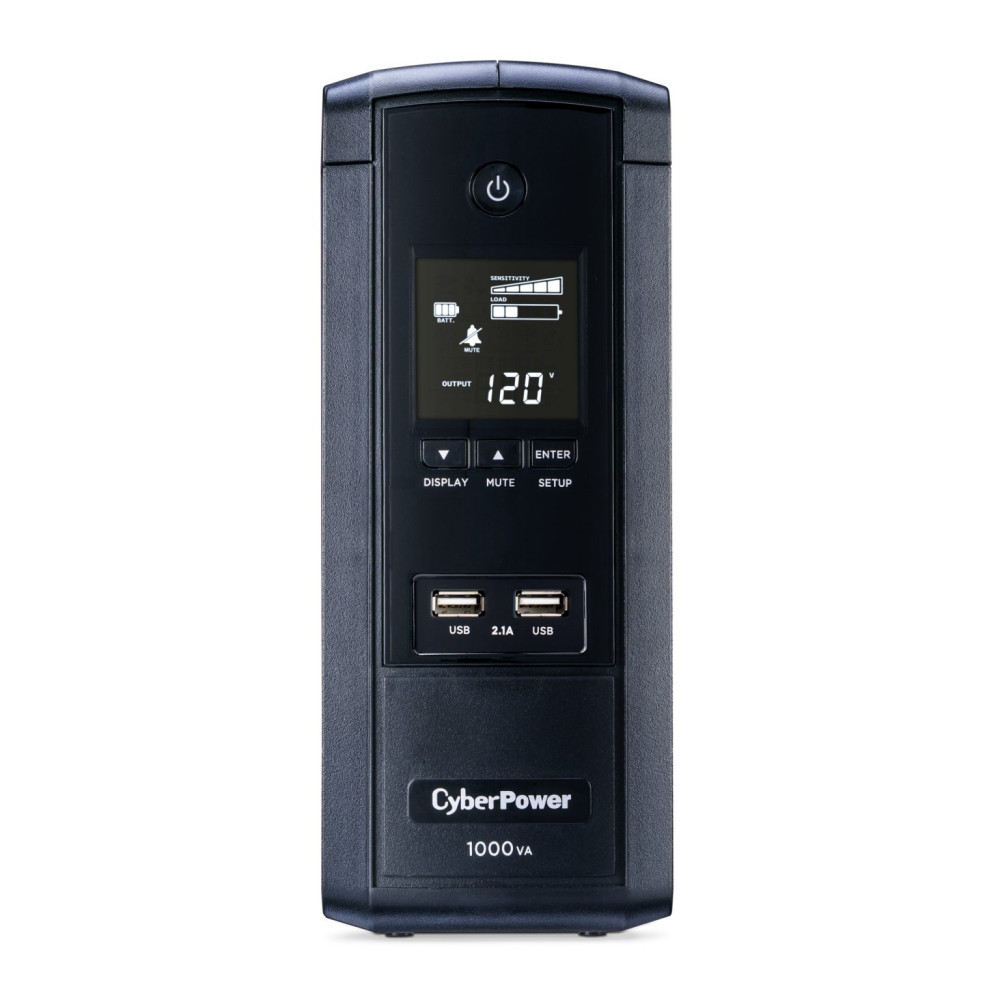

The CyberPower Intelligent LCD Series BRG1000AVRLCD stands as a premier power solution, engineered in a compact mini-tower to safeguard everything from professional workstations to high-end home entertainment systems. By utilizing a line-interactive topology and simulated sine wave output, this unit provides a seamless bridge between utility power and battery backup during critical outages. A hallmark of this system is its integrated Automatic Voltage Regulation (AVR), which actively monitors and corrects minor voltage fluctuations. By stabilizing incoming power without depleting the internal cells, AVR significantly extends battery life - a vital feature for users in regions prone to frequent brownouts or unstable grids.
Typical Applications
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The BRG1000AVRLCD supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Mini-Tower UPS |
| Interfaces | |
| Management | Management Software: PowerPanel Personal |
| USB Interface | |
| USB Ports | HID Compliant ports |
| Battery | |
| Runtime | 11 / 2 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 8 hours |
| Transfer Time | 4ms |
| Power | |
| Rated Power | 600 Watts |
| Nominal VA | 1000 VA |
| Output Voltage | 120VAC +/- 5% |
| Input Voltage | 120 VAC |
| Frequency | 60Hz +/- 1% |
| Power Factor Correction | 0.6 |
| Overload | Internal Circuitry Limiting, Circuit Breaker Protected |
| Input Connection | 5-15P 6ft. Cord |

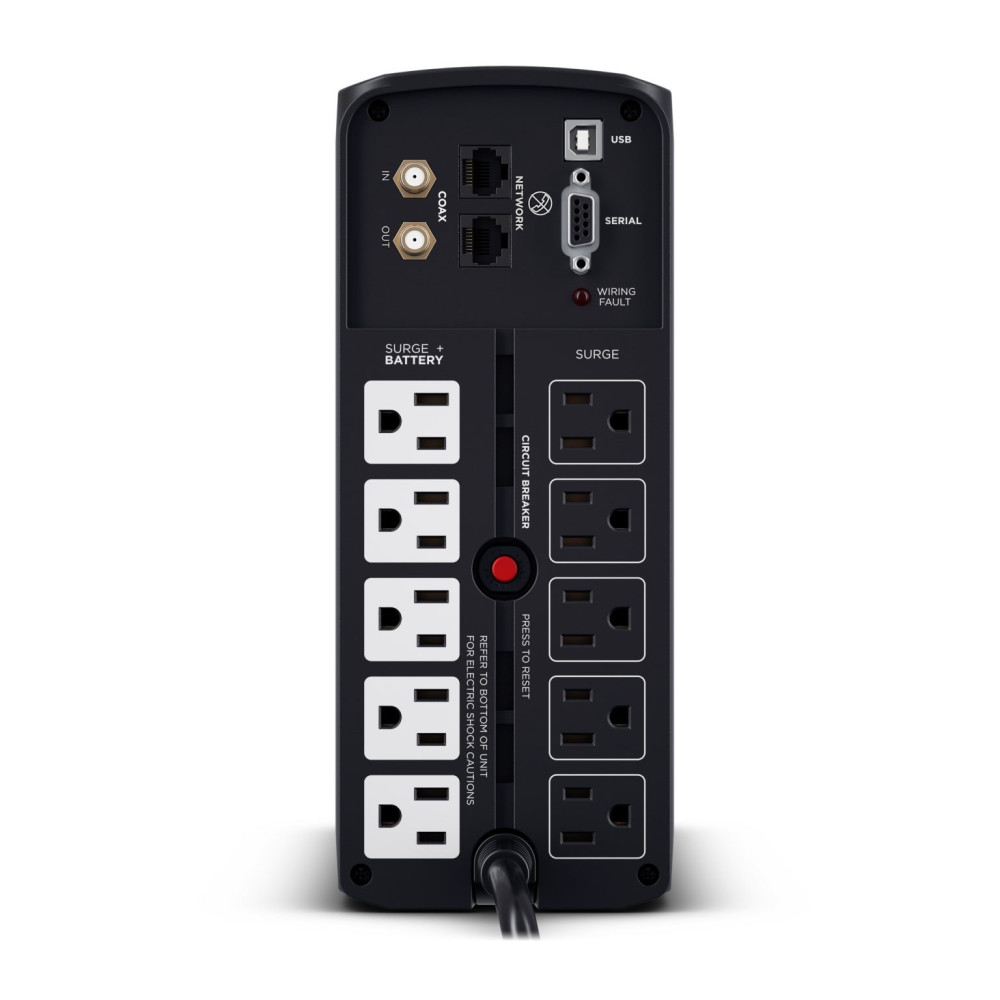

| Output Connection | (10) 5-15R outlets |
| Surge Protection | 1080 joules |
| Mechanical | |
| LED Indicators | Power, Wiring fault |
| Color | Black |
| Material | Plastic |
| Weight | 15 lbs. |
| Dimensions | 3.9" W x 9.7" H x 10.2" D |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
| Humidity | 0% to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778, cUL 107.1, FCC DOC Class B |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower BRG1000AVRLCD Datasheet | 485.69KB |
| CyberPower BRG1000AVRLCD User Manual | 462.47KB |
| CyberPower BRG1000AVRLCD Function Guide | 425.8KB |
