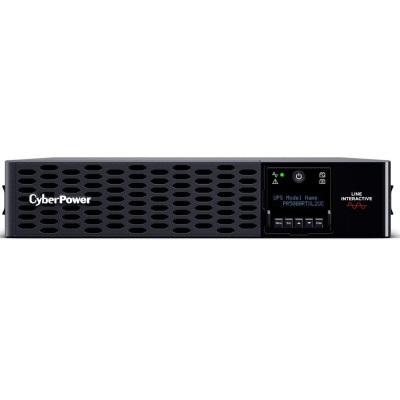

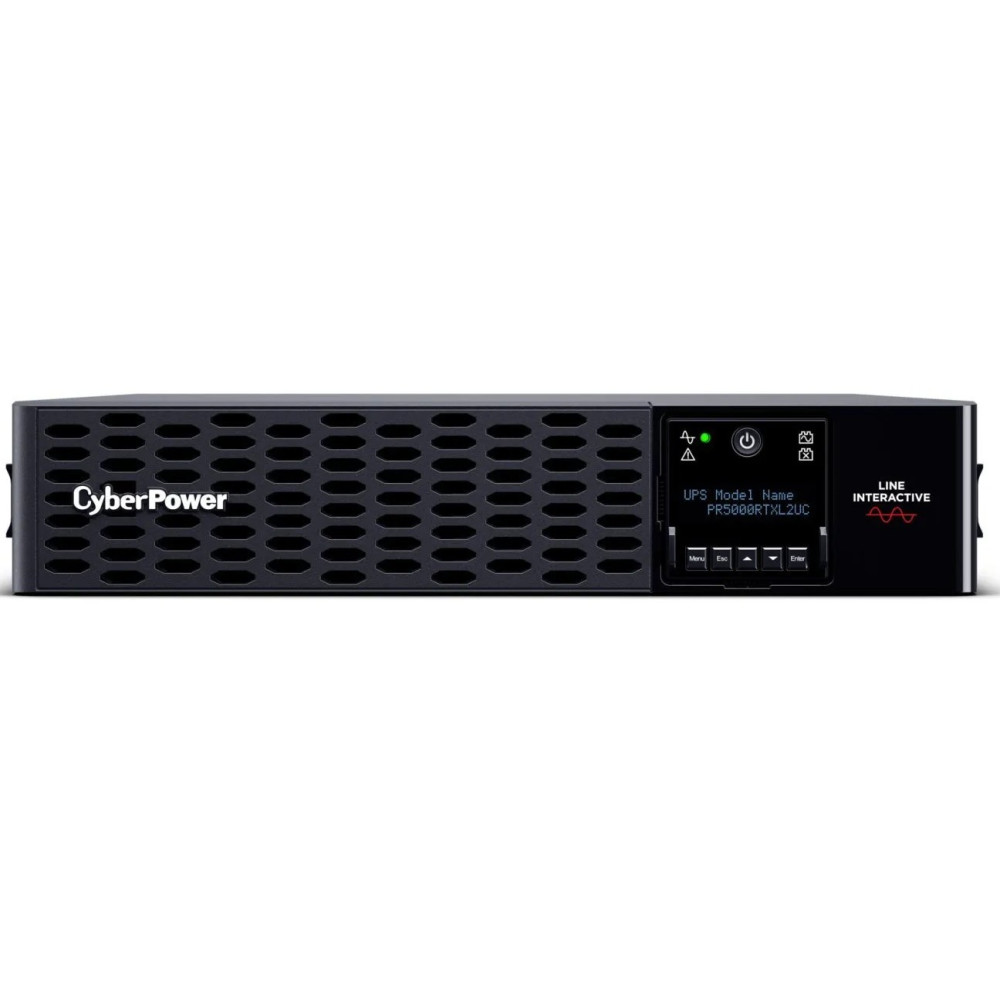

The PR5000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

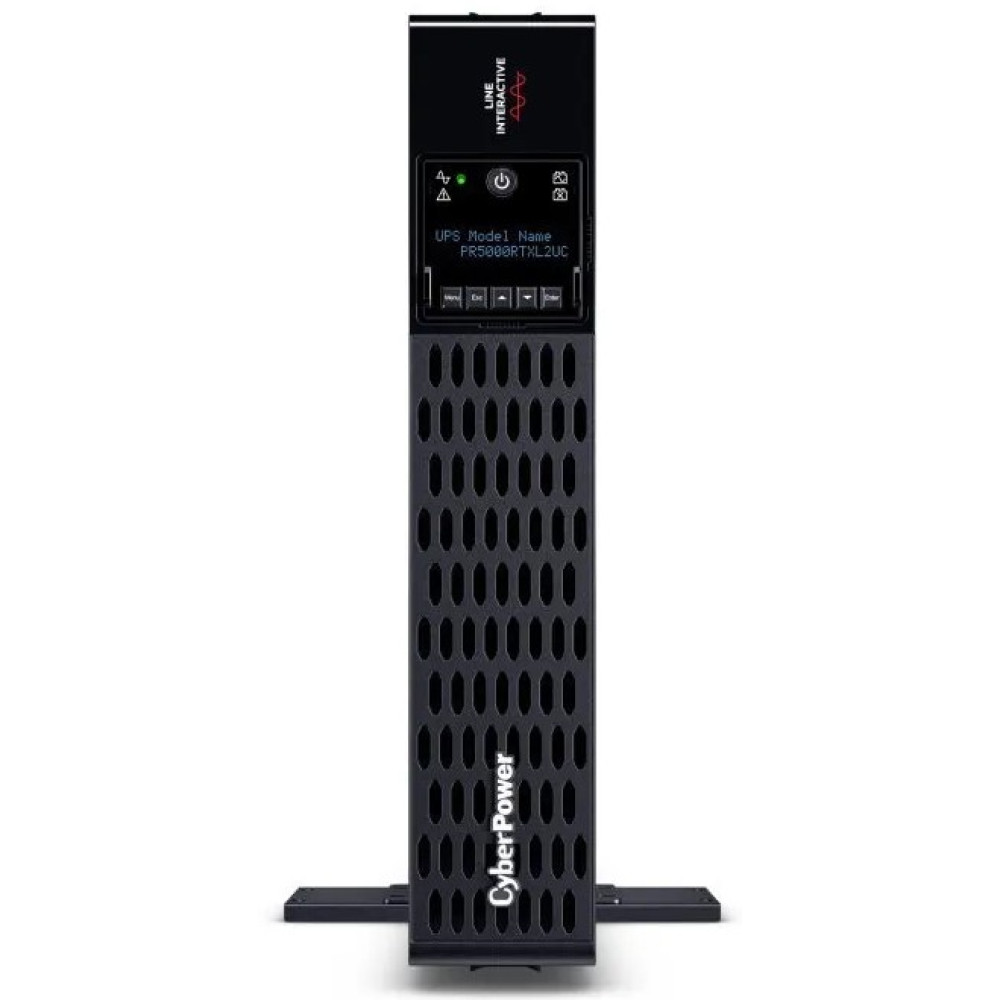

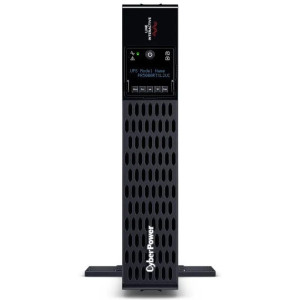

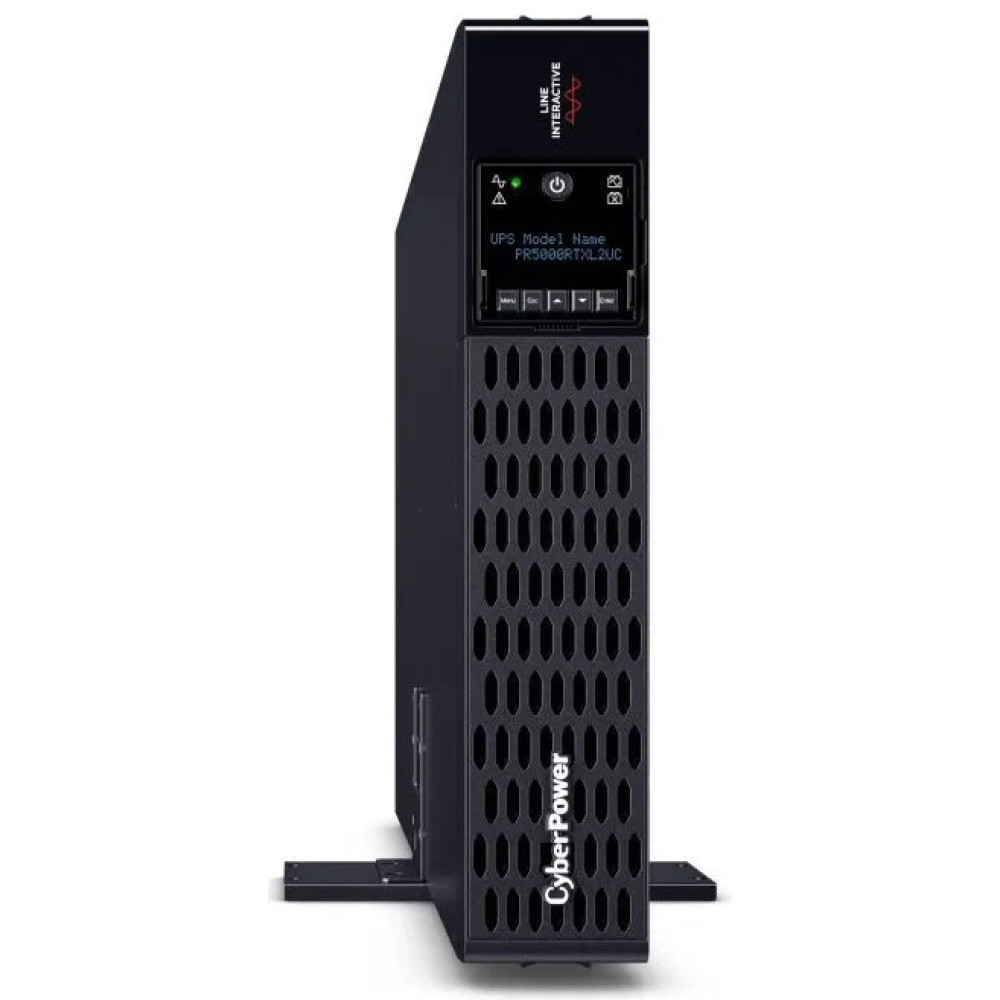

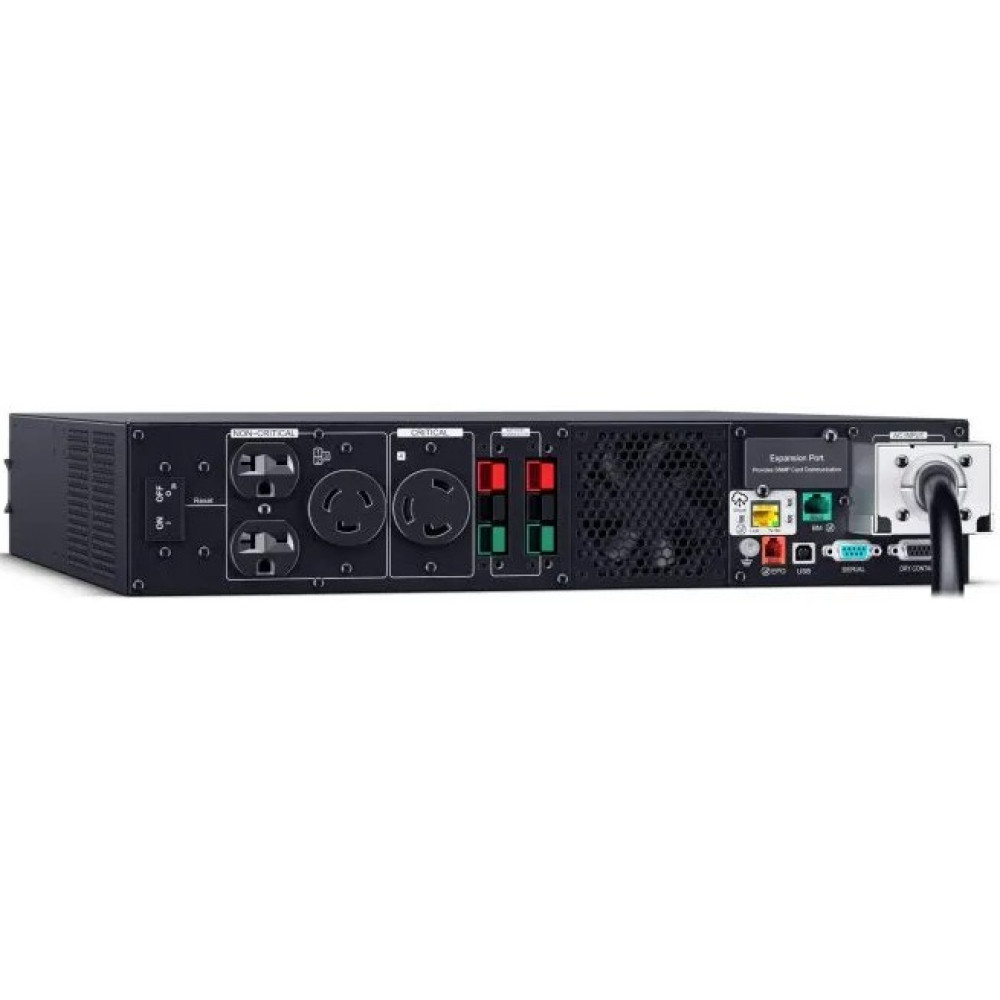

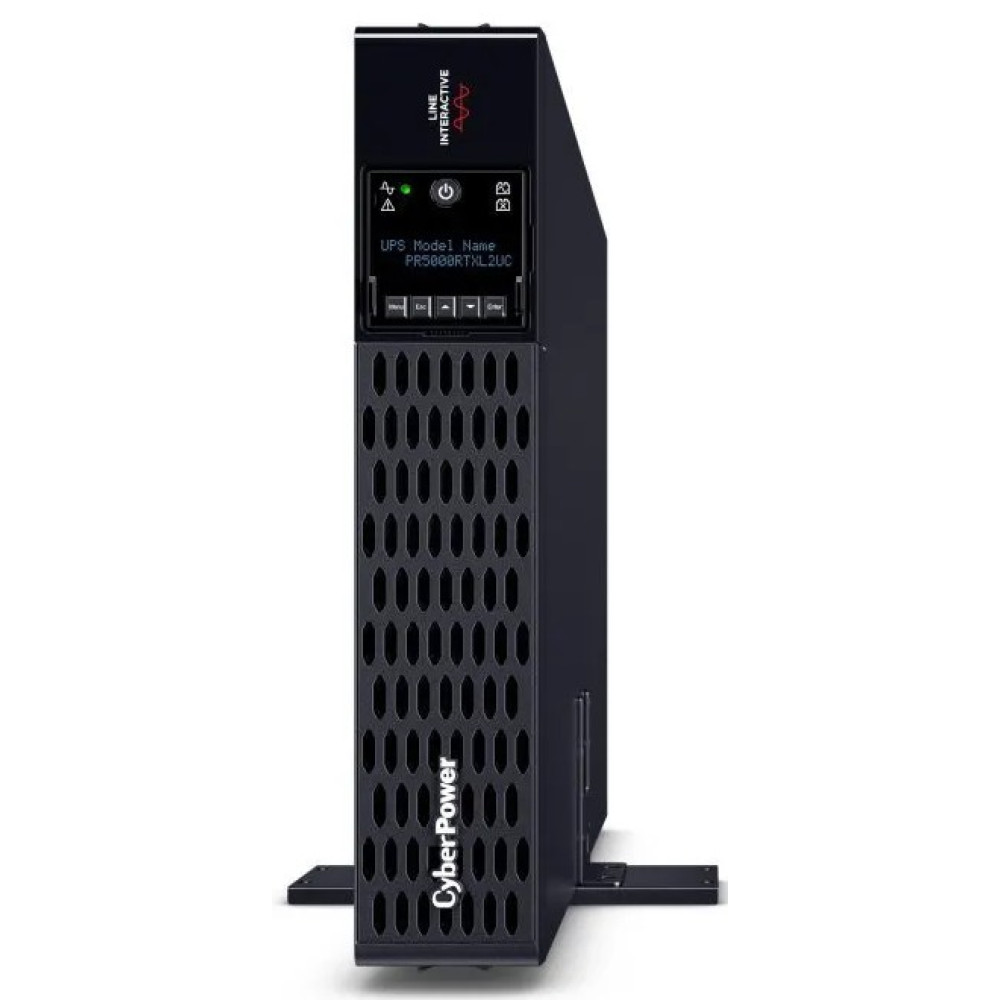

The Smart App Sinewave PR5000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR5000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model incorporates microprocessor-based full digital control and includes PowerPanel Business software providing the user unsurpassed flexibility and control. An optional SNMP/ HTTP Remote Management adapter, the RMCARD205, supports remote management and control of the machine through a standard web browser. Includes built-in cloud monitoring.
The PR5000RTXL2UC comes with a three-year warranty and a $400,000 Connected Equipment Guarantee.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The PR50000RTXL2UC supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS | Rackmount UPS |
| Interfaces | |
| Management | Remote management with optional RMCARD205 |
| USB Interface | |
| USB Ports | HID Compliant USB Port |
| Battery | |
| Runtime | 1.7 / 8.3 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 3 Hours |
| Transfer Time | 4 ms |
| Power | |
| Rated Power | 5000 Watts |
| Nominal VA | 5000 VA |
| Output Voltage | 200 - 240 VAC |
| Input Voltage | 200 - 240 VAC |
| Frequency | 50 Hz - 60 Hz +/- 1% |
| Power Factor Correction | 1 |
| Overload | Internal Circuitry Limiting, Circuit Breaker |

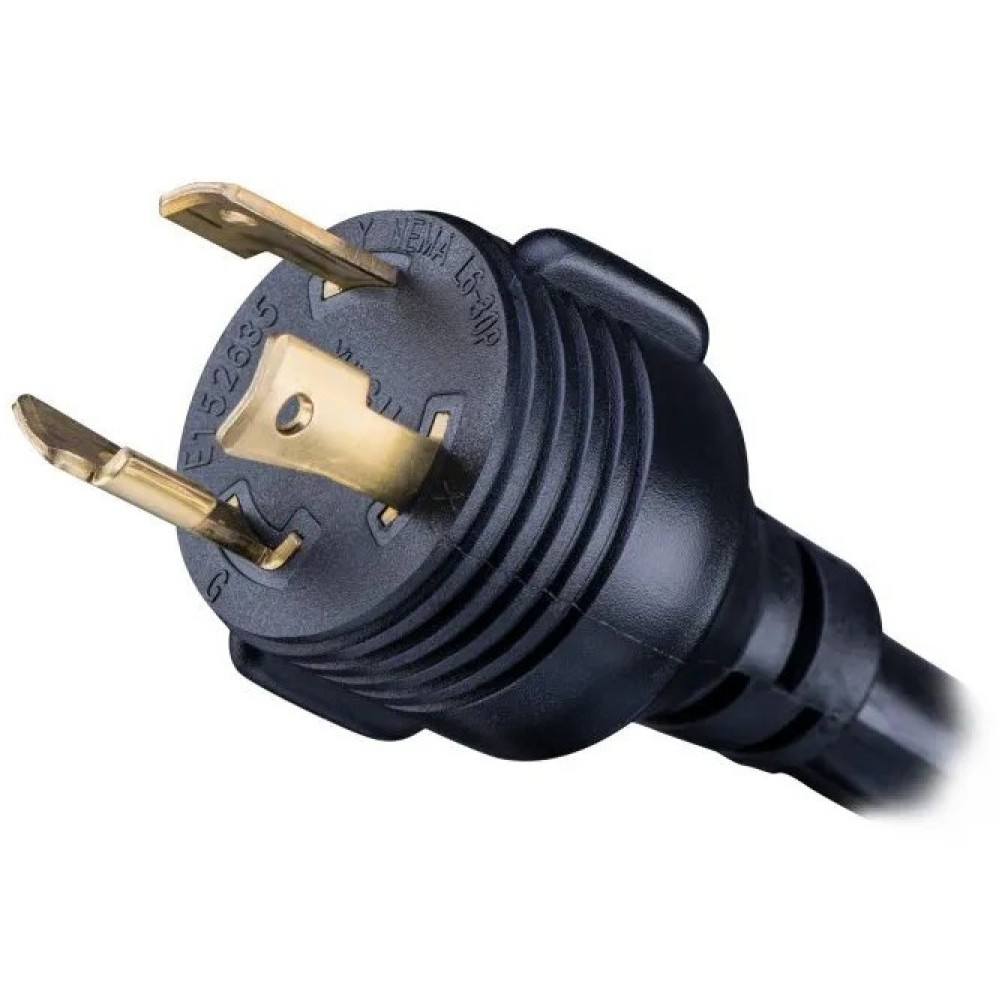

| Input Connection | Hardwire Terminal : L6-30P Power Cord Included, 10ft. |

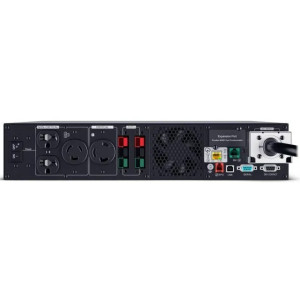

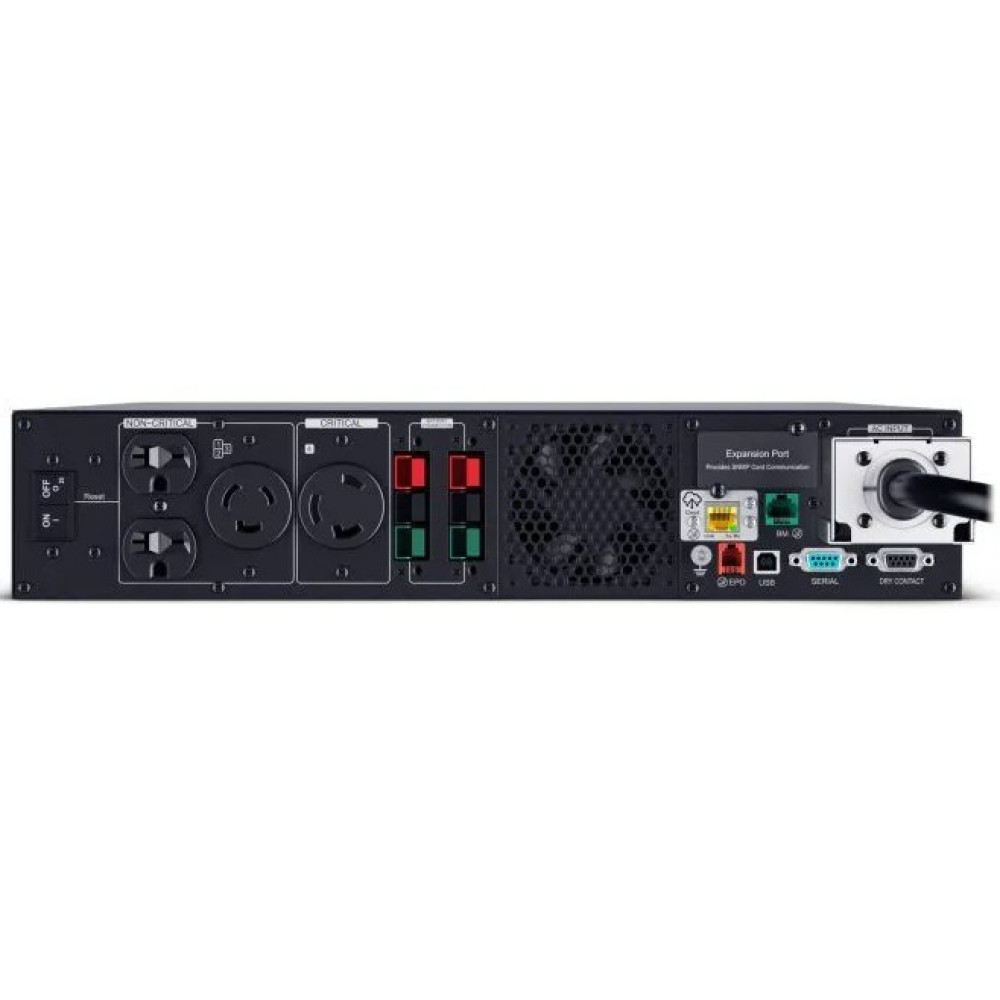

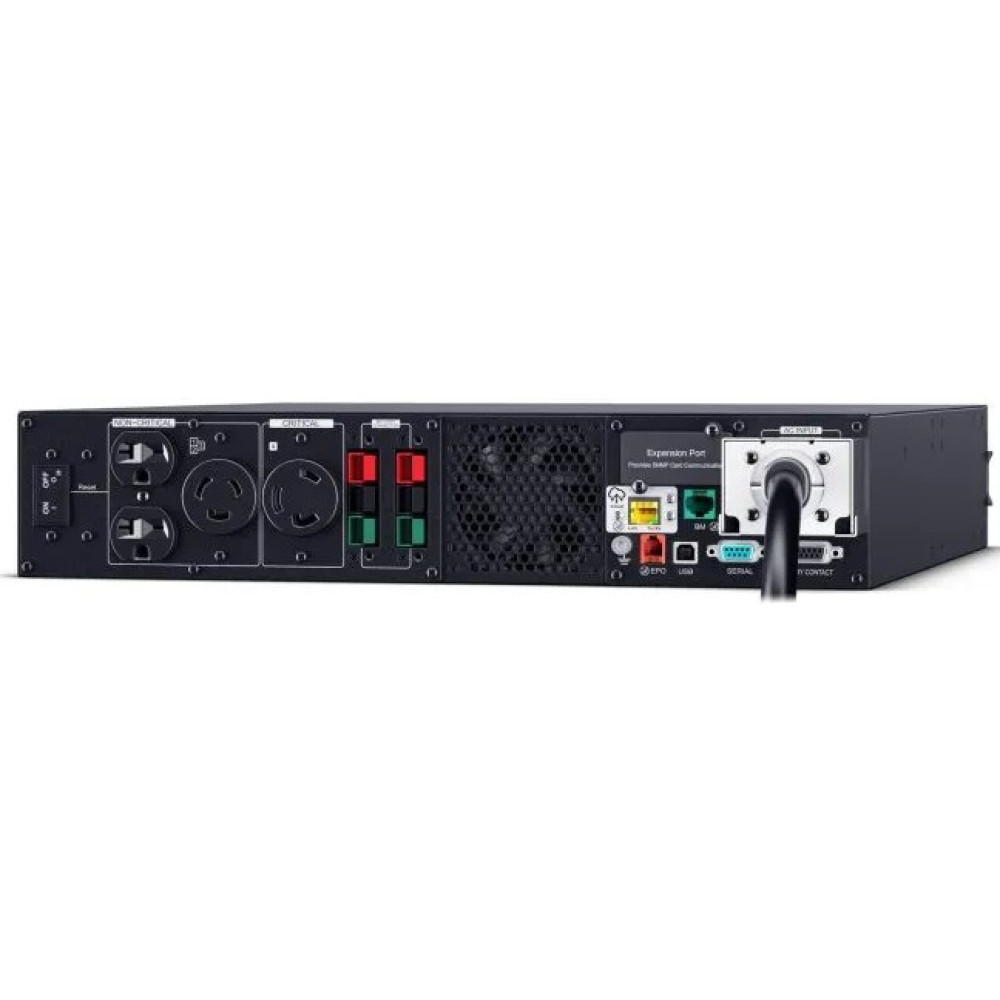

| Output Connection | 2x 6-20R, 1x L6-20R, 1x L6-30R outlets |
| Surge Protection | 2430 joules |
| Mechanical | |
| Enclosure | 2U Rack or tower |
| LED Indicators | Power On, Line Mode, Battery Mode, Fault |
| Color | Black |
| Material | Metal |
| Weight | 104.2 lbs. |
| Dimensions | 17.1 x 3.4 x 24.8 in |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Humidity | 0% to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, UL1778, CSA C22.2 No 107.3, FCC Class A, VCCI |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower PR5000RTXL2UC Datasheet | 923.55KB |
| CyberPower PR5000RTXL2UC User Manual | 1.91MB |
