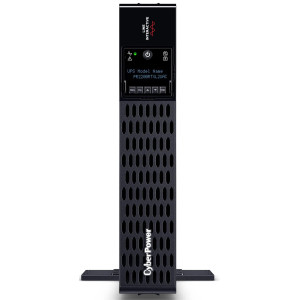

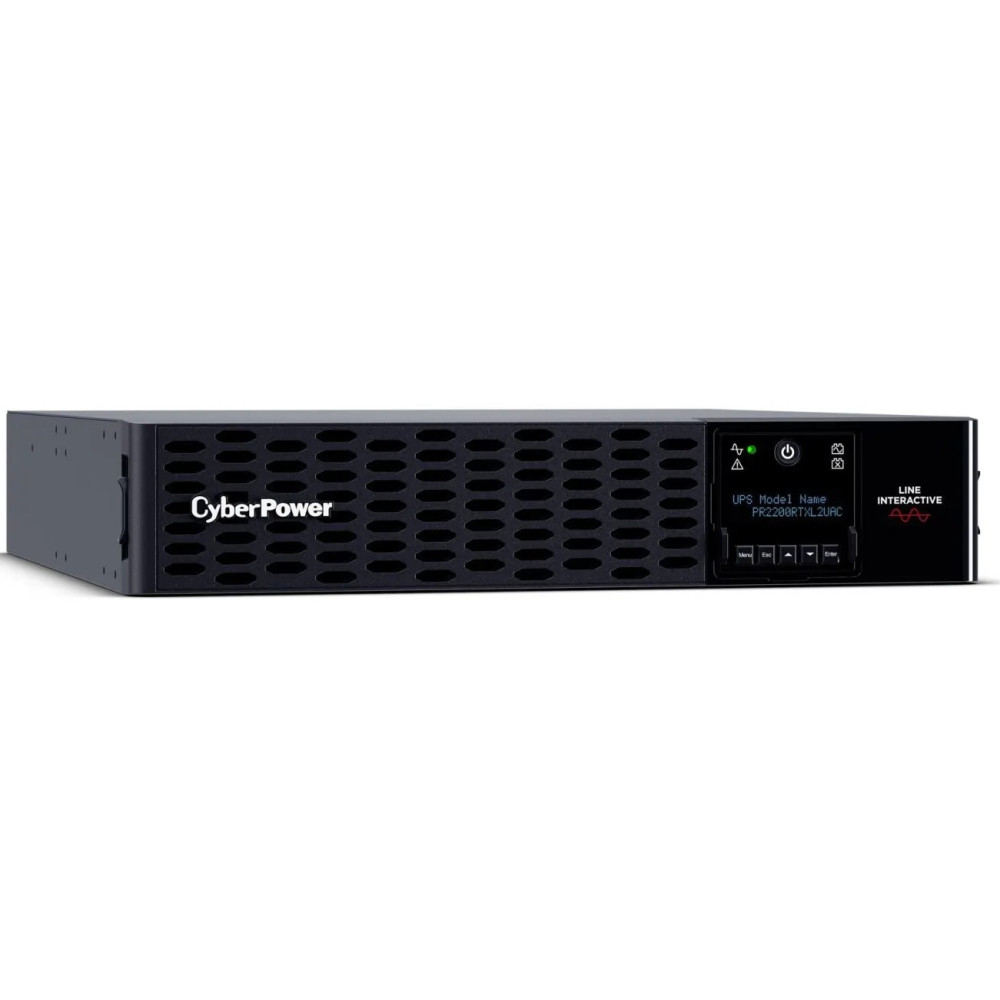

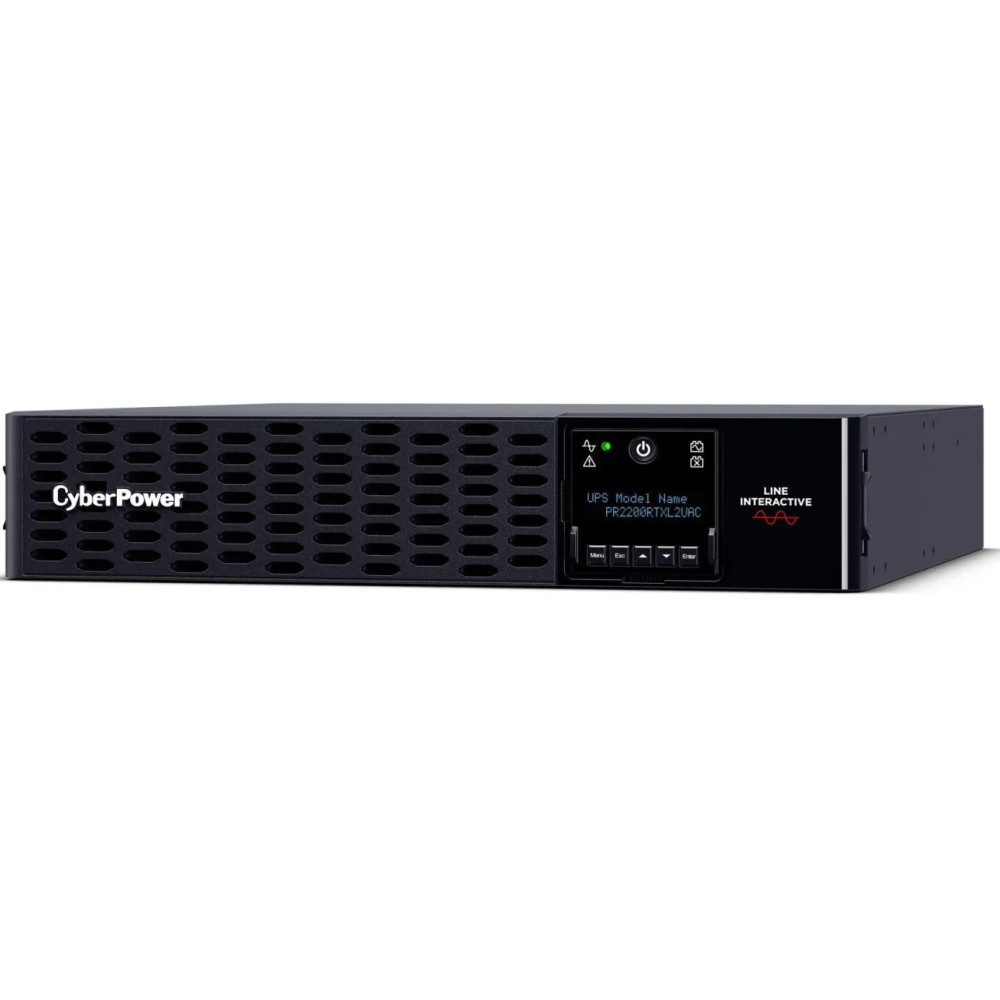

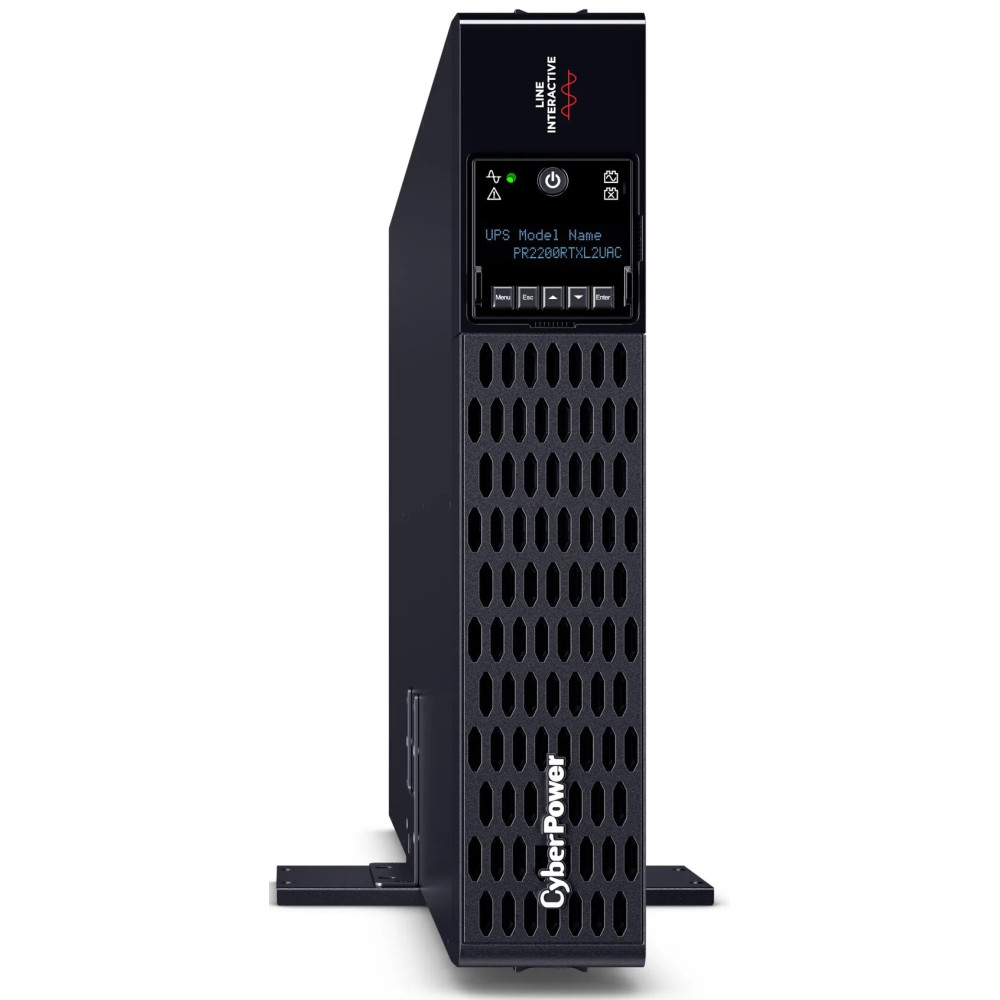

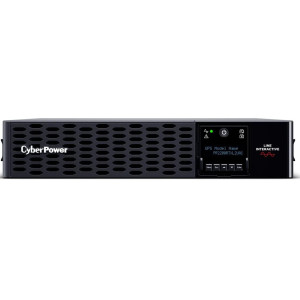

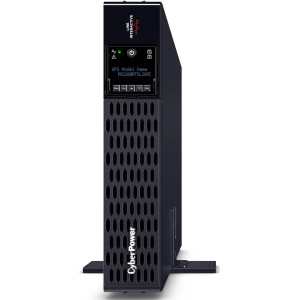

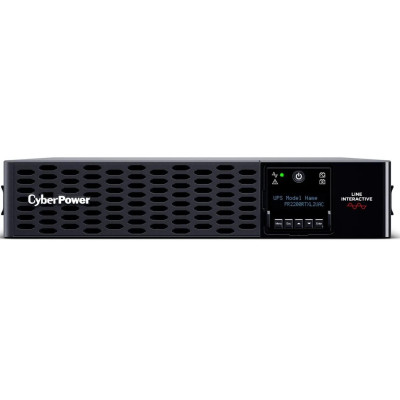

The PR2200RTXL2UACN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

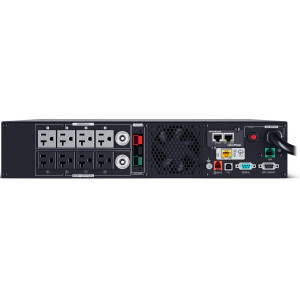

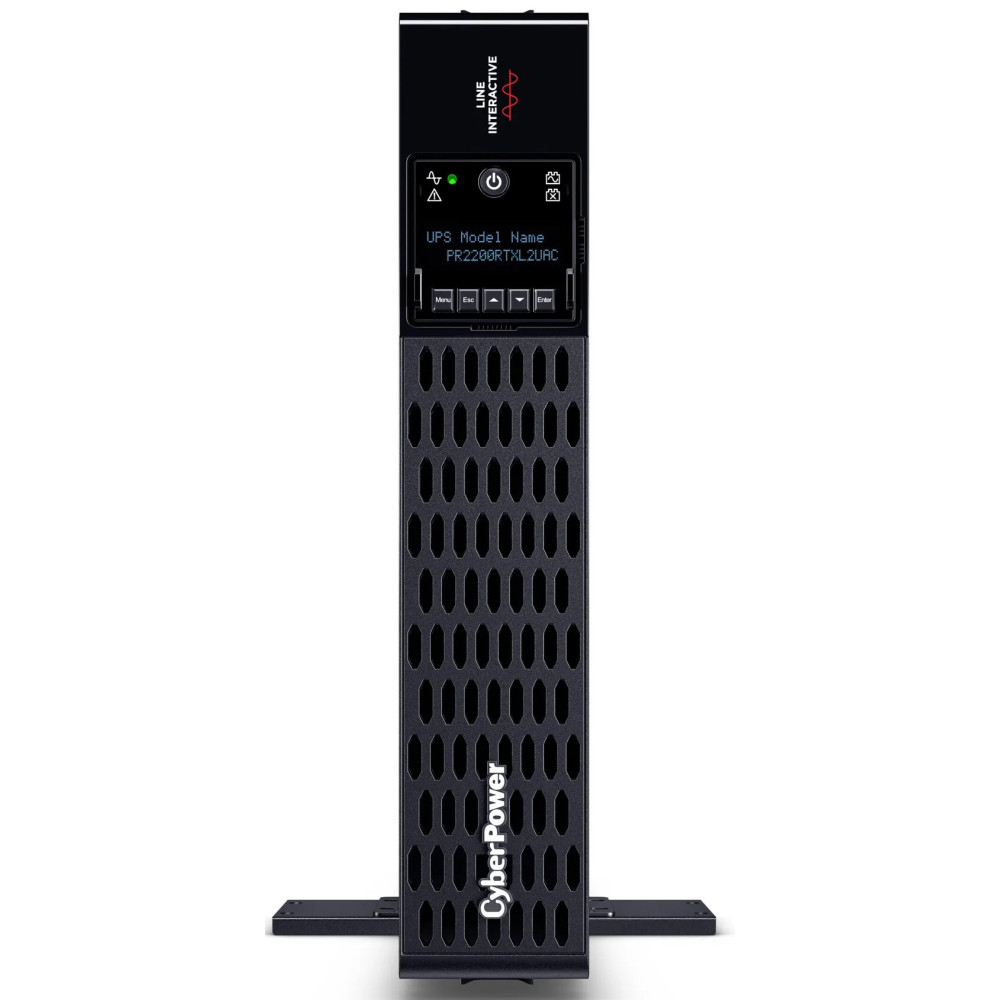

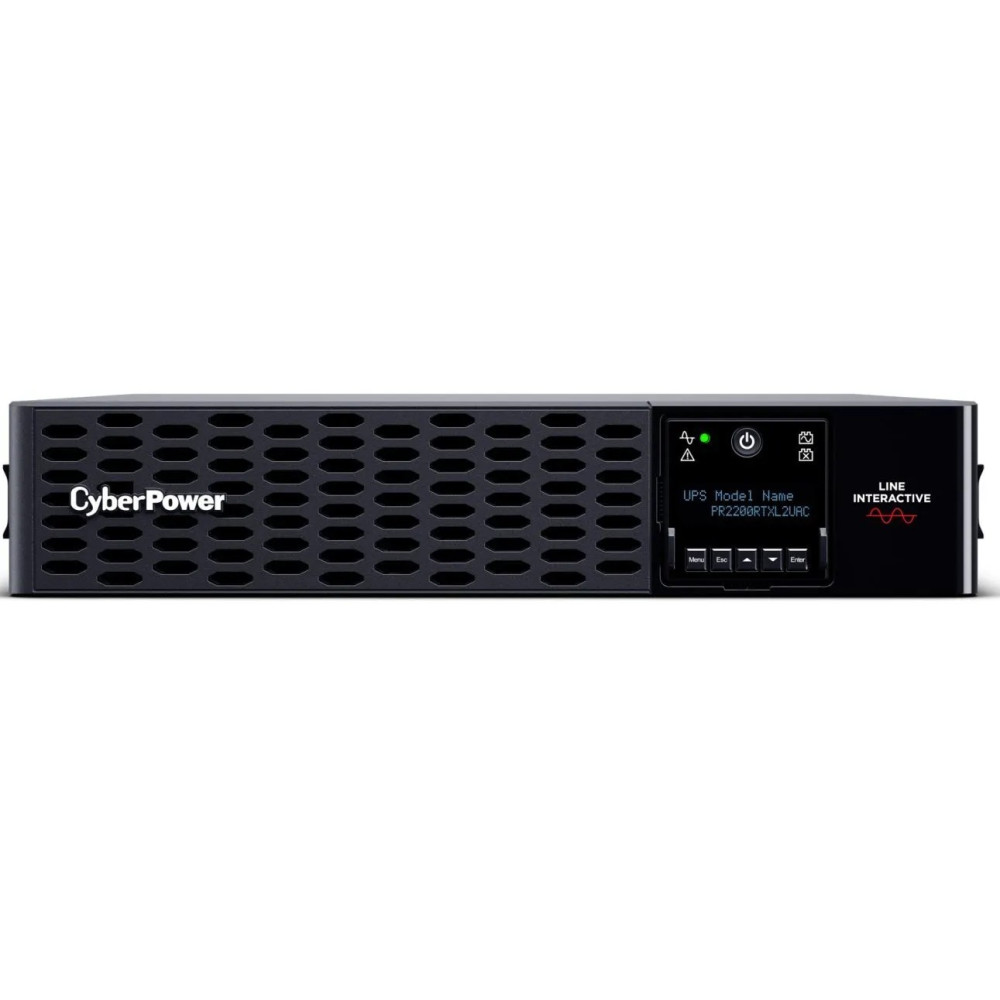

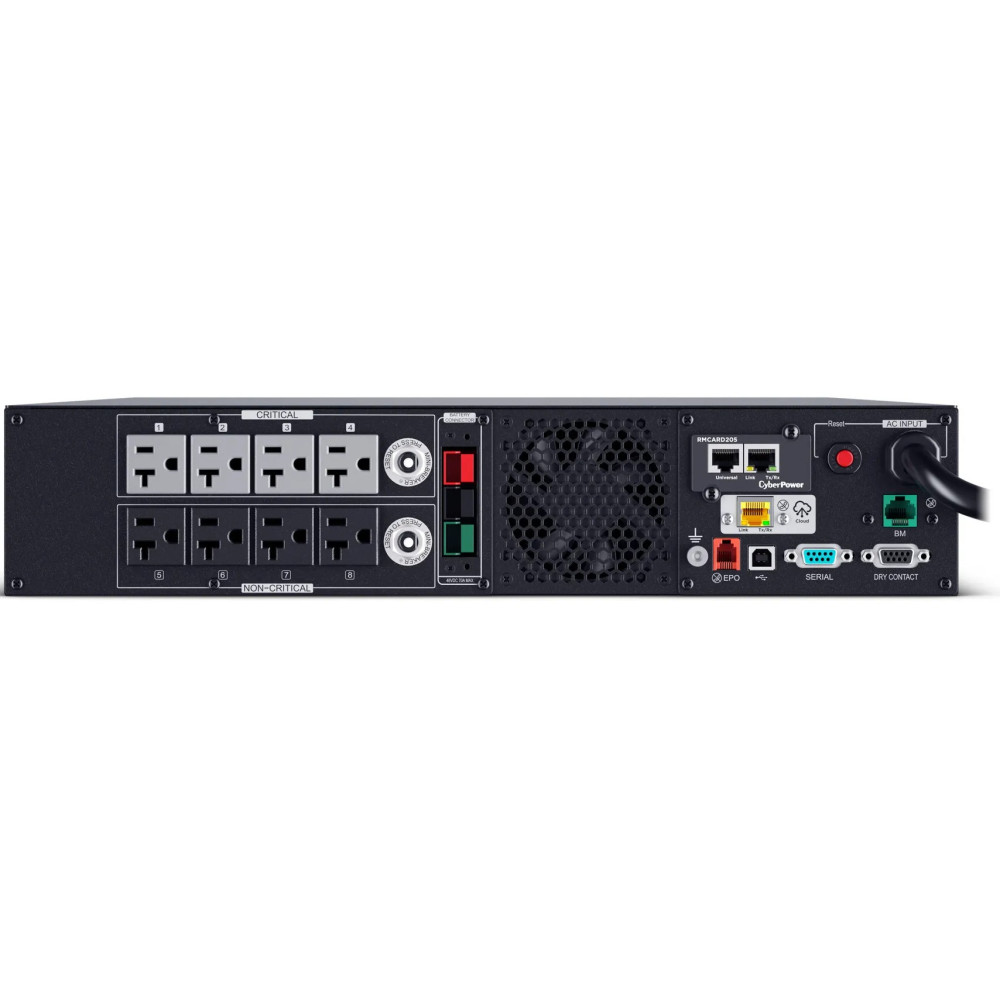

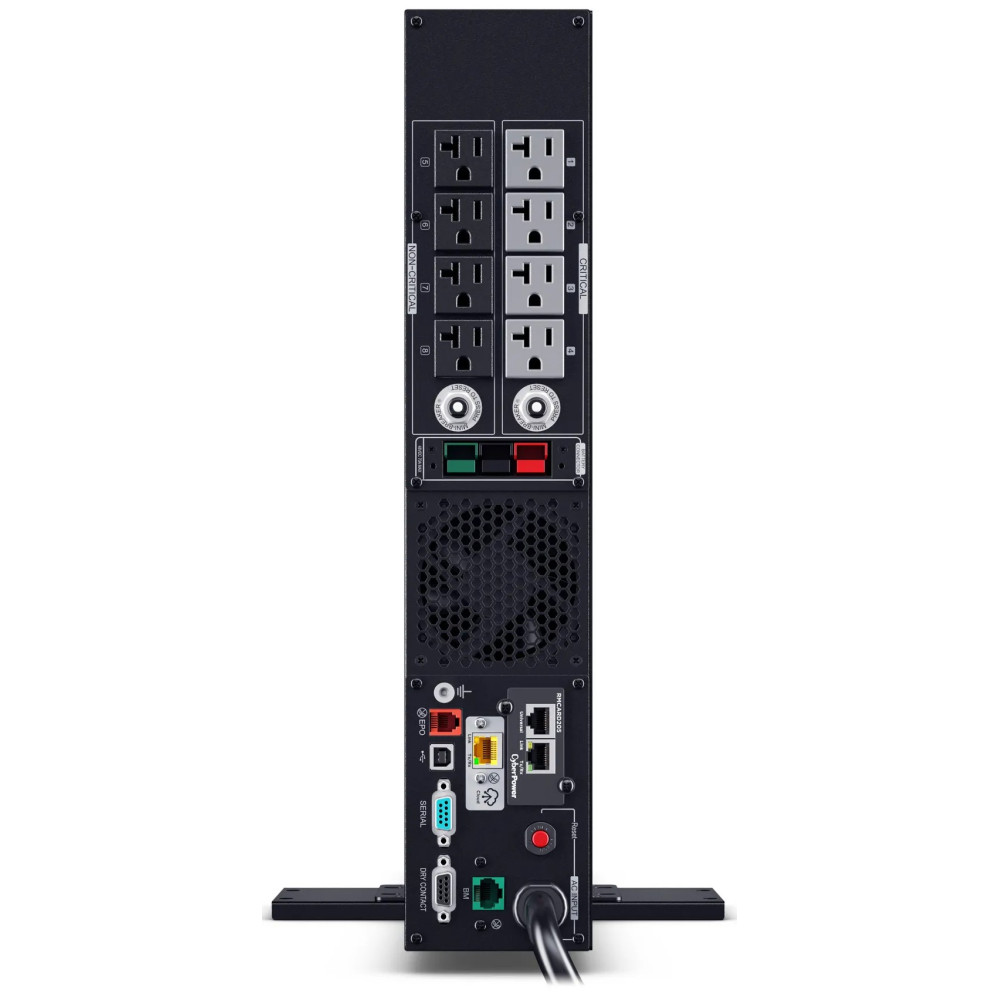

The Smart App Sinewave PR2200RTXL2UACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model is pre-installed with the RMCARD205 network management card for remote management and control via a standard web browser or network management system and includes built-in cloud monitoring. .
The PR2200RTXL2UACN comes with a three-year warranty and a $400,000 Connected Equipment Guarantee.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The PR2200RTXL2UACN supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS | Rackmount UPS |
| Interfaces | |
| Management | Optional RMCARD205 for remote management |
| USB Interface | |
| USB Ports | HID Compliant USB Port |
| Battery | |
| Runtime | 6.3 / 16 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 3 Hours |
| Transfer Time | 6 ms, Max 13 ms at normal sensitivity |
| Power | |
| Rated Power | 2200 Watts |
| Nominal VA | 2200 VA |
| Output Voltage | 100/110/120/125 VAC ± 5% |
| Input Voltage | 75 - 155 VAC |
| Frequency | 50 Hz - 60 Hz +/- 1% |
| Power Factor Correction | 1 |
| Overload | Internal Circuitry Limiting, Circuit Breaker |
| Input Connection | L5-30P 10ft. Cord |
| Output Connection | (8) 5-20R outlets |
| Surge Protection | 2430 joules |
| Mechanical | |
| Enclosure | 2U Rack or tower |
| LED Indicators | Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault |
| Color | Black |
| Material | Metal |
| Weight | 93.0 lbs. |
| Dimensions | 17.1 x 3.4 x 24.8 in |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Humidity | 0% to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778, CSA C22.2 No 107.3, FCC Class A, VCCI |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower PR2200RTXL2UACN Datasheet | 861.77KB |
| CyberPower PR2200RTXL2UAC/PR3000RTXL2UAC User's Manual | 2.69MB |
