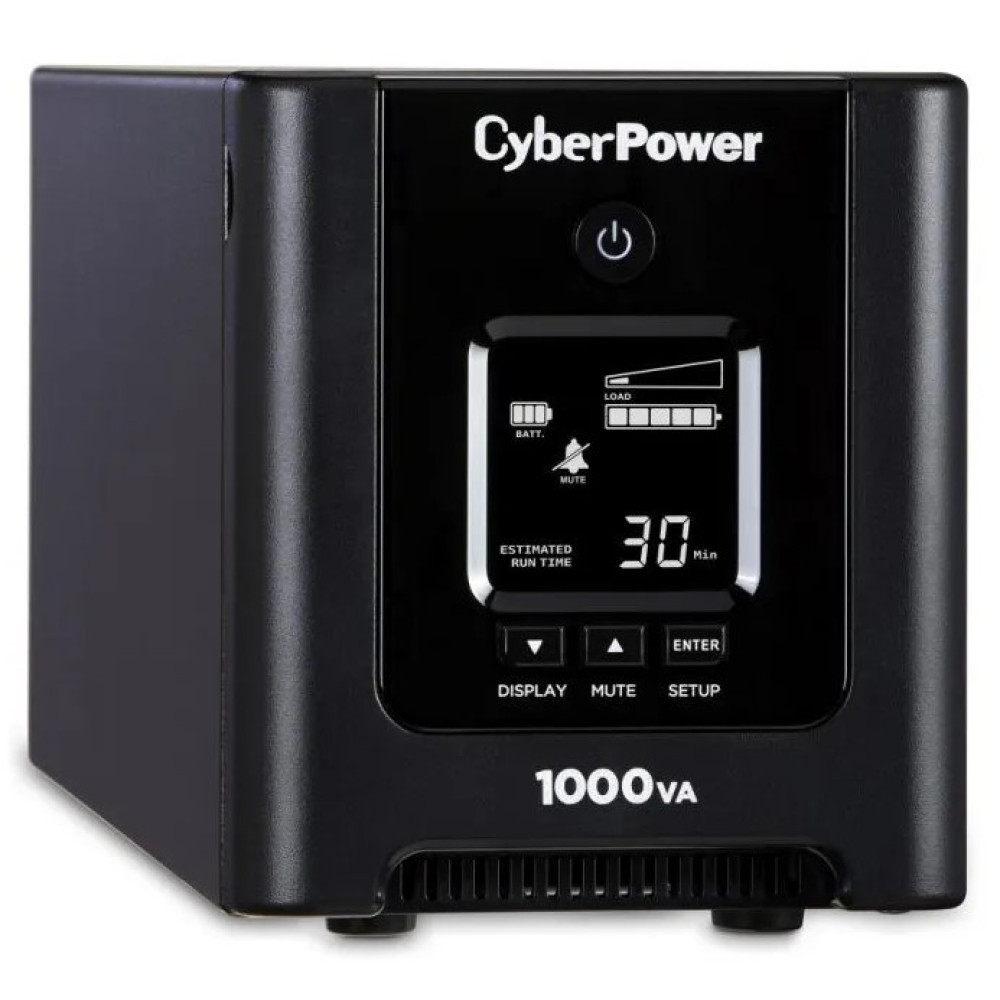

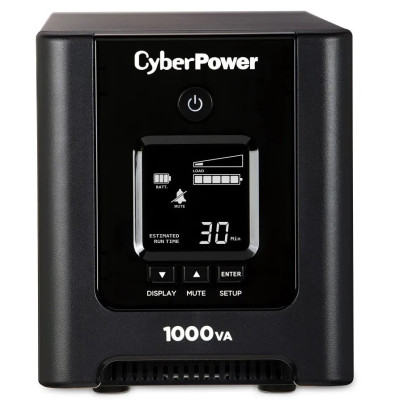

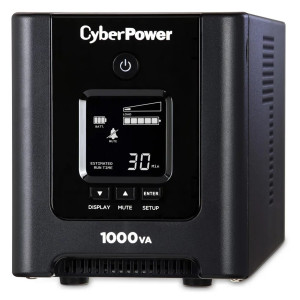

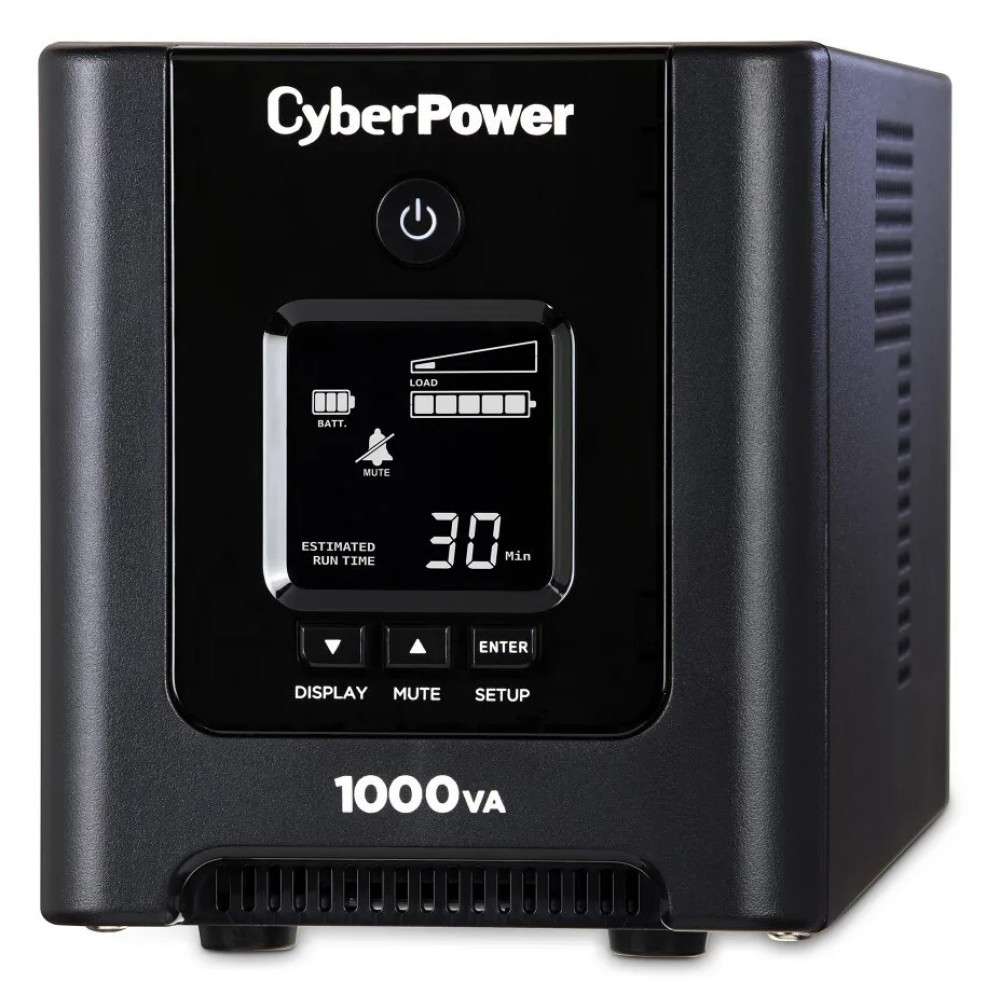

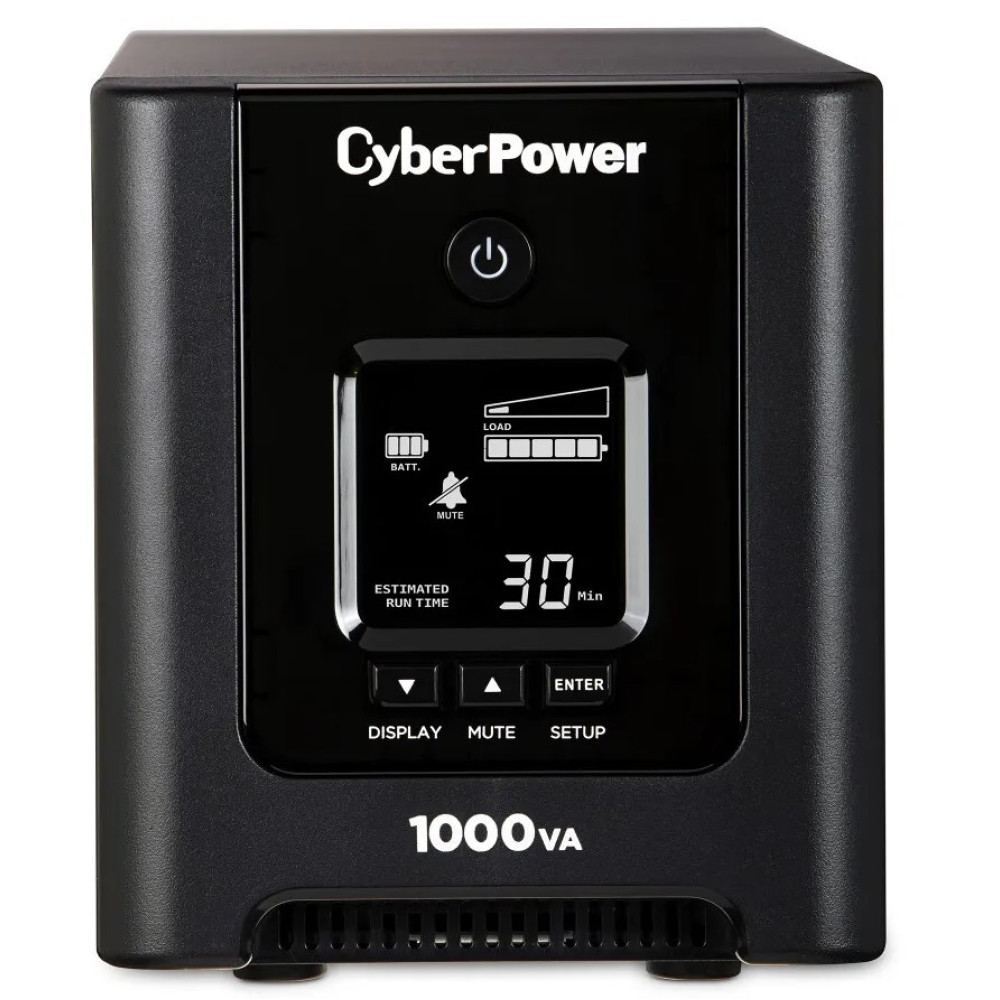

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave OR1000PFCLCD provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring PFC power source compatibility.
The OR1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
With a $200,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the OR1000PFCLCD.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OR1000PFCLCD supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS |
| USB Interface | |
| USB Ports | HID Compliant USB Port |
| Battery | |
| Runtime | 6 / 16 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 8 hours |
| Transfer Time | 4ms |
| Power | |
| Rated Power | 700 Watts |
| Nominal VA | 1000 VA |
| Output Voltage | 120 VAC ± 5% |
| Input Voltage | 120 VAC |
| Frequency | 50/60 Hz ± 1% |
| Power Factor Correction | 0.7 |
| Overload | Internal Circuitry Limiting, Circuit Breaker Protected |
| Battery Specifications | 12V/8.5Ah |
| Input Connection | 5-15P 6ft. Cord |

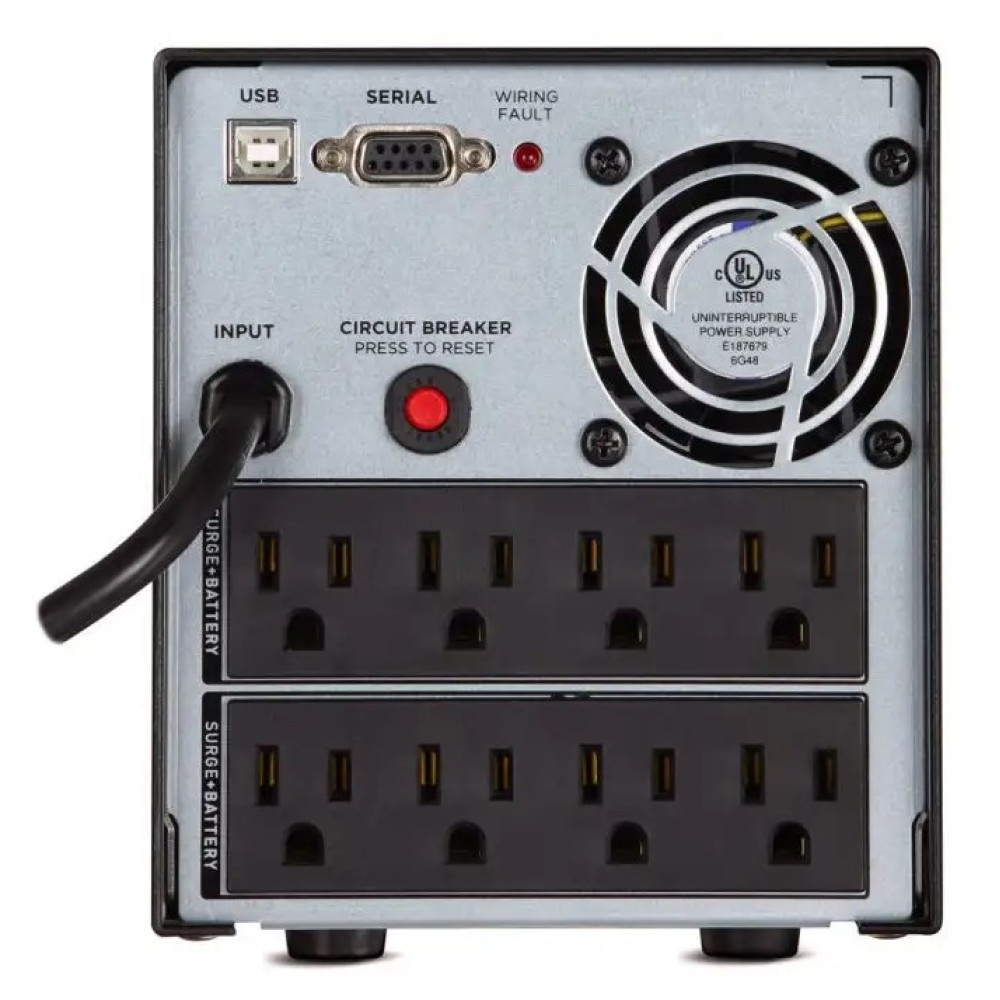

| Output Connection | (8) 5-15R outlets |
| Surge Protection | 1030 joules |
| Mechanical | |
| LED Indicators | Power |
| Color | Black |
| Weight | 24.7 lbs. |
| Dimensions | 5.4" W × 6.4" H × 13.8" D |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
| Humidity | 0% to 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778 4th, cUL 107.3-05, FCC DOC Class B |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower OR1000PFCLCD Datasheet | 283.03KB |
| CyberPower OR750PFCLCD/OR1000PFCLCD/OR1500PFCLCD Setup Guide | 359.35KB |
| CyberPower OR750PFCLCD/OR1000PFCLCD/OR1500PFCLCD User Manual | 584.8KB |
