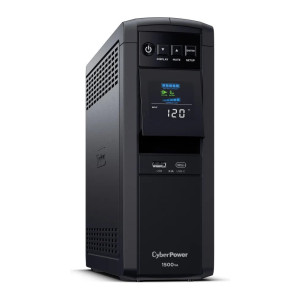

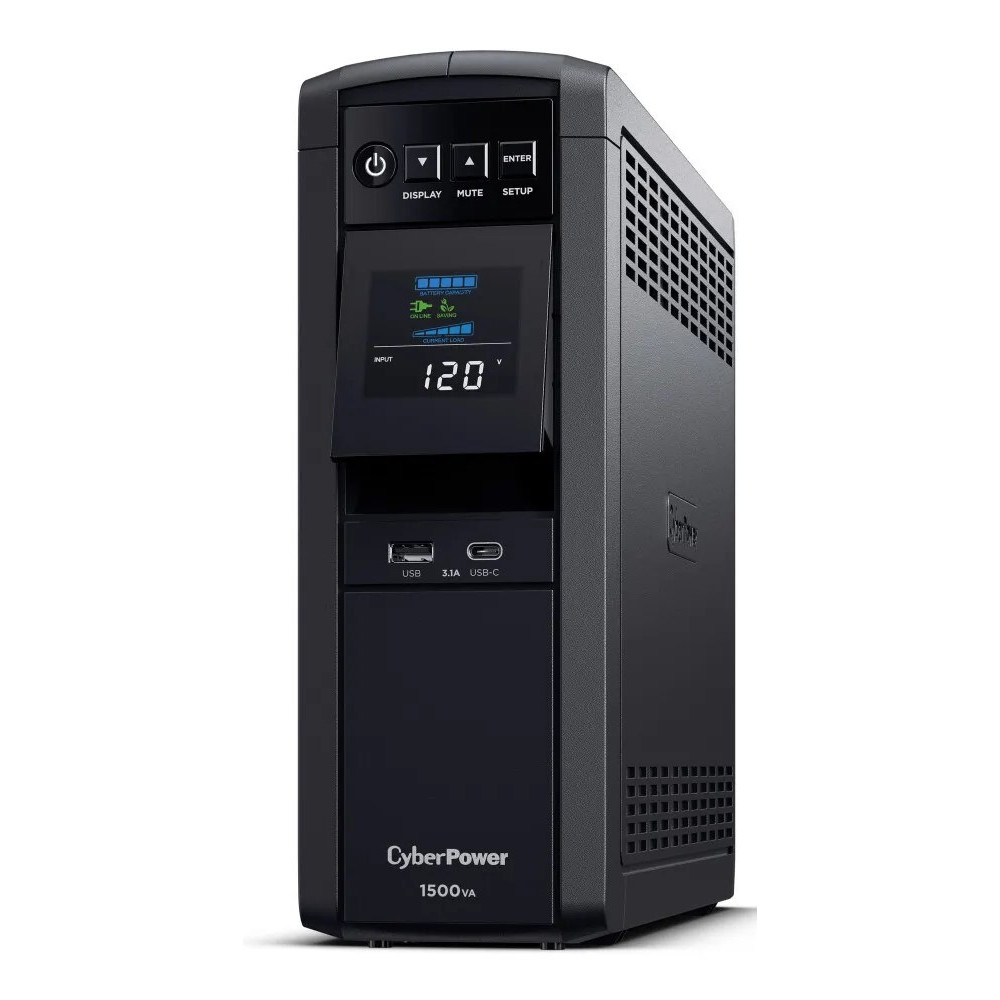

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

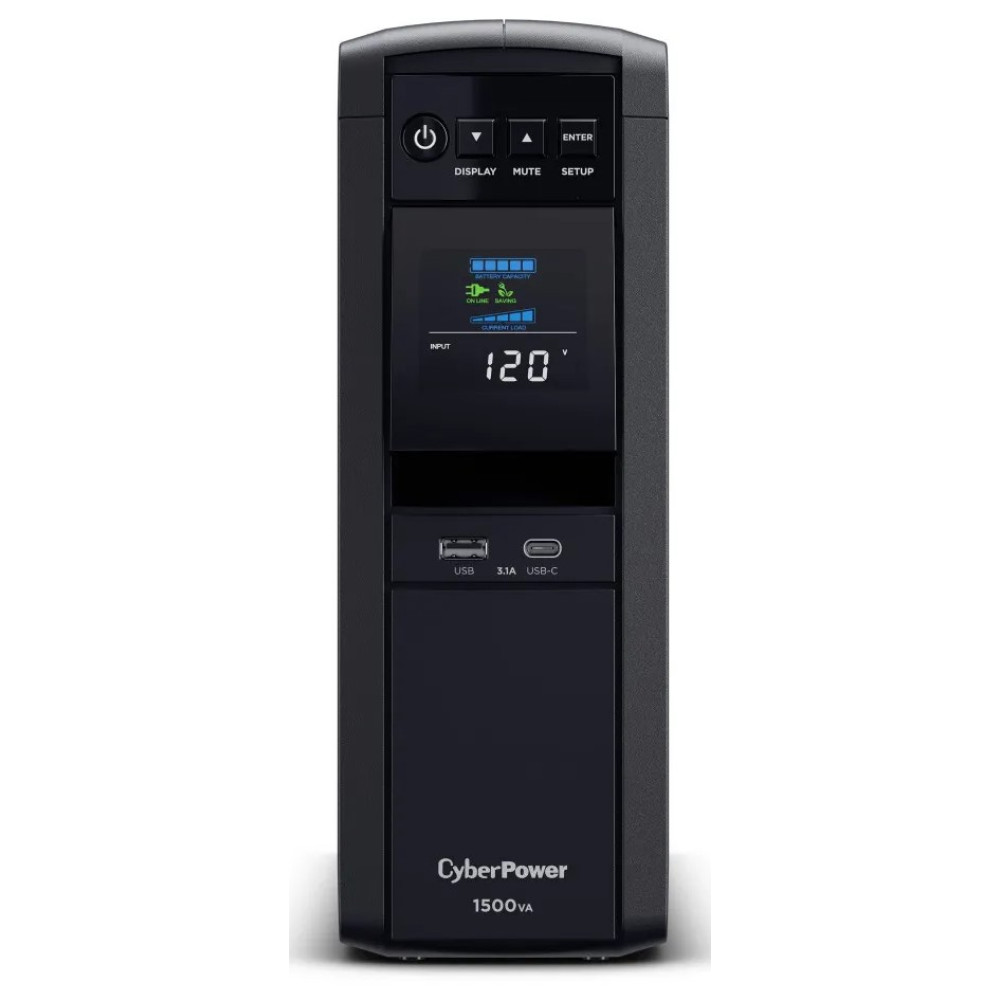

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports, one Type-A and one Type-C, power portable devices such as mobile phones and tablets, even during a utility power failure.
The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The CP1500PFCLCD supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
Technology | |
Category | Tower UPS |
Interfaces | |
Management | Remote management with optional RMCARD205 |
USB Interface | |
USB Ports | 1 USB-A, 1 USB-C |
Battery | |
Runtime | 2.5 / 10 minutes (full / half load) |
Battery Type | Sealed Lead-Acid Battery |
Recharge Time | 8 hours |
Transfer Time | 4ms |
Power | |
Rated Power | 1000 Watts |
Nominal VA | 1500 VA |
Output Voltage | 120VAC +/- 5% |
Input Voltage | 120 VAC |
Frequency | 60Hz +/- 1% |
Power Factor Correction | 0.7 |
Overload | Internal Circuitry Limiting, Circuit Breaker Protected |
Input Connection | 5-15P 5ft. Cord |

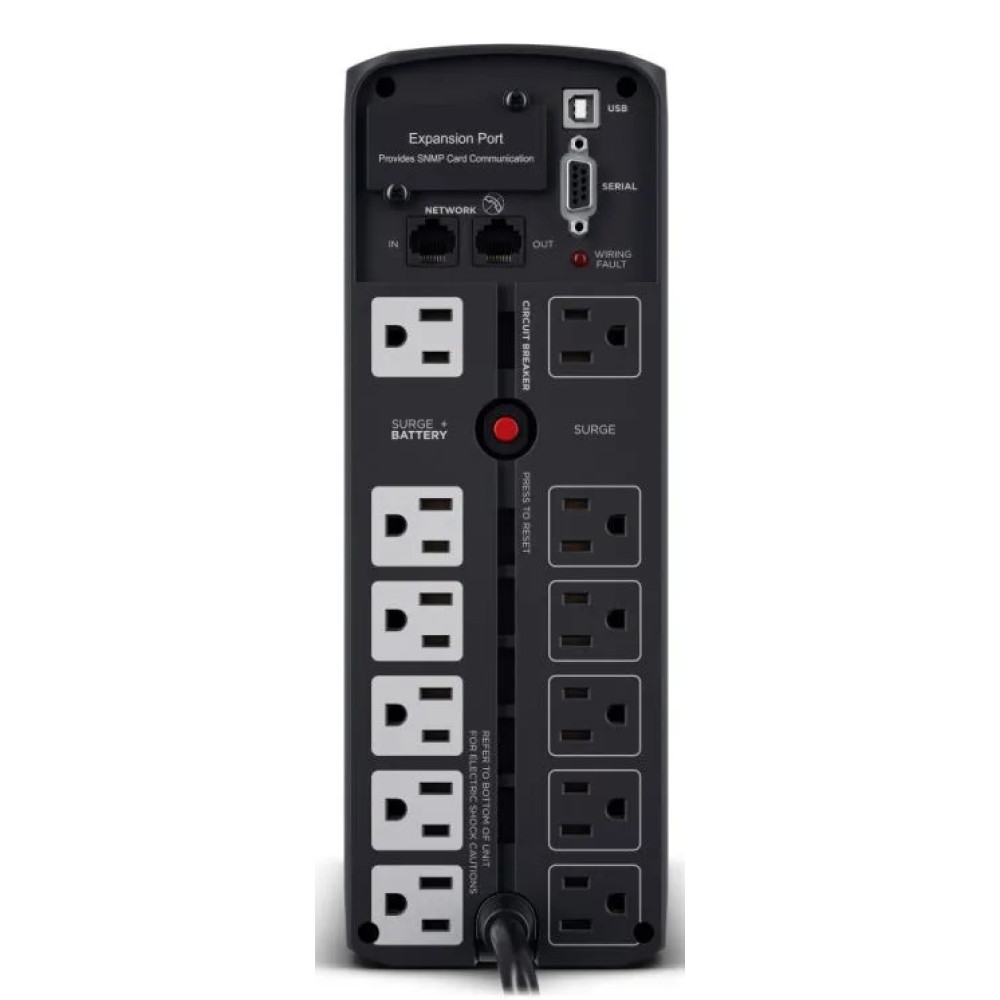

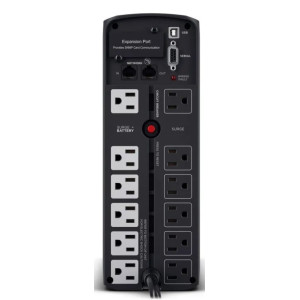

Output Connection | (12) 5-15R outlets |
Surge Protection | 1445 joules |
Efficiency | >90% |
Mechanical | |
LED Indicators | Power, Wiring fault |
Color | Black |
Material | Plastic |
Weight | 24.9 lbs. |
Dimensions | 3.9" W x 11.0" H x 14.0" D |
Ratings | |
Operating Temperature | 32 - 104 °F (0 - 40 °C) |
Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
Humidity | 0% to 95% non-condensing |
RoHS Compliant | Yes |
Certifications | UL1778, cUL 107.3, FCC DOC Class B |
Warranty | Product: 3-year, Connected Equipment: Lifetime |
Download Name | File Size |
CyberPower CP1500PFCLCD Datasheet | 1.28MB |
CyberPower CP850/1000/1350/1500PFCLCD Function Setup Guide | 608.14KB |
CyberPower CP1350PFCLCD/1500PFCLCD User Manual | 1.1MB |
