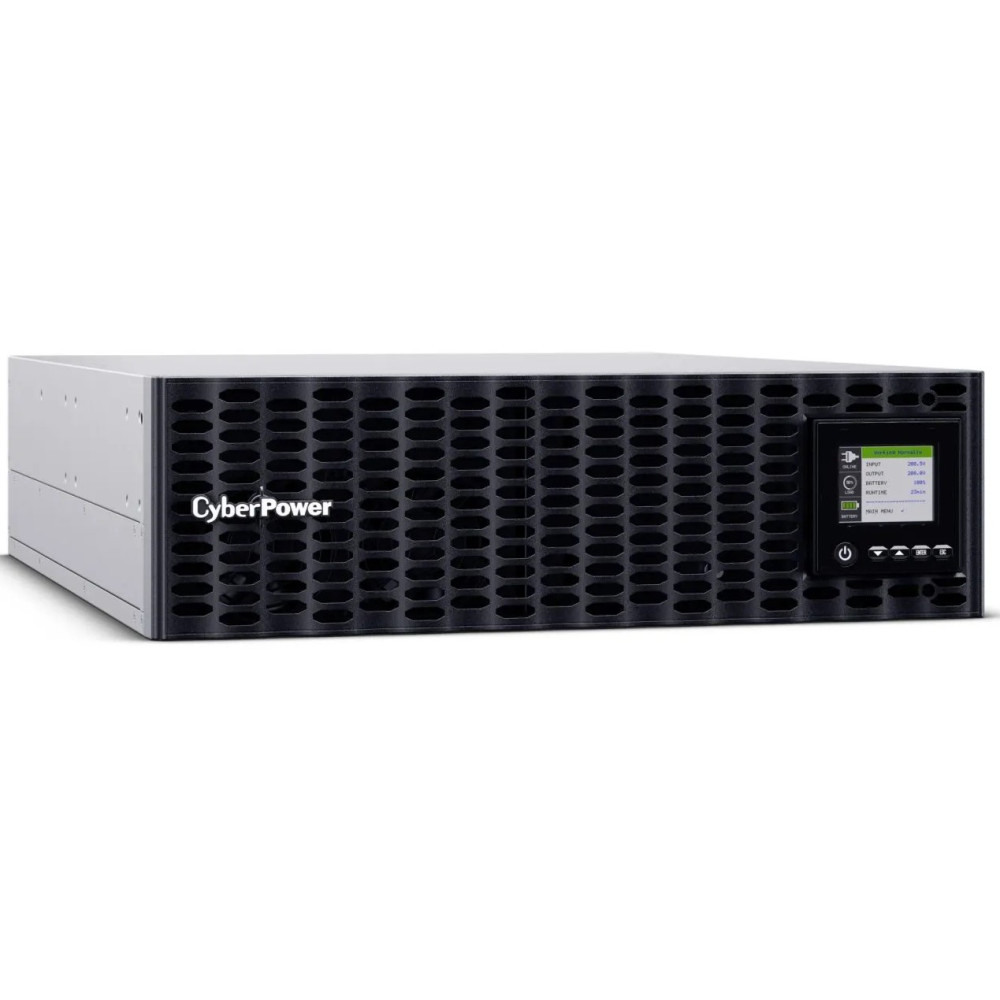

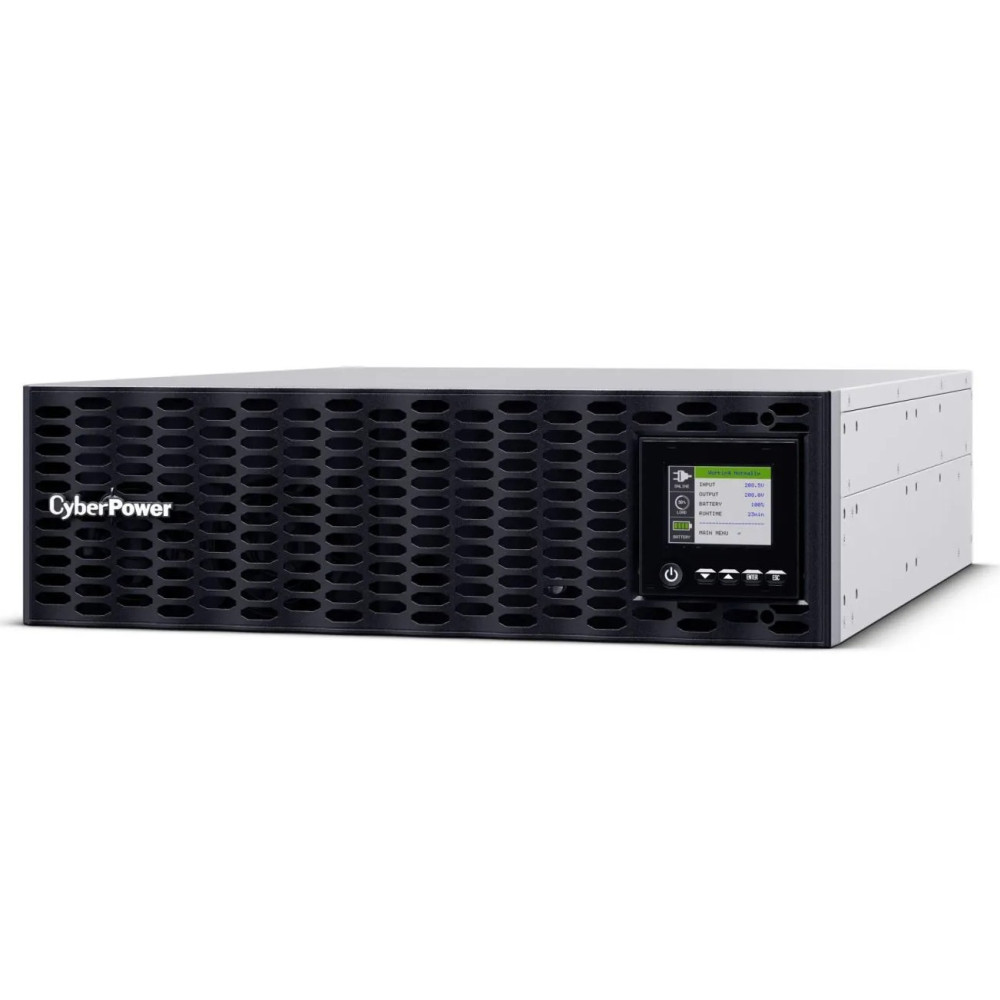

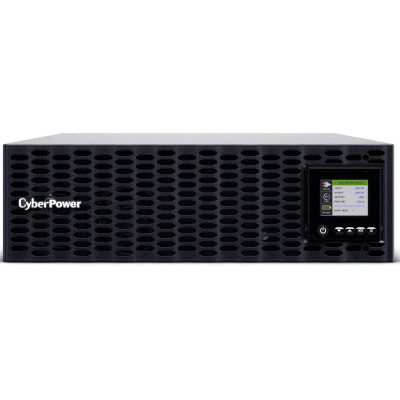

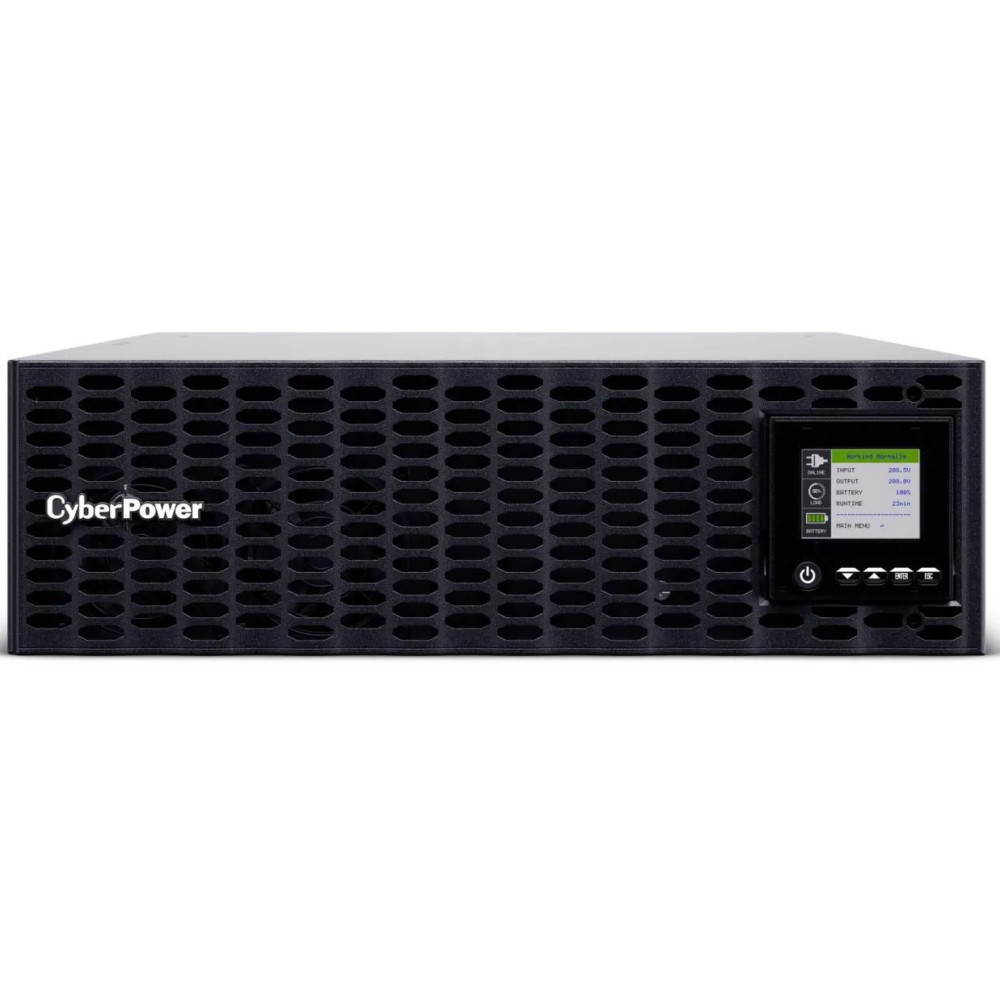

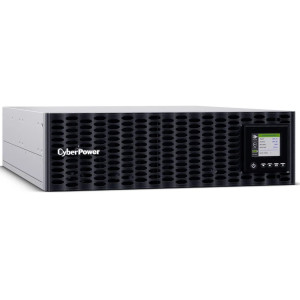

The CyberPower Smart App Online OL5KRTHDL high-density design offers more power and longer run times. The OL5KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

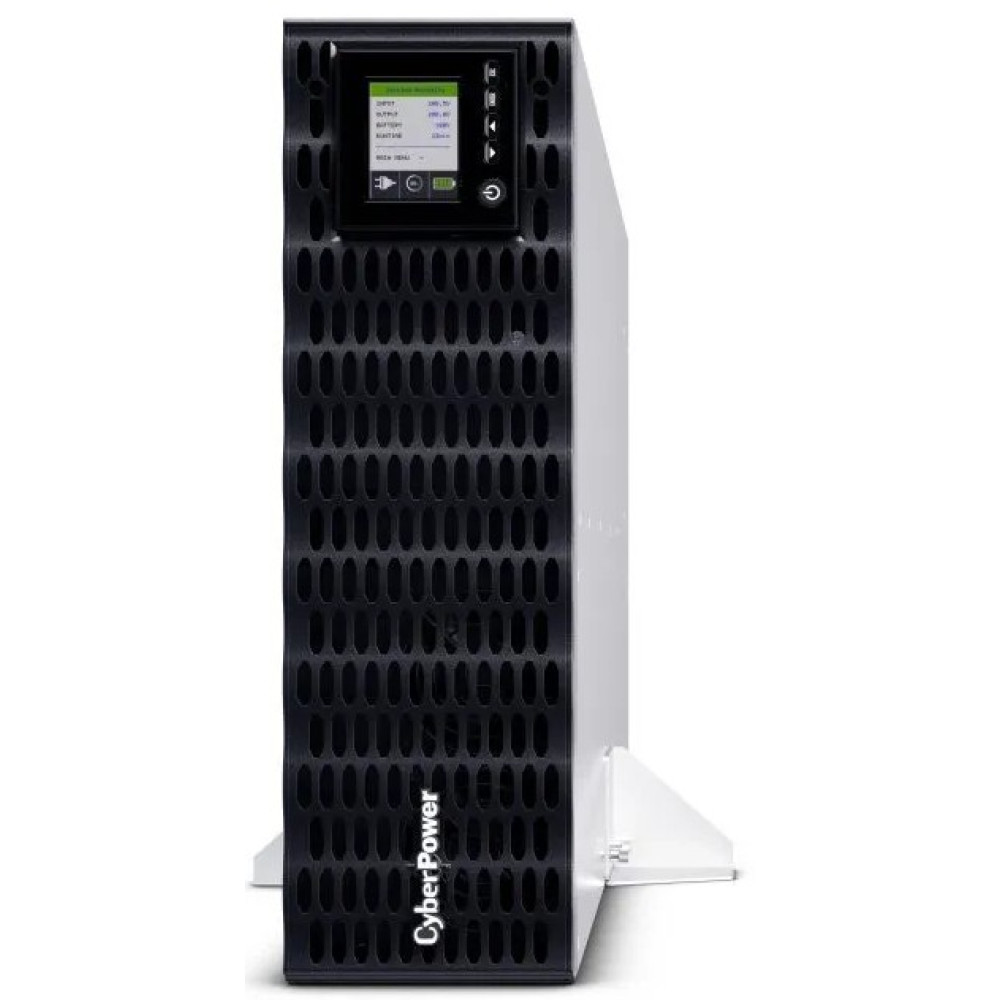

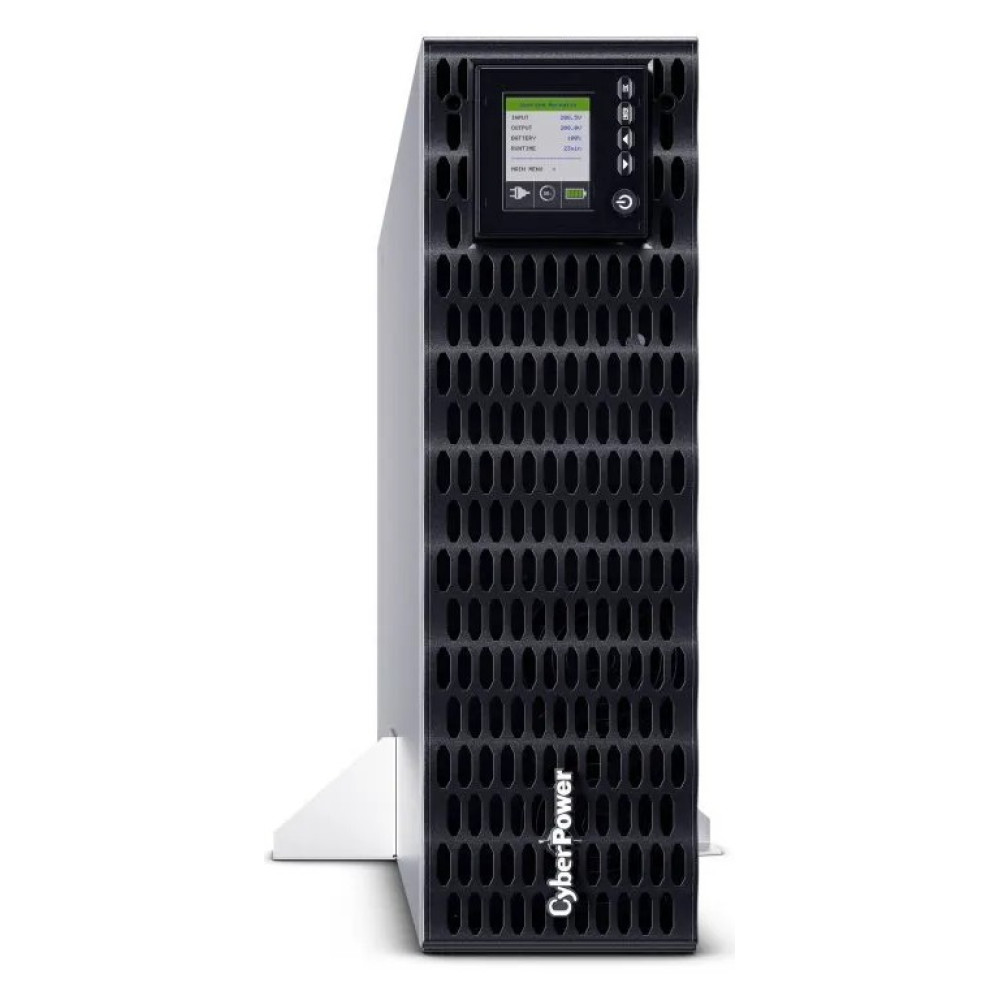

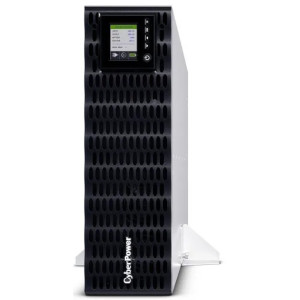

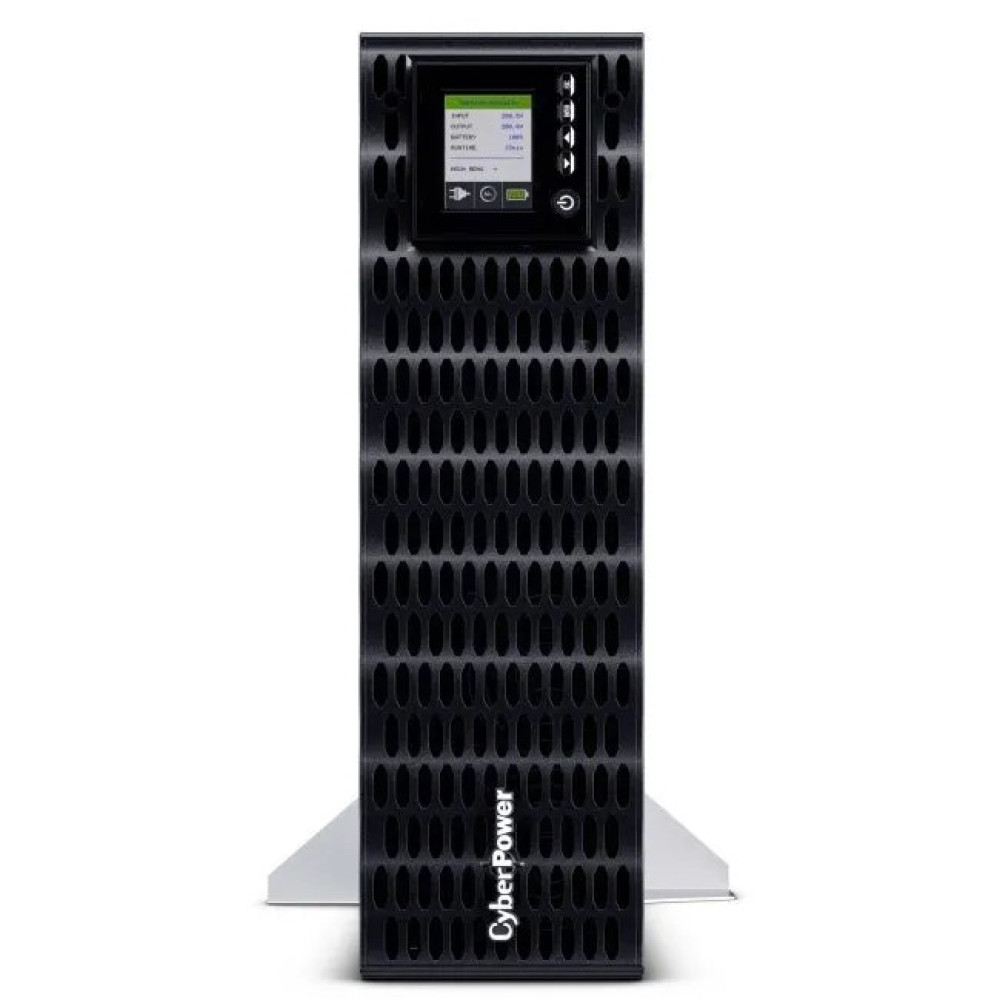

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. It's all backed by a 3-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OL5KRTHDL is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS | Rackmount UPS |
| USB Interface | |
| USB Ports | HID Compliant USB Port |
| Battery | |
| Runtime | 4.9 / 14.3 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 4 hours (0% to 90% charged) |
| Transfer Time | 0ms |
| Power | |
| Rated Power | 5000 Watts |
| Nominal VA | 5000 VA |
| Output Voltage | 200/208/220/230/240 VAC +/- 2% (configurable) |
| Input Voltage | 200 - 240 VAC |
| Frequency | 50/60 Hz +/-0.25Hz (auto-sensing or configurable) |
| Battery Specifications | 12 V / 9 Ah |
| Input Connection | NEMA L6-30P |

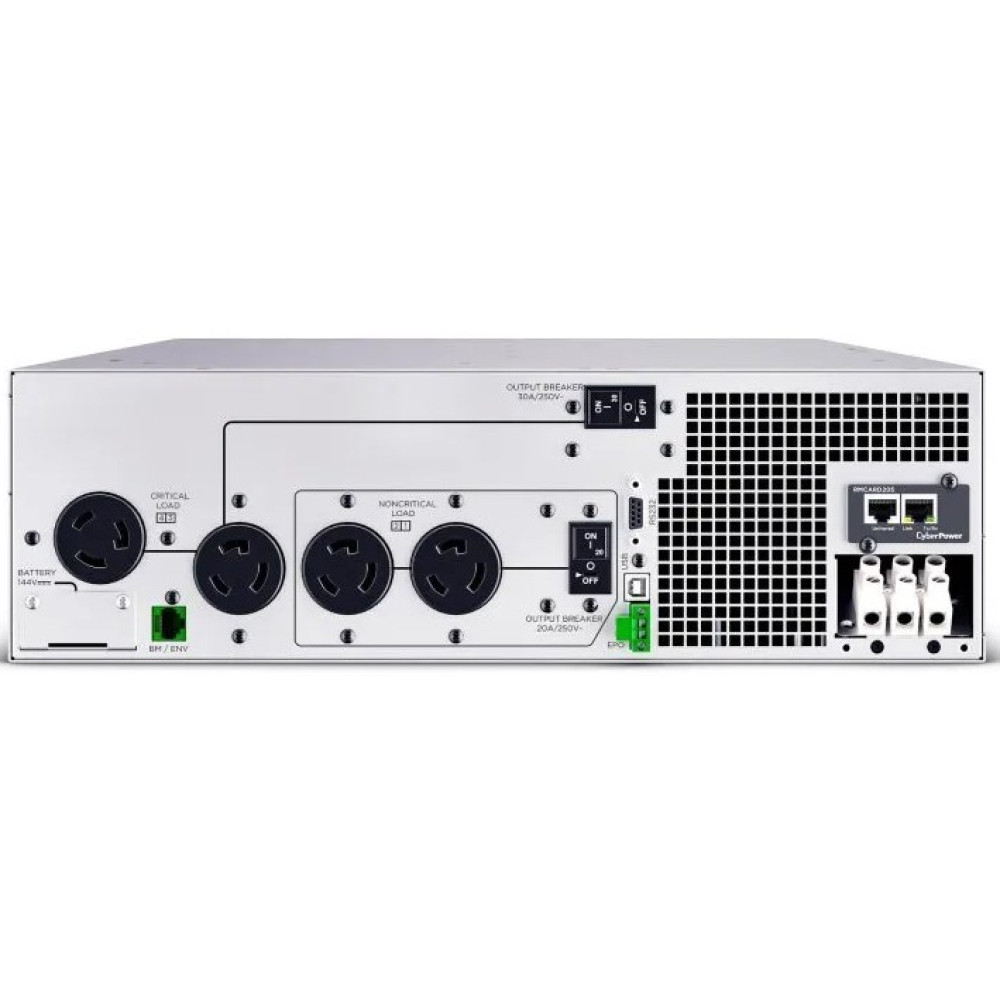

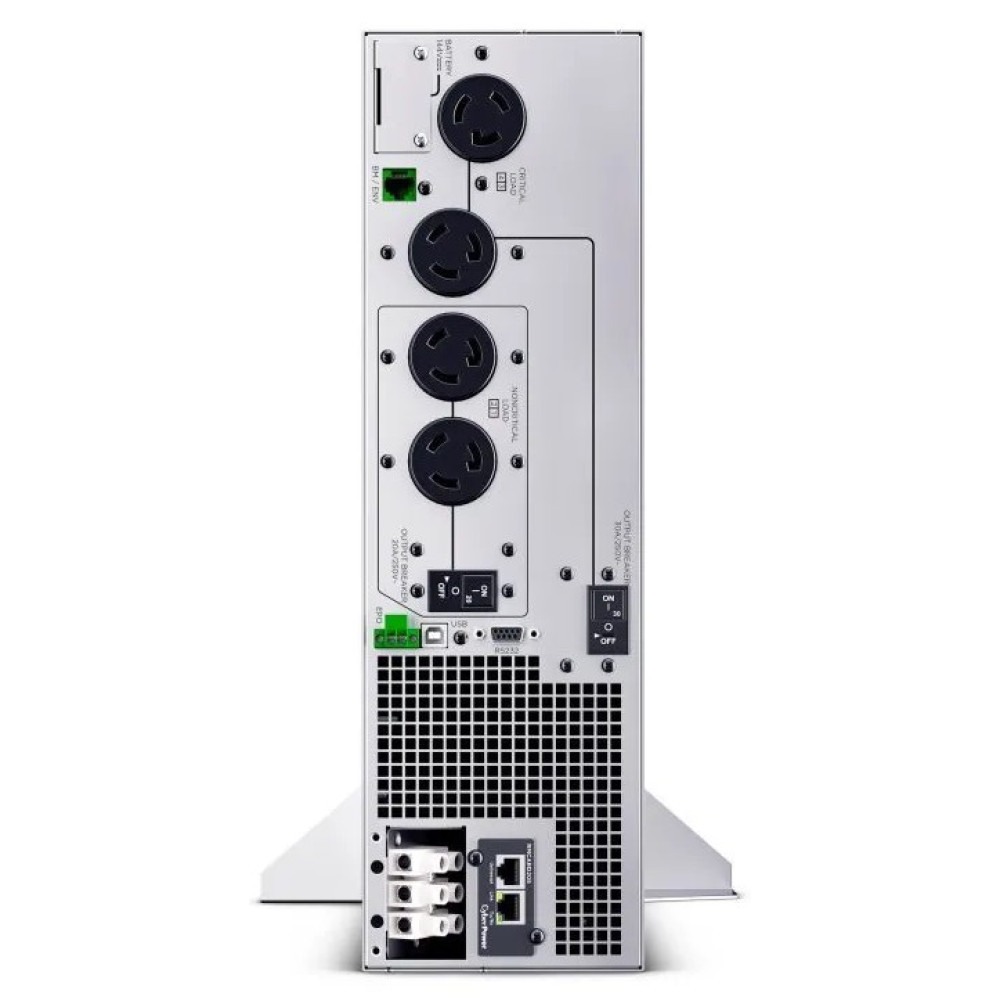

| Output Connection | (2) NEMA L6-20R, (2) NEMA L6-30R |
| Surge Protection | 2430 joules |
| Overload Protection | Audible alarm |
| Mechanical | |
| Mounting | 3U rackmount or tower |
| LED Indicators | Power On |
| Color | Black front panel |
| Material | Metal |
| Weight | 118 lbs. |
| Dimensions | 17" W x 5.1" H x 28.3" D |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Humidity | 0% to 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778 5th Ed., CSA C22.2 No.107.3-05, FCC Part 15 Class A |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower OL5KRTHDL Datasheet | 2.01MB |
| CyberPower OL5KRTHDL/OL6KRTHDL Quick Start Guide | 3.56MB |
| CyberPower OL5KRTHDL/OL6KRTHDL Operation Manual | 5.3MB |
