CyberPower CP1000PFCLCD 1000VA/600W PFC Sine Wave Mini-Tower UPS

New CyberPower CP1000PFCLCD Mini-Tower UPS, UL Rated, Energy Star certified, 10× NEMA 5-15R
Model: CP1000PFCLCD
Availability: 1 Week
Standard Shipping & Handling
Qty: Add to Cart

CyberPower CP1000PFCLCD Mini-Tower UPS, Tilting Color LCD Display, 120 VAC Input, UL 1778

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1000PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

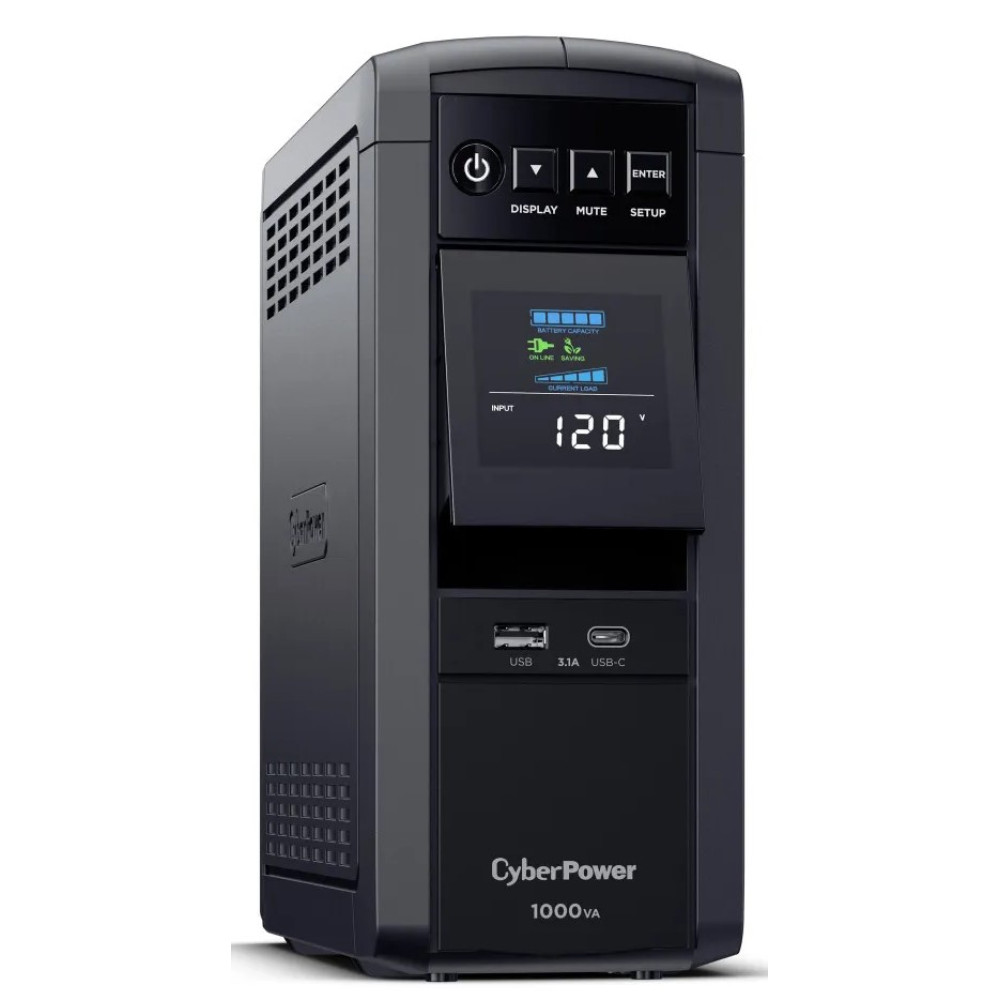

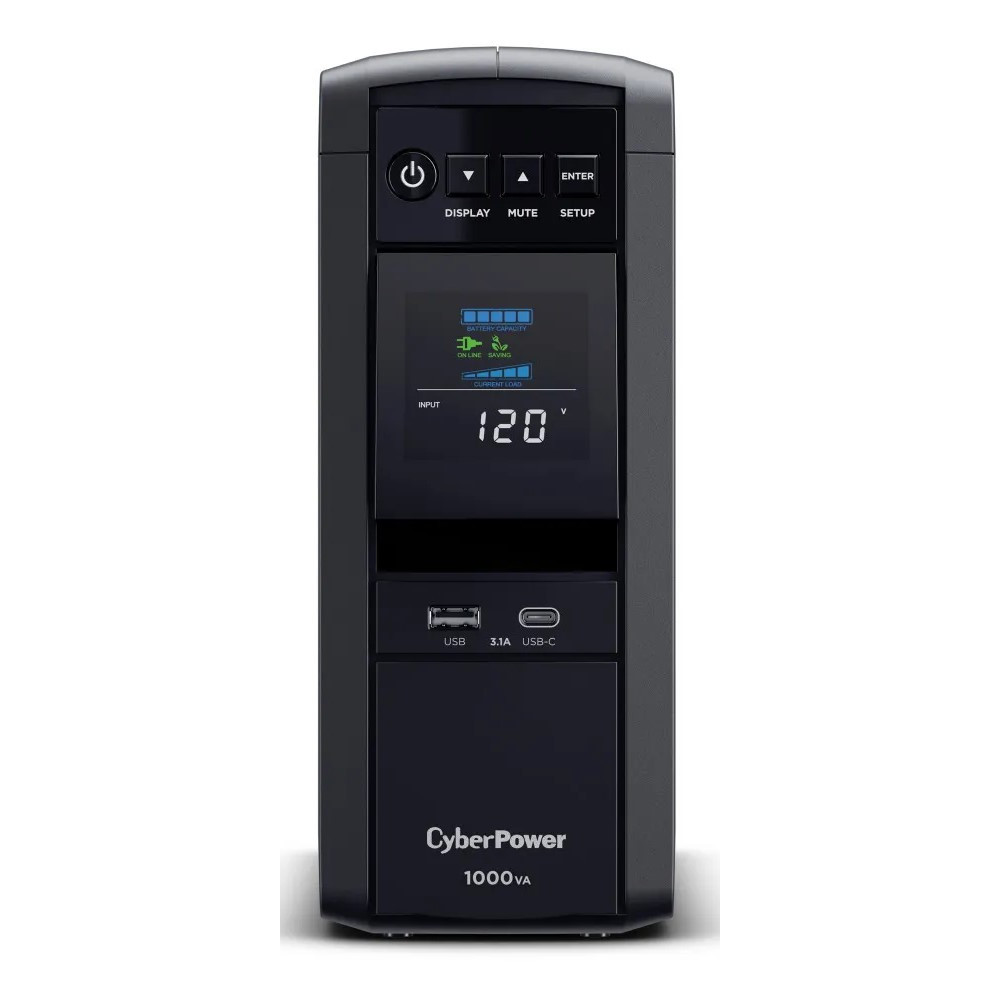

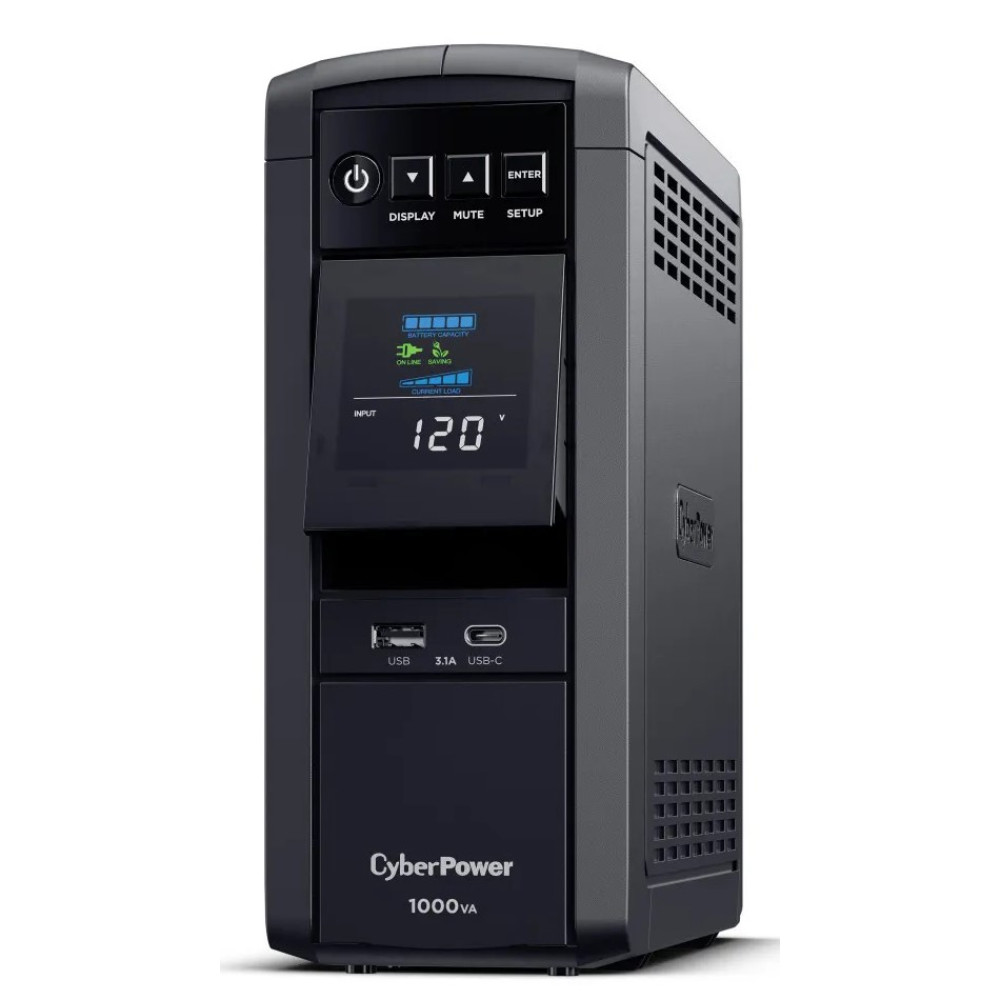

The CP1000PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1000PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1000PFCLCD comes with a three-year warranty (including coverage of batteries) and a $350,000 Connected Equipment Guarantee.

Key Features

  • Capacity: 1000VA / 600W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120Vac +/- 5%
  • Runtime (half/full): 8 minutes / 1 minute
  • Plug type & cord: NEMA 5-15P, 5-ft. cord

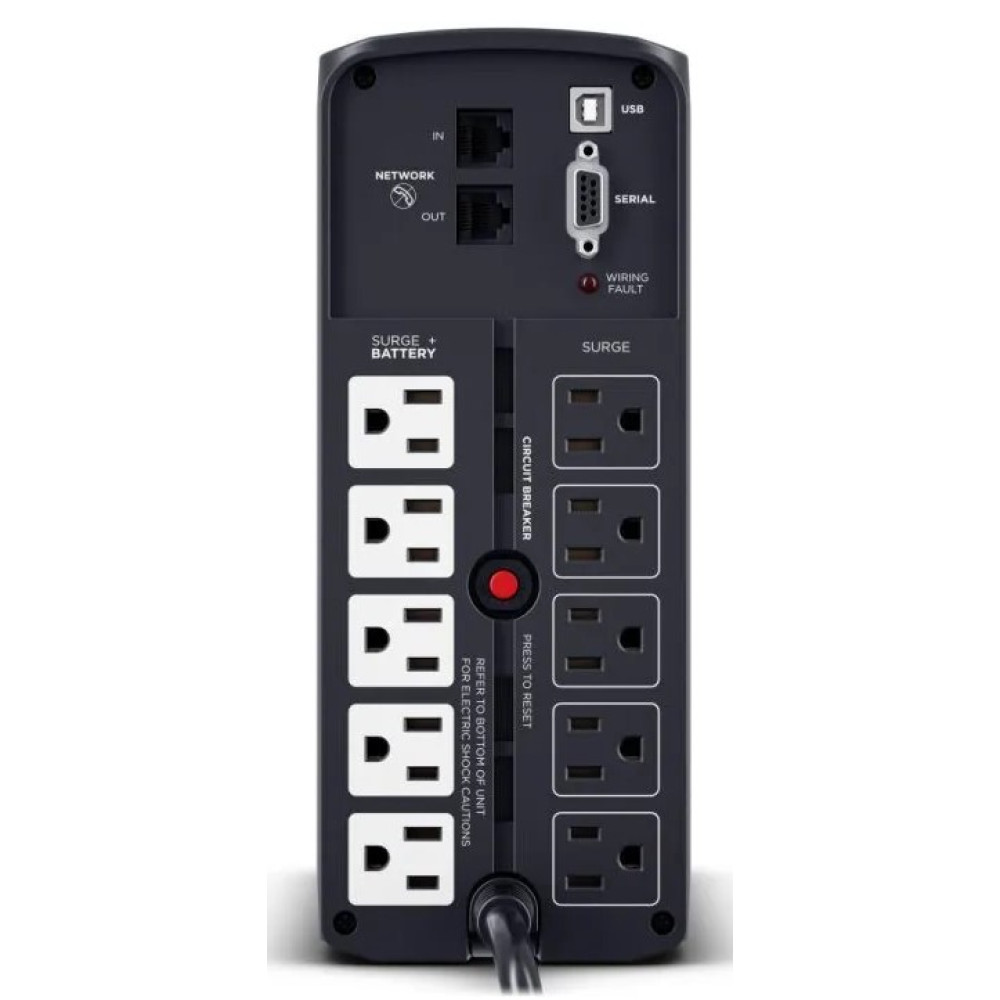

  • Outlets: 10 (5 surge only, 5 surge + battery backup)
  • Outlet types: 10 × NEMA 5-15R
  • Communication: USB, Relay
  • Data line protection: Network
  • Management software: PowerPanel Personal
  • ENERGY STAR certified
  • 3-year warranty
  • Connected Equipment Guarantee: $350,000



PFC Sinewave UPS Series Introduction

CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The CP1000PFCLCD supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!

Technology
CategoryTower UPS
Interfaces
ManagementPowerPanel Personal
USB Interface
USB Ports1 USB-A, 1 USB-C
Battery
Runtime8 / 1 minutes (half / full load)
Battery TypeSealed Lead-Acid Battery
Recharge Time8 hours
Transfer Time4ms
Power
Rated Power600 Watts
Nominal VA1000 VA
Output Voltage120VAC +/- 5%
Input Voltage88 VAC - 144 VAC
Frequency60Hz +/- 1%
Power Factor Correction0.6
OverloadInternal Circuitry Limiting, Circuit Breaker Protected
Input Connection5-15P 5ft. Cord
Output Connection(10) 5-15R outlets
Surge Protection1150 joules
Mechanical
LED IndicatorsPower, Wiring fault
ColorBlack
MaterialPlastic
Weight15.39 lbs.
Dimensions3.94" W x 9.7" H x 10.24" D
Ratings
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Temperature5 - 113 °F (-15 - 45 °C)
Humidity0% to 95% non-condensing
RoHS CompliantYes
CertificationsUL1778, cUL 107.3, FCC DOC Class B
WarrantyProduct: 3-year, Connected Equipment: Lifetime
