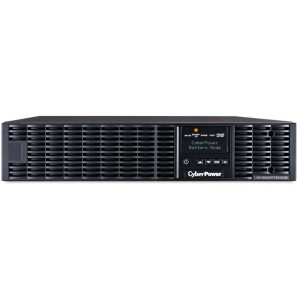

CyberPower OL1000RTXL2U 1000VA/900W Smart App Online UPS, Rack or Tower

CyberPower OL1000RTXL2U Rack/Tower UPS with Extendable LCD Panel, 8 NEMA 5-15R, UL 1778

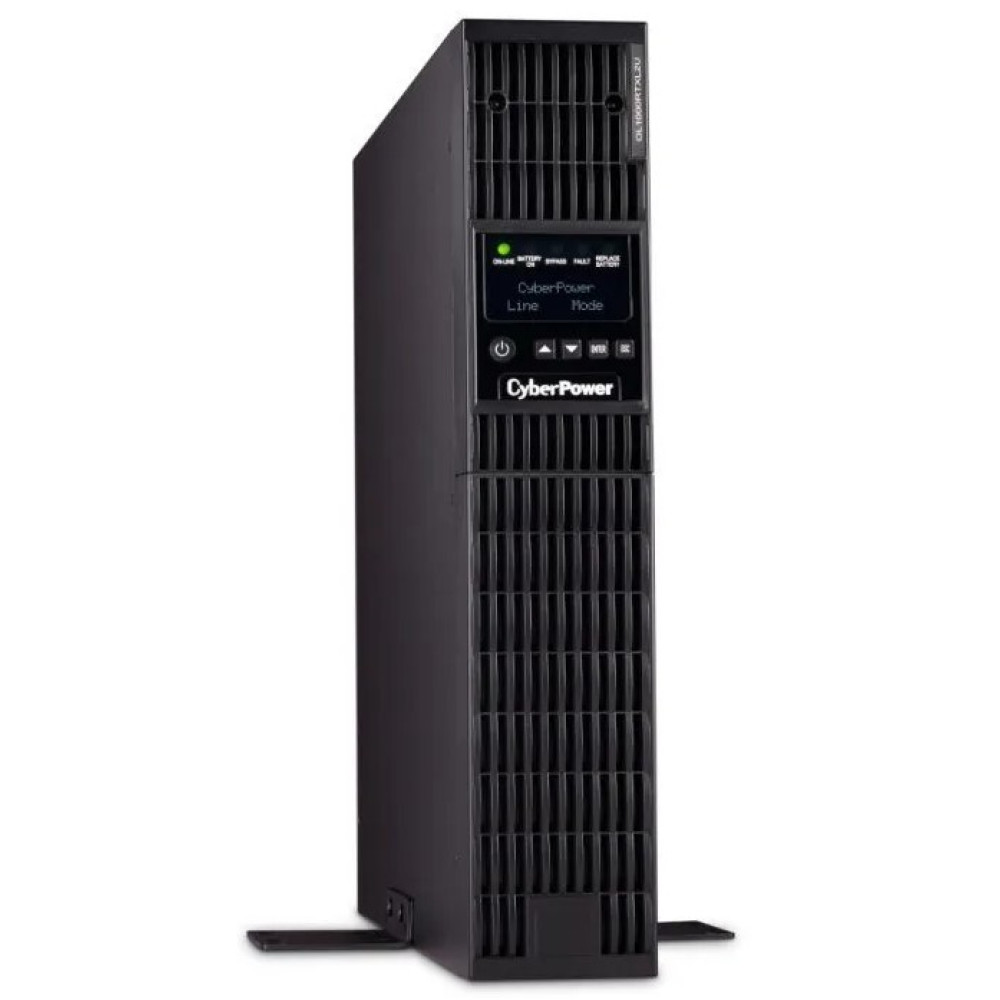

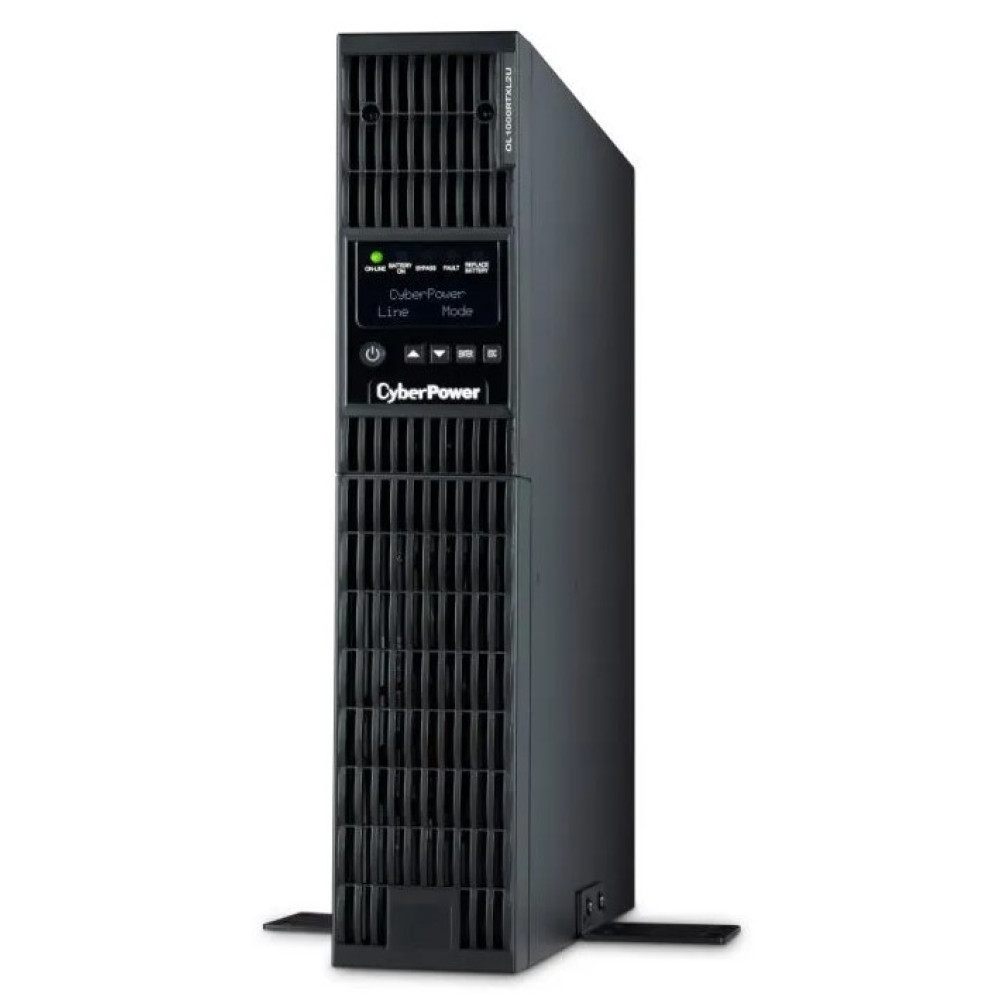

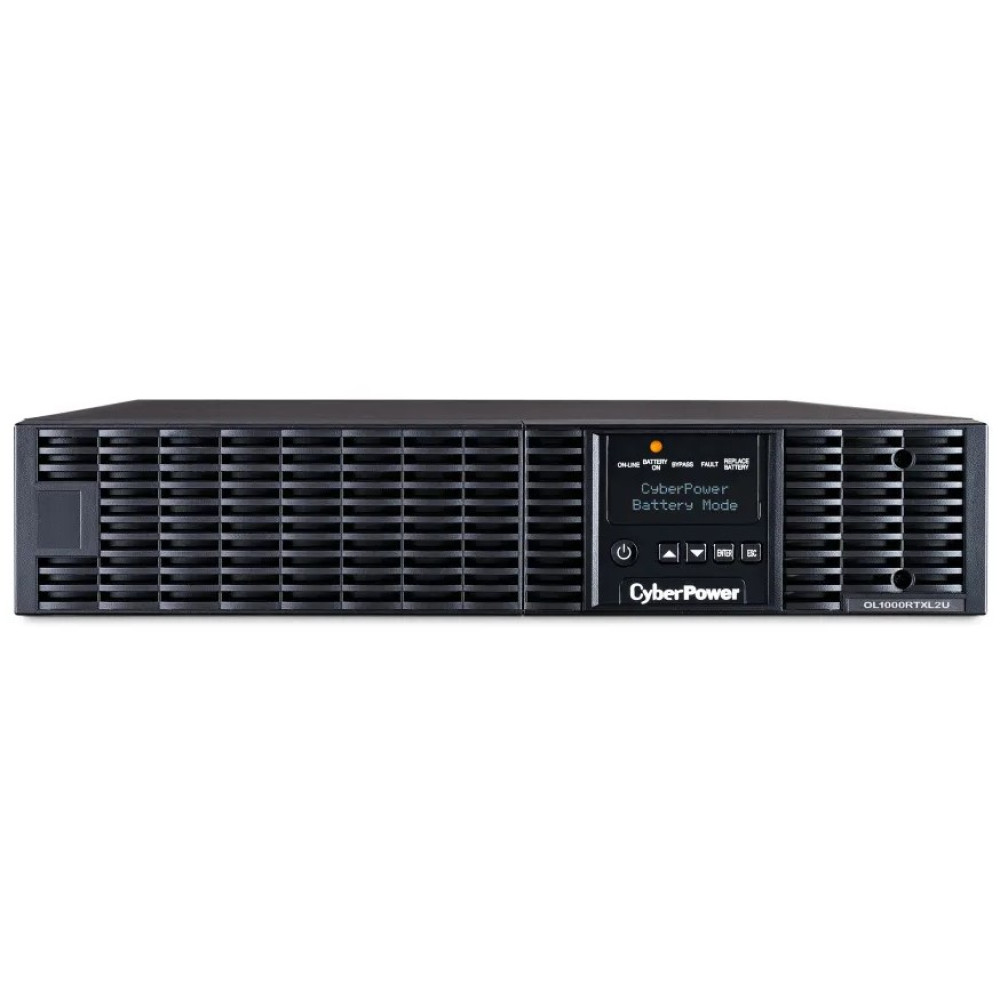

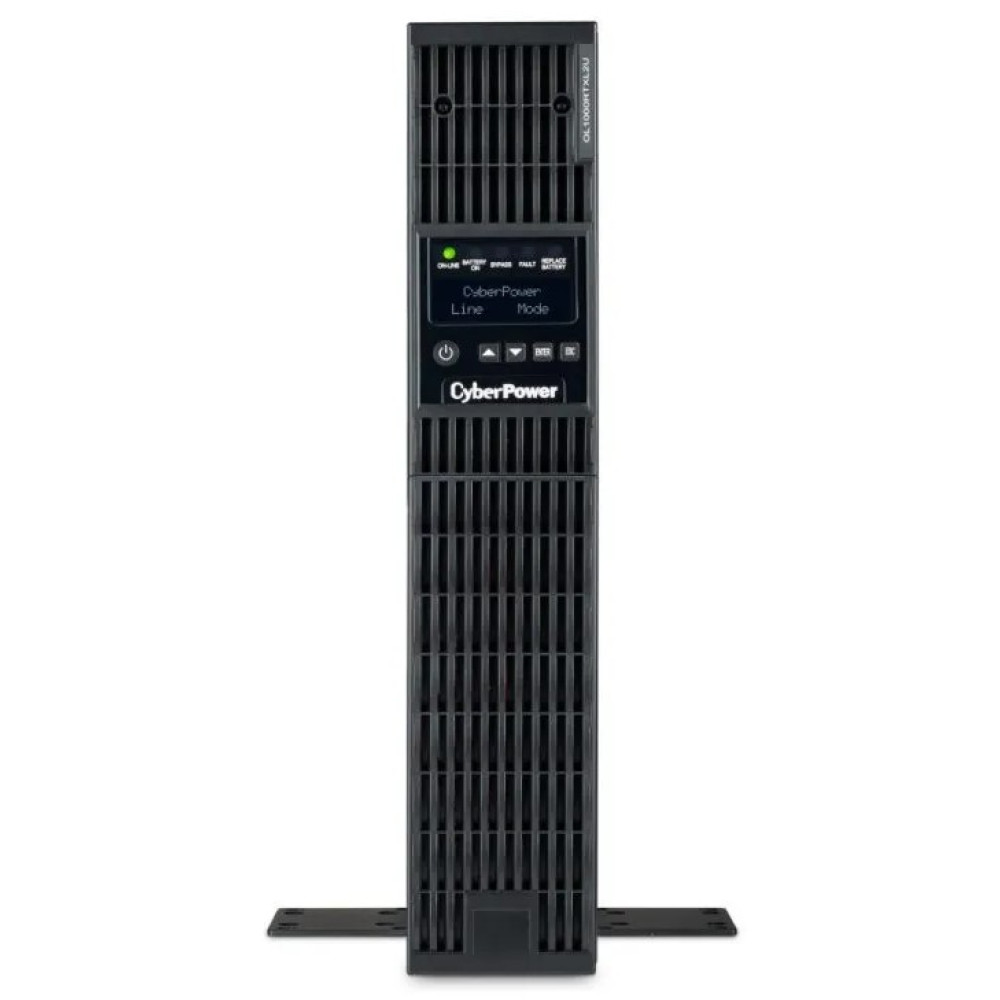

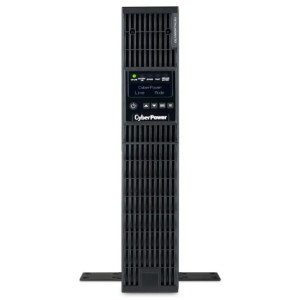

Prevent business interruptions and safeguard mission-critical enterprise network equipment with the CyberPower OL1000RTXL2U rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.

The OL1000RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.

Typical Applications

• Corporate Servers
• Network and Storage Devices
• Edge Closets
• PBX and VoIP Installations
• Enterprise Servers

Key Features

• 1000 VA / 900 W
• Power Factor (PF): 0.9
• Double-Conversion Topology
• Waveform: Sine Wave
• Output: 100, 110, 115, 120, 125 V +/-2% (configurable)
• Runtime (half/full): 21 minutes / 8 minutes
• 10-ft. cord

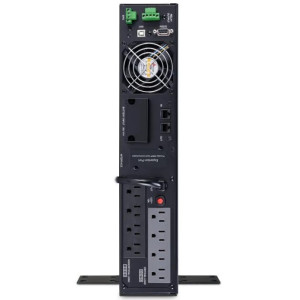

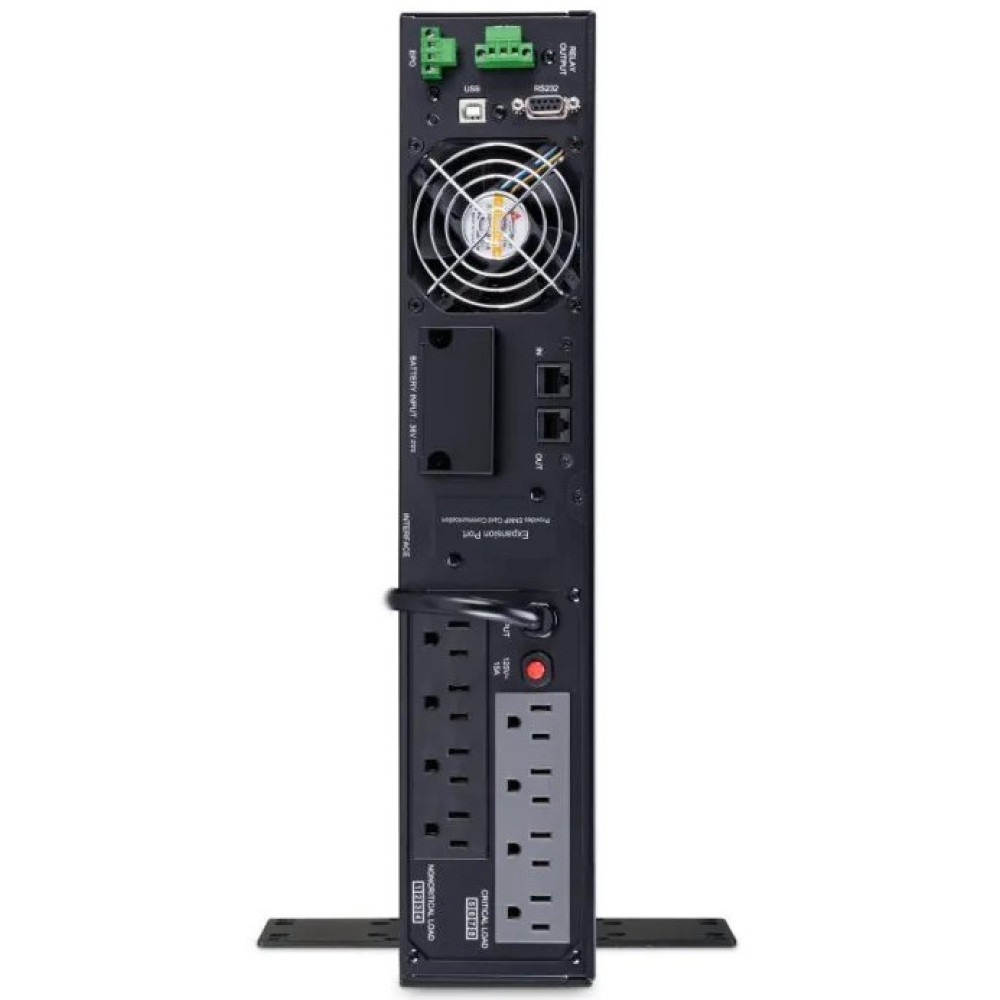

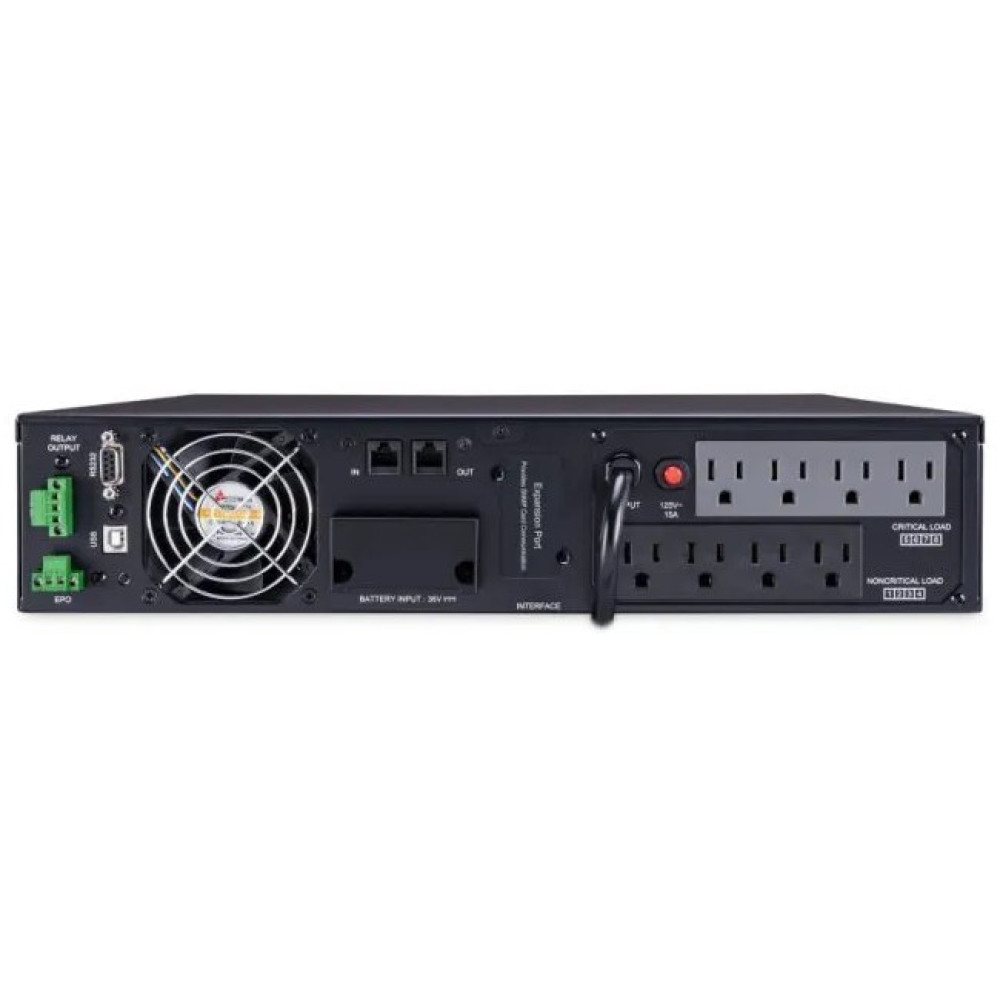

• 8x NEMA 5-15R Outlets, USB, serial, network, relay, EPO
• Upgradeable UPS Firmware
• Data line surge protection: Telephone, Network
• PowerPanel Business Edition
• Remote management with optional RMCARD205
• ECO Mode Efficiency >94%
• ENERGY STAR qualified
• Smart Battery Management
• Fast Charge Technology
• Environmental sensor optional with RMCARD205
• 3-year warranty
• $400,000 Connected Equipment Guarantee

In the Box

1. UPS system
2. User Manual
3. Registration Card
4. (2) Rackmount Rails, (2) Rackmount Ears
5. 2) Hanging Brackets
6. Phone line
7. USB Communication Cable
8. Serial interface Cable (RS-232)
9. (8) M5 x 7L black flat head screws
10. (12) M5 x 12L black pan head screws
11. (6) M5 x 6L silver pan head screws
12. (8) Plastic washers
13. (12) Screw Hole Dust Covers
14. (12) Rubber Pads
15. Software Download Card

CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OL1000RTXL2U is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
