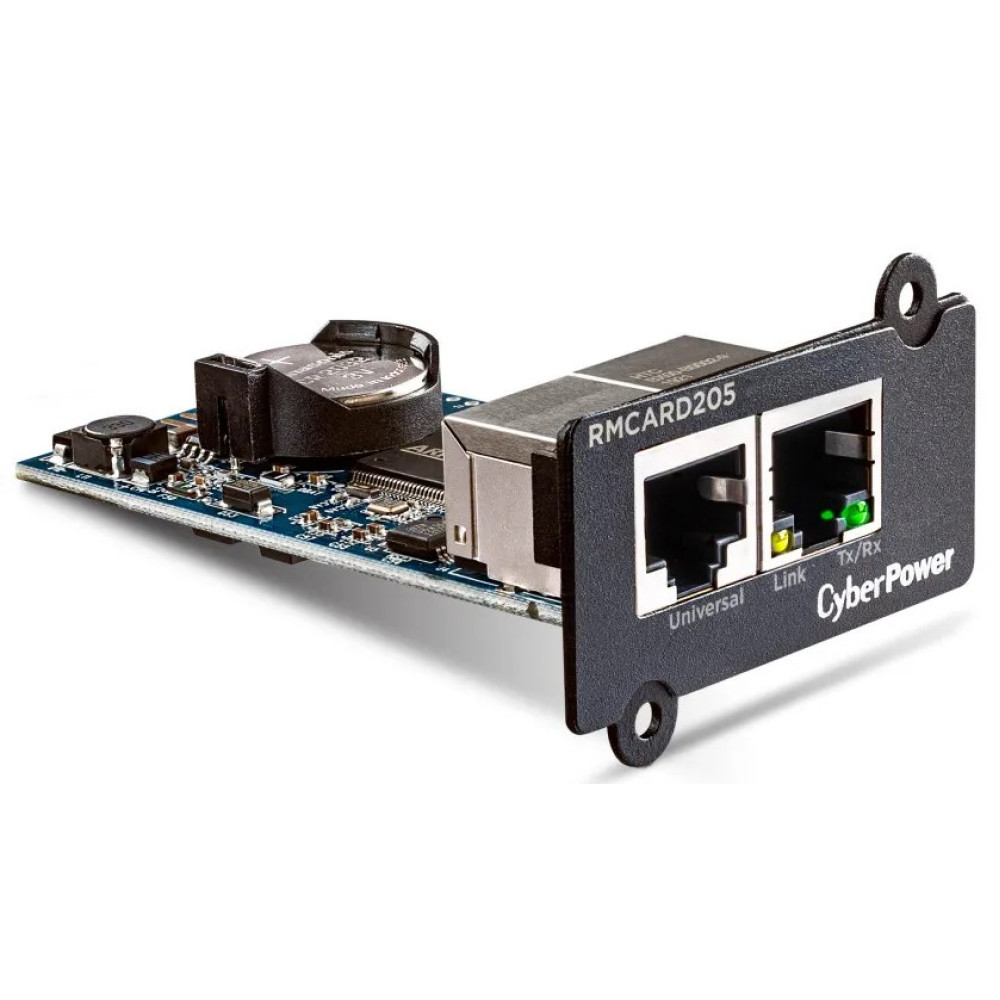

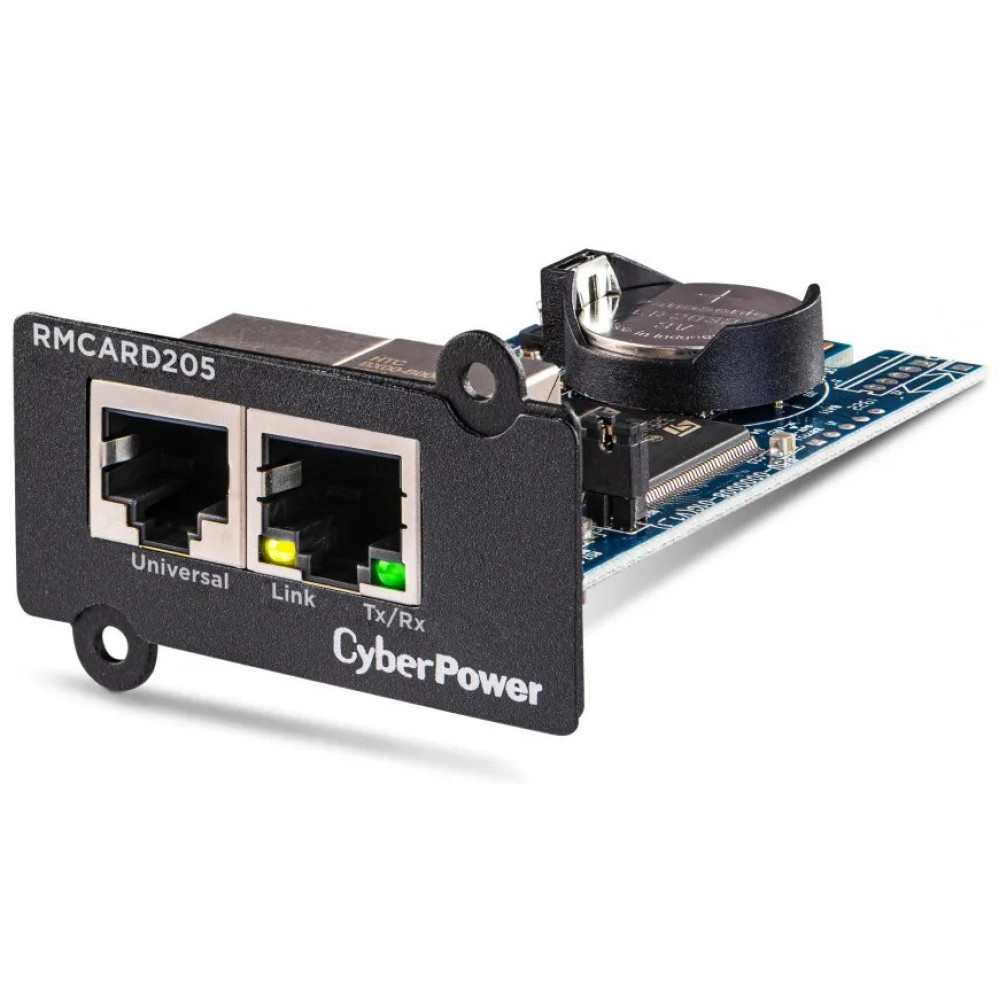

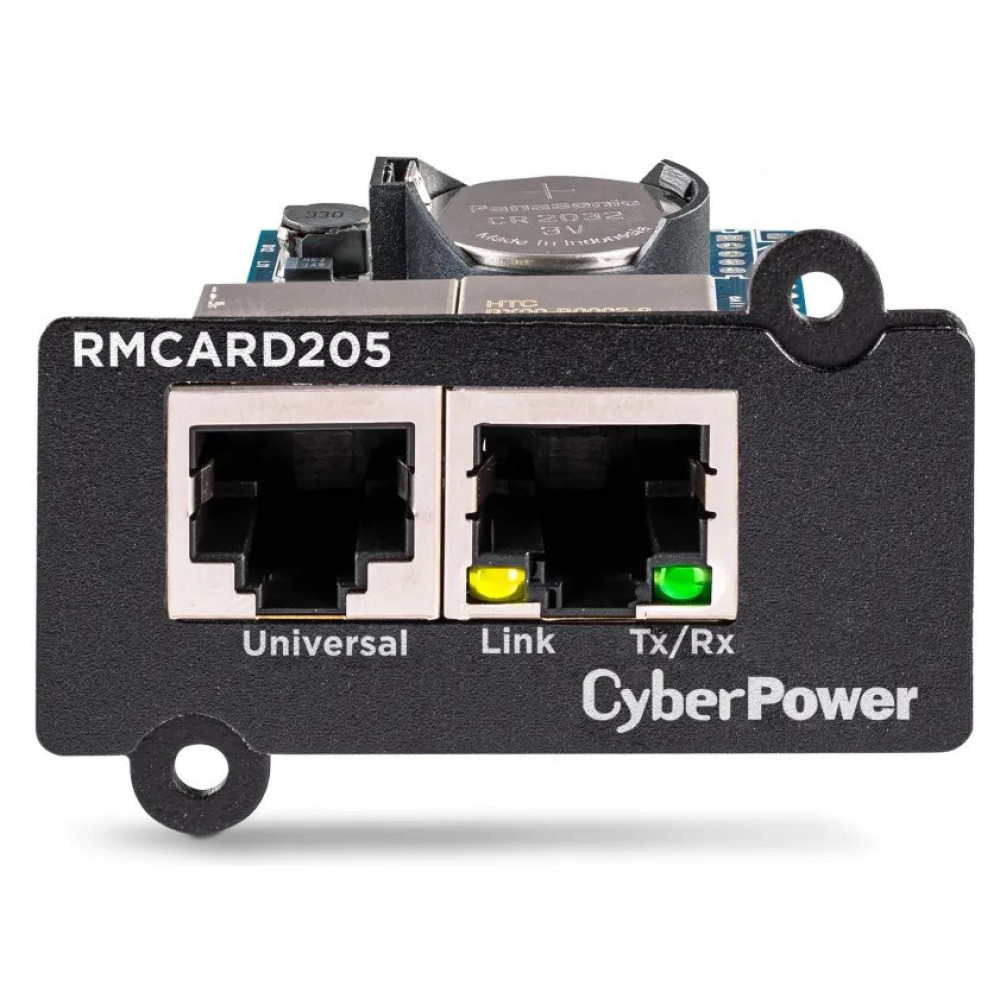

CyberPower RMCARD205 Network Management Card for UPS Systems

CyberPower RMCARD205 Real Time Remote Management UPS Monitoring Device

A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.

Key Features

• Real time UPS monitoring
• Remote management via web browser (HTTP/HTTPS), CLI (Telnet/SSH), or NMS (SNMPv1/v3)
• Automatic events notification via ;email, SMS, SNMP traps, and Syslog
• View and save Event Logs and Status Records
• Supports RADIUS, LDAP, LDAPS, and Windows Active Directory external authentication protocols
• User upgradeable firmware via FTP or SCP
• Update firmware and configuration file on multiple cards simultaneously using Upgrade and Configuration Utility
• Compatible with select Smart App UPS and ATS PDUs
• 3-year warranty

Remote Management Card Introduction
