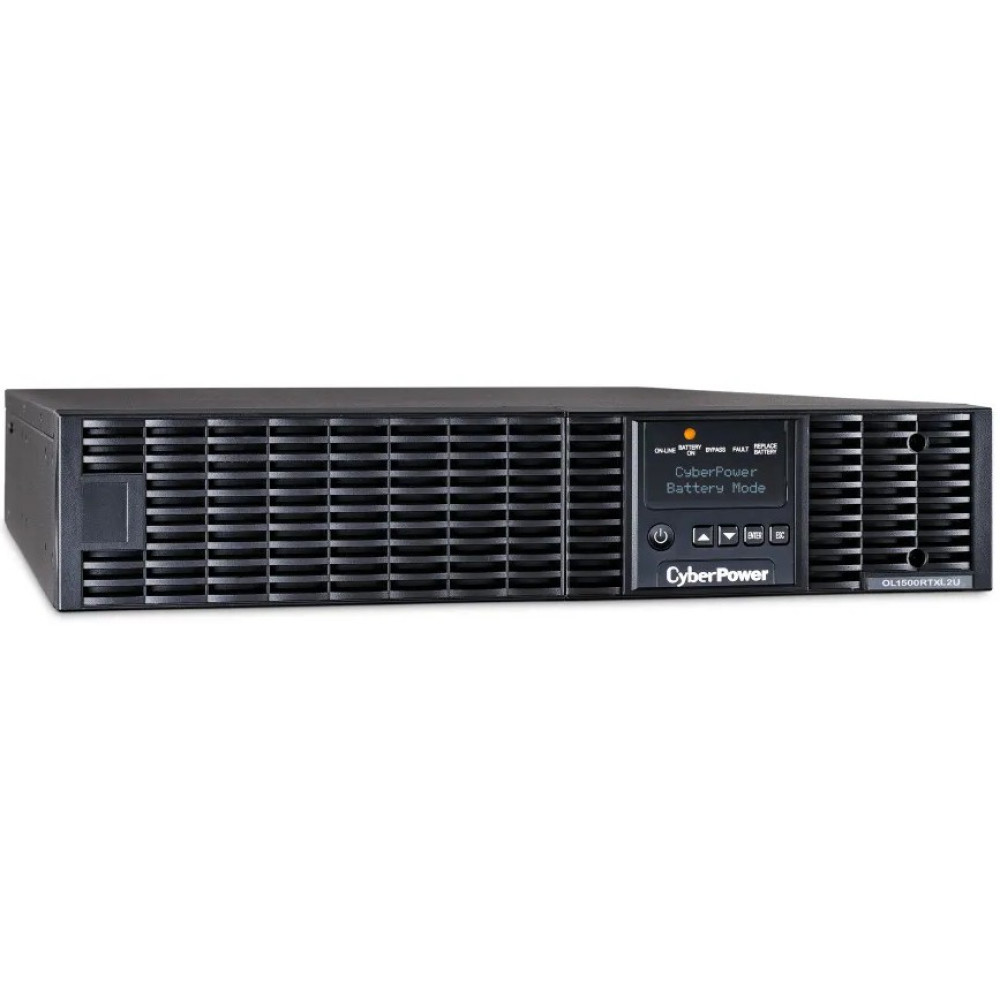

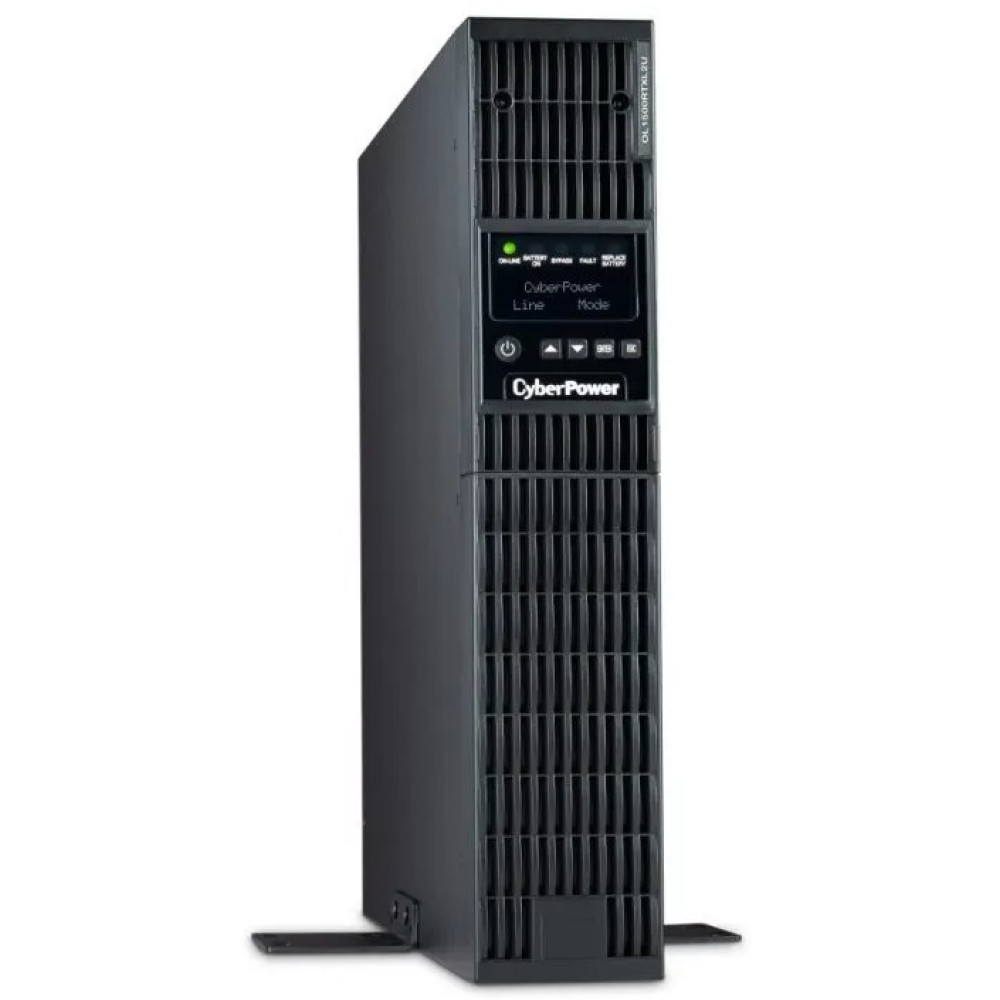

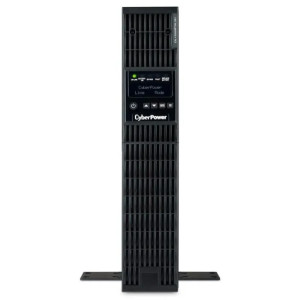

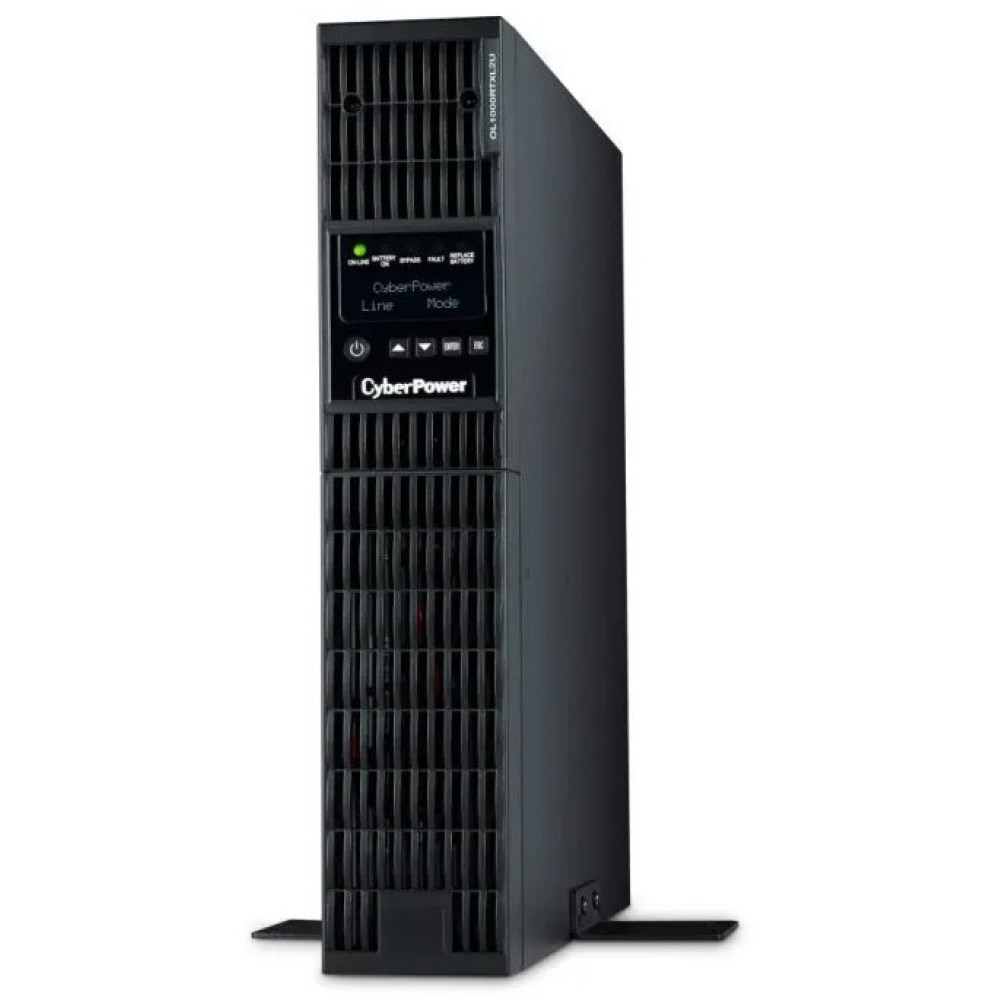

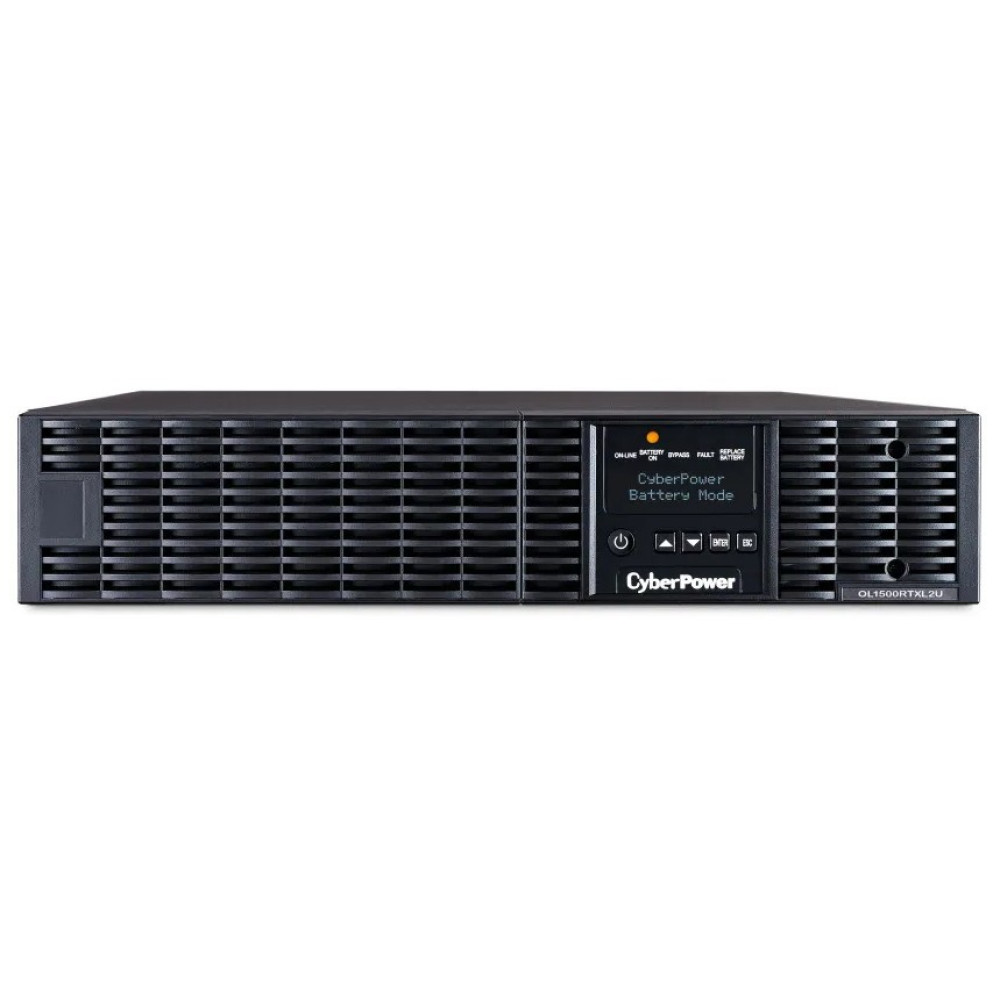

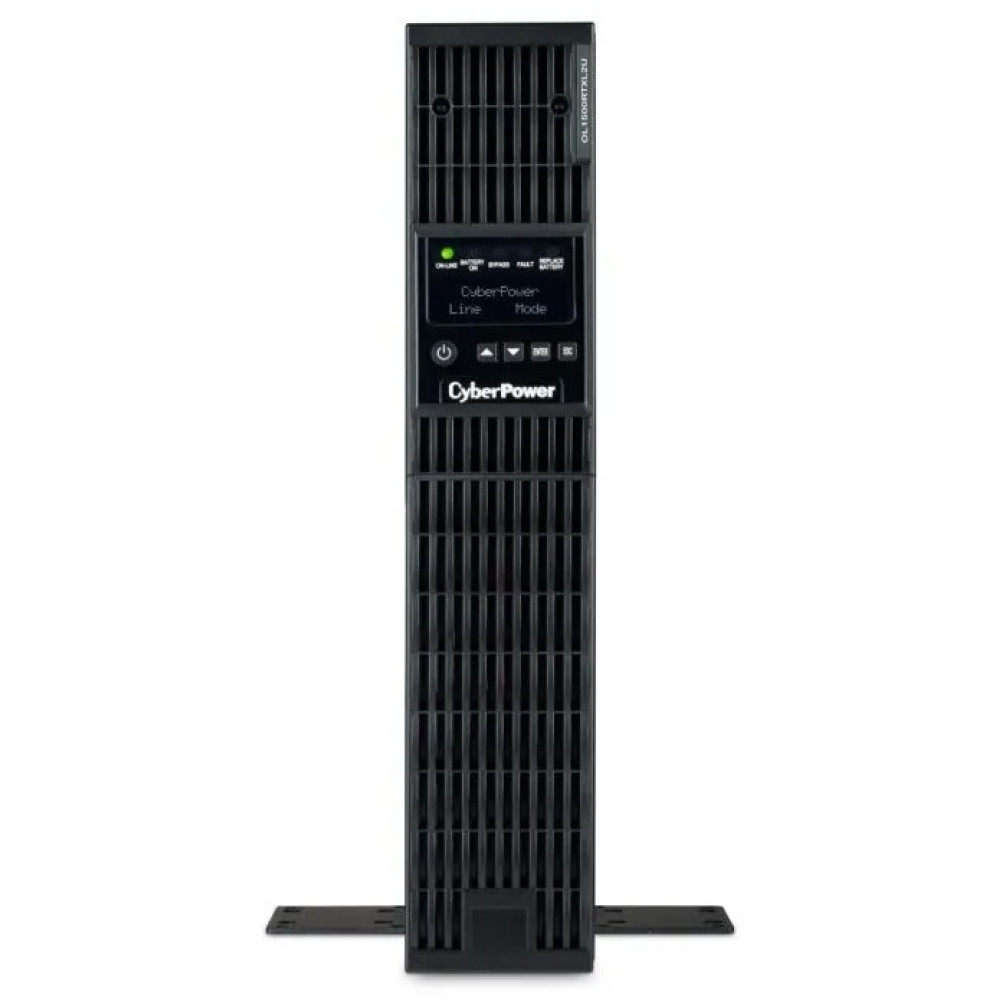

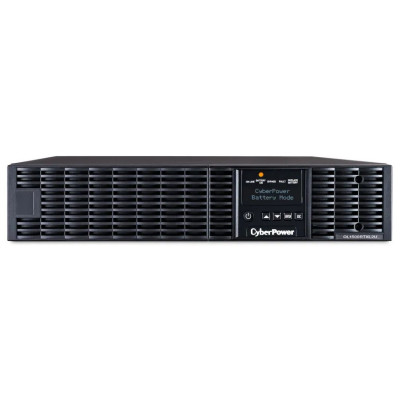

Prevent business interruptions and safeguard mission-critical enterprise network equipment with the CyberPower OL1500RTXL2U rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL1500RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system and includes built-in cloud monitoring. It is pre-installed on the -N model. If necessary, the remote management card may be purchased separately at a later time. See the Product Accessories tab above.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.
OL1500RTXL2UN, Smart App Online UPS with pre-installed RMCARD205 network management card
OL1500RTXL2U, Same as above without RMCARD205
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OL1500RTXL2U is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS | Rackmount UPS |
| USB Interface | |
| USB Ports | HID Compliant USB Port |
| Battery | |
| Runtime | 3.4 / 11 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 4 hours (0% to 90% charged) |
| Transfer Time | 0ms |
| Power | |
| Rated Power | 1350 Watts |
| Nominal VA | 1500 VA |
| Output Voltage | 100 / 110 / 115 / 120 / 125 VAC +/-2% (configurable) |
| Input Voltage | 60 – 150 VAC |
| Frequency | 40 Hz to 70 Hz (auto-sensing) |
| Battery Specifications | 12V/9Ah |
| Input Connection | 5-15P 10-ft. Cord |

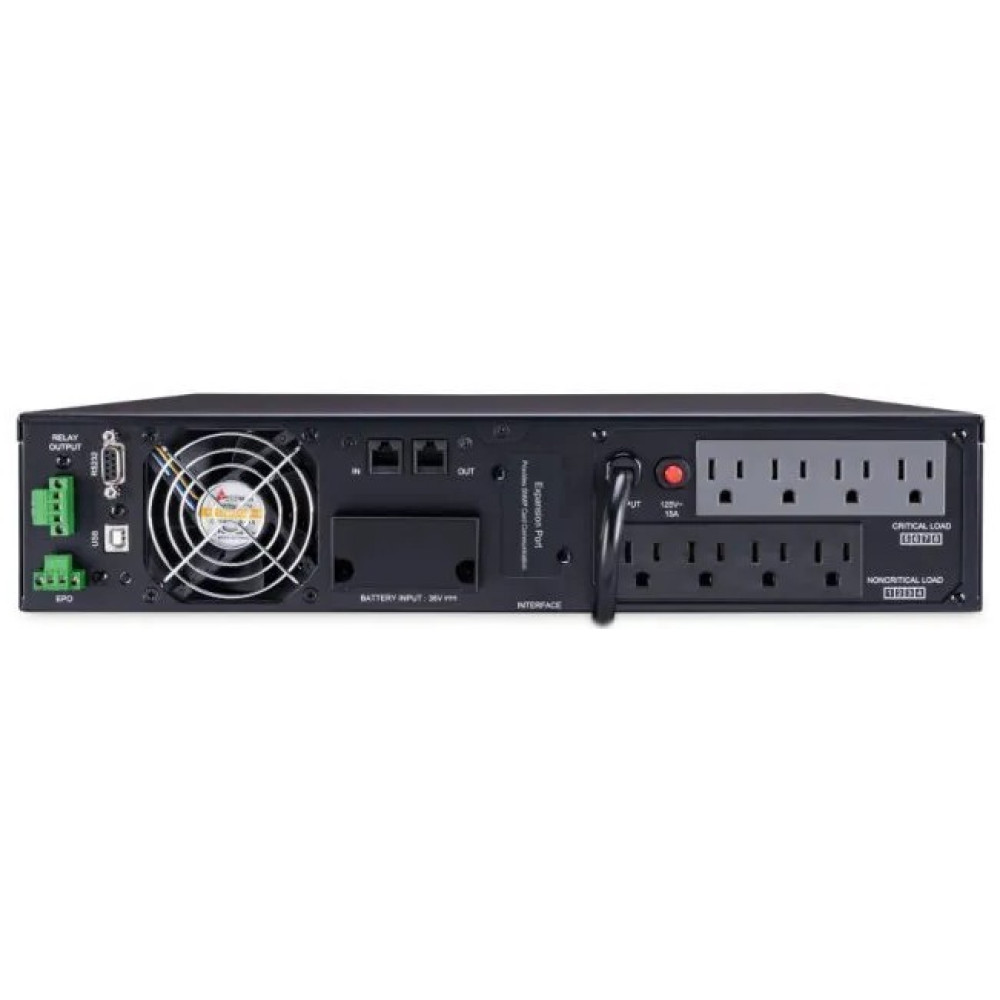

| Output Connection | (8) 5-15R outlets |
| Surge Protection | 1780 joules |
| Overload Protection | Line Mode: 105% ~ 125% Load - 1 min, Line Mode: 126% ~ 150% Load - 10 sec, Battery Mode: 105% ~ 130% Load - 10 sec, Battery Mode: 131% - 150% Load - 2 sec |
| Mechanical | |
| LED Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
| Color | Black |
| Material | Metal |
| Weight | 39.6 lbs. |
| Dimensions | 17" W x 3.5" H x 16.9" D |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Humidity | 0% to 90% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778, FCC Part 15 Class B, CSA C22.2 No. 107.3 |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower Smart App Online UPS Series User Manual | 2.32MB |
| CyberPower OL1500RTXL2U Datasheet | 396.36KB |
