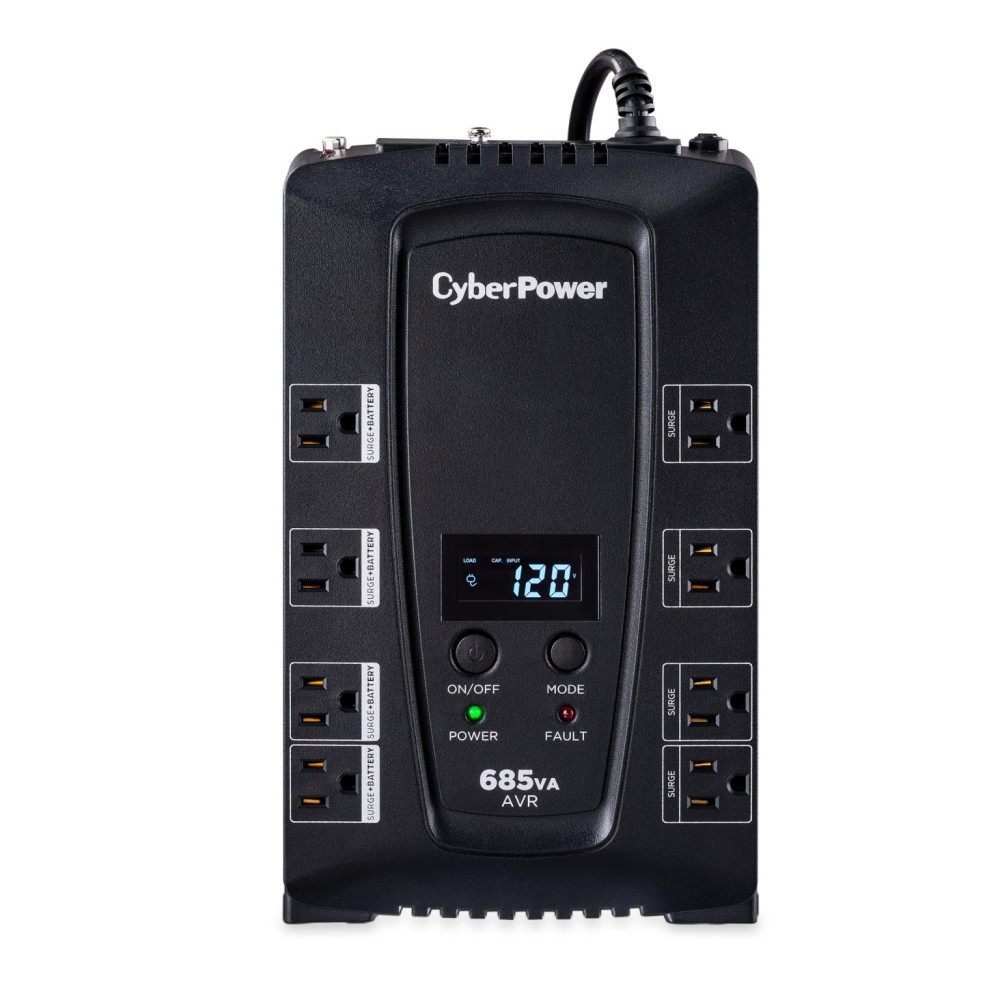

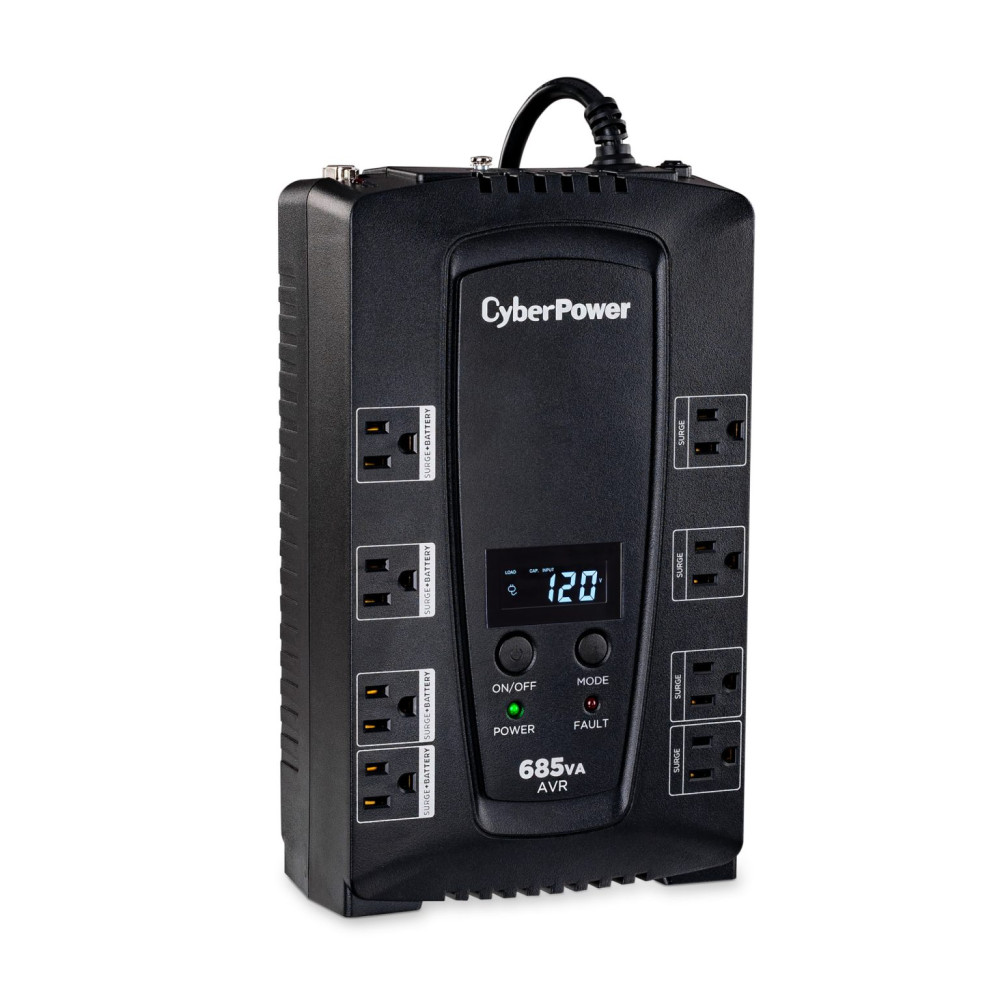

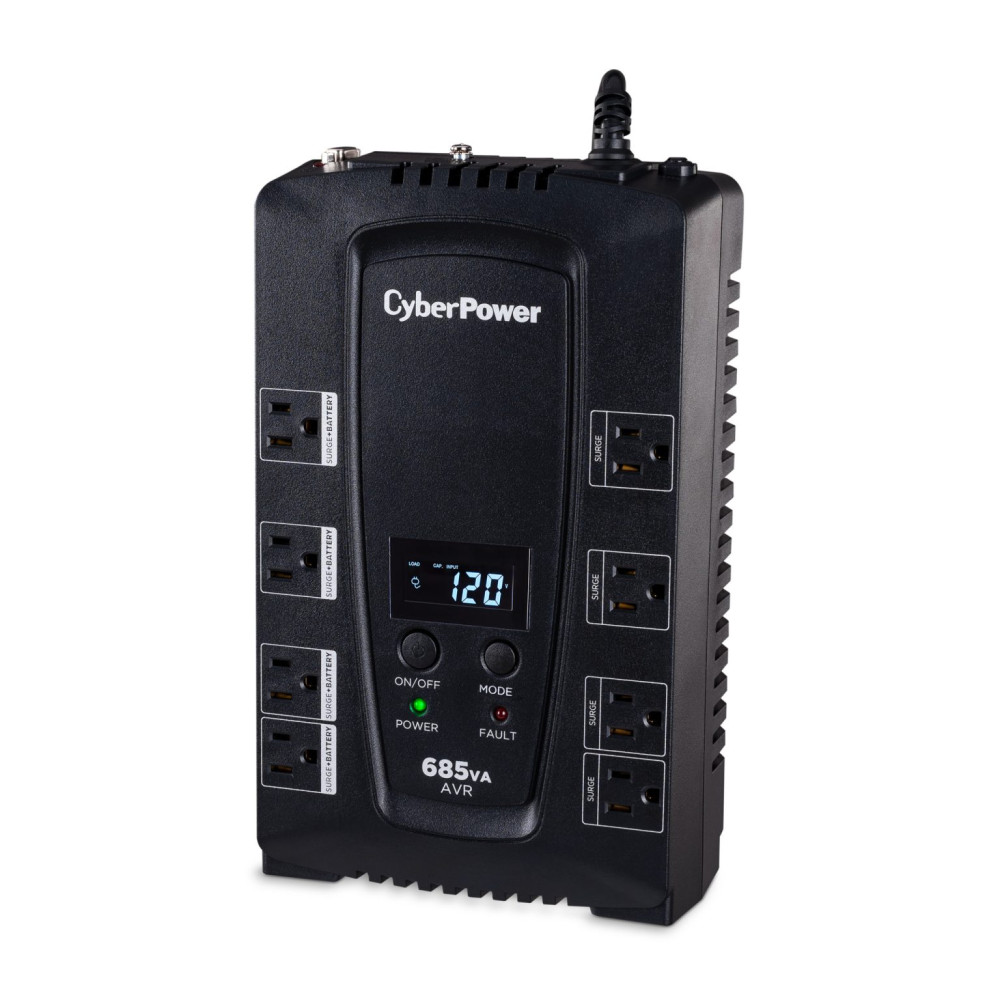

A compact UPS with line-interactive topology, the CyberPower Intelligent LCD CP685AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP685AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without
switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. Features include a multifunction LCD panel to provide visibility into power conditions and UPS vitals. The CP685AVRLCD comes with a three-year warranty (including coverage of batteries) and a $125,000 Connected Equipment Guarantee.
CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The CP685AVRLCD supplies power long enough for equipment to properly shut down when utility power fails. It helps prevent loss of data and minimizes the component stress caused by a hard shutdown. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
| Technology | |
| Category | Tower UPS |
| Interfaces | |
| Management | Remote management with optional RMCARD205 |
| USB Interface | |
| USB Ports | HID Compliant ports |
| Battery | |
| Runtime | 2 / 11 minutes (full / half load) |
| Battery Type | Sealed Lead-Acid Battery |
| Recharge Time | 8 hours |
| Transfer Time | 4ms |
| Power | |
| Rated Power | 390 Watts |
| Nominal VA | 685 VA |
| Output Voltage | 120VAC +/- 5% |
| Input Voltage | 120 VAC |
| Frequency | 60Hz +/- 1% |
| Power Factor Correction | 0.7 |
| Overload | Internal Circuitry Limiting, Circuit Breaker Protected |
| Input Connection | 5-15P 6ft. Cord |
| Output Connection | (8) 5-15R outlets |
| Surge Protection | 1030 joules |
| Mechanical | |
| LED Indicators | Power, Wiring fault |
| Color | Black |
| Material | Plastic |
| Weight | 11.6 lbs. |
| Dimensions | 11" W x 6.8" H x 3.5" D |
| Ratings | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Storage Temperature | 5 - 113 °F (-15 - 45 °C) |
| Humidity | 0% to 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | UL1778, cUL 107.1, FCC DOC Class B |
| Warranty | Product: 3-year, Connected Equipment: Lifetime |
| Download Name | File Size |
| CyberPower CP685AVRLCD Datasheet | 360.9KB |
| CyberPower CP685AVRLCD User Manual | 1004.22KB |
| CyberPower CP685AVRLCD Function Setup Guide | 978.58KB |
