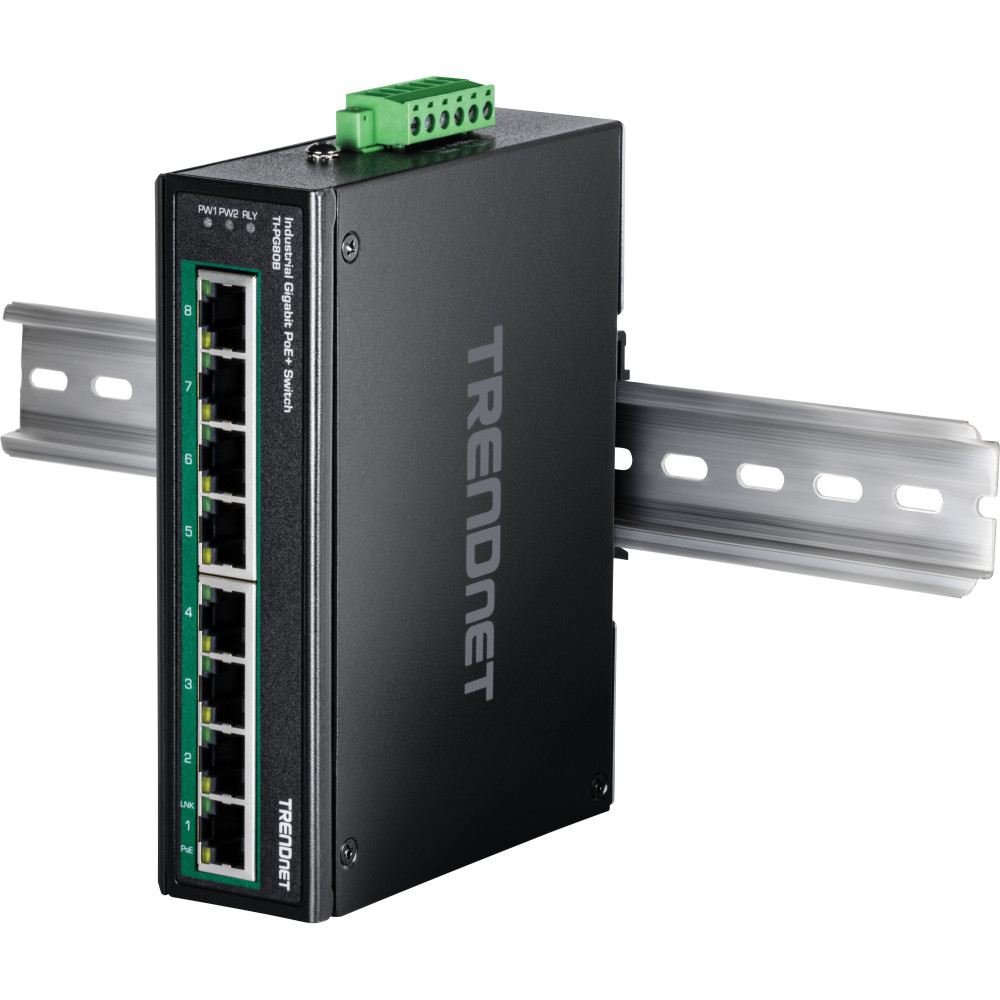

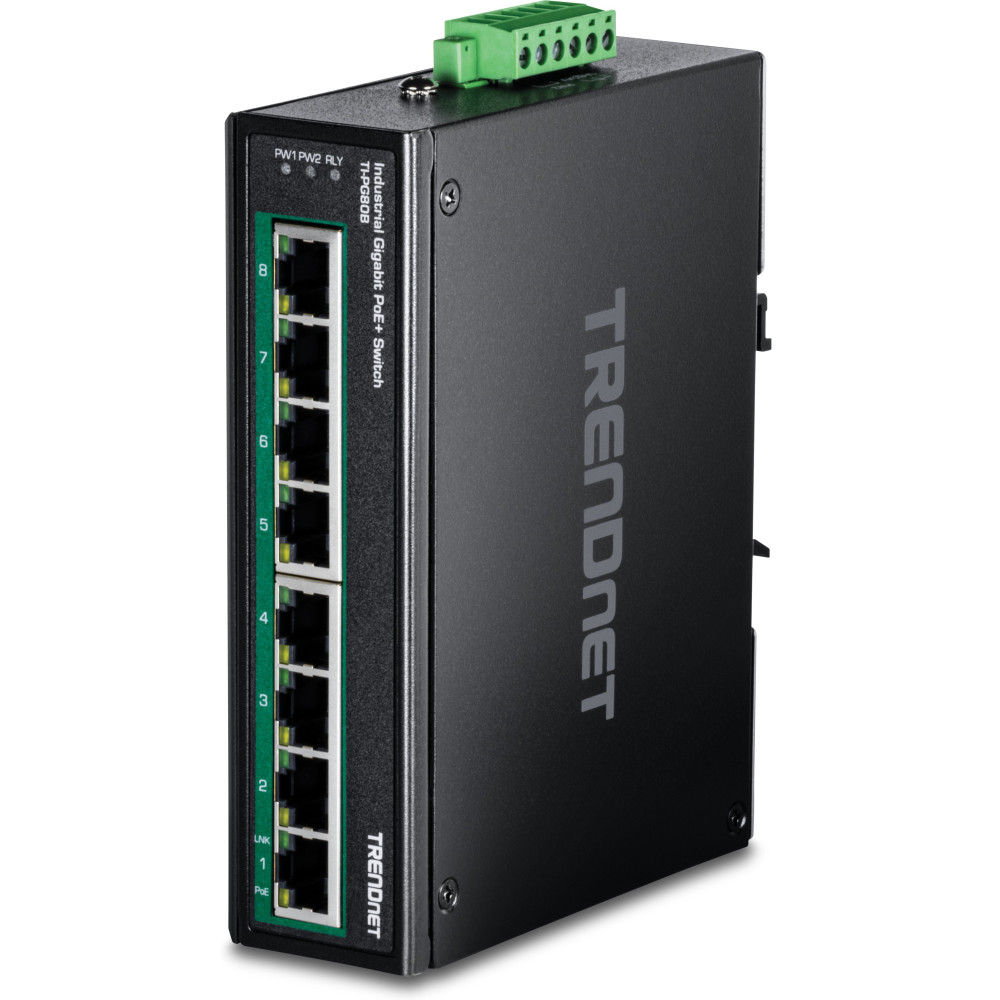

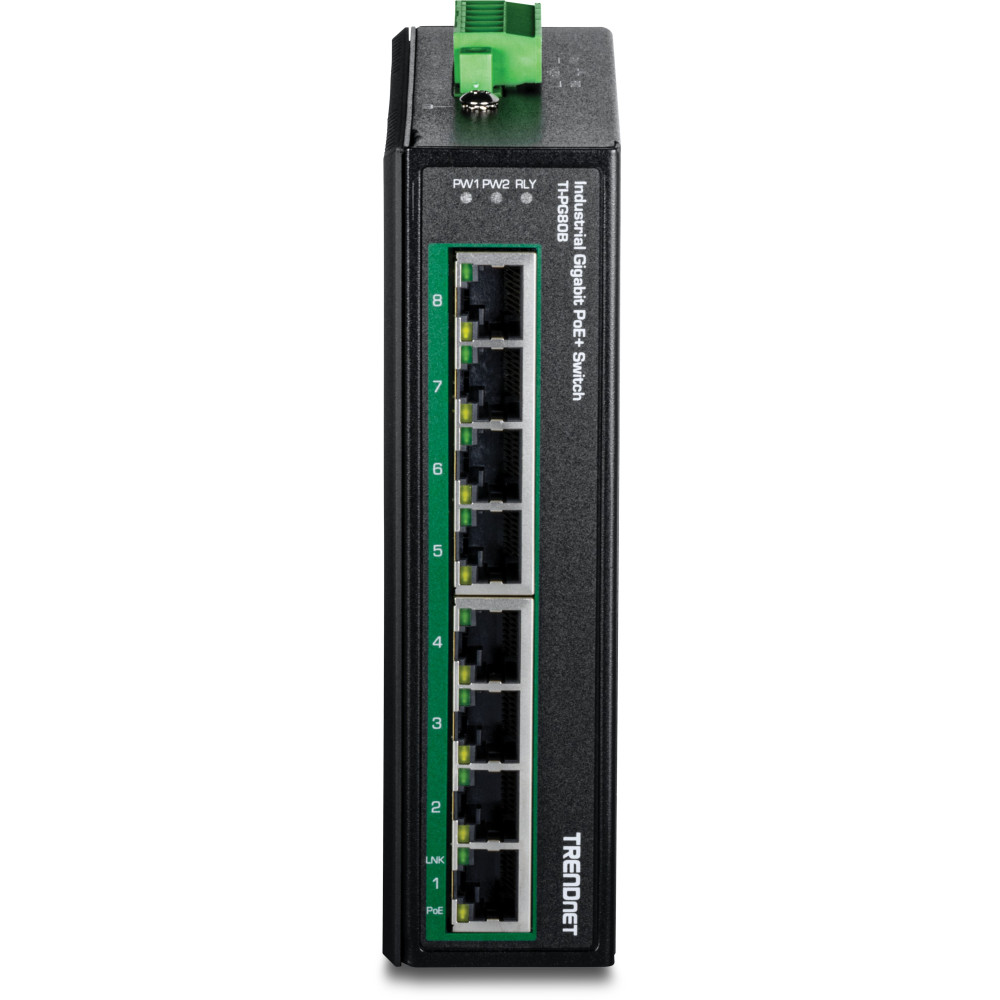

The TI-PG80B is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 24 - 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 8 |
| Ethernet Ports | 8 Gigabit PoE+ |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex) |
| MAC Table Size | 4K |
| Power | |
| PoE Power Output | Up to 30W per port |
| Power Consumption | 5W @ 56V DC (without PD), 135.6W (with PoE) |

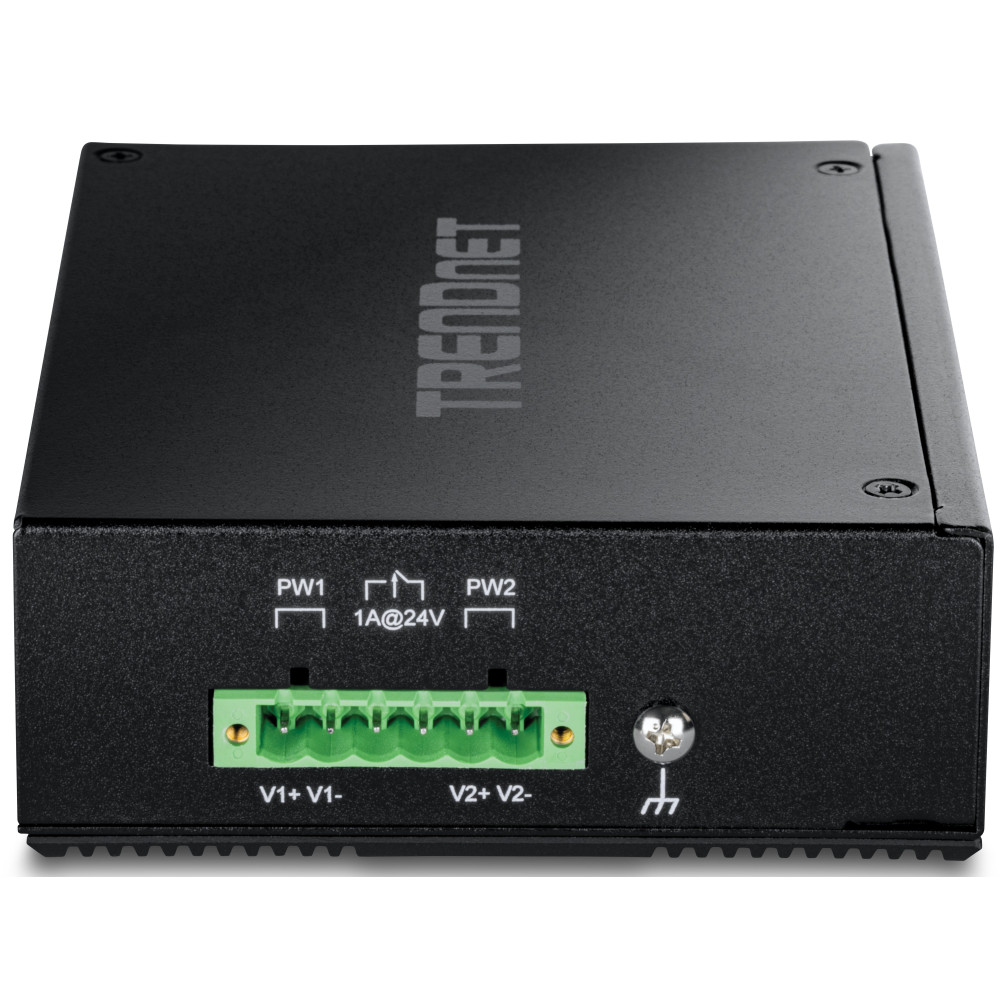

| Connection | 6-pin terminal block |
| Input Voltage | 24-56 V DC |
| Overload Protection | Yes |
| Mechanical | |

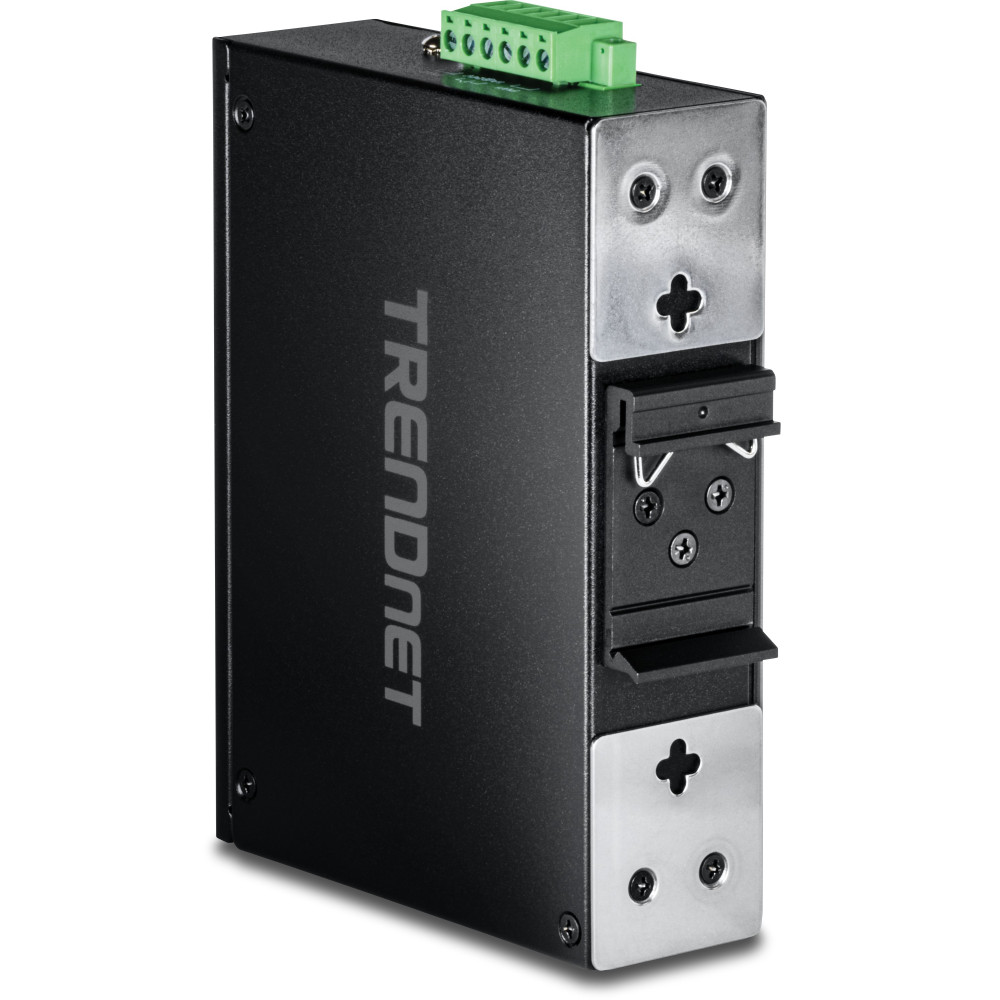

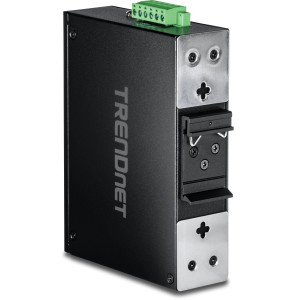

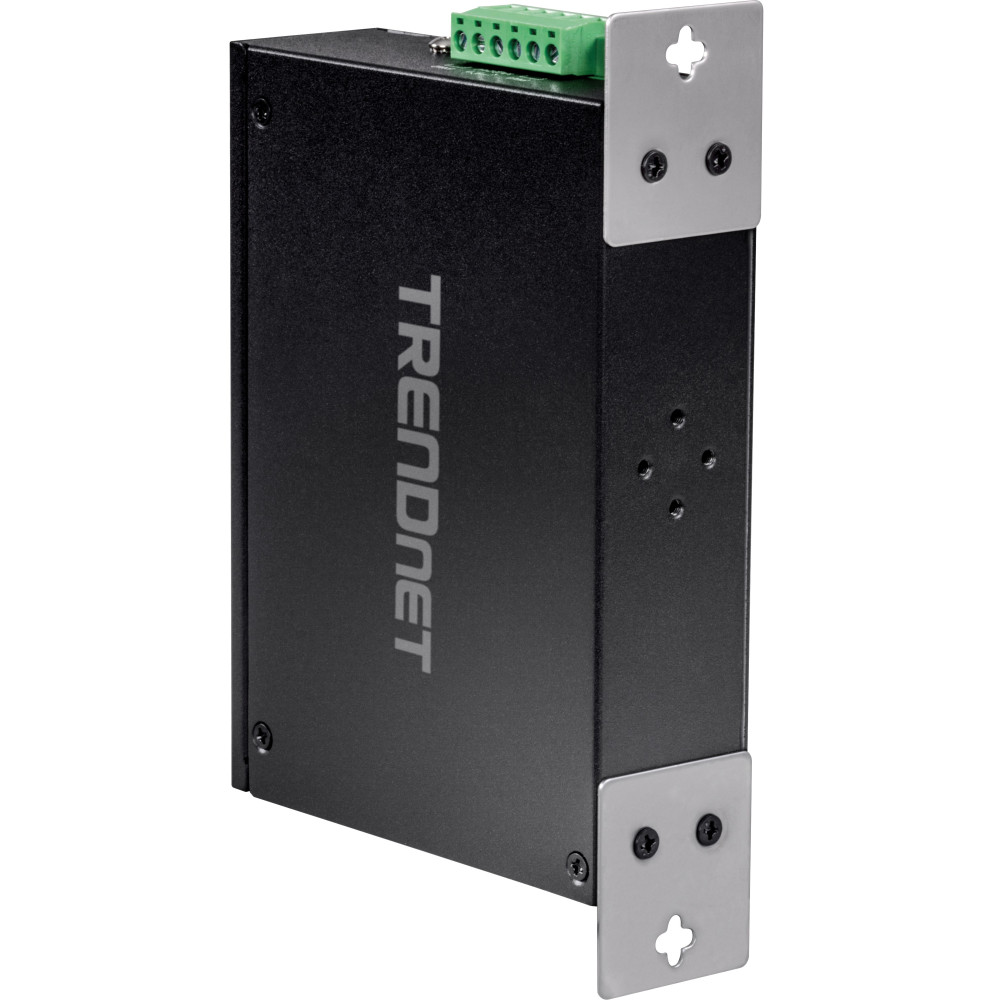

| Mounting | DIN-rail and wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP50 metal case |
| Weight | 610g (1.34 lbs.) |
| Dimensions | 142 x 105 x 39.5mm (5.6 x 4.1 x 1.56 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, LVD, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 513,100 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet Unmanaged Switch Quick Installation Guide | 9.08MB |
| TRENDnet TI-PG80B Datasheet | 4.4MB |
