Manufacturer: D-Link

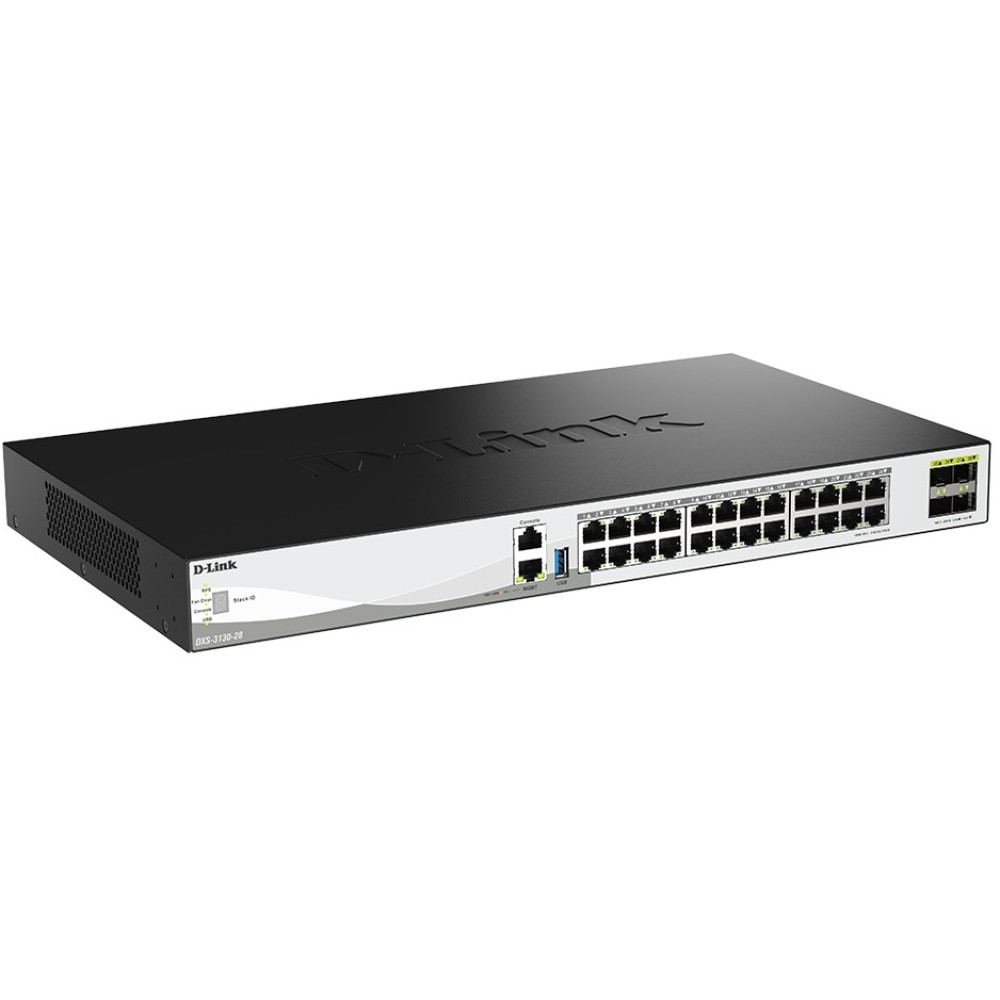

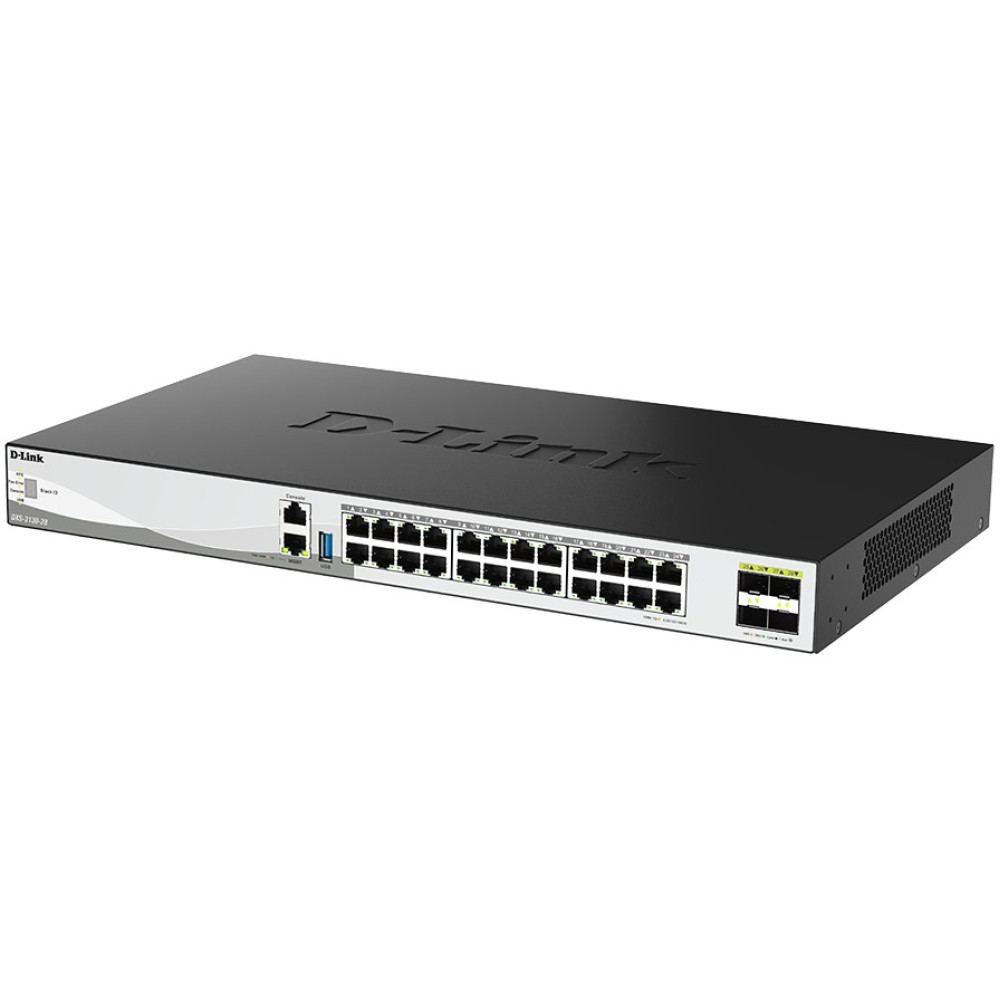

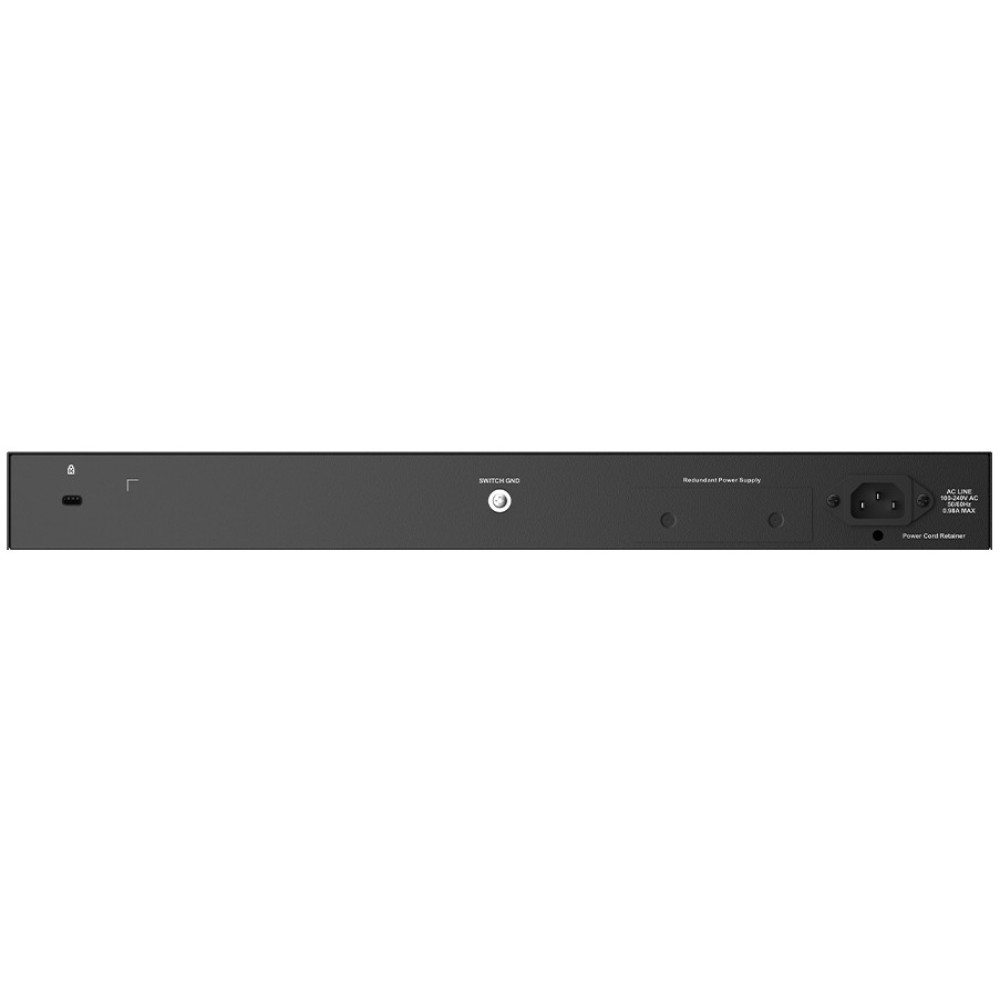

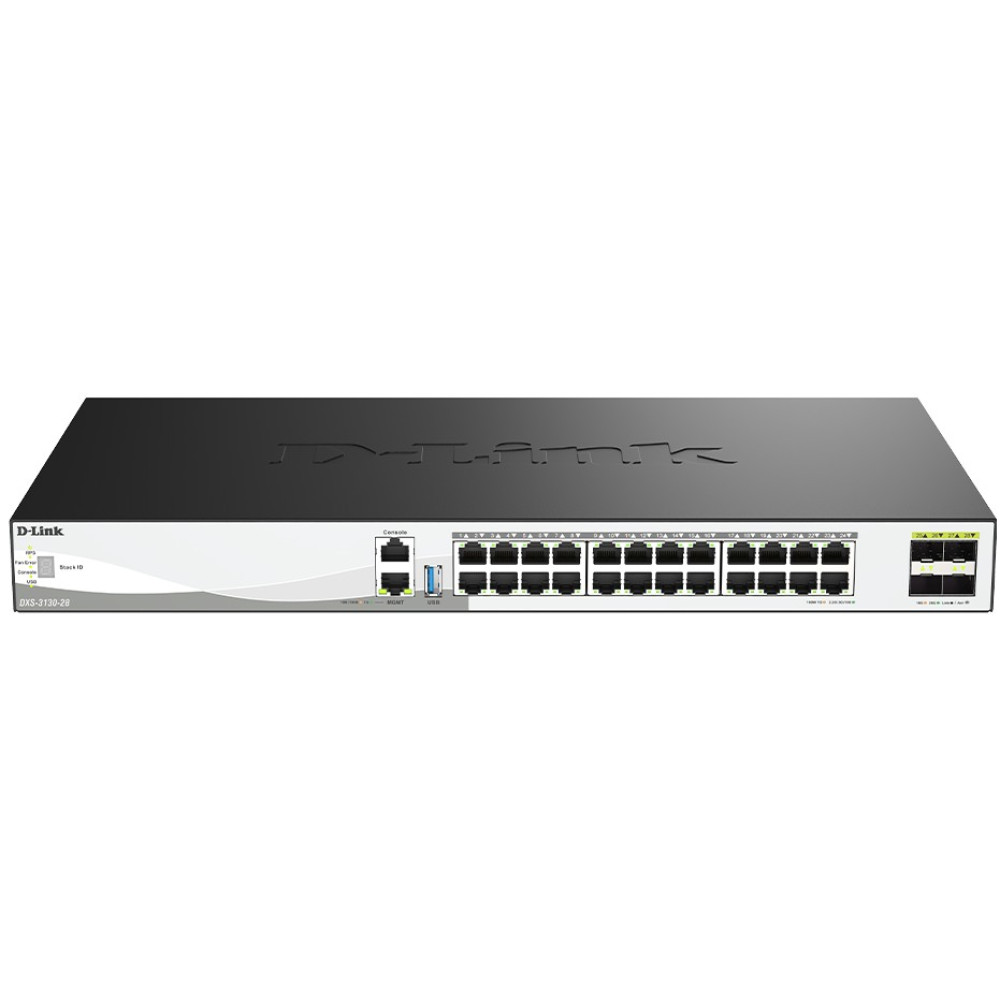

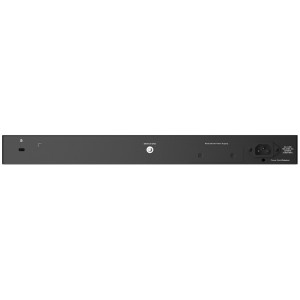

The DXS-3130-28 Layer 3 Stackable Managed Switch is for secure connectivity in an enterprise or metro Ethernet access network and supports both multicasting and enhanced security, making it an ideal 10G/multi-Gigabit access layer solution. The DXS-3130-28 features 24 10G/multi-Gigabit ports and 4 10/25G SFP28 ports, offering a versatile and high-speed networking connection. The switch features 4 10/25G SFP28 ports for enhanced speed and versatility. It also includes a USB 2.0 port, enabling direct booting of images and uploading of configuration files, as well as convenient storage of syslog files on a USB 2.0 device.
The DXS-3130-28 features redundant power supply (RPS) and incorporates essential reliability features to enhance network resilience, including 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control. G.8032 Ethernet Ring Protection Switching (ERPS) minimizes recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DXS-3130-28 provides dynamic 802.3ad Link Aggregation Port Trunking.
The DXS-3130-28 provides users with the latest security features such as Multilayer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MACPort Binding (IMPB) with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list.
Scale your network with the DXS-3130-28 by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.
The DXS-3130-28 switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 28 |
| Ethernet Ports | 24 x 100M/1G/2.5G/5G/10GBASE-T |
| Fiber Ports | 4 x 10/25G SFP28 |
| MAC Table Size | 32K |
| Power | |
| Power Consumption | 76.58 W |
| Input Voltage | 100 to 240 VAC, 50 to 60 Hz |
| Mechanical | |
| Mounting | Rack mountable |
| Cooling | 3 Smart fans |
| Weight | 3.525 kg |
| Dimensions | 440 x 250 x 44 mm (17.32 x 9.84 x 1.73 in) |
| Ratings | |
| Operating Temperature | 0 to 50 ˚C (32 to 122 °F) |
| Storage Temperature | -40 to 70 ˚C (-40 to 158 °F) |
| Humidity | 10% to 90% non-condensing |
| Certifications | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Safety Standards | CB, cUL, BSMI |
| MTBF | 317,350.54 hours |
| Download Name | File Size |
| D-Link DXS-3130-28 Datasheet | 277.68KB |
| D-Link DXS-3130 Series User Manual | 17.24MB |
