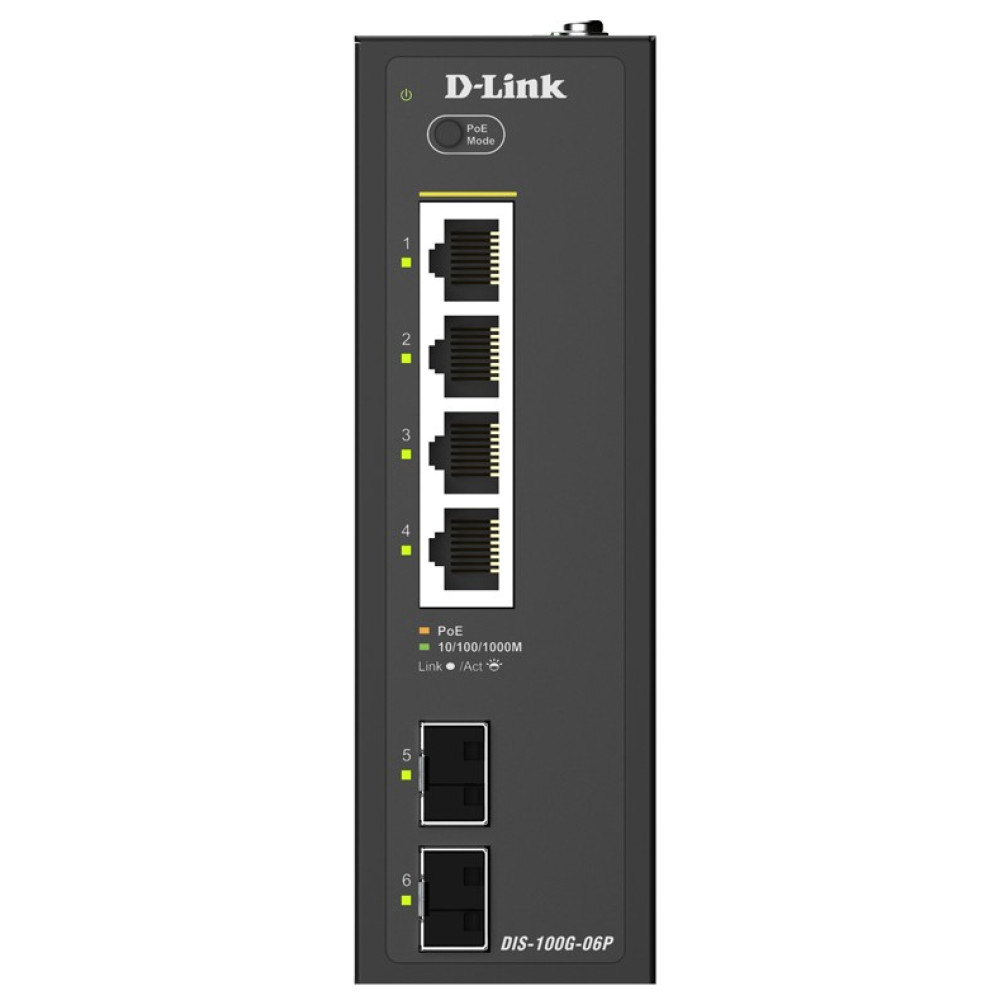

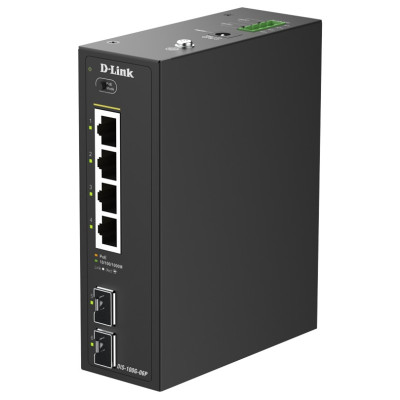

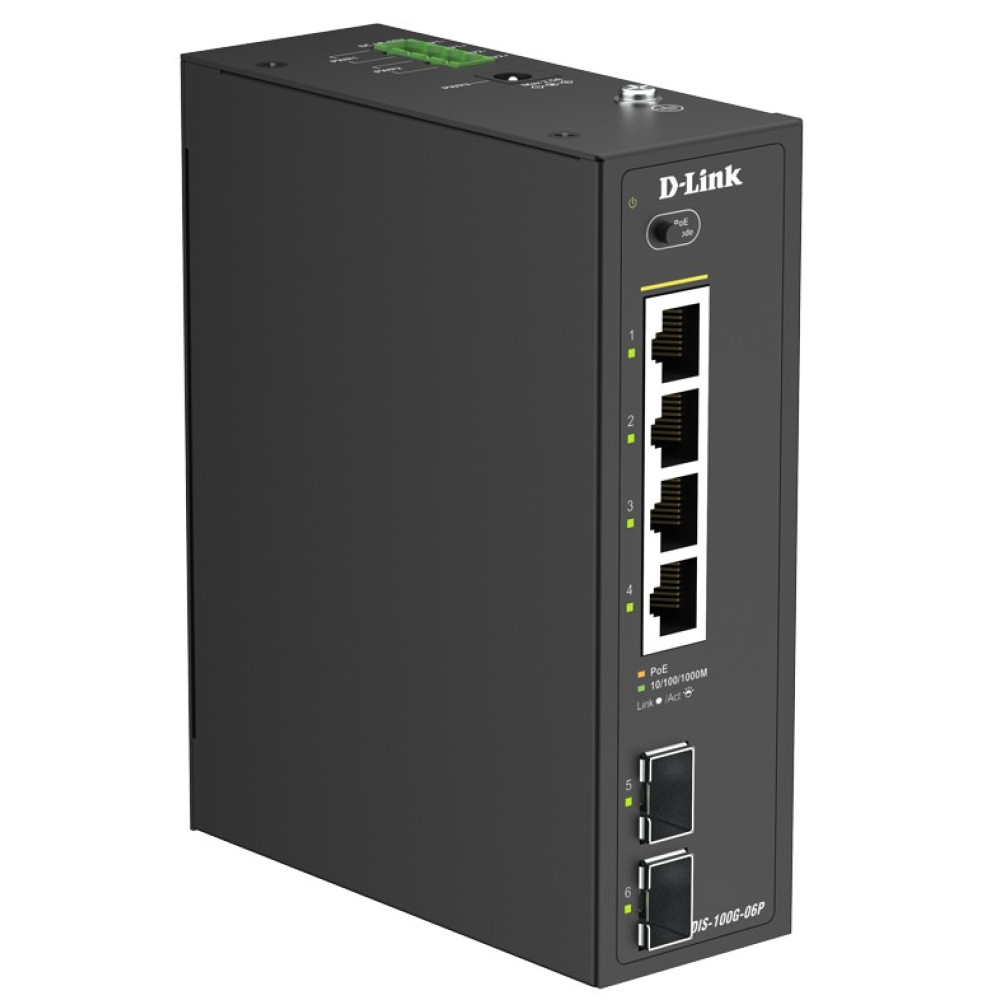

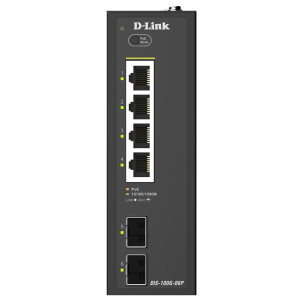

D-Link DIS-100G-06P 6-Port Industrial Gigabit Unmanaged PoE+ Switch with 2 SFPs

D-Link DIS-100G-06P Industrial 6-Port Unmanaged Gigabit Ethernet PoE+ Switch with 2 SFP Slots

The DIS-100G-06P is an industrial Gigabit unmanaged switch that features four built-in PoE ports that comply with IEEE 802.3af/at standards, delivering both data and power over a single Ethernet cable. With a total power budget of up to 120W, each port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.

The DIS-100G-06P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

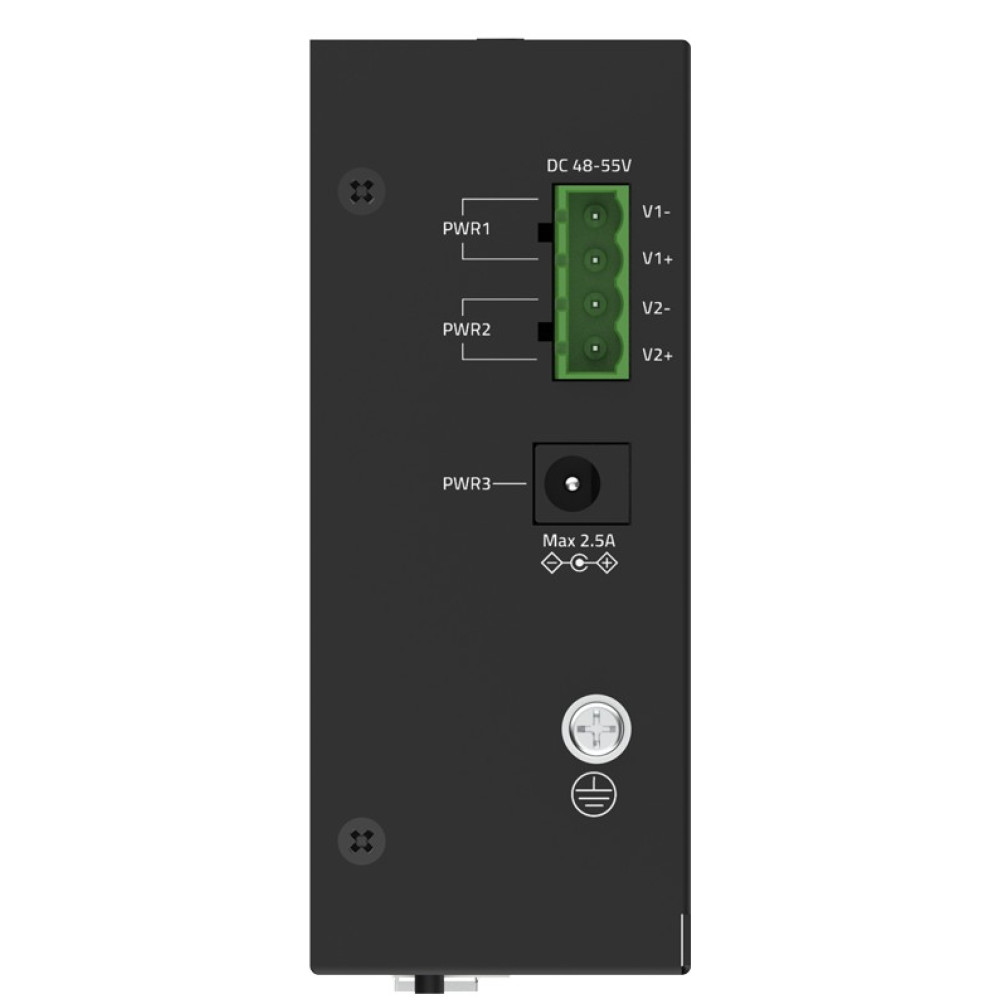

The DIS-100G-06P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.

The DIS-100G-06P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

The DIS-100G-06P features green technology; IEEE 802.3az Energy-Efficient Ethernet (EEE). Energy-Efficient Ethernet reduces the power consumption of the switch when network utilization is low, effectively lowering the cost of ownership during periods of inactivity.

Key Features

• Four Gigabit PoE ports for fast data transmission
• Two 1G SFP ports for easy network expansion
• IEEE 802.3af/at with 120W PoE power budget
• Dual power inputs provide power redundancy
• Wide voltage compatible with various power sources
• -40°C to 75°C operation for harsh environments
• 6kV surge protection on Gigabit Ethernet ports
• DIN-rail and plug-and-play simplified installation
• Fanless and IP40-rated design enhance reliability
• Support 802.3az Energy Efficient Ethernet (EEE)
• 5-Year warranty
