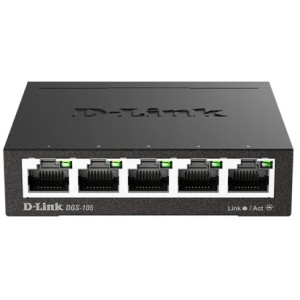

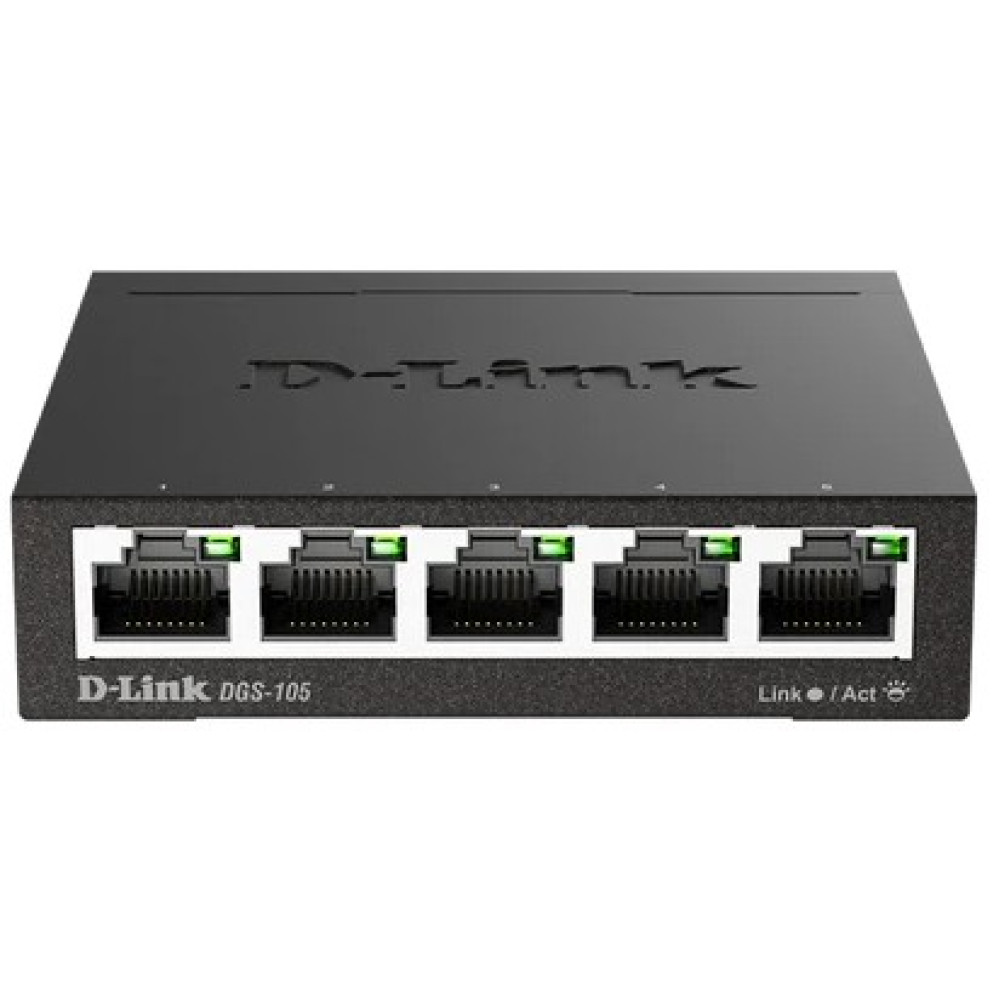

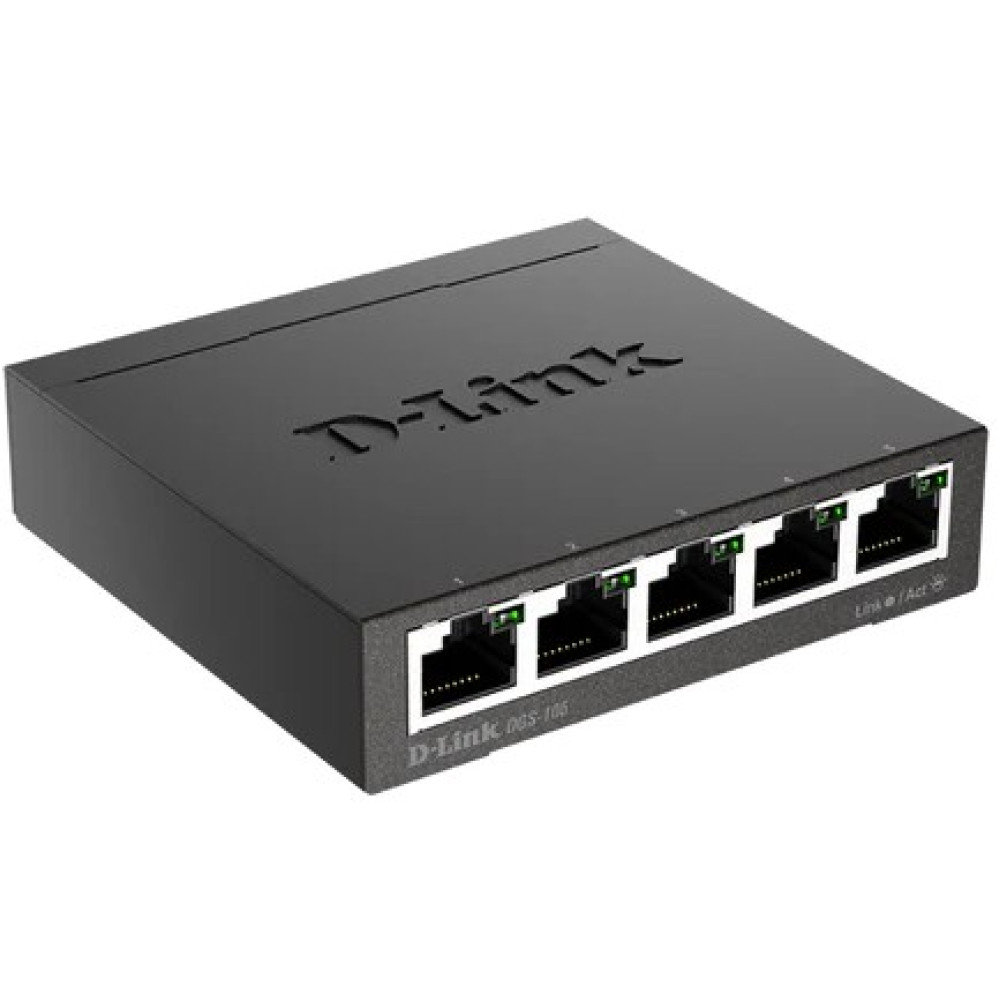

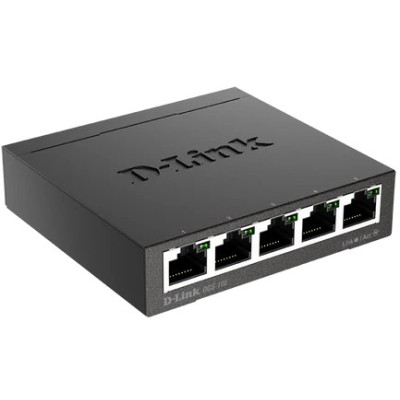

The DGS-105 5-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. The DGS-105 is designed with durability and performance in mind. Its sturdy metal housing ensures the product can withstand wider operating by helping to dissipate heat and reduce stress on internal components.

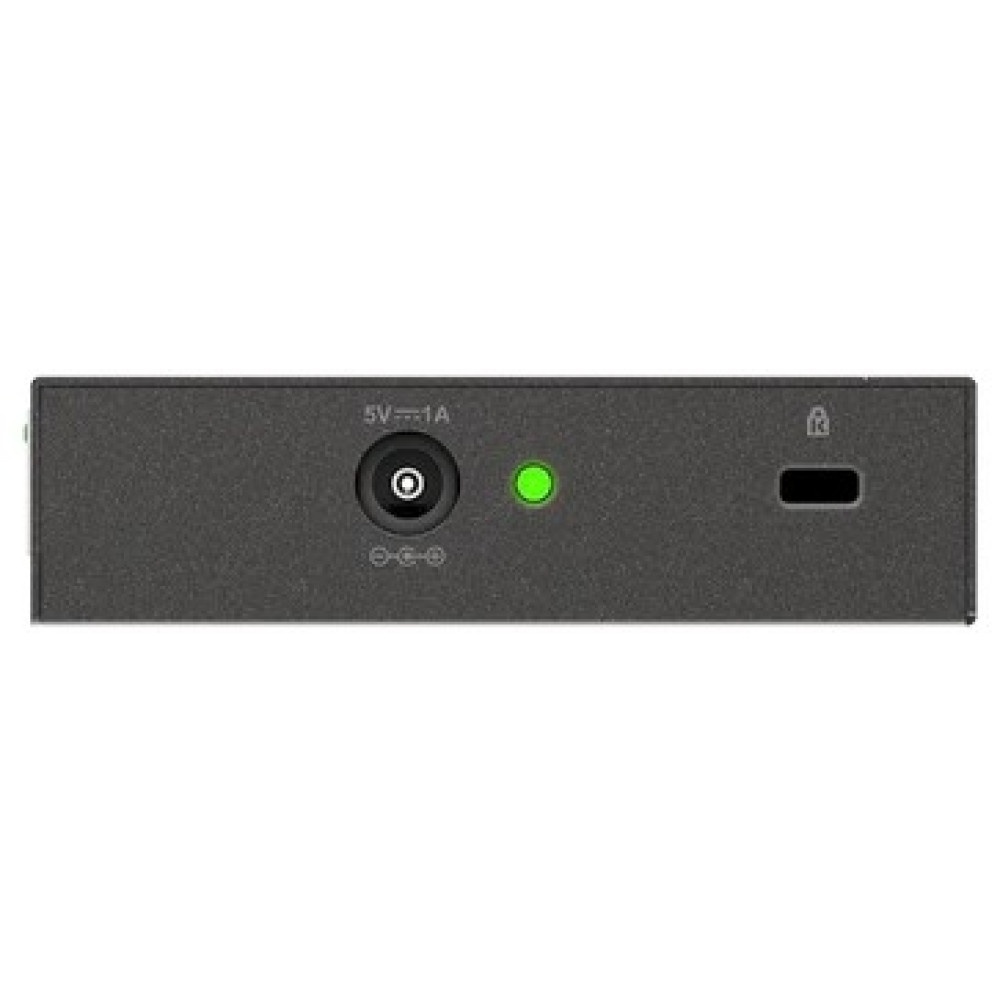

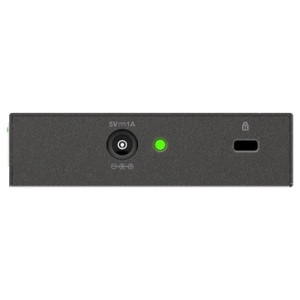

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-105 is ideal for transferring files quickly and online gaming. The DGS-105 features front, easy-to-access Ethernet ports with two color LED indicators per port to easily distinguish link status. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch features a security slot on the rear panel where users can fasten the unit to a table or desk.
The DGS-105 switch features green technology, such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy-Efficient Ethernet reduces power consumption of the switch when network utilization is low, reducing the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 5 |
| Ethernet Ports | 5 Gigabit (10/100/1000BASE-T) |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit Ethernet: 2000 Mbps (full-duplex) |
| MAC Table Size | 2K |
| Power | |
| Power Consumption | 2.847 W |
| Input Connection | 5 V/1 A |
| Mechanical | |
| Mounting | Desktop |
| LED Indicators | Power, Link/Activity per port |
| Weight | 190 grams |
| Dimensions | 90.9 x 85 x 22.4 mm |
| Ratings | |
| Operating Temperature | 0° - 40° C (32° - 104° F) |
| Storage Temperature | -10 to 70 ˚C (14 to 158 ˚F) |
| Humidity | 0% to 95% non-condensing |
| Certifications | FCC Class B, CE Class B, ICES-003 Class B, KCC, RCM, CCC, BSMI |
| Safety Standards | BSMI, LVD, CCC |
| MTBF | 1,479,725 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| D-Link DGS-105/DGS-108 Datasheet | 522.88KB |
