CyberPower OL2K2RTHD 2200 VA/1800 W Smart App Online UPS, Optional RM Card

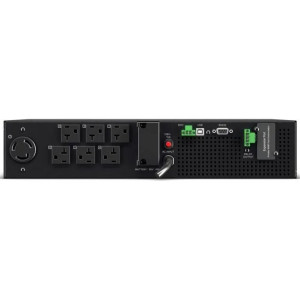

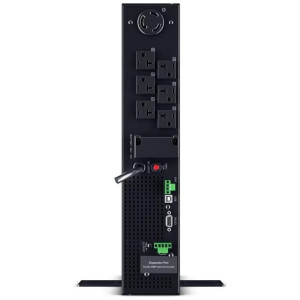

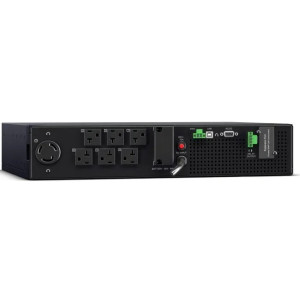

CyberPower OL2K2RTHD Rack/Tower UPS, 2U, Rotatable LCD, 6 NEMA 5-20R & 1 NEMA L5-20R

The CyberPower Smart App Online OL2K2RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205. It is generator compatible and ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL2K2RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.9. The energy-saving GreenPower UPS ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.

The OL2K2RTHD comes with a three-year warranty (including coverage of batteries) and a $400,000 Connected Equipment Guarantee.

Typical Applications

• Core Network Equipment
• Hyperconverged Infrastructure (HCI)
• Server Rooms
• Server Virtualization Infrastructures
• Storage Systems
• VoIP Infrastructure
• Enterprise Servers
• Corporate Servers

Key Features

• 2200 VA / 1800 W
• 2U size
• Power Factor (PF): 0.82
• Double-Conversion Topology
• Waveform: Sine Wave
• Output: 100, 110, 115, 120, 125 VAC +/-2% (configurable)
• Runtime (half/full): 10.3 minutes / 3.1 minutes

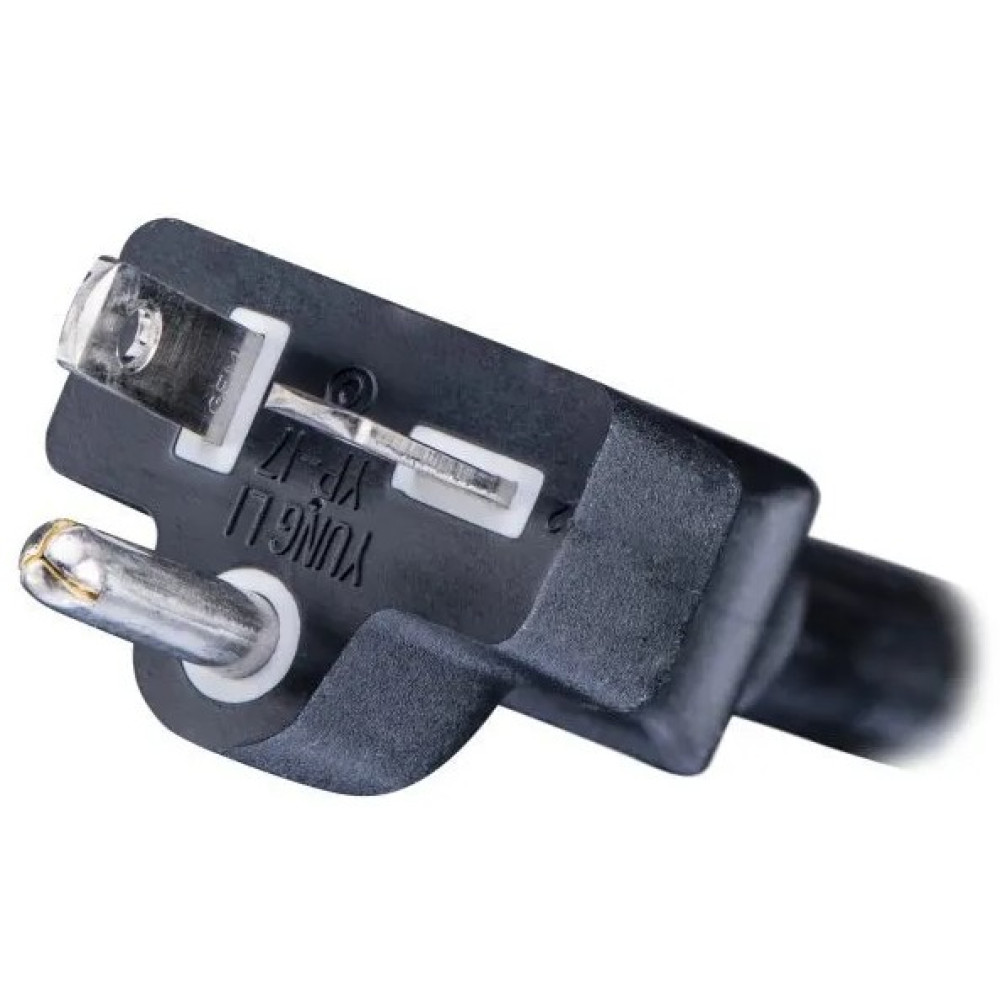

• Plug type & cord: NEMA 5-20P
• 6 NEMA 5-20R & 1 NEMA L5-20R, Switchable
• USB, Serial, SNMP, EPO
• PowerPanel Business Edition Management software
• ECO Mode Efficiency >96%
• Optional RMCARD205 for remote management
• Multi-Function Color LCD Control Panel
• Battery Equalization Technology
• Smart Battery Management
• Fast Charge Technology
• 3-Year warranty
• $400,000 Connected Equipment Guarantee

In the Box

1. UPS system
2. Installation and Operation Manual
3. Registration Warranty Card
4. PowerPanel Management Software Download Card
5. Rackmount Left Rail, Rackmount Right Rail
6. Serial Interface Cable (RS-232), USB Communication Cable
7. (10) M5 x 8L Pan Head Screws
8. (4) M4 x 7L Pan Head Screws
9. (8) M4 x 8L Flat Head Screws
10. (4) M3 x 6L Flat Head Screws
11. (8) Cage Nuts
12. (18) Screw Hole Dust Covers
13. (12) Rubber Pads
14. (2) Rackmount Handles
15. (2) Rackmount Ears

CyberPower manufactures professional grade UPSs to satisfy a wide range of battery backup requirements. The OL2K2RTHD is a cost-effective feature-rich power protection for networking, servers, and telecommunications equipment. To find out which CyberPower UPS model is best for your project, contact Westward Sales today!
