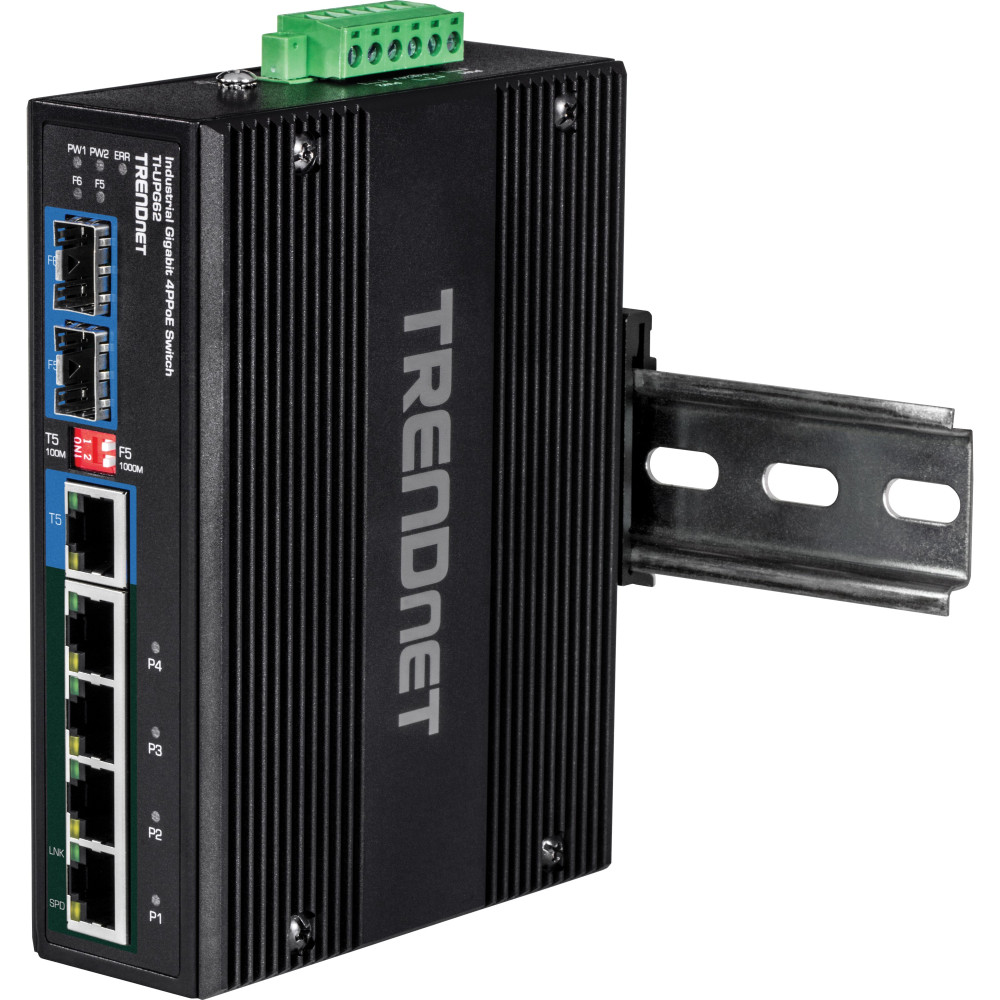

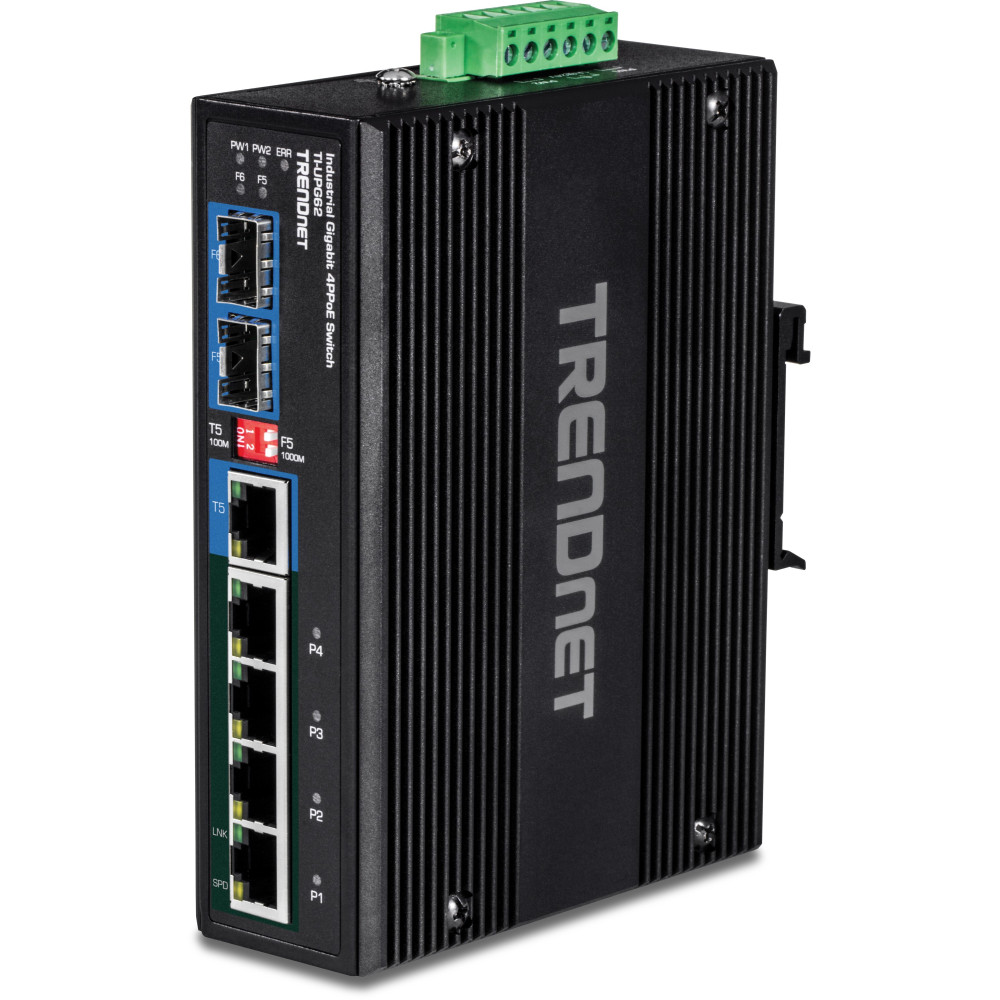

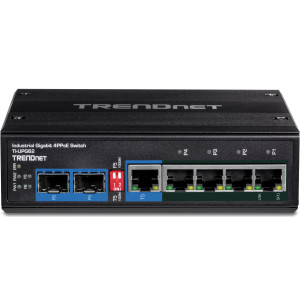

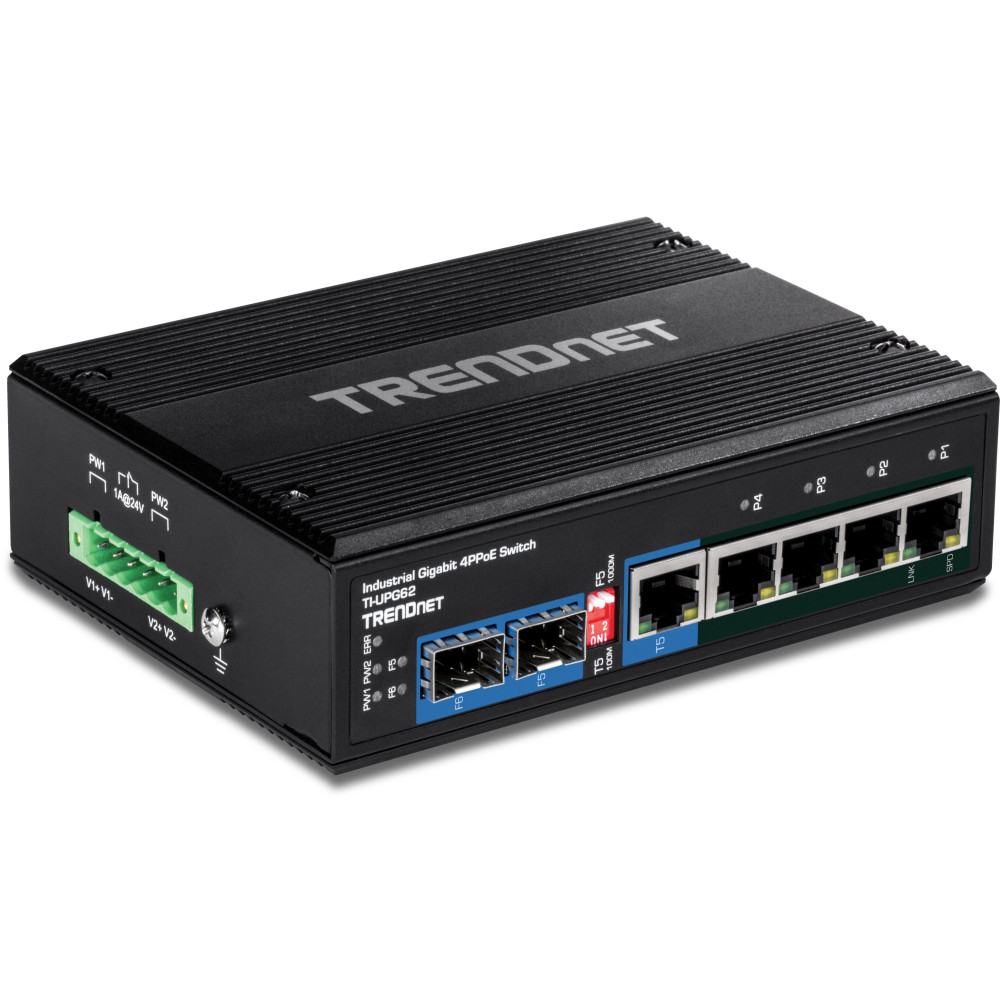

The TI-UPG62 is a reliable IP30 unmanaged DIN-Rail PoE++ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE++ ports, a 240W PoE power budget, 2 dedicated SFP slots, 1 Gigabit shared port, and a 12 Gbps switching capacity. This hardened industrial switch features multiple redundant power inputs and a power failure alarm relay.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 7 |
| Ethernet Ports | 4 Gigabit PoE++, 1 Gigabit port |
| Fiber Ports | 2 Gigabit SFP |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2Gbps (full duplex), Gigabit SFP: 2Gbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 1K |
| Power | |
| PoE Power Output | Up to 90W per port |
| Power Consumption | 6.2W (no PD) |

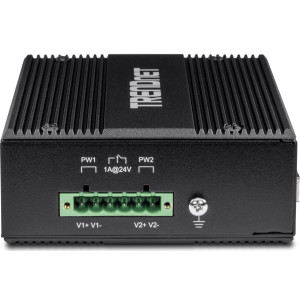

| Connection | 6-pin terminal block |
| Input Voltage | 52-56 V DC |
| Mechanical | |

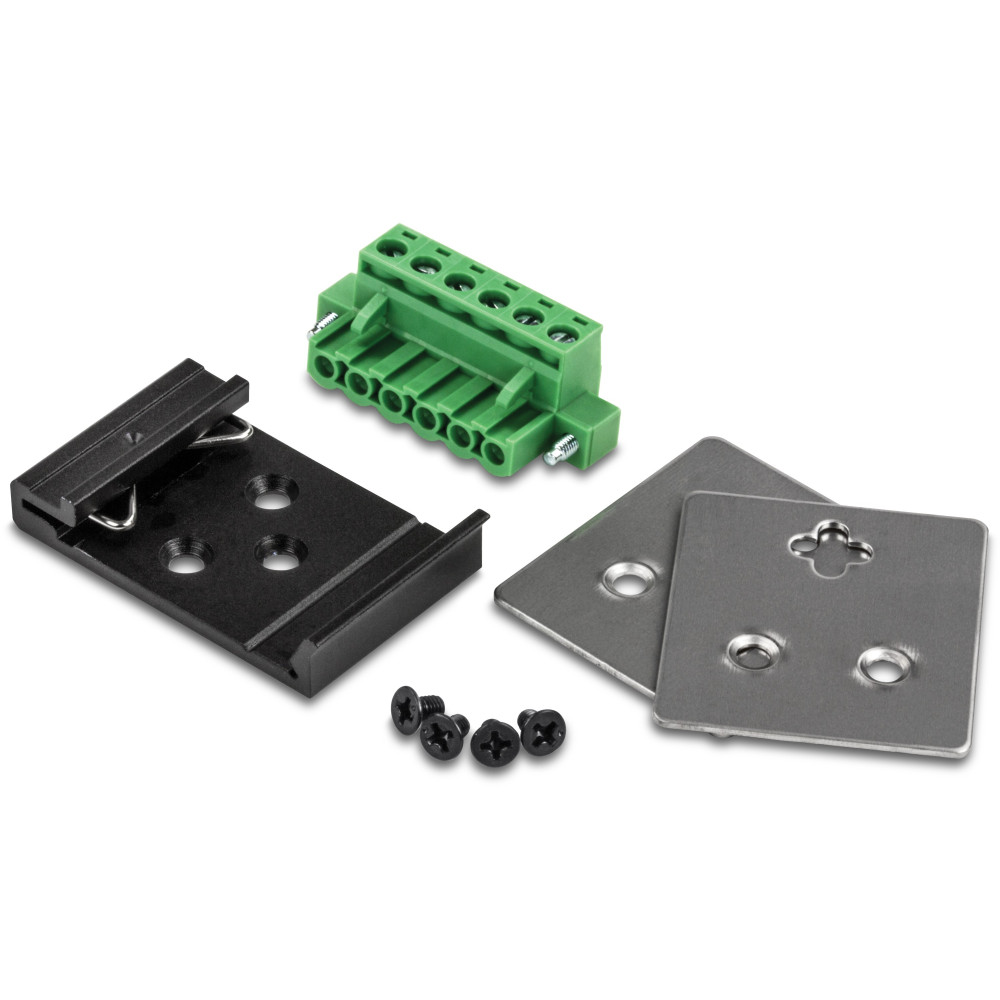

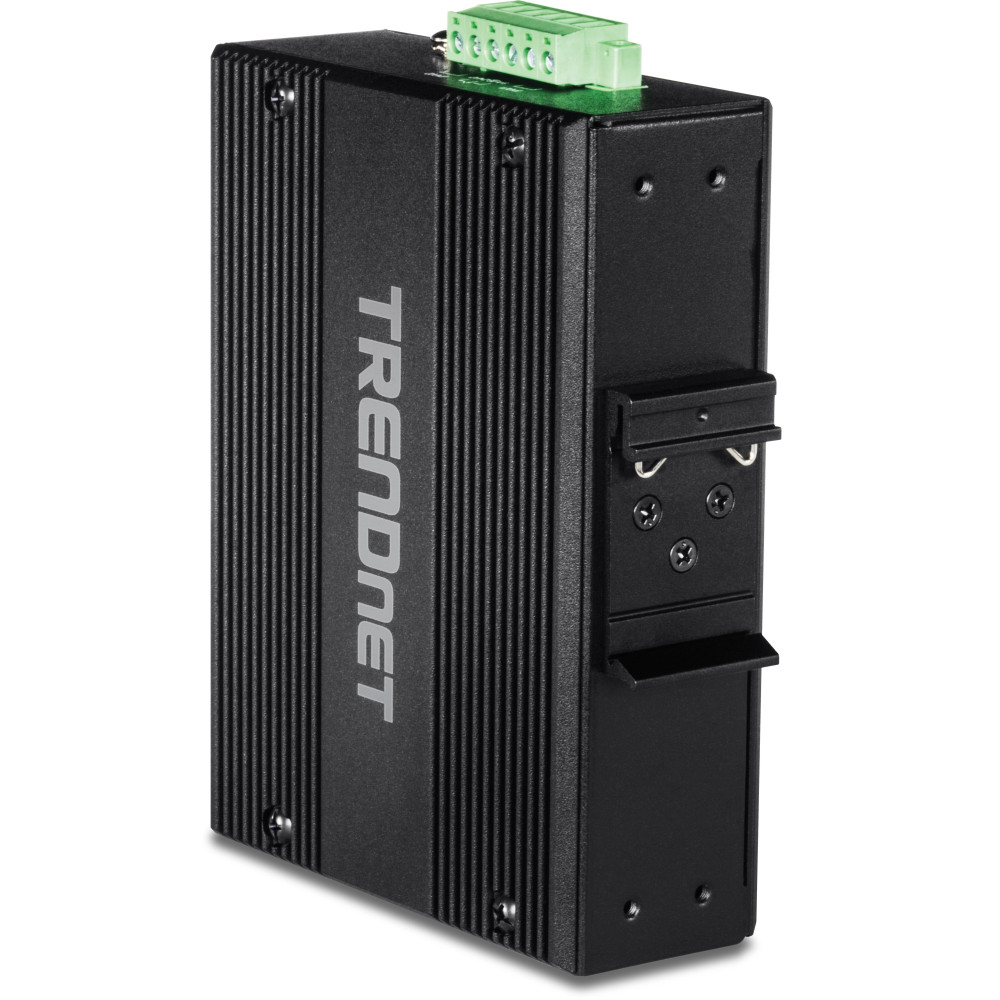

| Mounting | DIN-rail and wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP50 metal case |
| Weight | 514g (1.1 lbs.) |
| Dimensions | 143 x 105 x 36mm (5.6 x 4.1 x 1.4 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| MTBF | 510,304 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet PoE Unmanaged Industrial Switch QIG | 5.58MB |
| TRENDnet TI-UPG62 Datasheet | 1.11MB |
