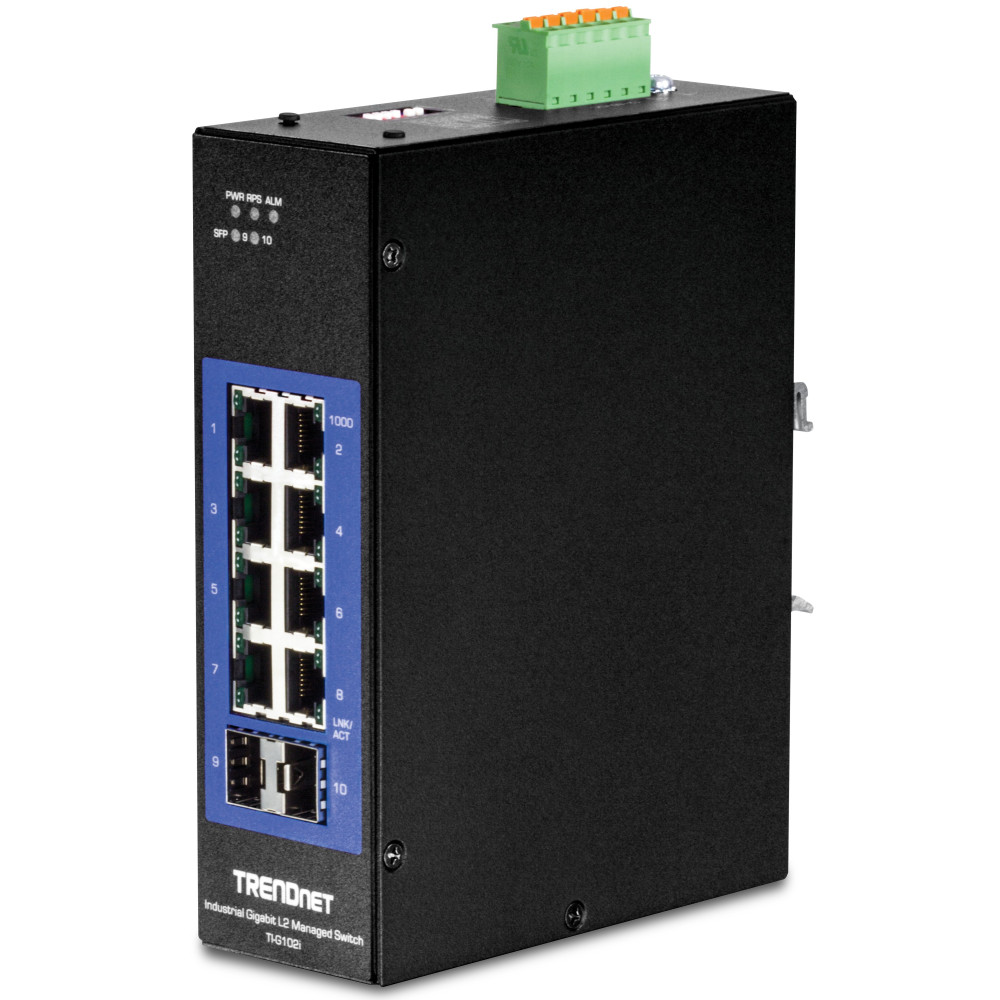

TRENDnet's TI-102i Industrial Gigabit L2 Managed DIN-Rail Switch offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. The TI-G102i features 8 copper Gigabit ports for high-speed device connections, and 2 SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications.
This industrial layer 2 managed DIN-Rail switch provides an intuitive web-based management interface. It supports advanced traffic management controls, troubleshooting, and SNMP monitoring. The TI-G102i features also include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making it a powerful solution for SMB networks.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
Technology | |
Category | Ethernet Switch |
Total Ports | 10 |
Ethernet Ports | 8 Gigabit (10/100/1000TX |
Standards | IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1X, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az |
Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
Jumbo Frame Support | 10KB |
MAC Table Size | 8K |
Power | |
Power Consumption | 13 W |
Connection | 6-pin terminal block |
Input Voltage | 12-60V DC |
Surge Protection | 2kV |
Overload Protection | Yes |
Mechanical | |
Mounting | DIN-rail |
Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
Material | IP30 metal case |
Weight | 884g (1.95 lbs.) |
Dimensions | 160 x 120 x 50mm (6.3 x 4.72 x 1.97 in.) |
Ratings | |
Operating Temperature | -40° - 75° C (40° - 167° F) |
Humidity | 95% non-condensing |
RoHS Compliant | Yes |
Certifications | CE, FCC |
MTBF | 617,085 hours @ 25° C, 113,378 hours @ 75° C |
Warranty | Lifetime |
Download Name | File Size |
TRENDnet TI-642i / TI-G160i / TI-G102i Quick Installation Guide | 4.3MB |
TRENDnet Managed Industrial L2 Switch Series User's Guide | 4.99MB |
TRENDnet TI-G102i Datasheet | 1.27MB |
