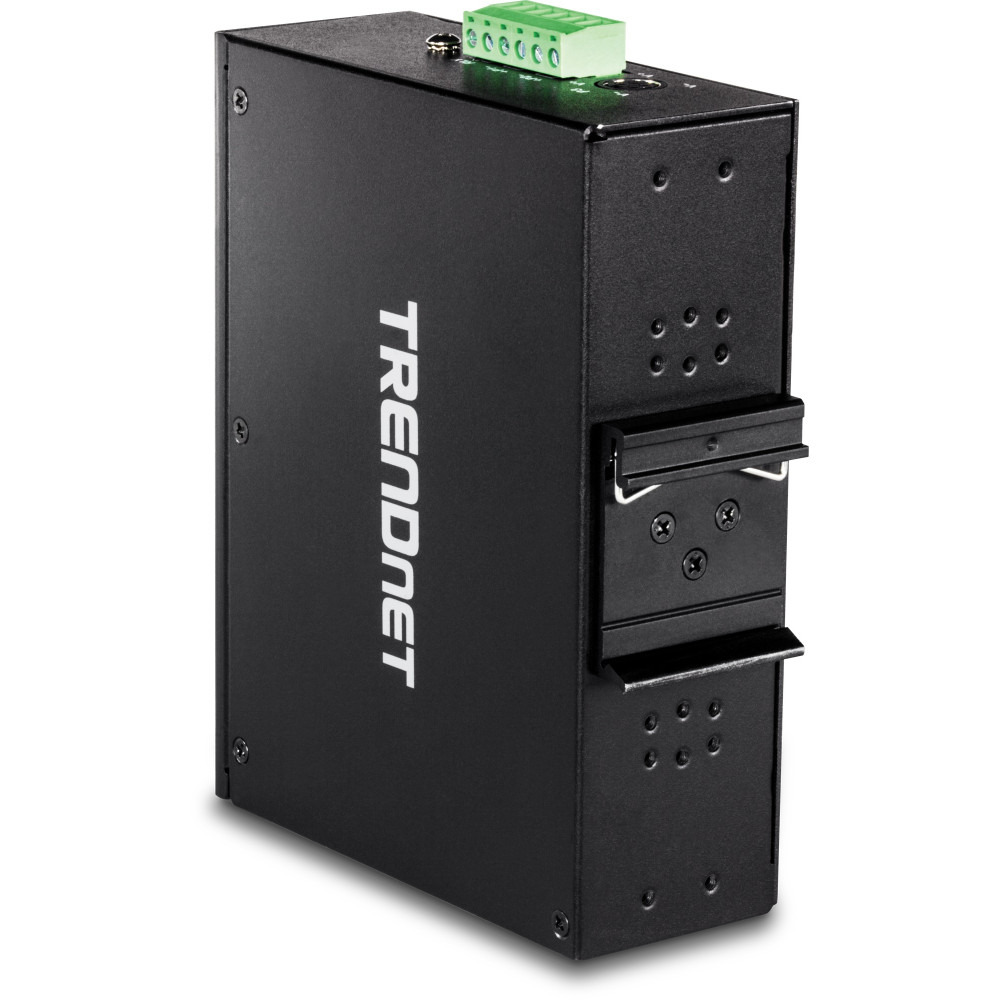

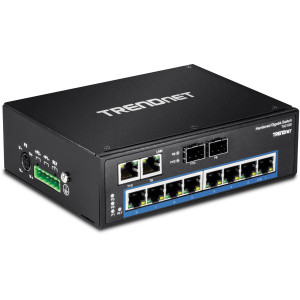

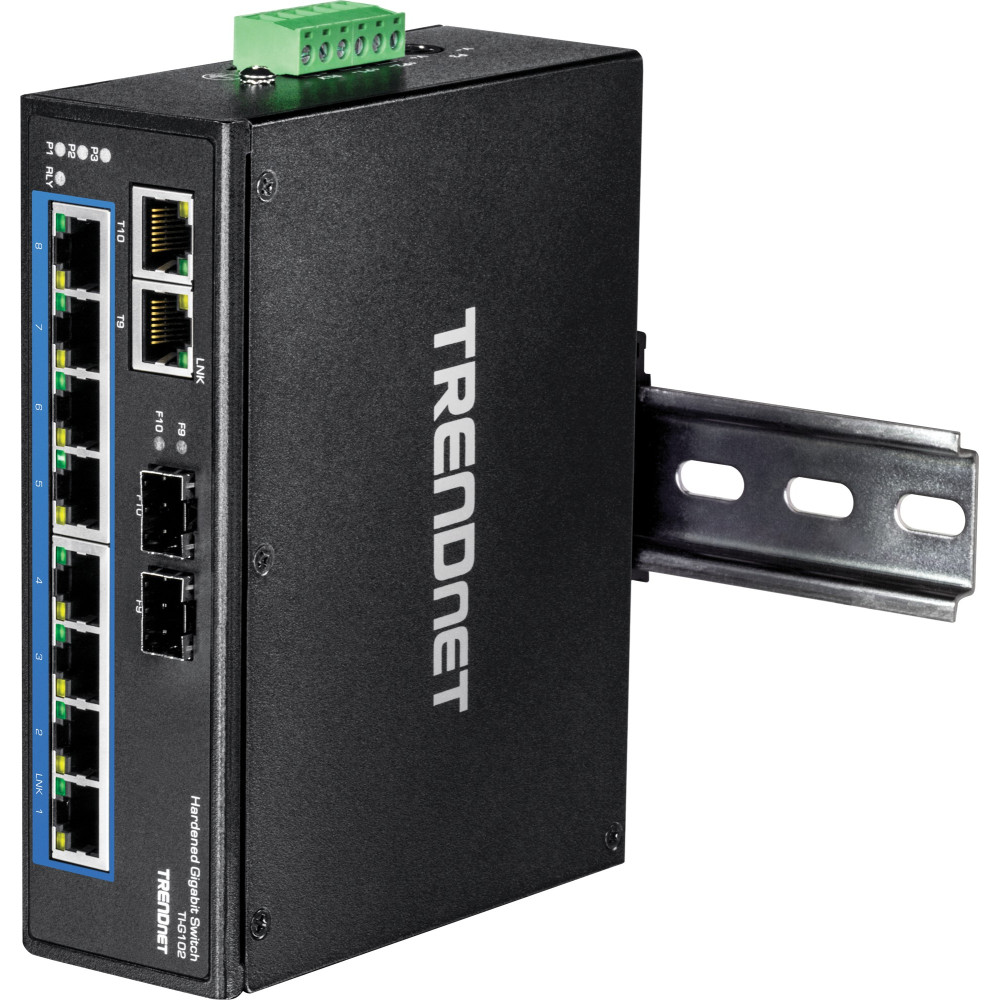

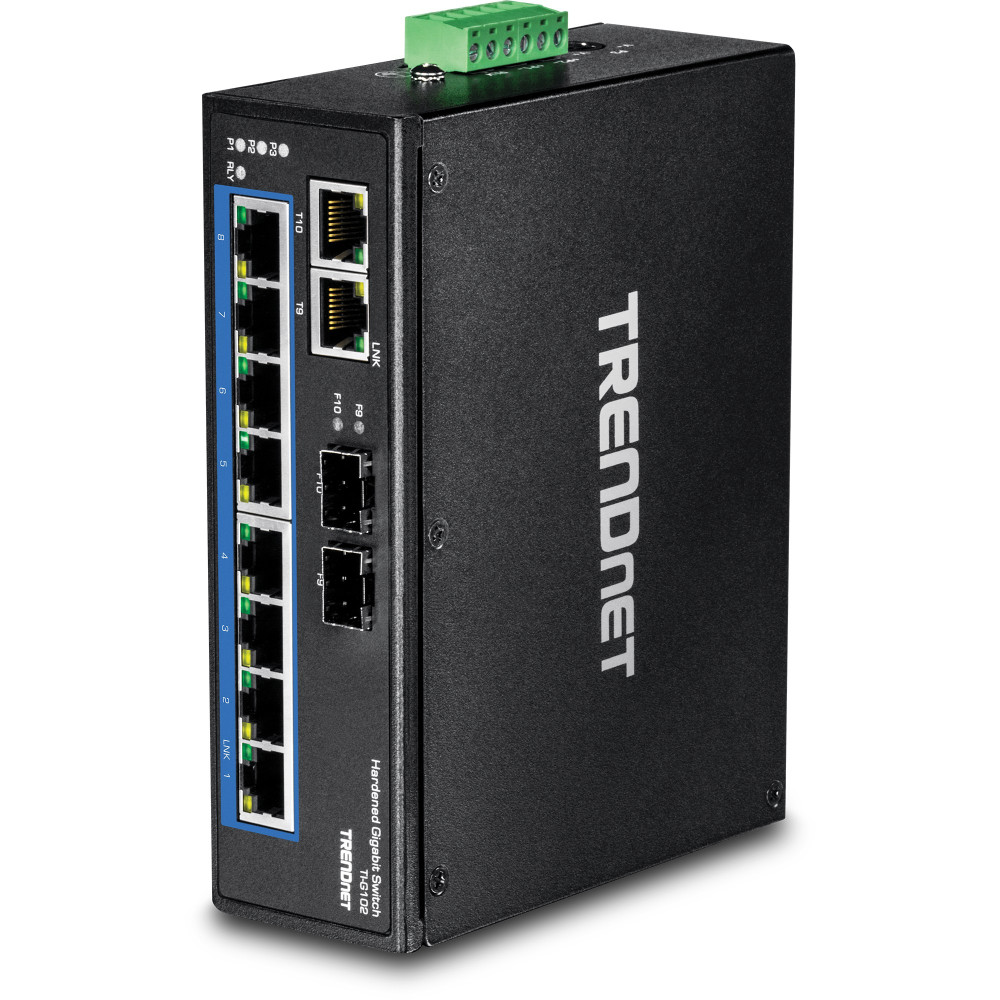

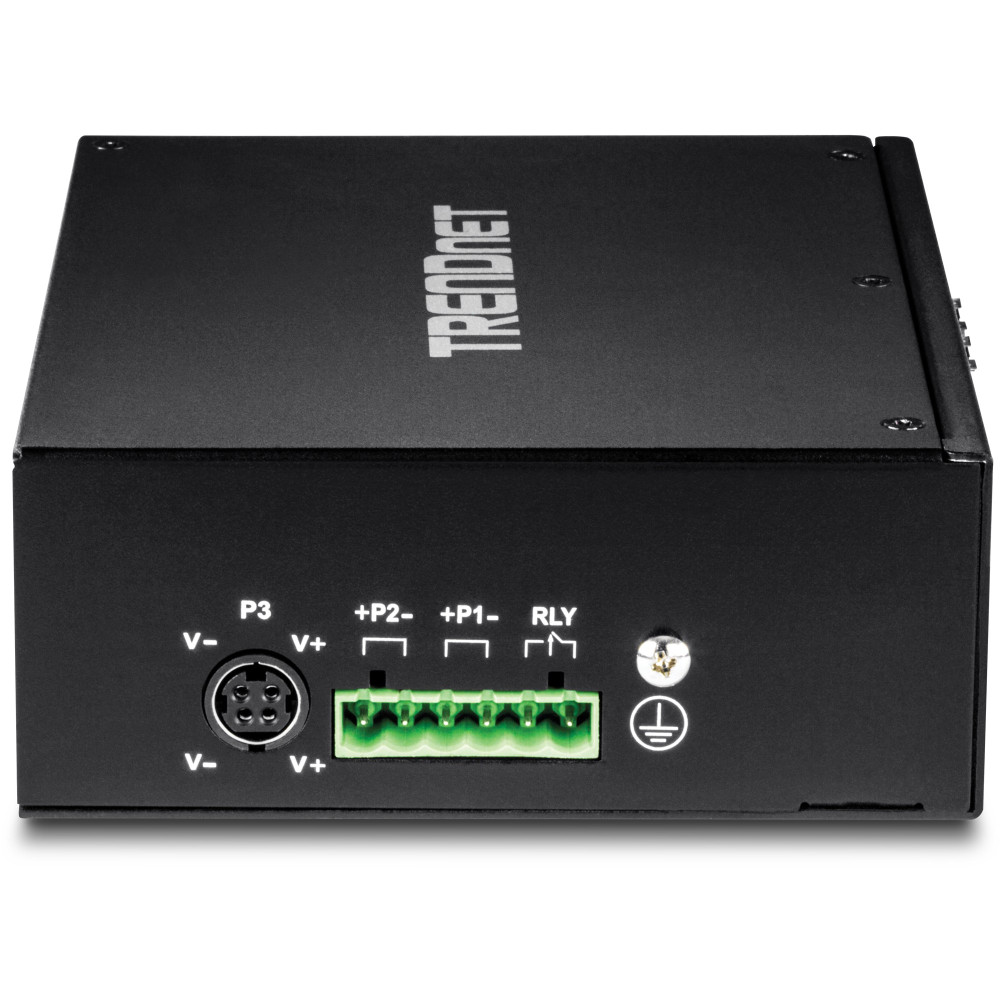

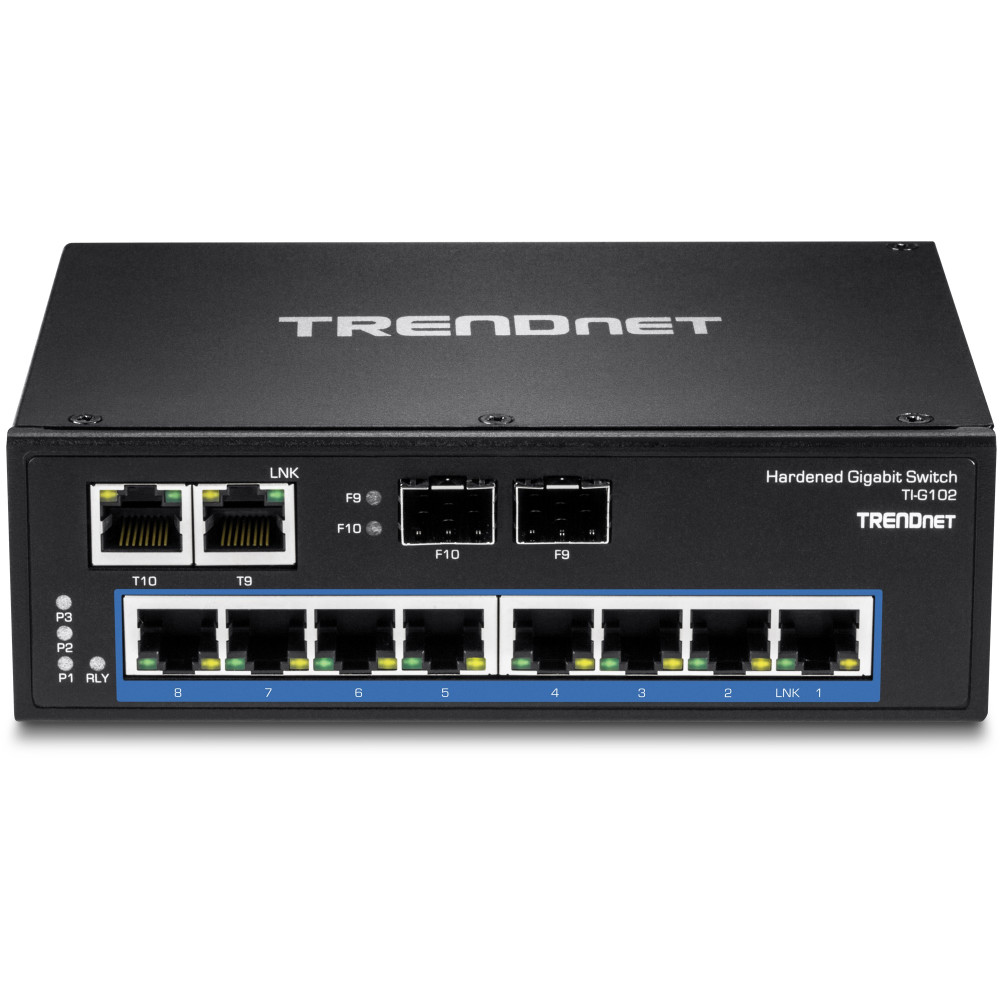

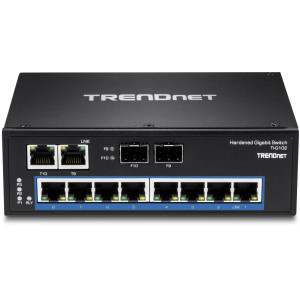

The TI-G102 10-Port Hardened Industrial Gigabit DIN-Rail Switch has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75°C (-40° - 167°F) for industrial environments. The switch features redundant power inputs with output alarm relay.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch |
| Total Ports | 10 |
| Ethernet Ports | 10 Gigabit (10/100/1000TX) - includes 2 shared SFP |
| Standards | IEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Jumbo Frame Support | 10KB |
| MAC Table Size | 16K |
| Power | |
| Power Consumption | 5.76 W |
| Connection | 6-pin terminal block |
| Input Voltage | 12-56V DC |
| Overload Protection | Yes |
| Mechanical | |
| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP30 metal case |
| Weight | 415g (1.1 lbs.) |
| Dimensions | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC |
| MTBF | 510,400 hours |
| Warranty | 3 Year |
| Download Name | File Size |
| TRENDnet Unmanaged Industrial Switch Quick Installation Guide | 4.67MB |
| TRENDnet TI-G102 Datasheet | 1.41MB |
