Axiomtek NA347 Fanless Compact Network Appliance with Intel Celeron N3350, 3 LAN

Axiomtek NA347 Ultra Compact & Fanless Desktop Network Appliance for SOHO, 3 LAN, VPN

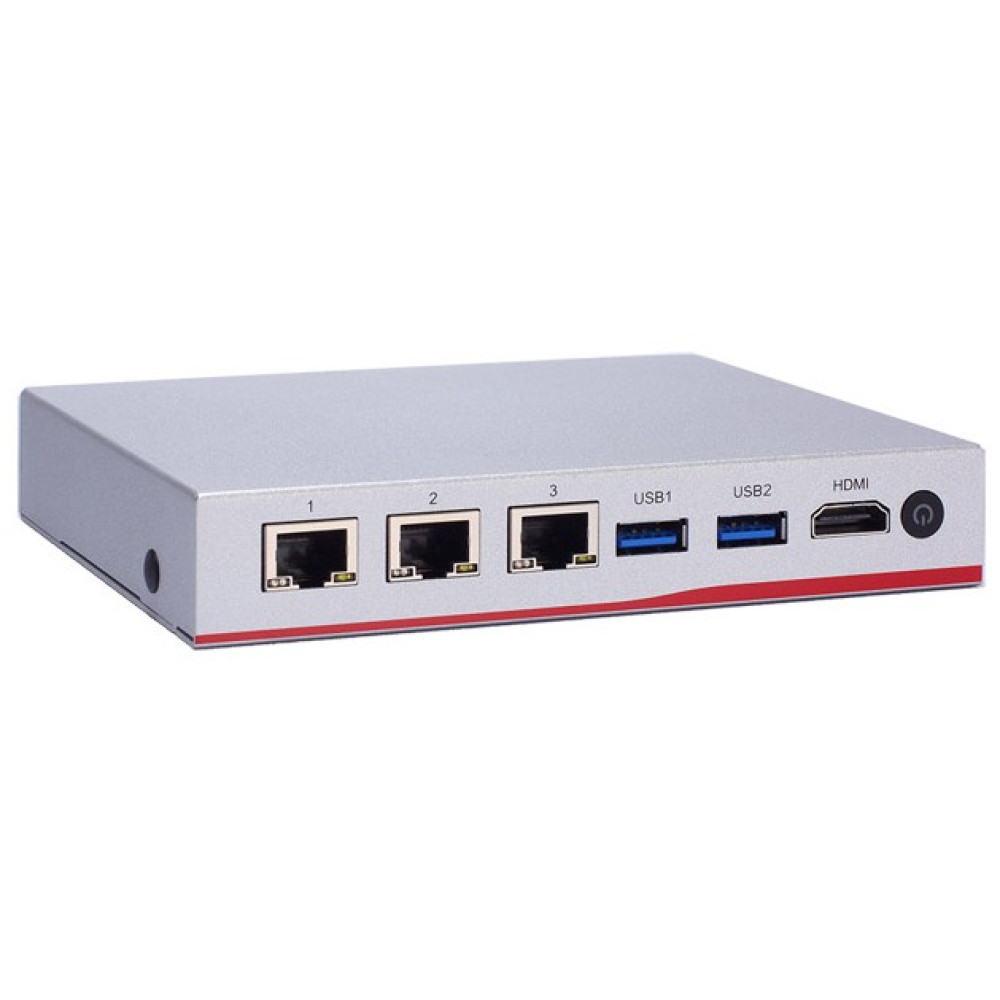

The NA347 is a 3-LAN fanless network appliance platform coming with ultra-slim size and low power consumption. This ultra-small desktop network appliance is powered by the Intel Celeron processor N3350 (code name: Apollo Lake). The cost-effective and energy-efficient NA347 is proven as entry-level SD-WAN, VPN and security gateway for small and home offices and other IIoT security applications.

Axiomtek’s NA347 security gateway measures only 26 x 146 x 118.2 mm which makes it ideal for installation into narrow, space-constraint environments such as the open-plan office or business with the small workplace. Featuring fanless and noiseless design, this durable network security appliance is also perfect to be used in noise-sensitive environments.

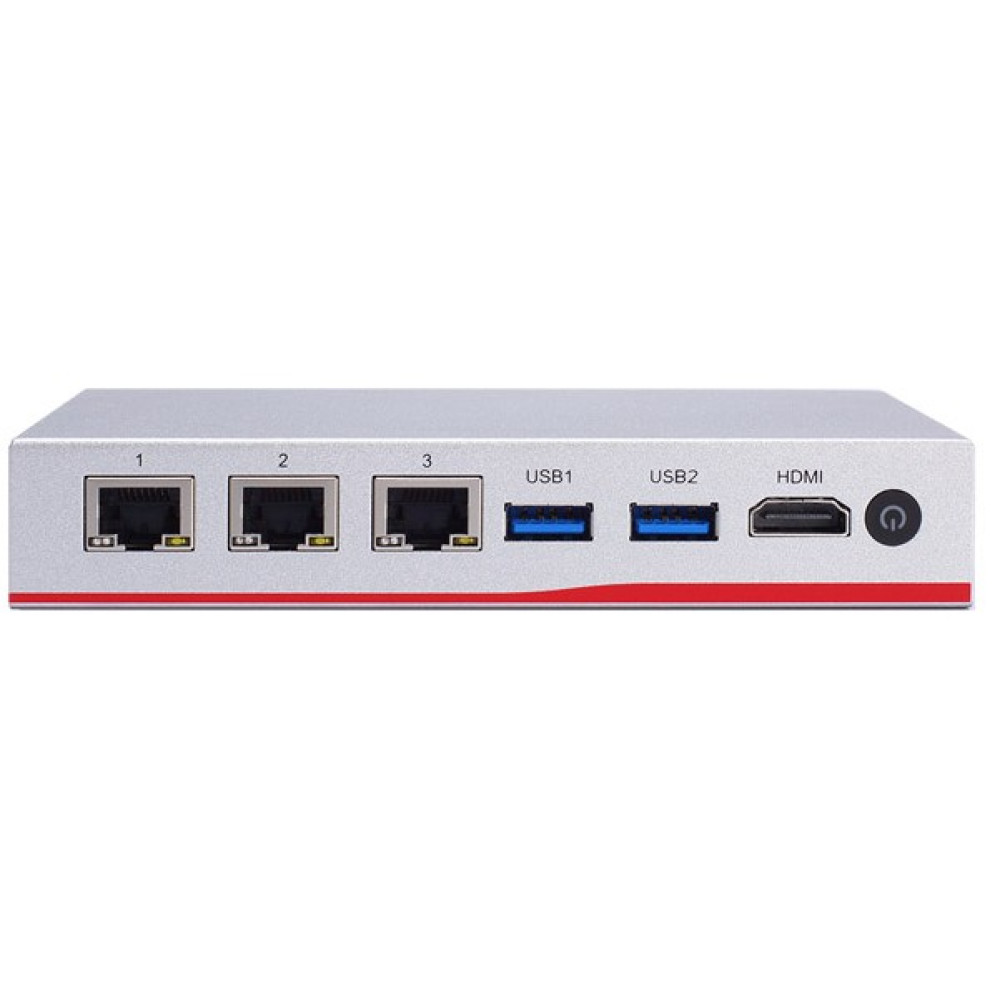

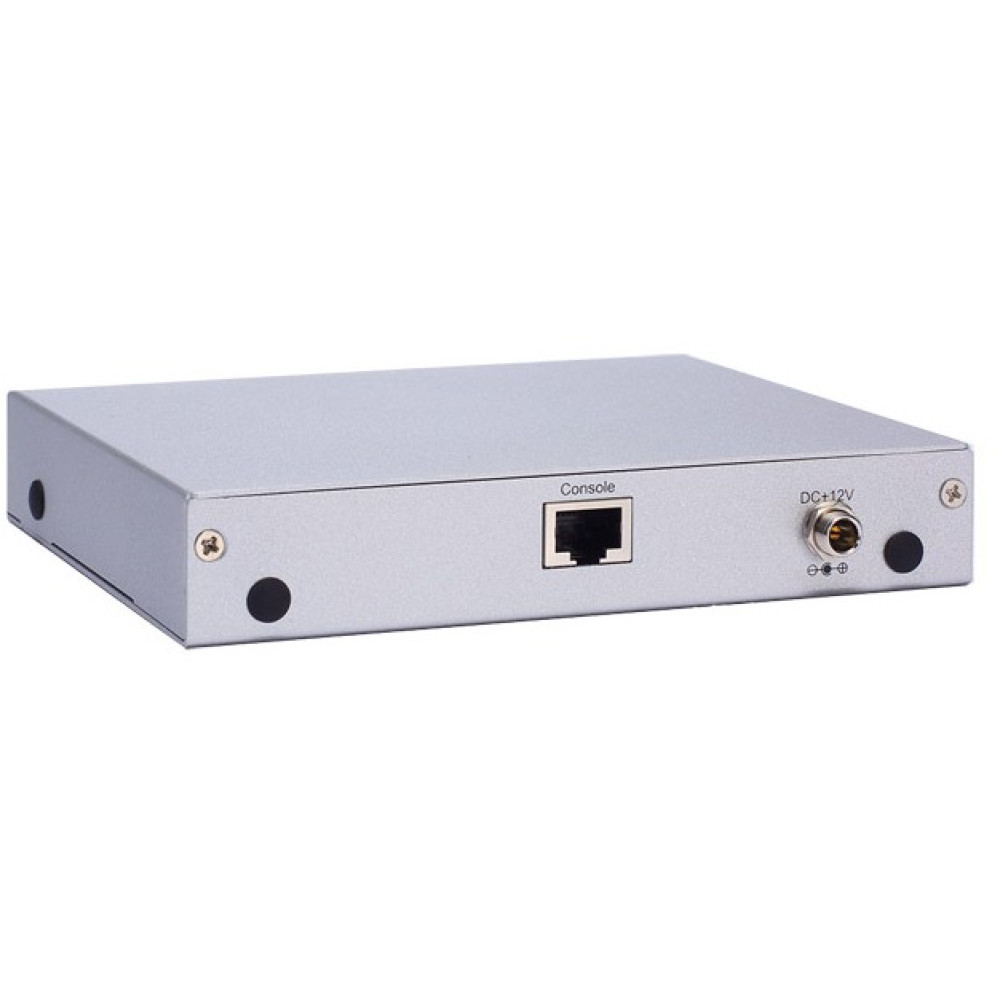

The NA347 is equipped with one DDR3L-1866 SO-DIMM slot with up to 8GB of non-ECC memory and also offers one M.2 2242 slot for extended storage. Under its small form factor, the network communication platform comes with three 10/100/1000 Mbps LAN ports using the Intel i211 Ethernet controller. It also offers one full-size PCI Express Mini Card slot with PCIe/USB signal and one Nano SIM socket for expansion interfaces. Other I/O interfaces include one RS-232 (RJ-type), two USB 3.0 ports and one HDMI port. To ensure reliable operation, the NA346 supports a screw-type DC jack and a power button with LED, providing users with a more elegant and reliable product. It is compatible with Win 10 and Linux (Yocto project) operating systems.

Key Features

• Intel Celeron processor N3350 (Apollo Lake)
• 1 DDR3L-1866 SO-DIMM for up to 8GB of non-ECC memory
• 3 GbE RJ-45 ports (Intel i211)
• 1 mini-PCIe slot for Wi-Fi or LTE module installation
• 1 M.2 2242 Key B slot (SATA)
• Small form factor with fanless and noiseless design
• CE, FCC Class B certified
• Suitable for SD-WAN, VPN and IoT security gateway applications

Optional Accessories (Call for pricing)

1. DB9F-RJ-45 1.8M console cable for Cisco
2. Power Cord
3. M.2 2242 SSD
4. DDR3L SO-DIMM
5. Wireless module
6. Rack mount kit
7. Wall mount kit

Call us today for more information and to customize the NA347. If you want all of your industrial technology to be on par with this Network Appliance, then consult with a Westward Sales expert. We can help you browse thousands of products quickly and easily. You’ll find parts for every job that provide the performance you need at a competitive price.
