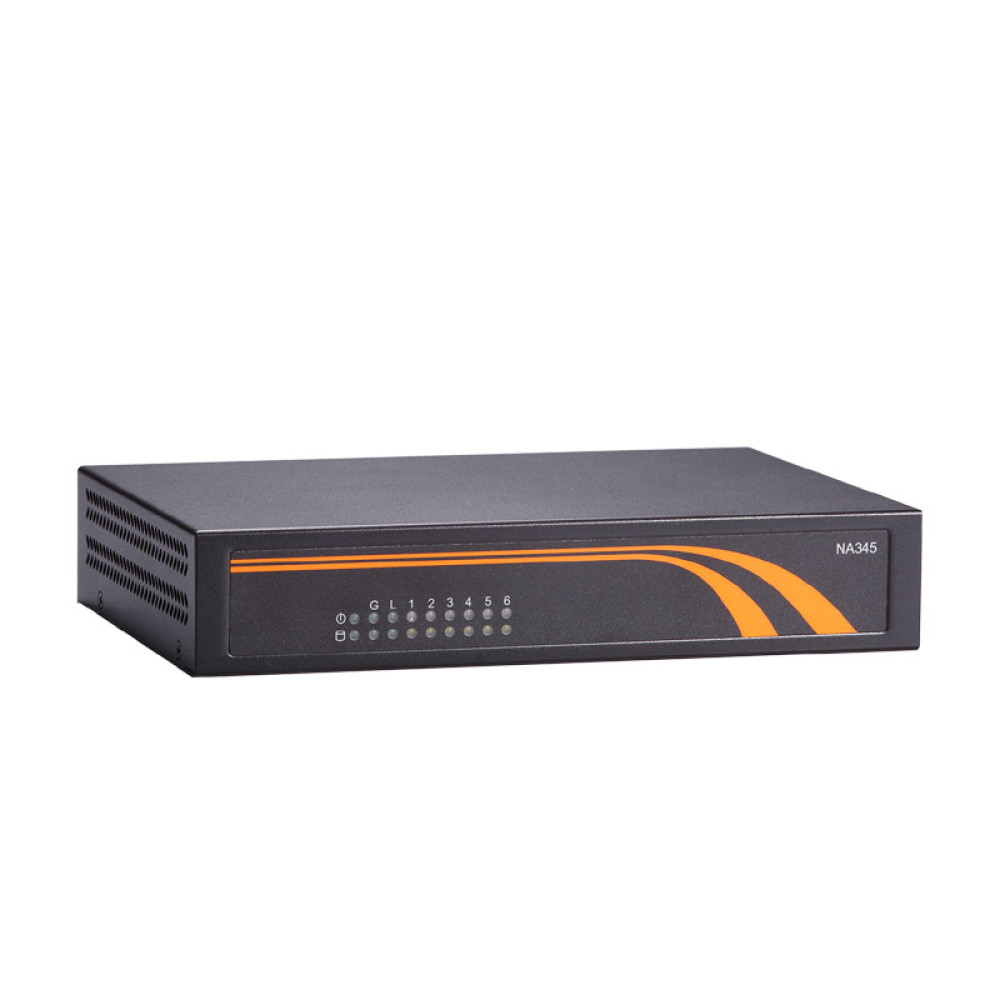

Axiomtek NA345 Desktop Network Appliance with Intel Celeron N3350/J3455

Axiomtek NA345 Compact Desktop Network Appliance, 2 USB & 4 LAN Ports

The NA345 is a compact network security appliance featuring the latest Intel Celeron Processor N3350/J3455 (codename: Apollo Lake) with 14 nm silicon process technology. Four gigabit Ethernet ports with Intel i211 controller are integrated into this unit. The desktop network appliance supports one DDR3L-1600 SO-DIMM slot with a maximum of up to 8GB memory. For storage, it also provides one mSATA and 2.5” SATA hard disk drive. This slim type Intel Apollo Lake network appliance is an ideal solution for VPN, content filtering, UTM, network security gateway, and firewall.

The compact NA345 equipped with extremely low power processor and high system stability delivers significant benefits in performance and TCO, giving users increased ROI and competitive advantages. To enhance reliability, the new NA345 supports data protection via one group latch-type LAN bypass function for fail-over option and features BIOS redirection to console port. It also has acquired EN 60950-1, FCC Class B and CE Class B certifications. The NA345 has a slim type design, which measures 44 mm x 231.9 mm x 152 mm, for use in condition-limited environments. Upgrading your networking solution with Axiomtek’s NA345 will bring you great value with flexibility, scalability and field-proven reliability.

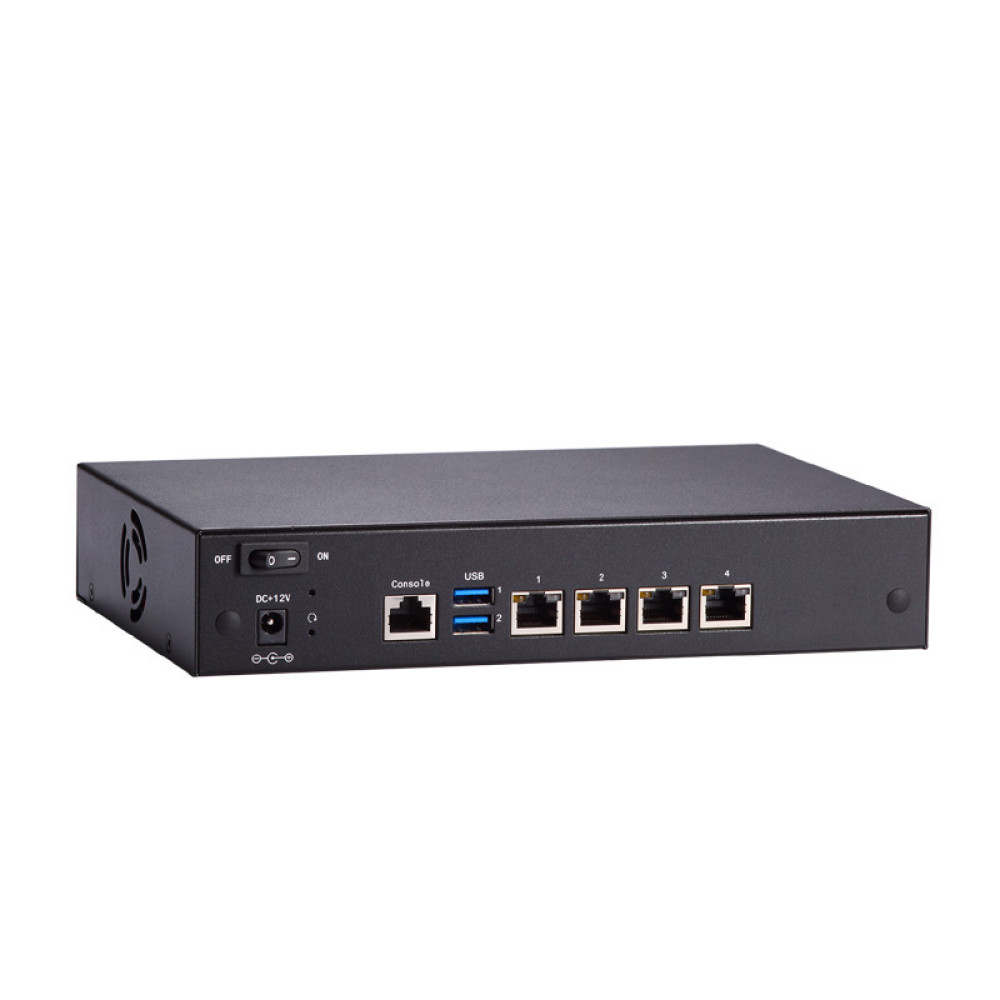

The cost-efficient NA345 incorporated a pair of USB 3.0 ports, a serial console port, and an HDMI port. Internal PCI Express Mini Card socket enables the addition of Wi-Fi, 3G, or LTE wireless cards. Front-facing LED indicators are available for convenient monitoring of power, hard disk status, link activity with transfer rate, and LAN bypass. To ensure reliable operation, the NA345 supports a watchdog timer. This desktop network communication platform is compatible with Win 10 and Linux (Yocto project).

Key Features

• Intel Celeron processor N3350/J3455
• 1 DDR3L-1600 SO-DIMM for up to 8GB of memory
• 4 GbE RJ-45 LAN ports (Intel I210)
• 1 PCIe Mini Card slot for optional mSATA
• 2 PCIe Mini Card slots for Wi-Fi and LTE modules
• Suitable for VPN, network bandwidth control, and firewall applications

Configurations (Call for pricing)

NA345-D4GI-N3350-US, Network appliance with Intel Celeron N3350, 4 LAN, without LAN Bypass and TPM
NA345-D4GI-J3455-US, Same as above with Intel Celeron J3455

Optional Accessories (Call for pricing)

1. DB9F-RJ-45 1.8M console cable for Cisco
2. Rack mount kit
