Axiomtek NA345R Rackmount Network Appliance with Intel Celeron N3350/J3455

Axiomtek NA345R 1U Rackmount Network Appliance with 6 Gigabit LANs & 2 USB

The NA345R is a 1U rackmount network appliance supporting the Intel Celeron processor N3350/J3455 processor (formally codename: Apollo Lake). The reliable network security platform features six Gigabit Ethernet ports using Intel i211 Ethernet controller, and one pair of LAN bypass function. It comes with one DDR3L-1866 SO-DIMM slot with up to 8GB non-ECC memory. Optionally, one 2.5-inch SATA3 HDD and one mSATA are available for sufficient storage. Bringing high security and high reliability at a low cost, the new power-efficient network appliance is aimed for VPN, network bandwidth controller and firewall applications.

As more and more devices are connecting to each other through the internet, network security becomes a critical issue impacting almost every individual and enterprise. With a super slim design, Axiomtek’s NA345R allows stable operation with its powerful computing ability and rich OS compatibility to safeguard customers’ data and network.

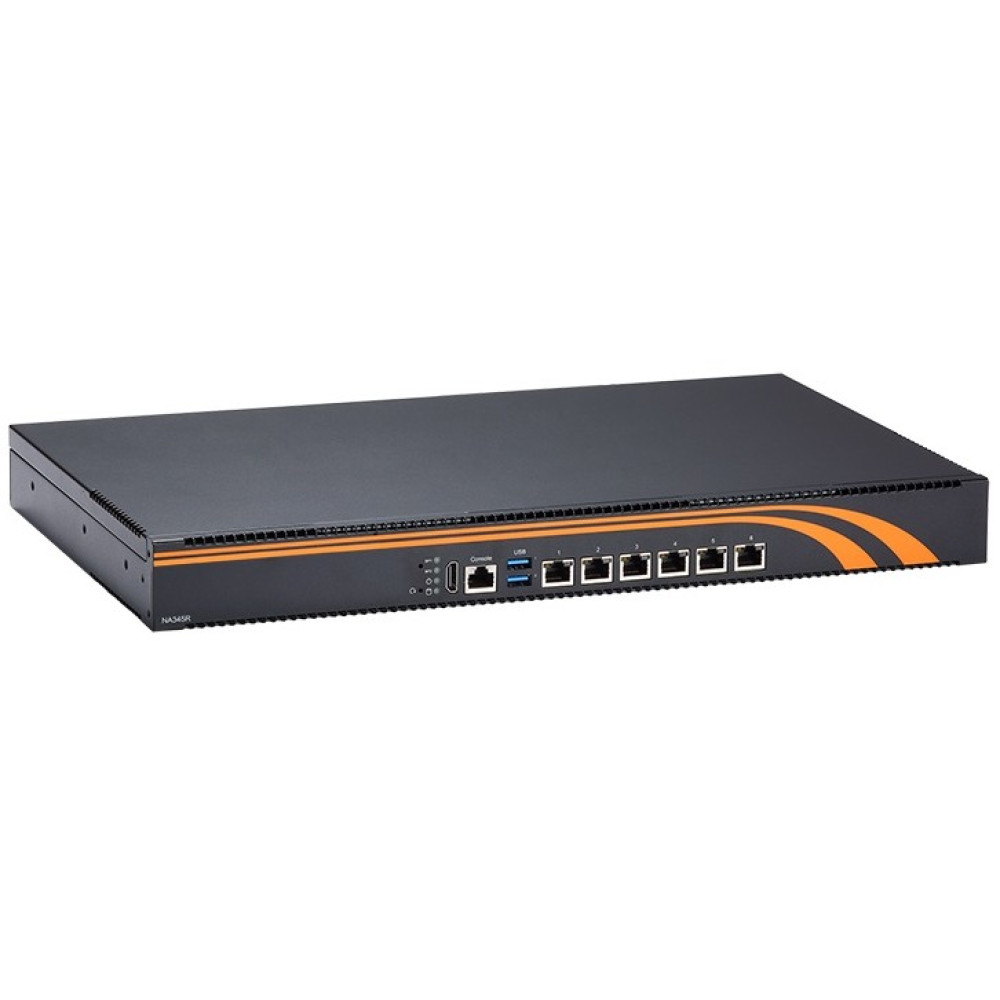

To keep the system running smoothly, the six-port 1U rackmount network appliance is equipped with a built-in watchdog timer that features 255 levels for system reset and 7 levels for LAN bypass. It comes with one HDMI port for high definition display, two USB 3.0 ports for external devices, one console port for device network management, and six RJ-45 Gigabit LAN ports for network connections. The LED indicators of the network security platform are available for convenient monitoring of power, HD, and LAN activity. The quad-core Intel Apollo Lake-based network appliance is compliant with Linux.

Key Features

• Intel Celeron N3350/J3455 processor (Apollo Lake)
• 1 DDR3L-1866 SO-DIMM, up to 8GB memory
• Six 10/100/1000 Mbps Ethernet ports (Intel i211)
• Supports one 2.5" SATA3 HDD
• Suitable for VPN, network bandwidth controller, and firewall applications

Configurations

NA345R-R6GI-N3350-US w/1LBP, Network appliance with Intel Celeron N3350, 6 LAN (6 GbE RJ45 w/1 LAN Bypass) and w/o TPM
NA345R-R6GI-J3455-US w/1LBP, Same as above with Intel Celeron J3455

In the Box

1. NA345R
2. SATA cable
3. Power cord - US
4. SATA power cable
5. 4 x Rubber feet screws for 2.5” SSD and mini card
