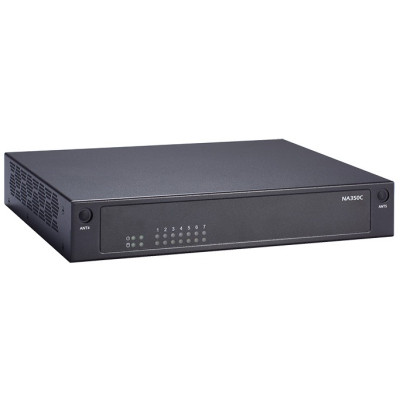

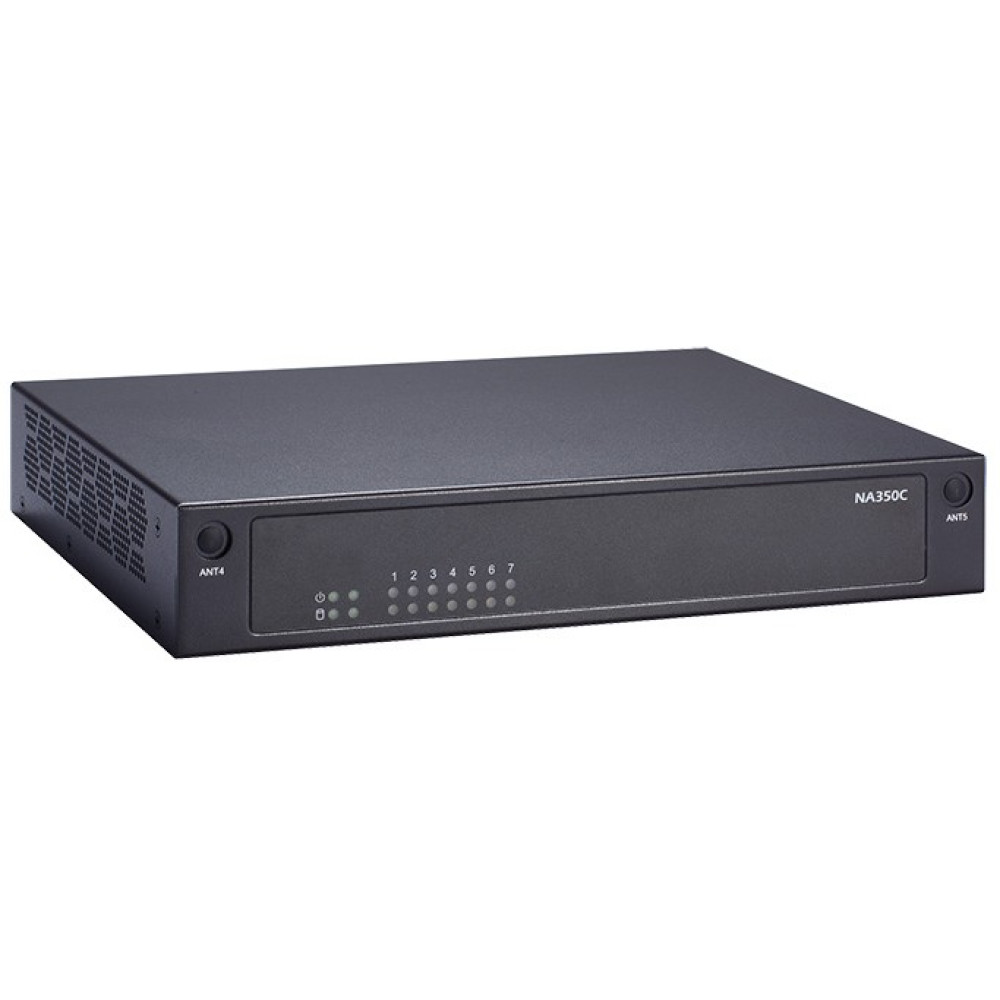

Axiomtek NA350C Desktop/1U Network Appliance with Intel Atom x6425E Processor

Axiomtek NA350C Compact & Fanless Network Appliance, Up to 7 LAN for VPN, Firewall, and UTM

The NA350C is an energy-efficient 1U desktop network appliance platform powered by low-power Intel Atom processor x6425E (code name: Elkhart Lake) for firewall, VPN, SD-WAN, and 5G gateway applications. The NA350C offers two versatile configurations: seven RJ-45 or five RJ-45 and two SFP, which support Ethernet bandwidth and provide flexible and diverse customized services. In addition, it supports Wi-Fi 6, LTE, and 5G modules with two SIM slots for stable wireless module connectivity.

The NA350C features great expandability for wireless connection: one M.2 Key B slot with NanoSIM slot for 5G NR/LTE, one M.2 Key E slot for Wi-Fi, one full-size PCI Express Mini Card slot with Nano SIM slot for LTE, and one half-size PCI Express Mini Card slot for Wi-Fi. Overall, under the durable 1U desktop form factor, the space-saving NA350C is suitable for small and medium business environments and related applications.

The trustworthy NA350C runs on Linux and comes with two DDR4-3200 non-ECC SO-DIMM sockets that can provide system memory of up to 32GB. It also offers one 2.5" SATA3 HDD and one M.2 Key M 2242 for storage expansion. The desktop network communication platform has two USB 2.0 ports, one serial RJ-type console port, one HDMI, one reset button, one screw-type DC Jack, and one power button with LED. Moreover, it supports LAN Bypass to ensure reliable operation and onboard TPM 2.0 for security enhancement. It has LED indicators for power, HDD, GPIO programmable, LAN Bypass, and Link/Act with transfer rate. The NA350C is market-ready with FCC and CE certificates and is certified by flexiWAN for SD-WAN open architecture deployment.

Key Features

• Intel Atom x6425E processor
• 2 DDR4 SO-DIMM for up to 32GB of memory
• Two 1G SFP and 2 GbE RJ-45 LAN ports (Intel® I350)
• Three 2.5G RJ-45 LAN ports (MaxLinear GPY211)
• 1 M.2 Key B slot for 5G NR/LTE
• 1 M.2 Key E slot for Wi-Fi
• 1 full-size PCI Express Mini Card slot for LTE
• 1 half-size PCI Express Mini Card slot for Wi-Fi
• Supports 2 SIM sockets

Configurations

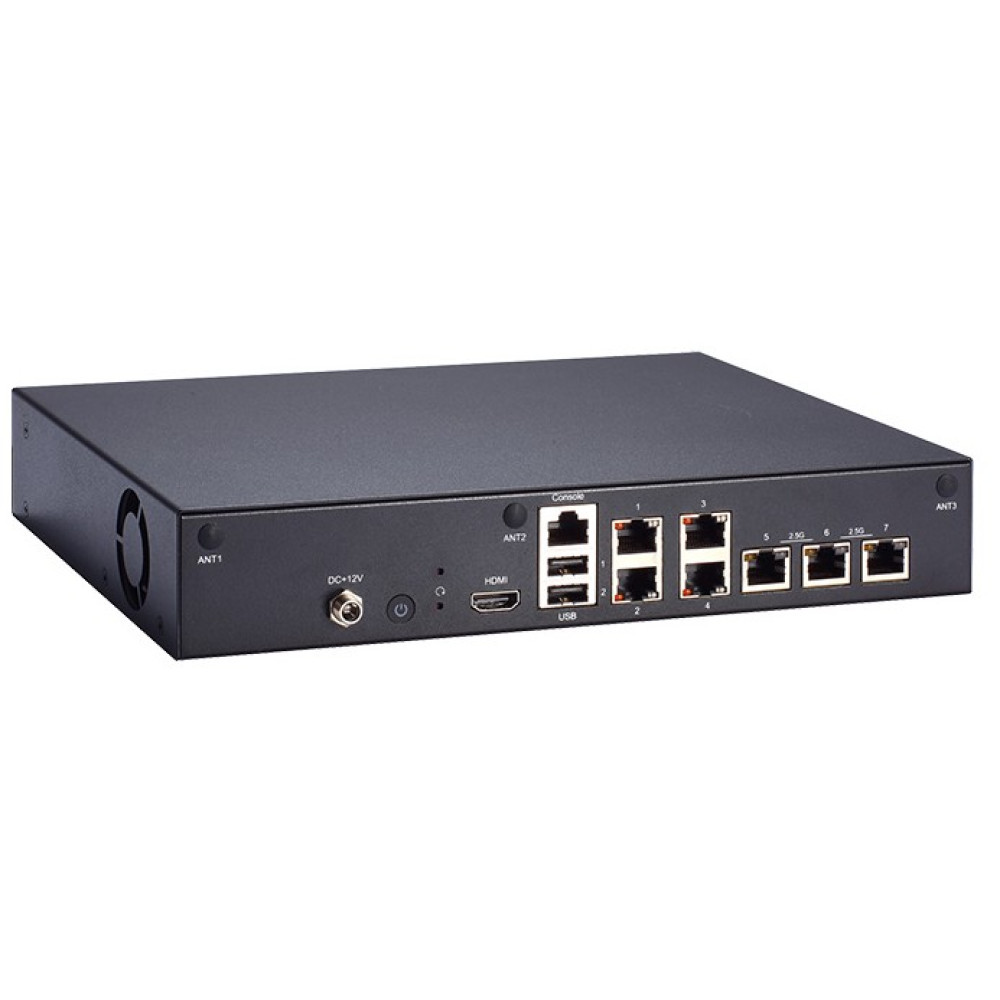

NA350C-x6425-A, Intel Atom x6425E processor, 4 GbE RJ-45 LAN, three 2.5G RJ-45 supporting 1 LBP, and TPM 2.0

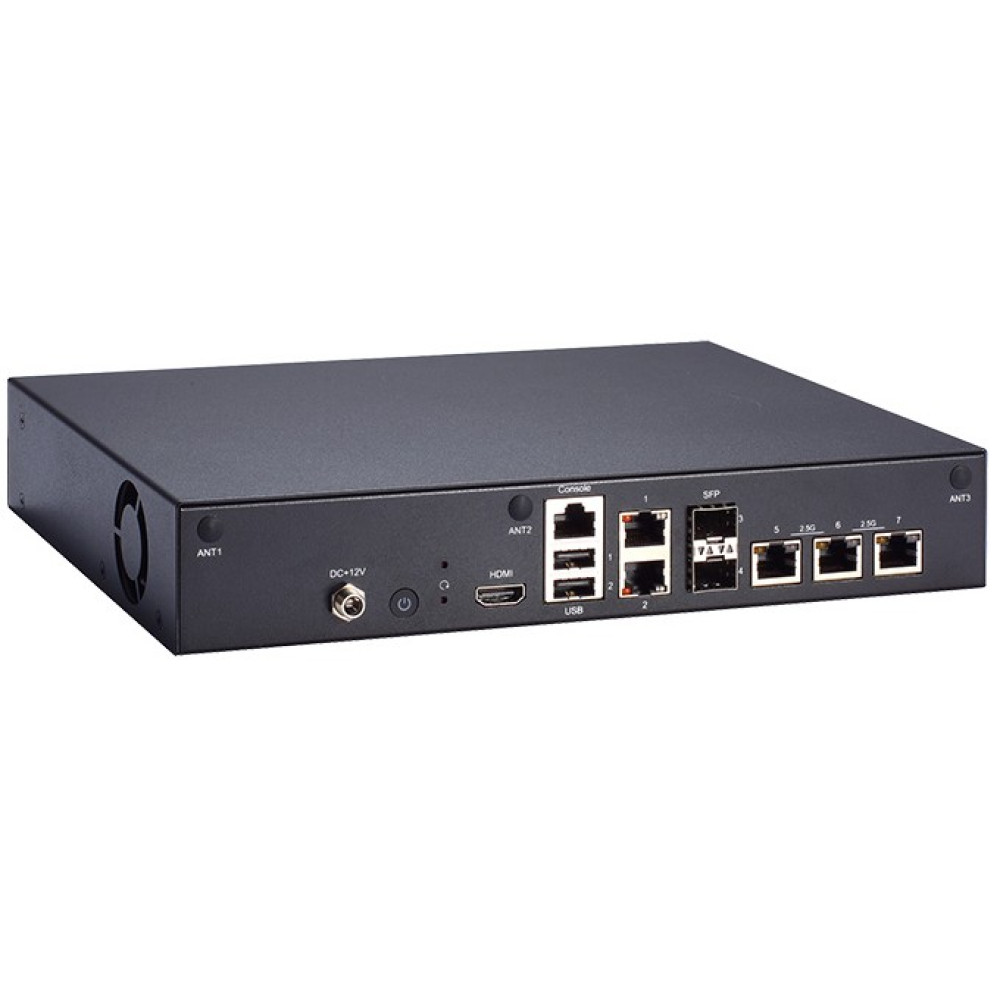

NA350C-x6425-B, Intel Atom x6425E processor, 2 GbE RJ-45 LAN, two 1G SFP, three 2.5G RJ-45 LAN supporting 1 LBP, and TPM 2.0

In the Box

1. NA350C Appliance
2. DC power adapter 12V/5A
3. Power cord - US
4. SATA cable
5. SATA power cable
6. 4 Rubber feet Screws for 2.5” SSD, M.2 and mini card

Optional Accessories (Call for pricing)

1. DB9F-RJ-45 1.8M console cable for Cisco
2. NA350C Rackmount kit semi-finished
