Axiomtek NA592 Rackmount Network Appliance for Intel Xeon or Intel Core Processor

Axiomtek NA592 Network Appliance for Security, Cloud Computing, & Data Center Applications

The NA592 is a 1U rackmount network appliance platform powered by the Intel Xeon W-1200 processor or 10th generation Intel Core processor (code name: Comet Lake) with the Intel W480E chipset. It comes with eight GbE LAN ports and two SFP ports with Intel Ethernet Controller I350-AM4 and I350-AM2, providing on-board access to Intel Virtualization Technology for Connectivity (VT-c) including on-chip QoS, Traffic Management, and SR-IOV. It also has two expandable LAN module slots that support various NIC modules for flexible port configuration including 1GbE/10GbE/25GbE/40GbE/Fiber/Copper interfaces. The NA592 designed with security, stability, and reliability is suitable for SD-WAN, next-generation firewall (NGFW), unified threat management (UTM), and WAN optimization.

The NA592 features four DDR4 2933MHz ECC/non-ECC UDIMM slots with a maximum of 128GB memory capacity. To ensure reliability, the SMB network appliance platform has 2-pair LAN Bypass functions for fail-over option and supports BIOS console redirection. It can manage numerous connected computers through the integration of two optional NIC module slots through the AX98621 I/O board to further expand the customization options, allowing for up to 26 LAN ports. The well-developed 1U network appliance platform is scalable, customizable and has great expansion capabilities.

The Intel Comet Lake-based NA592 leverages higher processor core counts which delivers breakthrough computing performance to power network applications. It is built to provide reliable operation with features such as network bypass support, redundant power supply, and TPM 2.0. To fulfill the specific needs of each network deployment, the NA592 can be expanded with an optional PCIe x8 slot for add-in card expansion, an M.2 Key E 2230 slot for Wi-Fi/Bluetooth module, an M.2 Key M 2242/2280 slot for storage expansion, a PCIe Mini Card slot for wireless network deployments, and a nano SIM socket. The network communication appliance is an ideal platform for network security, cloud computing and data centers applications.

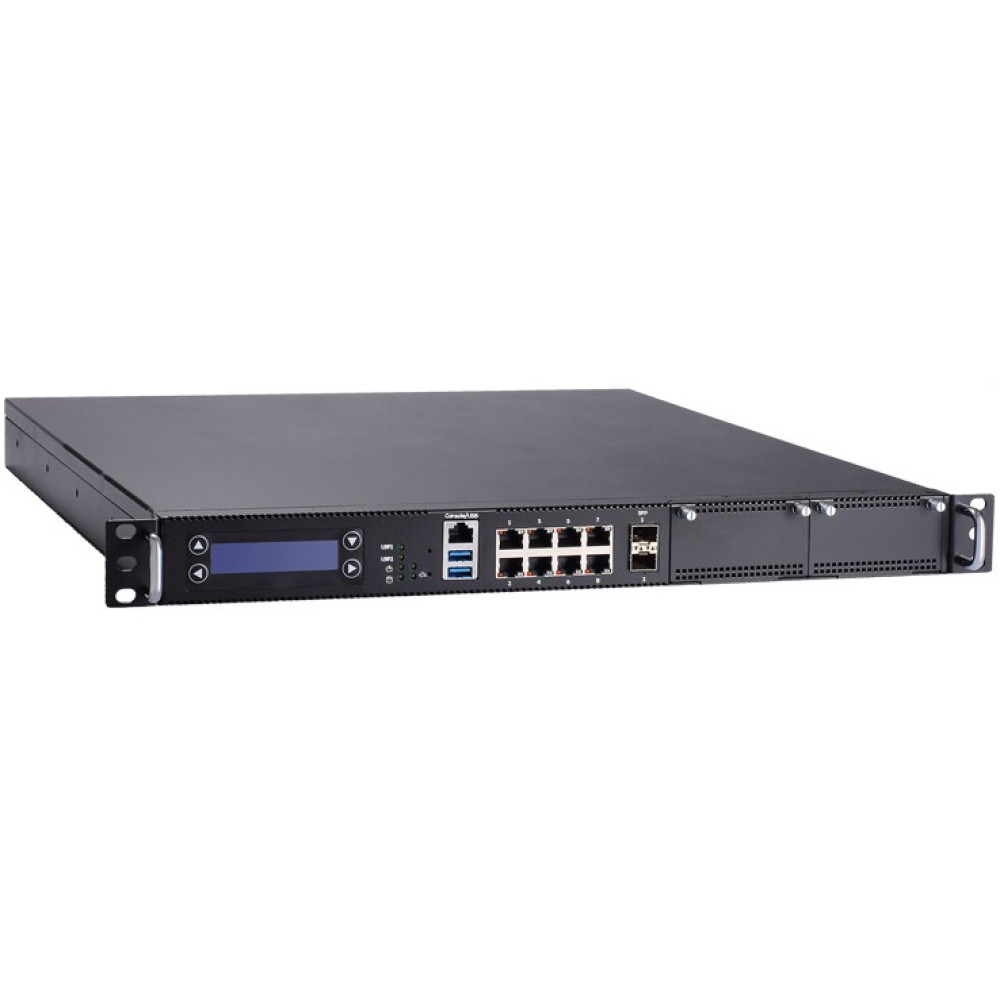

The NA592 offers two internal 2.5" SATA HDD/SSD bays and an M.2 Key B 2242 slot with support of the SATA interface. Its easily accessible I/O connectivity includes one RJ-45 type console, two USB 3.0, and one optional VGA. In addition, it has LED indicators for power/HDD/GPIO/LAN Bypass activity monitoring and one LCD module with four keypads. The high stability network security appliance system features optional Intelligent Platform Management Interface 2.0 (IPMI 2.0) to allow administrators to monitor system health and manage systems. Linux and Windows operating systems are available for the NA592.

Key Features

• 1U rackmount with redundant power supply
• Intel Xeon W-1200 or 10th Gen Intel Core i9/i7/i5/i3 processor (code name: Comet Lake)
• Intel W480E chipset
• 4 DDR4 2933MHz ECC (By CPU) or non-ECC UDIMM slots for up to 128GB of memory
• 8 GbE RJ-45, 2 SFP (Intel i350), and 2 NIC modules
• 2-pair LAN Bypass
• 2 USB 3.0
• One M.2 Key B 2242 slot and two 2.5" HDD/SSD bays
• 1 PCIe x8 FH/HL through AX96708 riser card (optional)
• 1 M.2 Key E 2230 slot (PCIe x1)
• 1 M.2 Key M 2242/2280 slot through AX98621 I/O board (optional)
• 1 PCIe Mini Card slot
• 2 smart fans

Contact Westward Sales today for more information and customized pricing on this Rackmount Network Appliance.
