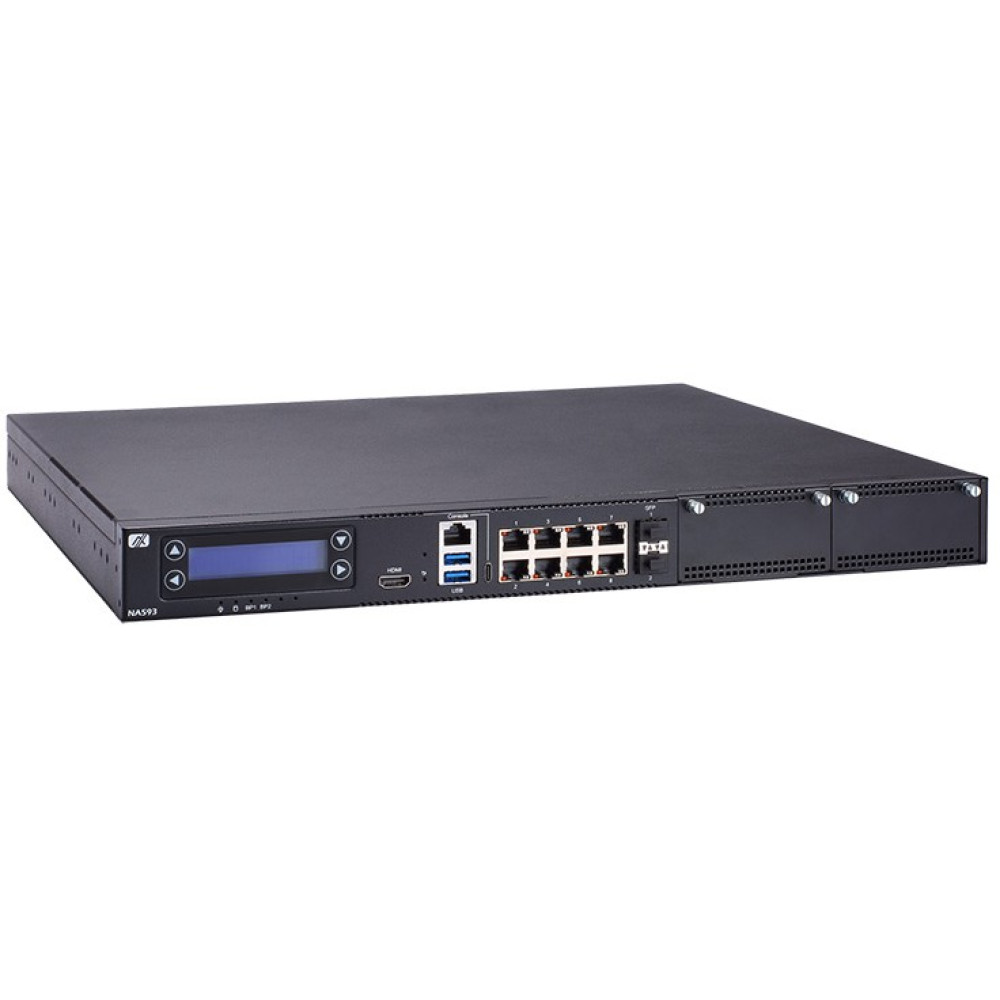

Axiomtek NA593 AI Ready Network Appliance for Intel Core, Pentium, or Celeron CPU

Axiomtek NA593 Network Appliance for Edge Network Security and UTM Applications

The NA593 is a 1U rackmount network appliance designed for network security and Unified Threat Management (UTM) applications. The flexible and reliable NA593 is also well-suited for next-generation firewalls (NGFW), intrusion detection and prevention systems (IDS/IPS), secure SD-WAN, VPN gateways, and emerging use cases such as private 5G, SASE, and multi-access edge computing (MEC).

The NA593 is powered by up to 14th Gen Intel Core processors with hybrid Performance and Efficiency cores, delivering strong performance for complex network workloads. It supports AI inference through integrated Intel UHD Graphics, accelerated by toolkits such as Intel OpenVINO and TensorFlow. Paired with the Intel R680E chipset, the NA593 supports up to 256 GB of DDR5-4400 ECC/non-ECC memory, and Intel Ethernet controllers for reliable and high-throughput networking.

Designed for critical network security applications, the NA593 combines modular LAN scalability (supporting up to 26 ports), built-in LAN bypass for uninterrupted traffic, optional redundant power supply for high availability, and onboard TPM 2.0 for hardware-level protection. It also features expansion interfaces, including one optional PCIe x8 FH/HL slot, M.2 Key M and Key B slots, and a PCIe Mini Card slot, offering flexibility for custom integration.

The NA593 delivers a scalable and AI-ready platform designed for evolving network security needs. Its high-performance Intel architecture, DDR5 scalability, and modular networking empower enterprises to build resilient, AI-driven, next-generation security systems.

Key Features

• 14th/13th/12th Gen Core i9/i7/i5/i3, Pentium, or Celeron processor
• 4 DDR5-4400 MHz ECC (By CPU) or non-ECC UDIMM, up to 256GB
• 8 GbE RJ-45, 2 SFP (Intel I350), and 2 NIC modules (optional)
• 1 PCIe x8 FH/HL (optional), 1 x M.2 Key M, 1 x M.2 Key B, and 1 x PCIe Mini Card slot
• Available with 400W single or 400W 1U redundant power supply

Contact Westward Sales today for more information and customized pricing on this Next-Generation, AI-Ready Network Appliance.
