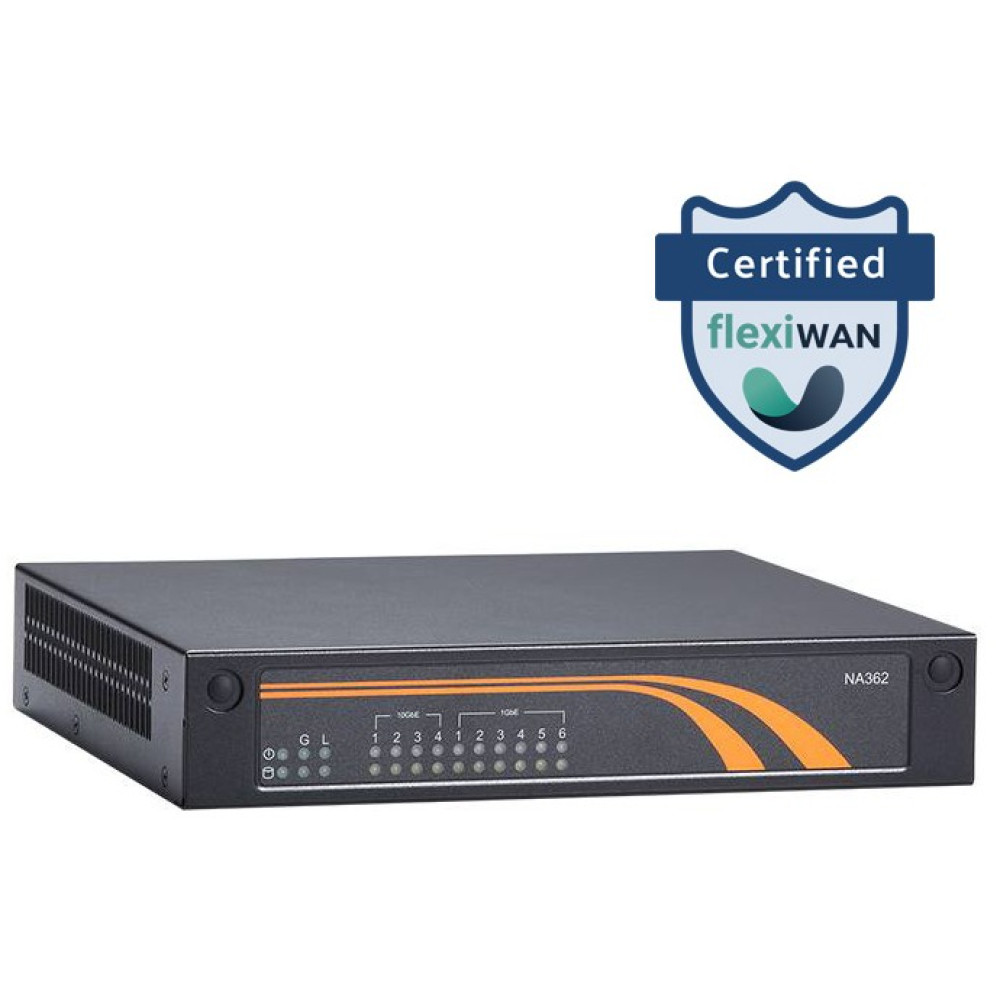

Axiomtek NA362 Desktop Network Appliance with Intel Atom C3338/C3558/C3758

Axiomtek NA362 flexiWAN Certified Compact Desktop Network Appliance, Up to 10 LAN

The NA362 is a compact network appliance platform powered by the low power consumption Intel Atom processor C3000Series (Codename: Denverton). In addition to six 10/100/1000 Mbps LAN ports, this desktop network appliance can come with four 10 GbE SFP+ fiber ports for high bandwidth and long-distance communications. The NA362 is an excellent choice for a wide array of network applications including UTM, VPN, firewall, gateway, SD-WAN and vCPE with its enhanced security and performance.

Axiomtek's Denverton–based NA362 features the Intel QuickAssist Technology (Intel QAT) for accelerated data processing including symmetric encryption and authentication, asymmetric encryption, digital signatures, RSA, DH, ECC, and lossless data compression. It also supports the Intel Data Plane Development Kit (Intel DPDK), which greatly boosts packet processing performance and throughput, allowing more time for data plane applications.

The NA362 comes with either two or four DDR4 R-DIMM/U-DIMM with 64GB or 128GB of non-buffer non-ECC/ECC memory. The slim-type network communication platform is equipped with one 2.5" SATA3 HDD and one mSATA for sufficient storage. It also supports wireless communication of Wi-Fi, 3G, LTE through a PCI Express Mini Card slot. I/O options include two USB 2.0 ports and a serial console port. To ensure reliable operation, the 10-port network platform supports a watchdog timer. Moreover, it also supports mainstream Yocto, Linux, Windows Server 2012 R2, and Windows Server 2016 operating systems.

The NA362 is featured with flexiWAN’s open-source SD-WAN and managed by the flexiWAN cloud-based central management system (SD-WAN Controller). flexiWAN eliminates vendor lock-in and breaks networking monopolies by slicing SD-WAN horizontally allowing for dynamic third-party applications to be loaded and run in the router or in the central management system.

Key Features

• Intel Atom processor C3338/C3558/C3758
• 4 DDR4 R-DIMM for up to 128GB of memory or U-DIMM for up to 64GB of memory

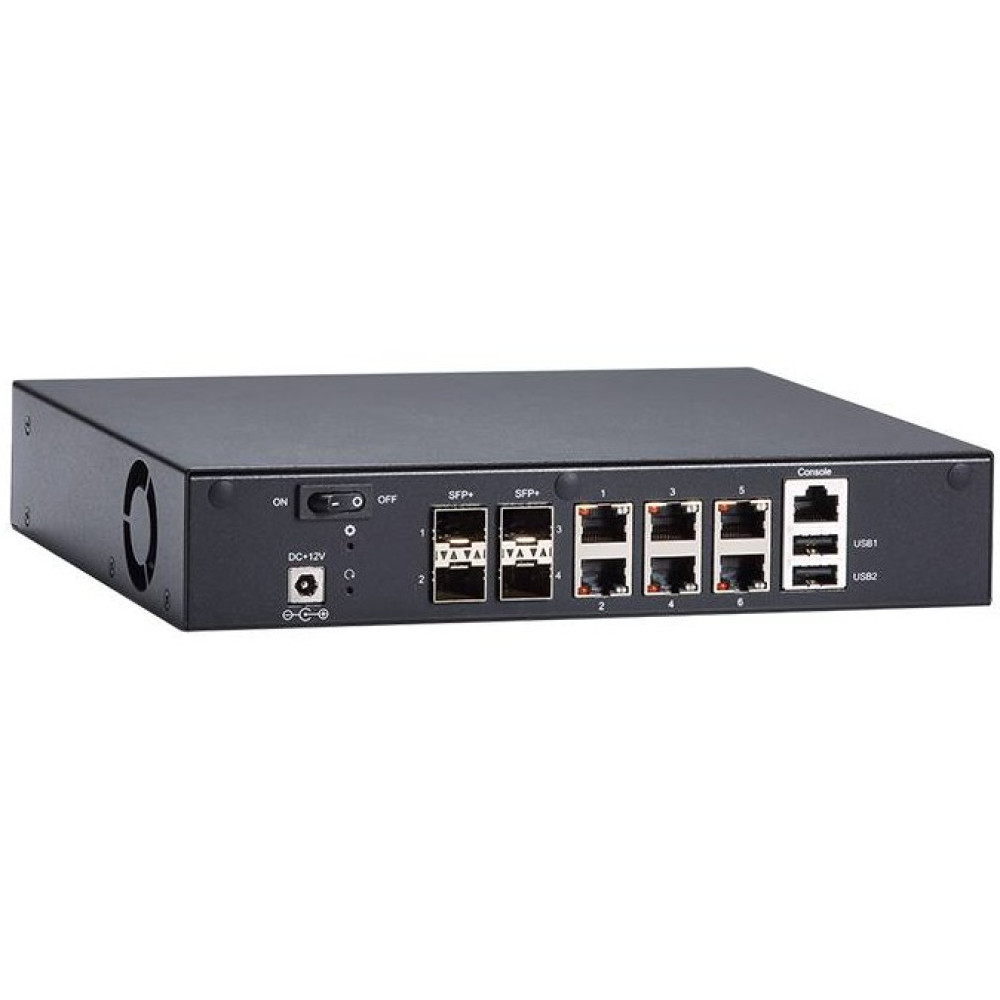

• 6 GbE RJ-45 and 4 SFP+ ports (Intel i210)
• Wi-Fi/3G/LTE through PCI Express Mini Card slot
• Supports Intel QuickAssist Technology
• Supports Intel Data Plane Development Kit (Intel DPDK)
• Suitable for VPN, network bandwidth controller, firewall and UTM applications
• flexiWAN certified

Configurations (Call for pricing)

NA362-DAMI-C3758-US w/LBP, Network Appliance with Intel Atom C3758, 6x GbE (i210AT) w/1 LAN Bypass and 4x SFP+
NA362-D8MI-C3558-US w/o LBP, Network Appliance with Intel Atom C3558, 6x GbE and 2x SFP+, w/o LAN Bypass
NA362-D6GI-C3558-US w/o LBP, Network Appliance with Intel Atom C3558, 6x GbE, w/o LAN Bypass
NA362-D6GI-C3338-US w/o LBP, Network Appliance with Intel Atom C3338, 6x GbE w/o LAN Bypass

Optional Accessories (Call for pricing)

1. DB9F-RJ-45 1.8M console cable for Cisco
2. Rack mount kit

In the Box

1. DC power adapter 12V/5A (C3338/C3558) or 12V/7A (C3758)
2. Power cord - US
3. SATA cable
