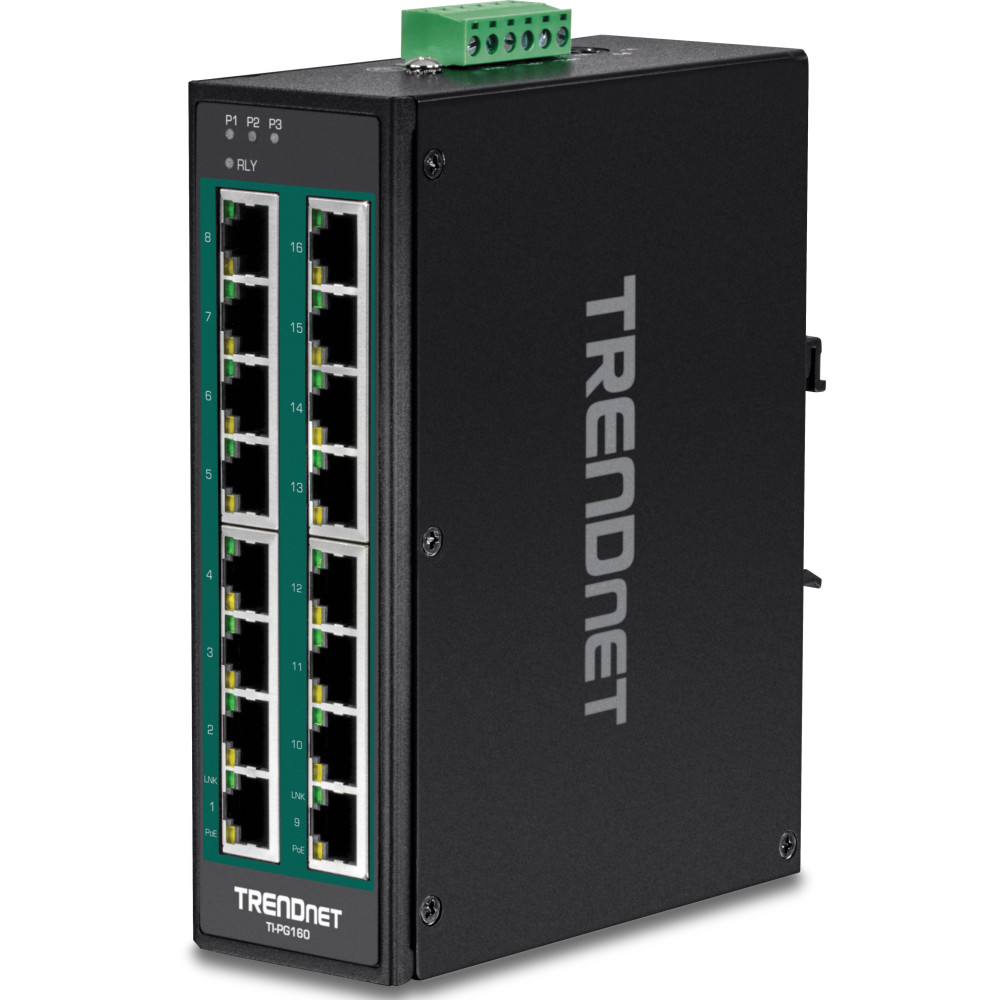

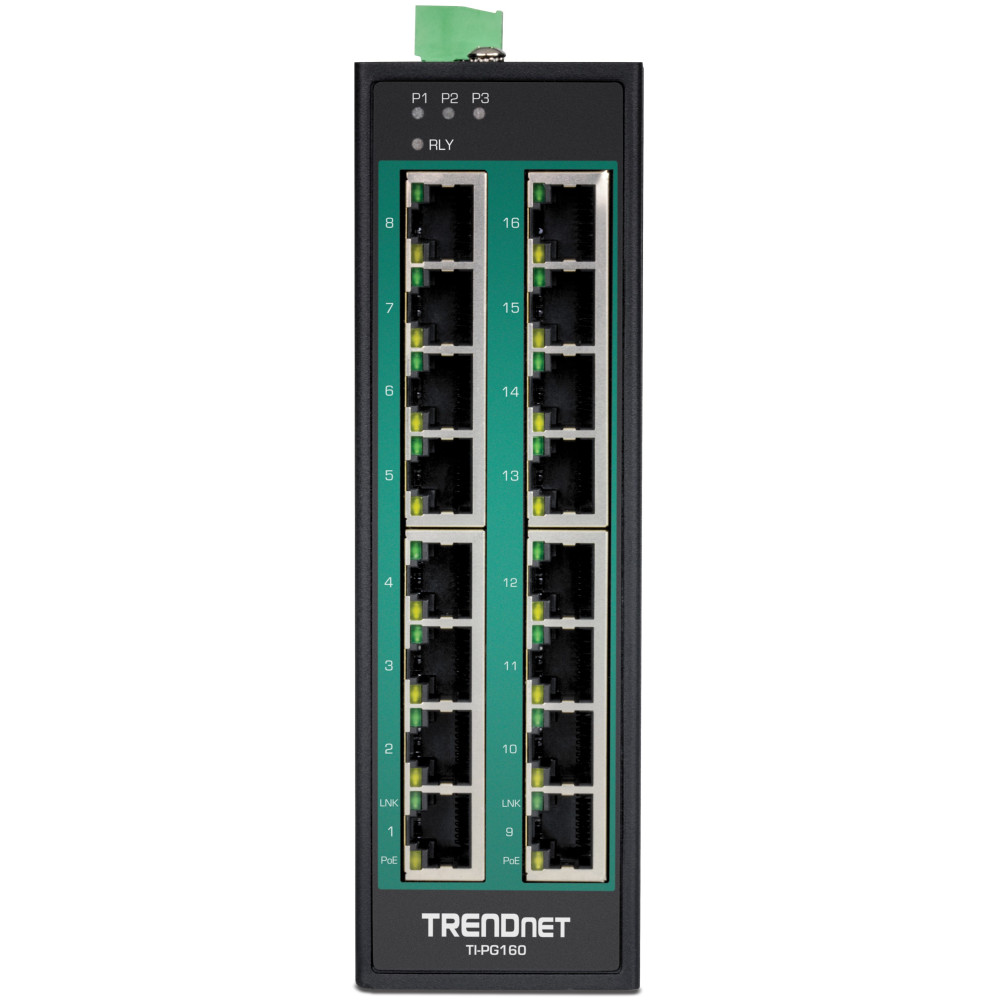

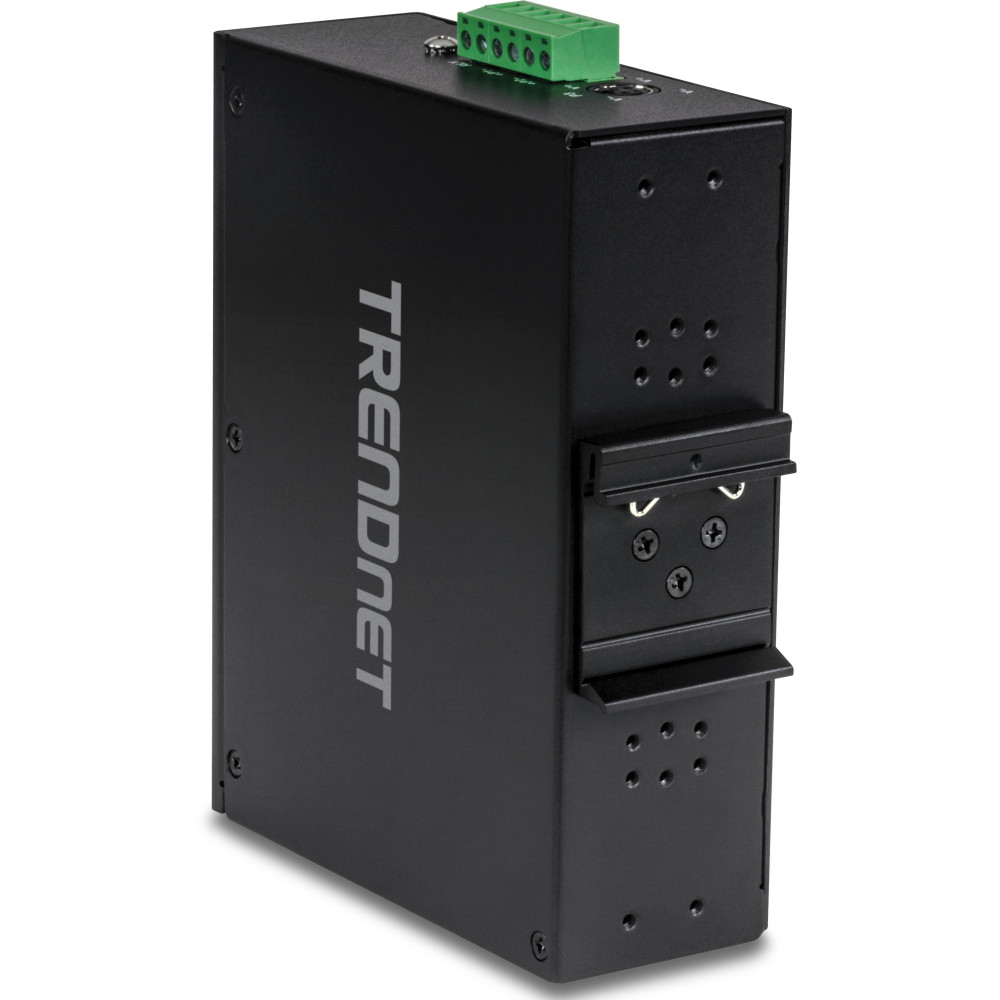

The TI-PG160 16-Port Industrial Gigabit PoE+ DIN-Rail Switch has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
Make the most of your network options. Call us today and speak with a genuine networking expert. We can discuss every option to help you build, upgrade, and perfect your network to maximize productivity and minimize cost.
| Technology | |
| Category | Ethernet Switch (PoE) |
| Total Ports | 16 |
| Ethernet Ports | 16 Gigabit PoE+ |
| Standards | IEEE 802.3, IEEE 802.3u ,IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex), Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex), Gigabit: 2000Mbps (full duplex) |
| Jumbo Frame Support | 9KB |
| MAC Table Size | 8K |
| Power | |
| Power Consumption | 5.76 W max. (no PoE) |

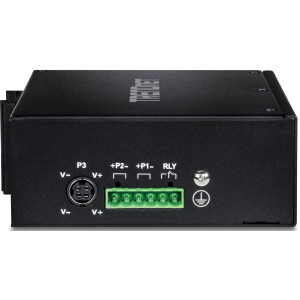

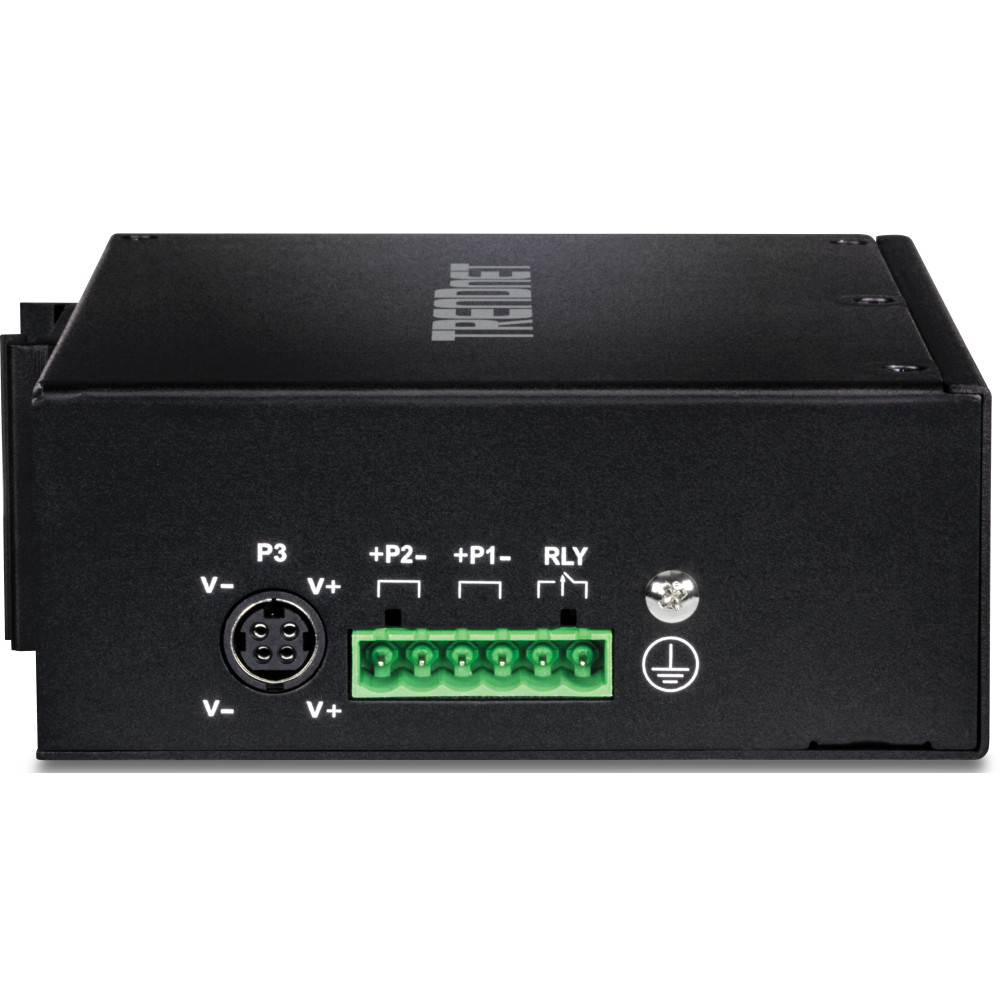

| Connection | 6-pin terminal block |
| Input Voltage | 48 – 56V DC |
| Overload Protection | Yes |
| Mechanical | |

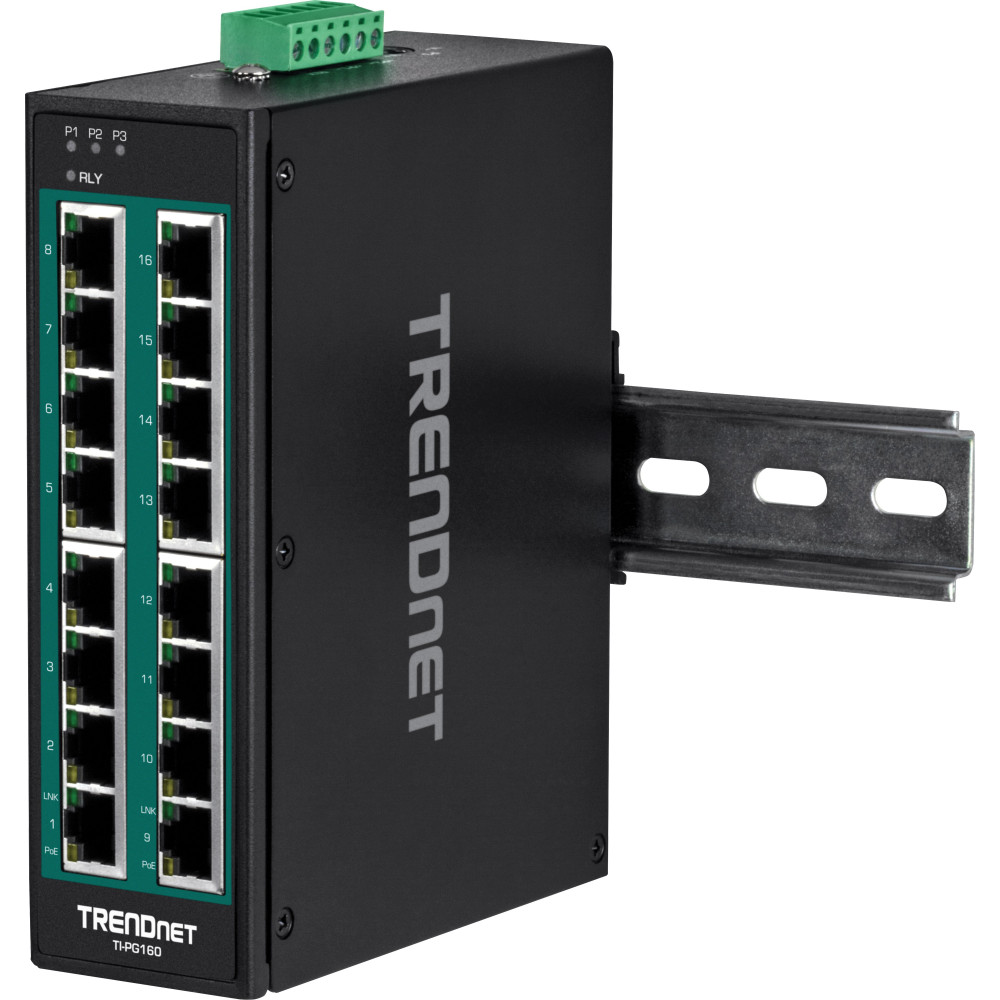

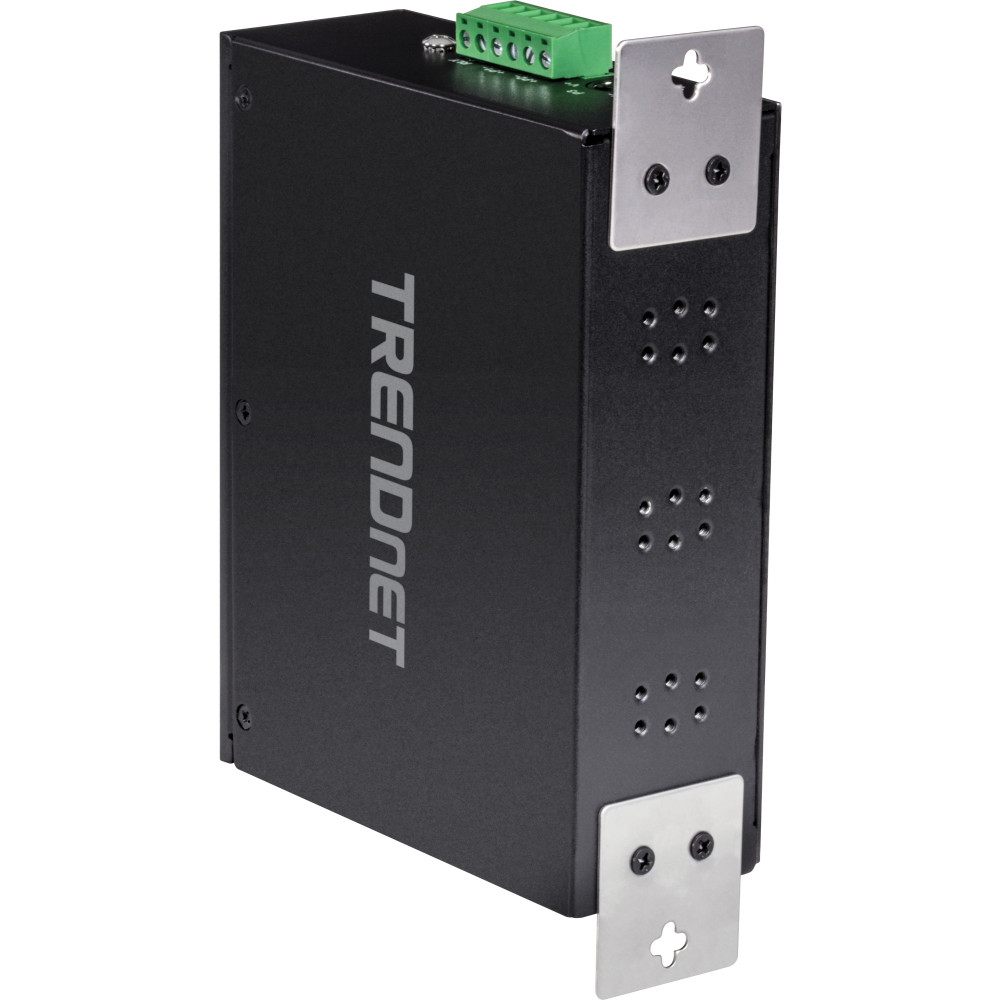

| Mounting | DIN-rail or wall mount |
| Shock / Vibration | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Material | IP30 metal case |
| Weight | 500g (17.7 oz.) |
| Dimensions | 155 x 120 x 48 mm (6.1 x 4.7 x 1.9 in.) |
| Ratings | |
| Operating Temperature | -40° - 75° C (40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | CE, FCC |
| MTBF | 699,103 hours |
| Warranty | Lifetime |
| Download Name | File Size |
| TRENDnet PoE Unmanaged Industrial Switch QIG | 5.58MB |
| TRENDnet TI-PG160 Datasheet | 3.17MB |
