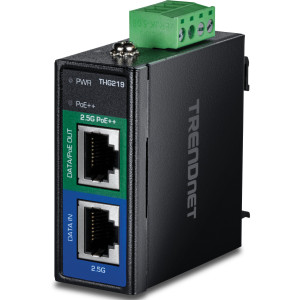

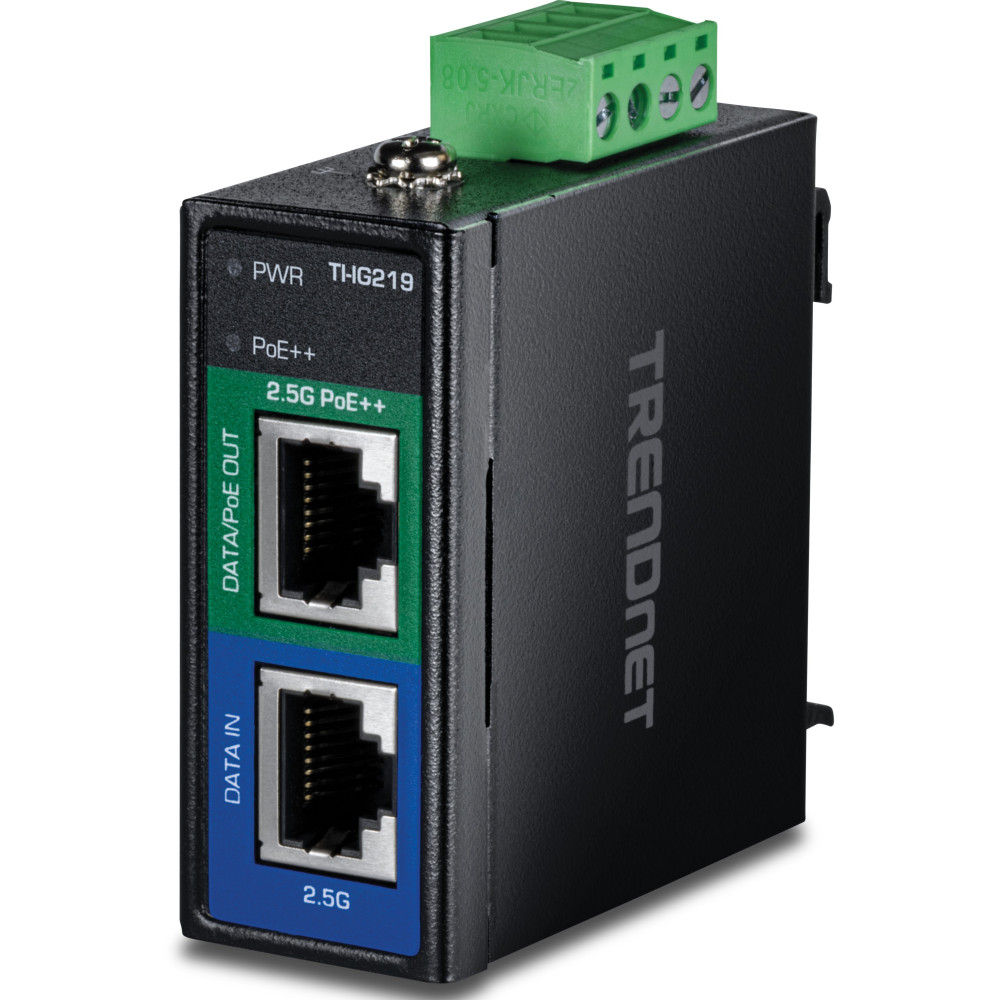

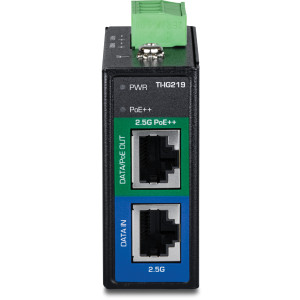

TRENDnet’s TI-IG219 Industrial 2.5G PoE++ Injector allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2.5G PoE++ injector to a non-PoE switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or PoE++ device. This multi-gig industrial PoE++ injector supplies up to 95W of power to a PoE device. The fanless design conveniently eliminates operating noise and lowers energy consumption.
The 2.5G PoE++ injector is equipped with an IP50-rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° -167° F) for harsh industrial environments. Grounding point protects equipment from external electrical surges.
Bringing high-powered Power over Ethernet equipment online is only the start. Every industrial network has challenges, and our sales staff has the experience to help with yours. Contact us today to see how we can boost your performance and reduce costs.
| Technology | |
| Category | PoE Injector & Splitter |
| Total Ports | 2 |
| Ethernet Ports | 1 2.5 Gigabit |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz |
| Functionality | PoE Injector |
| Power | |
| PoE Power Output | 95 Watts |
| Power Consumption | 2W @ 57V (with no PD connected) |

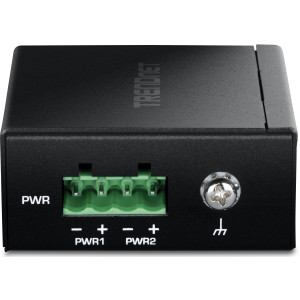

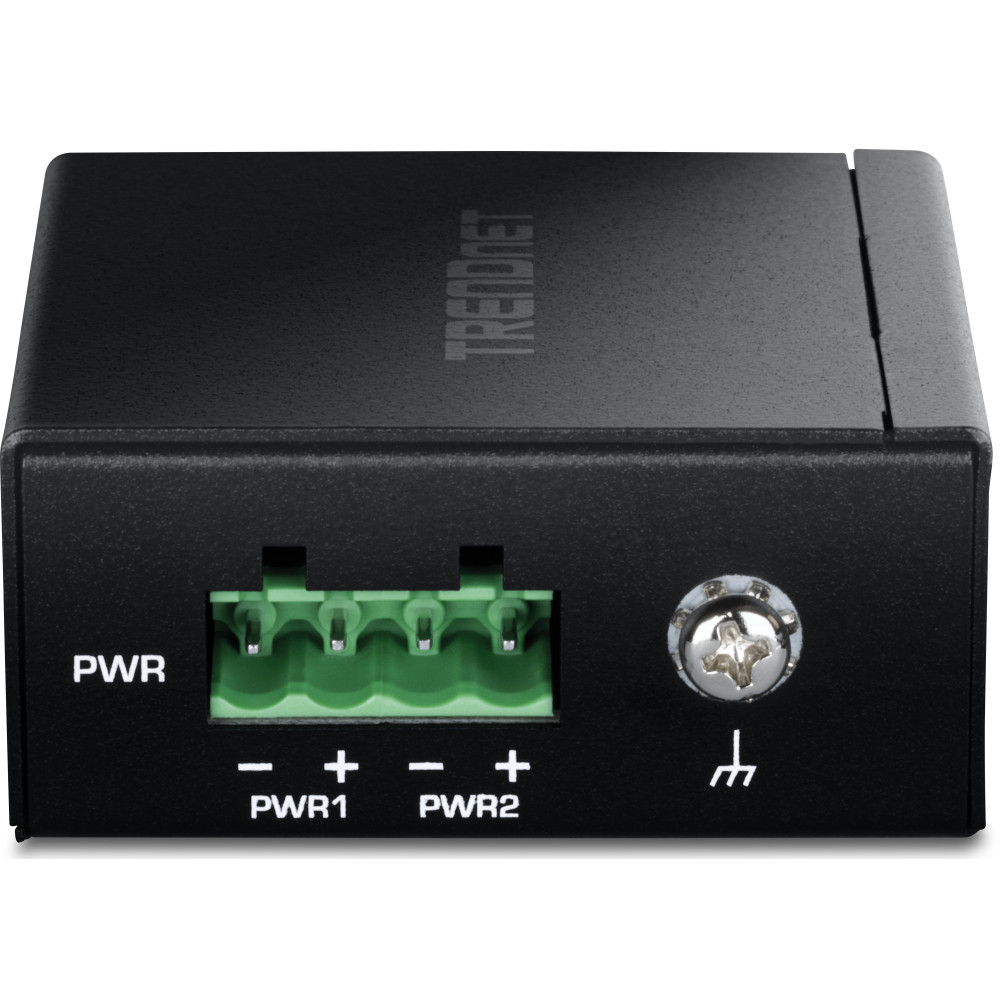

| Connection | 4-pin Terminal Block |
| Input Voltage | 48 - 57 VDC |
| Surge Protection | Yes |
| Overload Protection | Yes |
| Mechanical | |
| Enclosure | Metal, IP50 Protection |

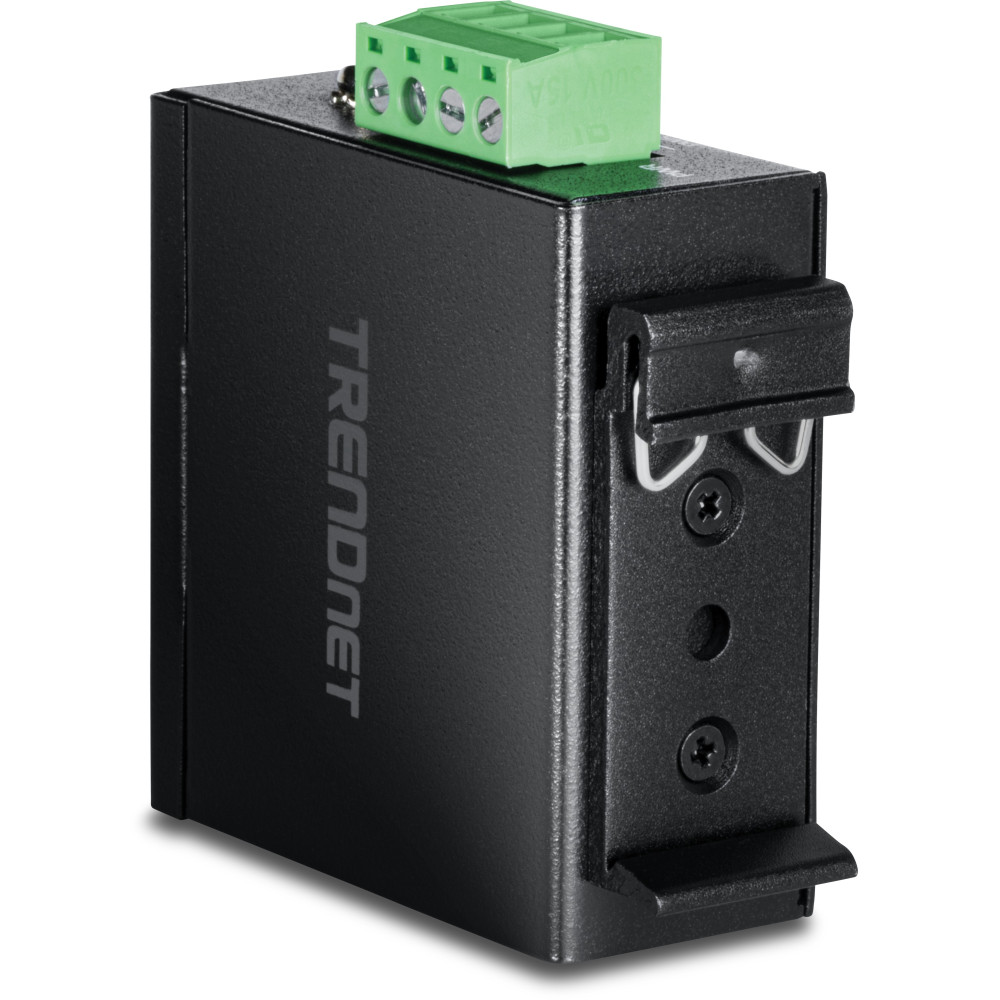

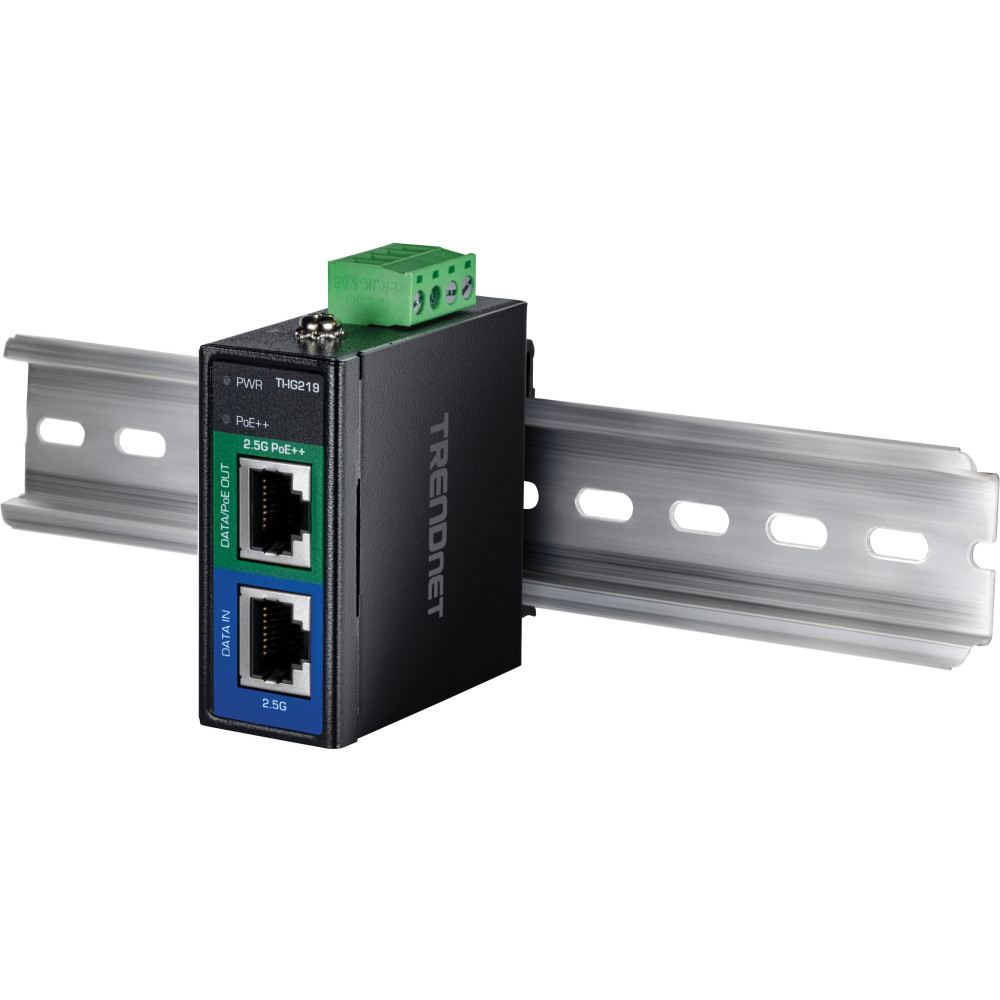

| Mounting | DIN-Rail & Wall Mounting |
| Shock / Vibration | IEC 60068-2-27, IEC 60068-2-6 |
| LED Indicators | Power and PoE |
| Weight | 134g (4.72 oz.) |
| Dimensions | 60 x 58 x 26mm (2.36 x 2.28 x 1.02 in.) |
| Ratings | |
| Operating Temperature | - 40° - 75° C (-40° - 167° F) |
| Humidity | 95% non-condensing |
| RoHS Compliant | Yes |
| Certifications | FCC, CE, LVD, Freefall (IEC 60068-2-31), IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| Warranty | 3 Years |
| Download Name | File Size |
| TRENDnet TI-IG30/TI-IG90/TI-IG215/TI-IG219/TI-IG319 QIG | 4.86MB |
| TRENDnet TI-IG219 Datasheet | 3.17MB |
