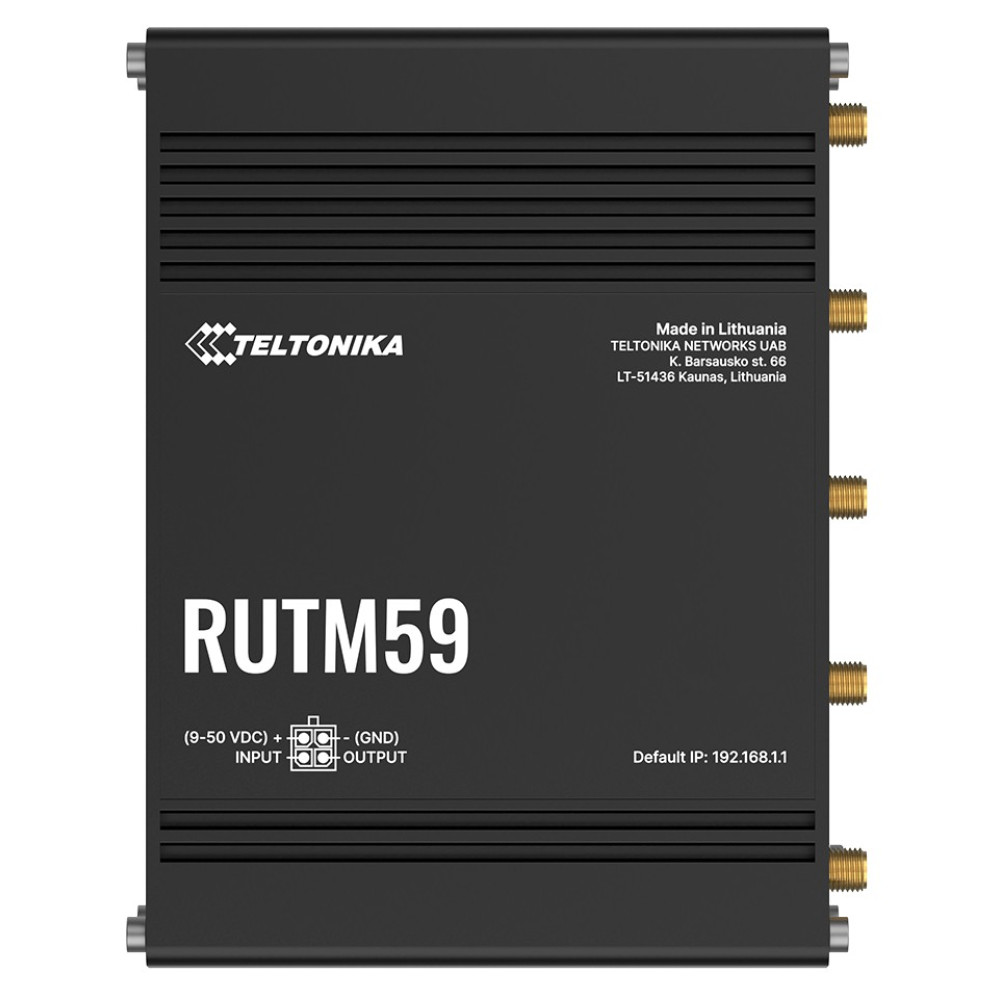

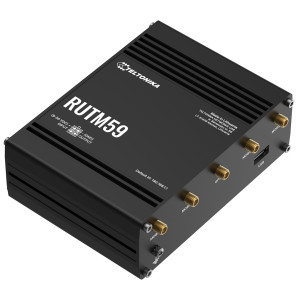

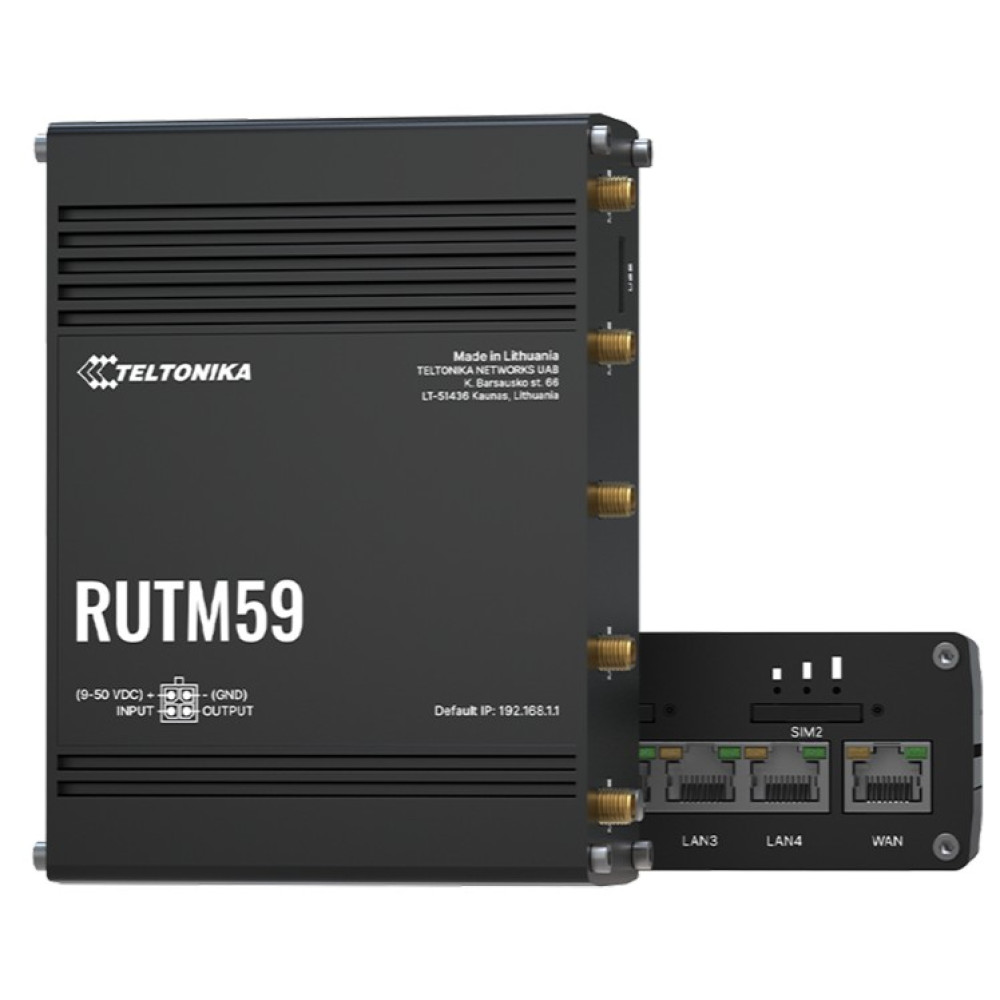

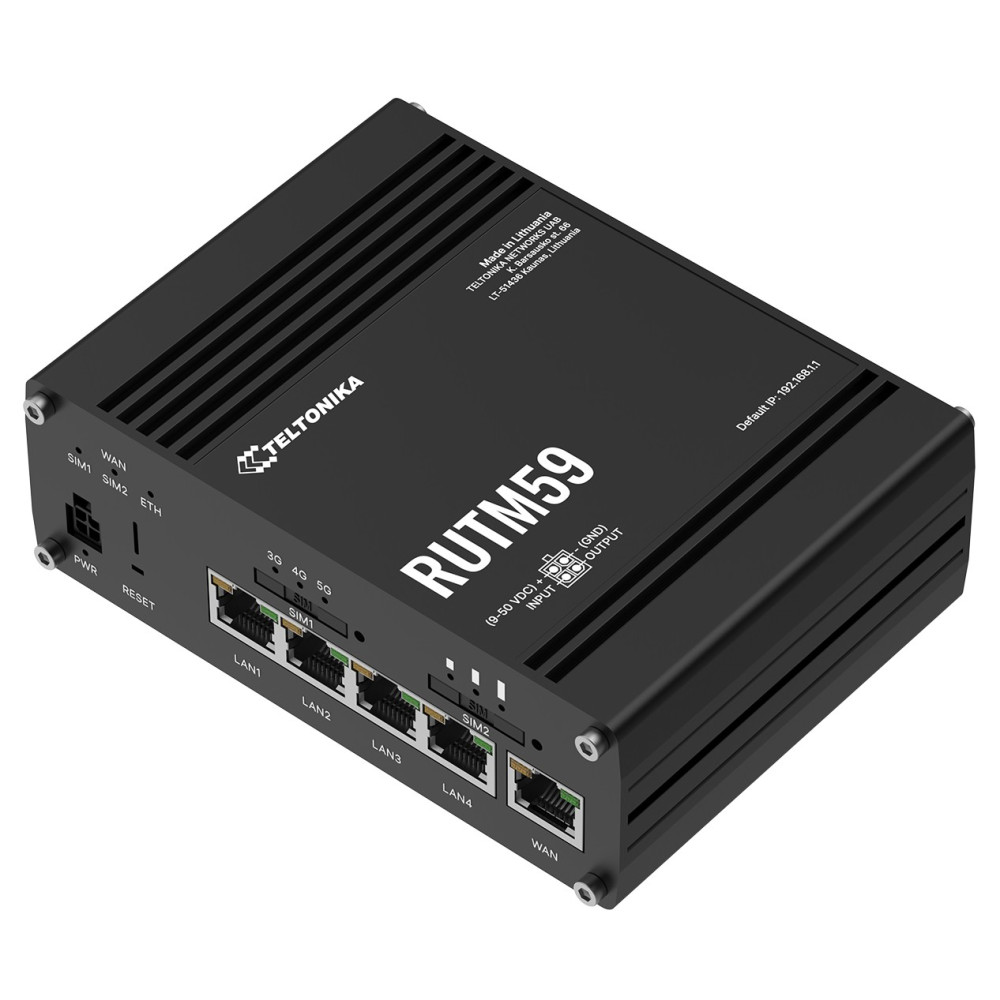

The RUTM59 is a cellular 5G router with ultra-high cellular speeds of up to 3.4 Gbps. This 5G router features dual SIM slots with auto-failover, backup WAN, and other switching scenarios. The RUTM59 is equipped with five Gigabit RJ45 ports, supports both SA and NSA 5G architectures, and is backward compatible with 4G (LTE Cat 19) - ensuring a fast, uninterrupted connection and long-term expandability at affordable pricing.
Enable your RUTM59 with a cost-effective monthly data plan to ensure your router is ready to deploy. Select Verizon, T-Mobile, or AT&T, and the data plan size from 100 MB to Unlimited GB. You are billed monthly; there’s no long-term contract. Plus, manage all of your fielded gateways from a single cloud-based web portal.
You can purchase a SIM card from this page. It will be mailed to you in 2 to 3 business days. After you receive your card, sign up for a data plan at Mobility Help Desk. The set up instructions are on this page.
The RUTM59 includes four LTE antennas and a GPS antenna. For mobile and industrial applications, consider these high-performance antennas listed on these pages:
4-in-1 (4x4 MIMO LTE) combo antennas
5-in-1 (4x4 MIMO LTE and GPS) combo antennas
The RUTM59 satisfies your networking needs without breaking the bank. If you’d like to see that principle applied to all of your networking equipment, then spend a little time with one of our expert representatives. With a wide variety of hardware devices, we save you the monotony of browsing catalogs. We’ll strive to get a perfect equipment match to your requirements, every time.
| Technology | |
| Category | Cellular Router |
| Ethernet Ports | 5 Gigabit Ethernet (10/100/1000) |
| Industrial Protocols | MODBUS TCP master / slave |
| Computing | |
| CPU | MediaTek MT7621A, Dual-Core, 880 MHz, MIPS1004Kc |
| System Memory Configuration | 16 MBytes Flash, 256 MBytes DDR3 RAM |
| Operating Systems | RutOS (OpenWrt based Linux OS) |
| Cellular Interface | |
| Carrier | Verizon, AT&T, T-Mobile |
| SIM Holder | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Networks | 5G Sub-6 GHz SA, NSA 2.4, 3.4Gbps DL (4x4 MIMO) 900, 550Mbps UL (2x2 MIMO); 4G LTE: DL Cat 19 1.6Gbps (4x4 MIMO), UL Cat 18 200Mbps |
| Network Management | |
| Firewall Features | Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64 |
| Authentication | Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator |
| VPN Features | IPsec (IKEv1, IKEv2, 4 x VPN IPsec tunnels with 5 encryption methods - DES, 3DES, AES128, AES192, AES256), L2TP, PPTP, GRE, OpenVPN (multiple clients and server can be running simultaneously, 12 encryption methods), Stunnel, SSTP |
| QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, IEEE 802.11e |
| System Configuration | WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS |
| Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Reliability | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Wireless | |
| Antenna Type | 4 x SMA for Mobile, 1 x SMA for GNSS included |
| Interfaces | |
| LAN Ports | 1 WAN and 4 LAN |
| Digital IO | 1 digital output and 1 digital input on 4-pin connector |
| Power | |
| PoE Power Output | Passive PoE over spare pairs. Possibility to power up through LAN port (NOT compatible with IEEE802.3af and 802.3at/bt) |
| Power Consumption | 5 W idle, 18 W maximum |
| Connection | 4-pin industrial DC power socket |
| Input Voltage | 9 to 50 VDC |
| Mechanical | |
| Connector Type | 4 SMA for LTE, 1 SMA for GNSS |
| Enclosure | Aluminum, IP30 |
| Mounting | DIN rail, wall mount, flat surface (all require additional kit) |
| LED Indicators | 3 x WAN status LEDs, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x Ethernet port status LEDs, 1 x Power |
| Weight | 530 g |
| Dimensions | 44.2 x 132 x 95 mm (H x W x D) |
| Ratings | |
| Operating Temperature | -40° to 75°C |
| Humidity | 10 to 90% non-condensing |
| Certifications | FCC |
| EMC | 47 CFR Part 15 Subpart B, ICES-003: Issue 7 (October 2020) |
| Warranty | 2 years |
| Download Name | File Size |
| Teltonika RUTM59 Datasheet | 1.68MB |
| Teltonika RUTM59 Flyer | 3.02MB |
